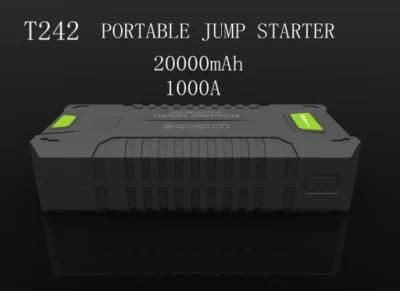

Auto Parts Car Jump Starter Power Pack
Shenzhen Source Pack Co., Ltd.- Certification:un38.3, FCC, RoHS, CE
- Battery Type:Lithium-ion
- Output Voltage:12V
- Input:15V,1A
- Peak AMPS:1000A
- Capacity:20000mAh
Base Info
- Model NO.:T242
- Color:Black Green
- Operation Temperature:-20c-60c
- Battery:Lithium Polymer
- Weight:640g
- Charged Time:6~7h
- Type:Jump Starter
- Transport Package:Color Box +Tool Box; Master Carton, 8PCS,Carton
- Specification:182x85x45mm
- Trademark:HuaYao
- Origin:Guangdong, China
- HS Code:8507600090
- Production Capacity:30000pieces,Month
Description
DC:12-16V/15A(Max)
1 x Battery clamps
1 x Car Charger
1 x Power Adapter
1 x USB charging cable
1 x user manual
Power Pack Description

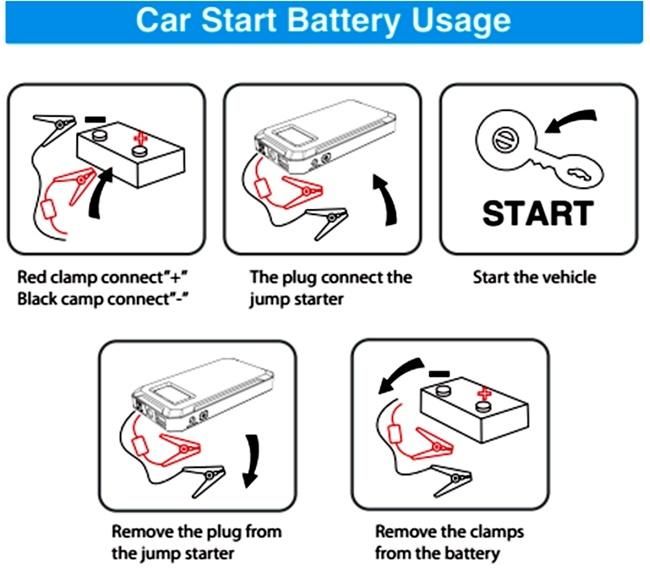

How to use a power pack?

1.ON/OFF BUTTON/FLASHLIGHT CONTROL 5.FLASHLIGHT/SOS LIGHT/BLINK
2.BATTERY CAPACITY INDICATOR 6.DUAL DC OUTPUT
3.DUAL USB OUTPUT 7.EC5 OUTPUT
4.DC INPUT CHARGING

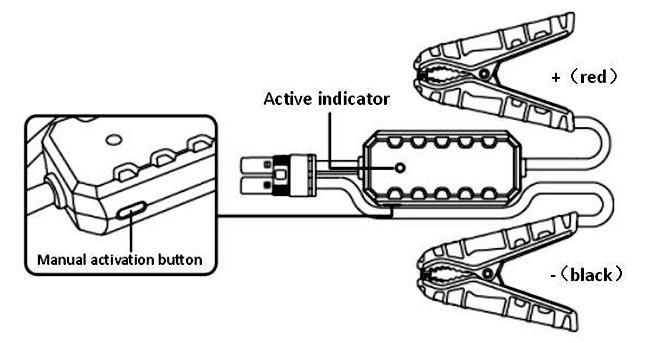

1.Green Light Blinks: Standby/Over Attempts
2.Green Light On: Ready To Jumpstart/Manual Activation Mode
3.Red Light Blinks: Low Battery Voltage/Over Temperature
4.Red Light On: ShortCircuit/Over Current/Low Jumpstart Voltage
5.Red/Green Light Blinks: Reverse Polarity
