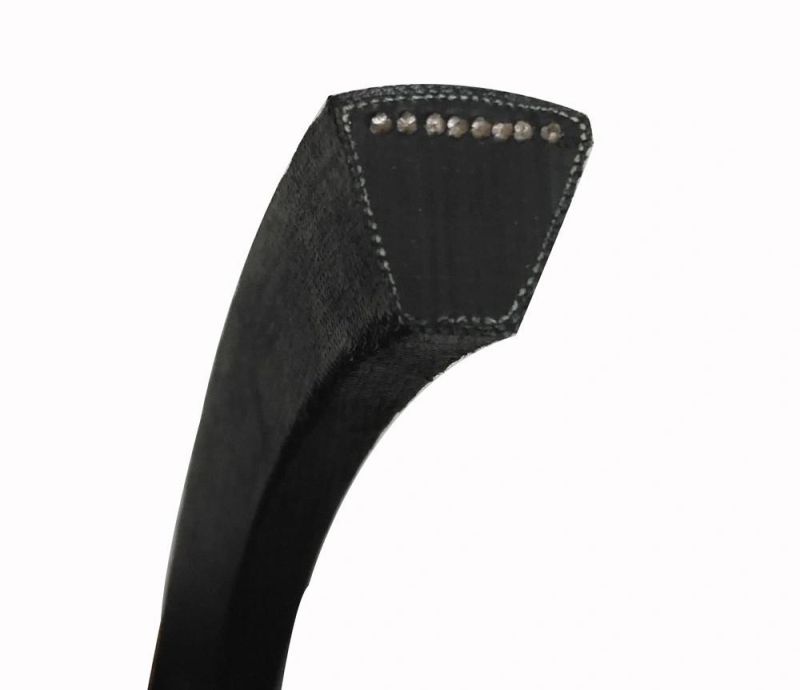

Automative Fan Rubber Raw Edge Cogged V Belt
Wuxi Sunmart Science and Technology Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Color：Black
- Certificate：ISO 9001
Base Info
- Temperature Range：-55ºC to 70ºC
- Top Rubber：Nr,SBR
- Transport Package：Carton
- Origin：China
- HS Code：4010320000
Description
TypeTop width Pitch width Height Length range Angle mm mm mm mm Z/M/FM/O 10 8.5 6 280---2480 40° A 13 11 8 330---8000 40° B 17 14 11 457---17000 40° C 22 19 14 700---17000 40° D 32 27 19 1100---17000 40° E 38 32 23 3300---17000 40°
Narrow V belt

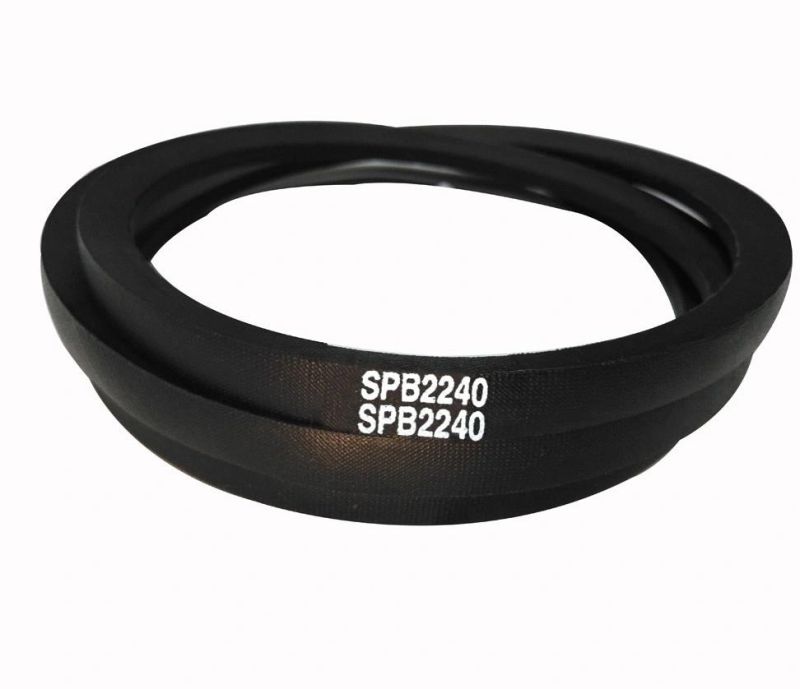

TypeTop width Pitch width Height Length range Angle mm mm mm mm 3V 9.5 / 8 375--3353 40° 5V 16 / 13.5 795---17000 40° 8V 25.5 / 23 2500---17000 40° SPZ 10 8 8 375---3353 40° SPA 13 11 10 475---7200 40° SPB 17 14 14 750---17000 40° SPC 22 19 18 1350---17000 40°
Other special types:

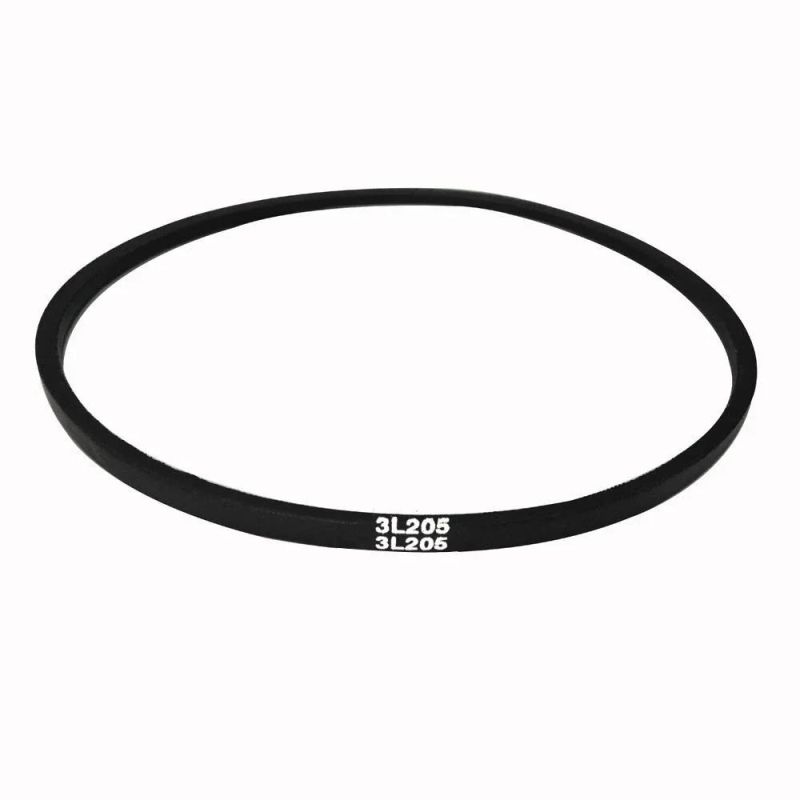

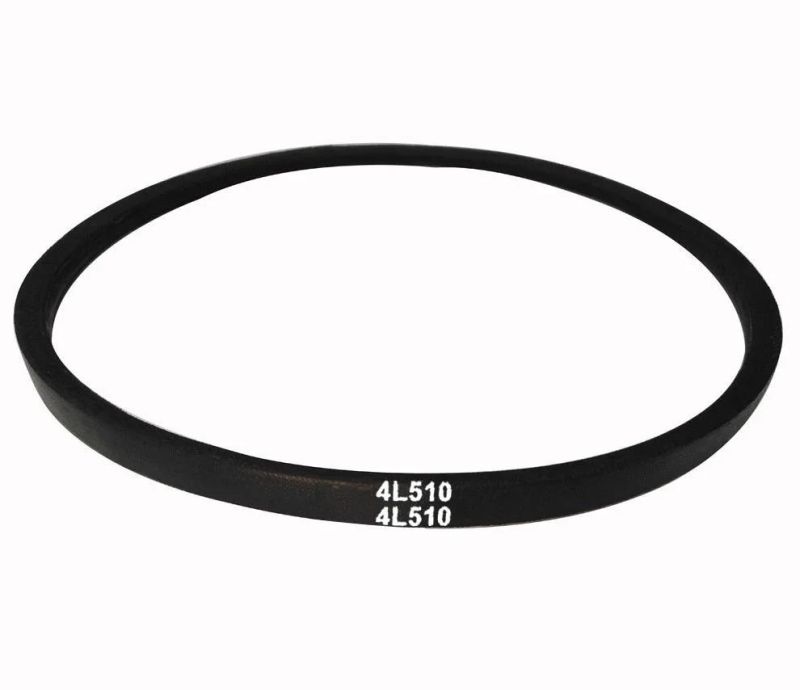

TypeTop width Pitch width Height Angle mm mm mm 3L 9.8 / 5.6 40° 4L 12.7 / 8 40° 5L 16.8 / 10.5 40° 8.5*8 10.5 8.5 8 40°

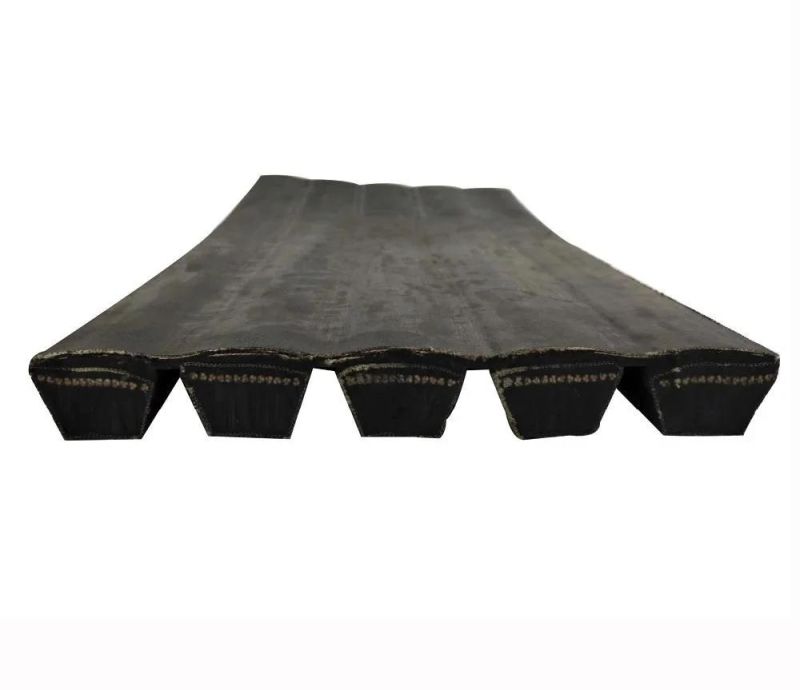

Banded Jointed Rubber V belt:
TypeTop width Height Angle mm mm RB 17 13 40° RC 22.4 16 40° RD 32.8 21.5 40° RE 38 26 40° R3V 9.7 9.7 40° R5V 15.8 15.8 40° 58V 25.4 25.4 40° RSPZ 9.7 9.7 40° RSPB 15.8 15.8 40° RSPC 22 22 40°
FAQ
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Low MOQ, 1pc for sample checking is available
Narrow V belt
Type
Other special types:
Type
Banded Jointed Rubber V belt:
Type
FAQ
Q1. Can I have a sample order for V belt?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Q3. Do you have any MOQ limit for V belt order?
Low MOQ, 1pc for sample checking is available
