P8 SMD (4 Scan) Outdoor LED Display Full-Color TV
Emoer Industry Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：P8
- Pixel Density：15625
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Stage Perfornance, Advertising,Shopping Guide
- Certification：CE, CCC
- Deliver Time：15-20 Days
- Warranty Period：2years
- Package Mode：3535
- Brightness：6500
- Drive Type：Constant Drive
- Modle Size：256mm*128mm
- Life Span：100000 Hours
- Transport Package：Waterproof Cabinet
- Specification：768mm*768mm
- Trademark：FWS
- Origin：Made in China
- HS Code：8528591090
- Production Capacity：25000sqm, Month
Description
Tehnical parameterPanel Dimension (w) 256mm*128mmH) Pixel pitch 8mm Pixel Density 15625 DOTS/M2 Pixel configuration 1R1G1B LED specification SMD 3535 Pixel resolution 32*16 dots Average power 30W Panel weight 0.25KG Cabinet&Bracket Bracket size 768mm*768mm Power supply 5V/40A*2PCS Thermal DIscharge Fan 2PCS Weight for bracket 40 KG Best viewing distance 140/120 Best viewing angle 8-40 Meter Temperature -20ºC/±50ºC Screen power supply AC220V-AC250V Max power 760W/M2 Average power 220W/M2 Tehnical parametr Driving device Constant current drive Drive type 1/4 Scanning Refresh frequency >1200HZ Display color 4096*4096*4096 Brightness 6500 mcd/M2 Life span 100000 Hours Communicaion distance <100 Meter

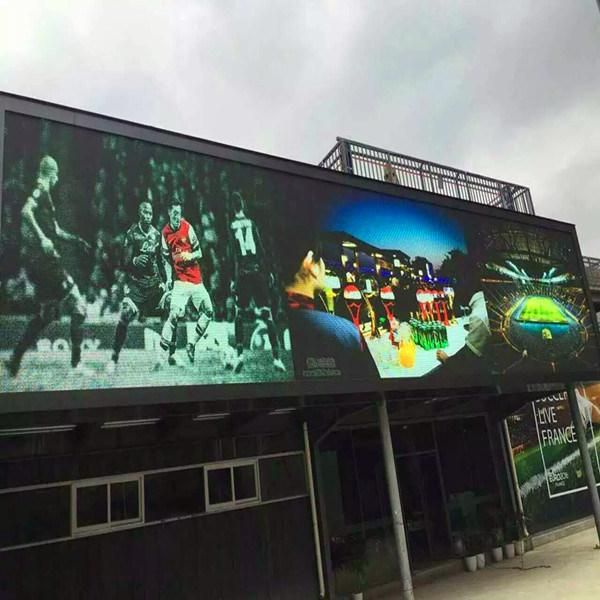

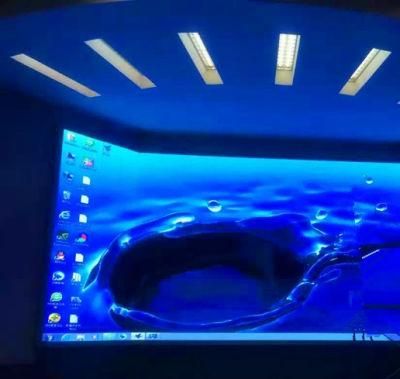

Effect Show

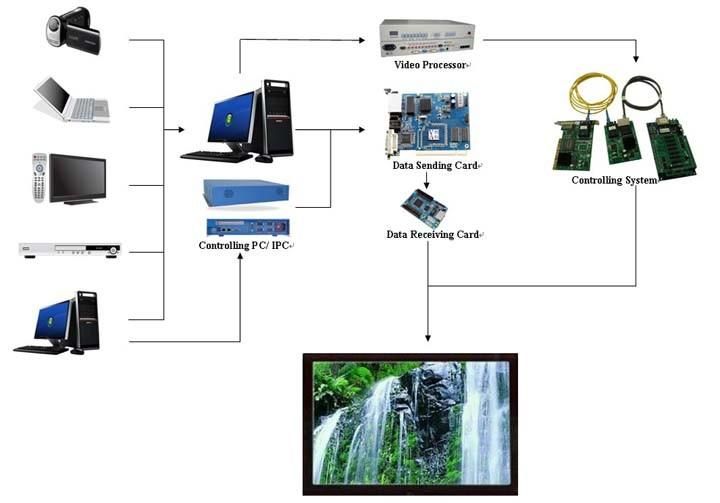

Control System
Our Clients
Our Factory
