High Bright IP65 SMD3528 60LEDs/m 24V Constant Current LED Strip No volt drop
Shanghai ZW Tech Co., Ltd.- Certification：GS, VDE, FCC, UL, RoHS, CE
- Power：4 W,M
- Emitting Color：Warm White
- Voltage：24V
- IP Rating：IP65
- LED Qty：60LEDs 3528
Base Info
- Model NO.：LM3528-WU60-WW-HL-24V
- Chip Brand：Sanan(Epistar optional)
- LEDs：packaged by 99.99% pure gold wire
- BINs：3-Step,5-Step, same BIN for each order
- LED Chip Brand：Sanan(Epistar optional)
- PCB Width：8mm
- PCB：Double-sided coated pure copper
- PCB thickness：2Oz(front 35um,back 35um)
- Adhesive Tape：9495 3000LSE 3M tape
- IP Grade：IP20,IP60,IP65,IP68
- Transport Package：5m,Roll with Statie-Resistant Bag
- Specification：5000*8mm
- Trademark：Leomay
- Origin：Zhongshan Guangdong China
- HS Code：940540900
- Production Capacity：100000meters,Month
Description
Basic Info.
Model NO. LM3528-WU60-WW-HL-24V Chip Brand Sanan(Epistar optional) LEDs packaged by 99.99% pure gold wire BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 5000*8mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/MonthProduct Description

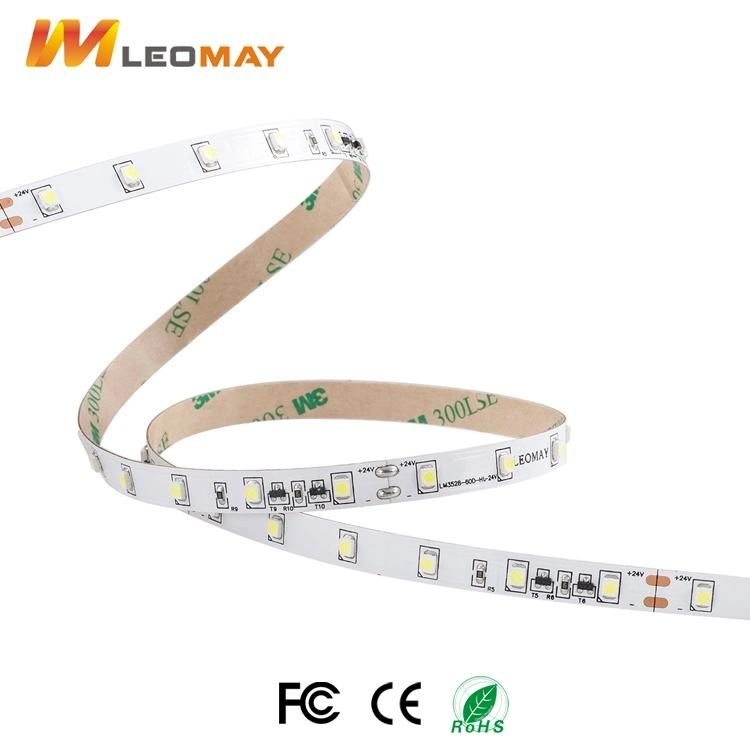

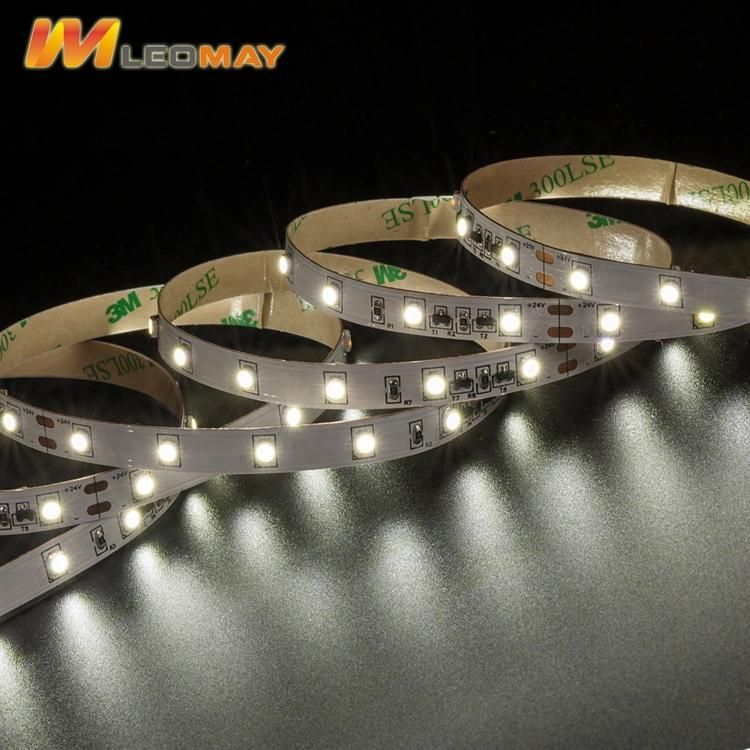

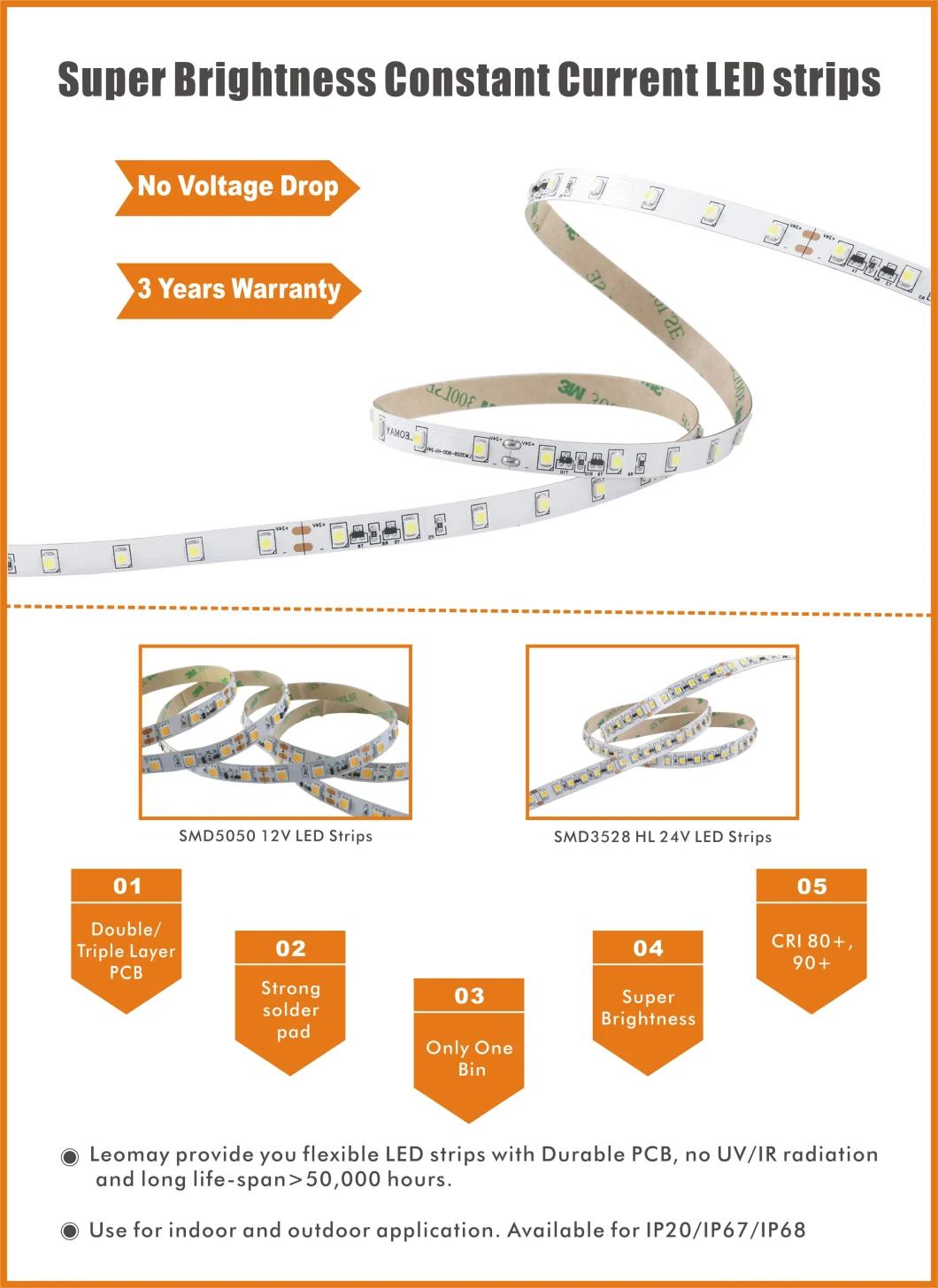

High Bright IP65 SMD3528 60leds/m 24V Constant Current Led Strip No volt drop
Product Specification:
Model NO | LM3528-WN60-HL-24V-8MM |
Product Name | SMD3528 60LEDS/M Constant Current LED strips |
PCB Width | 8MM |
LED Qty/m | 60leds/m 3528 |

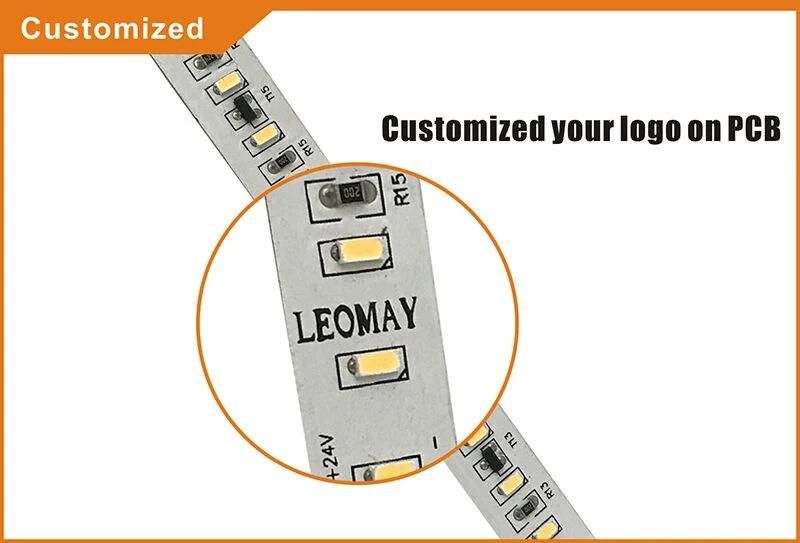

PCB Materials | 2Oz Double-sided coated pure copper(can print your logo on PCB) |
Voltage(V) | 24V DC |
Rated Power(W) | 4.8W/M, 24W/5M |
Luminous(lm/m) | 420lm/m |
LED Chip Brand | Sanan(Epistar optional) |
LEDs material | packaged by 99.99% pure gold wire |
LED BINs | 3-Step/5-Step, same BIN for each order |
LEDs Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |

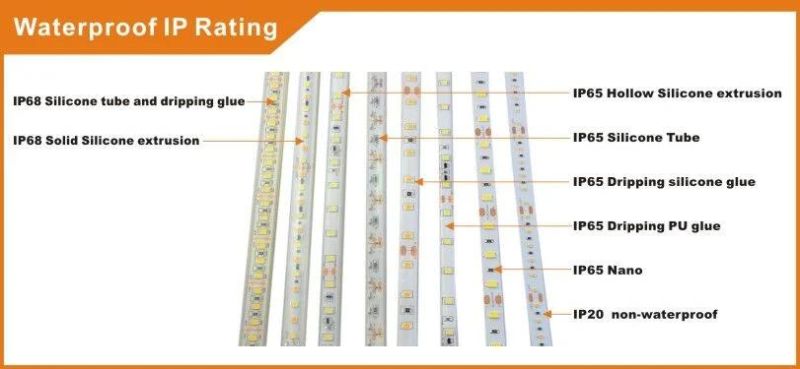

IP Rate | IP20 (IP54/IP67/IP68 optional) |
View Angle | 120 |
Product Size(mm) | 8*5000mm |
Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL,CE,Rohs,FCC. |
Warranty | 3 Years |
Features
a. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
b. Reliable SMD Source, Epistar. SMD 3528, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
c. Operating low voltage (DC12V, DC24V) for human safety.
d. Energy saving and environmental conservation, long lifespan.
Our services
We can help All our Customer in Instaling, Design, and Accessory Free.Our all customer know: our Connector, Install Cips, Wires, is free with Orders.
Any questions when using , we always fast replys with the professional methods.
the Shipping from us, very fast, because when we know the Normal prodcuts you often ordered.
we will do stock produce.
We are Very Honest and Careful factory direct sell the products.
So All products is tested very good and Packing very strong.
We are will be Your Most professional And cheapest, Fastest Suppier

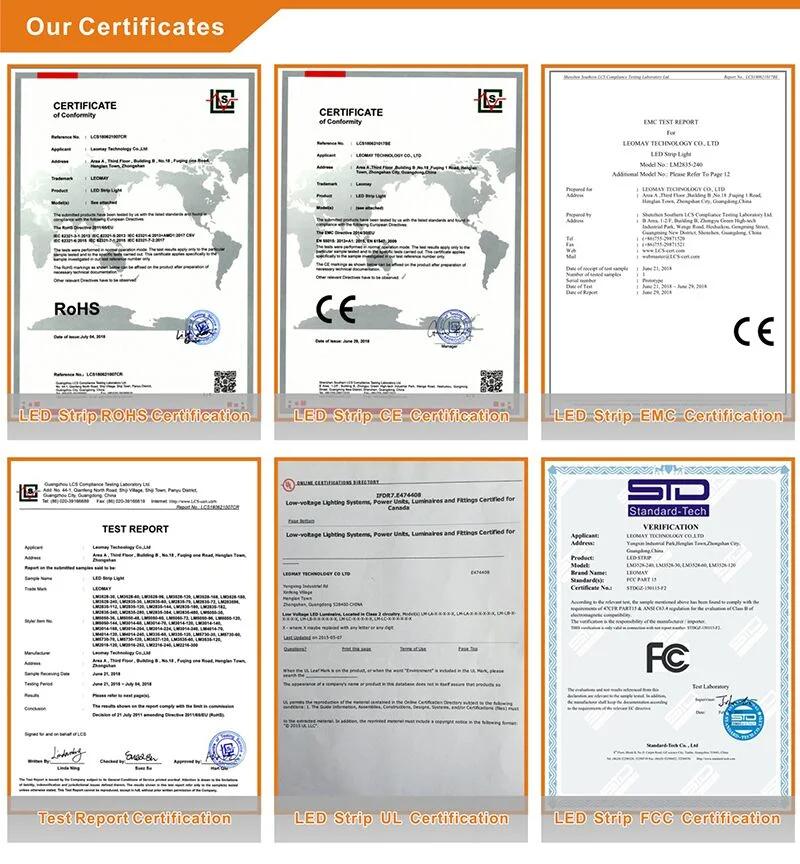

Cetrifications

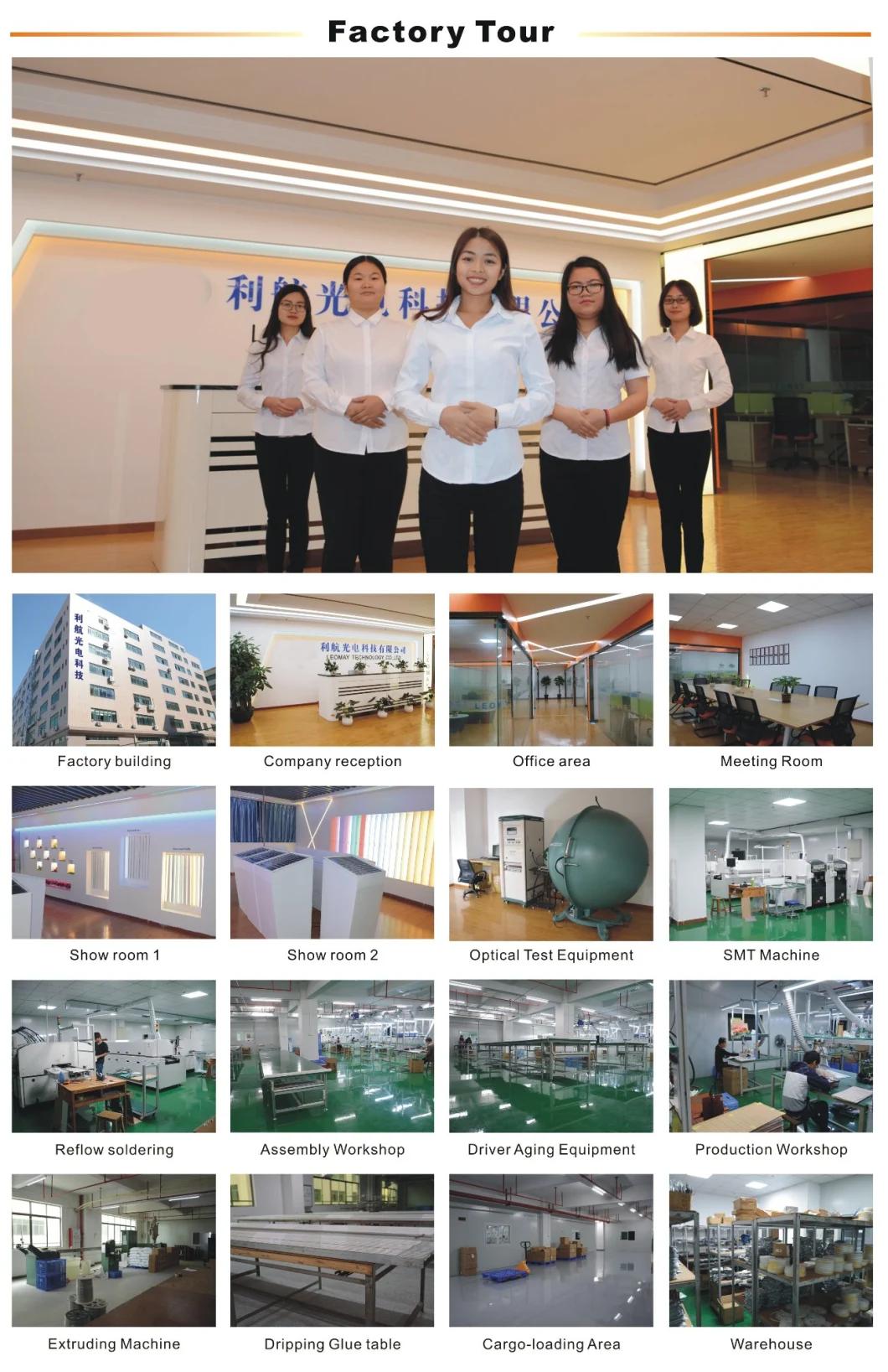

Company Information
About Leomay
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
