Dagger All-in-One Solar Street Light
Lens Technology (Shenzhen) Co., Ltd.- Light Source：Energy-saving Lamps
- Lamp Body Material：Aluminum
- Light Type：Solar
- Color Temperature：Cool White
- Power：≥30W
- Illumination Time：12h
Base Info
- Model NO.：INL-AIO5
- Cell Type：LiFePO4
- Charging Time (H)：6
- Usage：Garden, Street
- IP Rating：IP67
- Certification：CE, ISO9001
- Voltage：12,24V
- With Light Source：With Light Source
- Application：Street, Road, Highway, Pathway, Sidewalk, Park
- Color：Grey
- Design：LiFePO4 Battery Is Built in Lamp Fixture
- Transport Package：720*340*135mm
- Specification：20W ~120W
- Trademark：INLUX SOLAR
- Origin：China
- HS Code：9405500000
- Production Capacity：200000 Sets, Year
Description
Lighting ParametersLamp Power10WLuminous Flux1200 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle120°CRI>70Physical ParametersMono Solar Panel13W/5VLiFePO4 Lithium Battery18AH/3.2V (57.6WH)ControllerPWM controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 40-50mmDimension of Product635*255*70mmNet Weight of Product2.7kgWorking Mode (PIR Motion Sensor Control)Working Hours per Night12 hoursContinues Rainy Days Backup3 daysEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

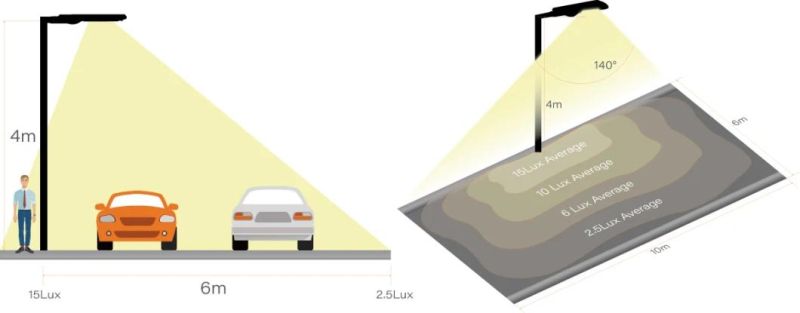

LIGHTING EFFECT
INL-AIO1-10W installed on 4 meters pole.

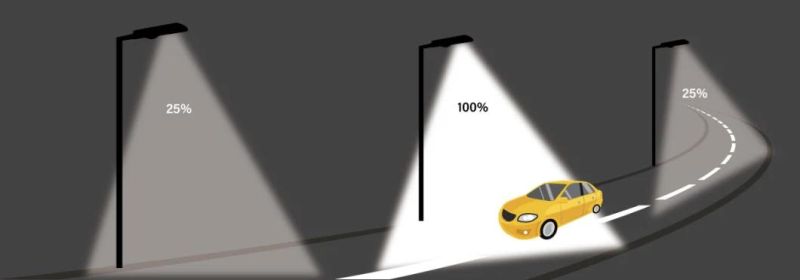

WORKING MODE

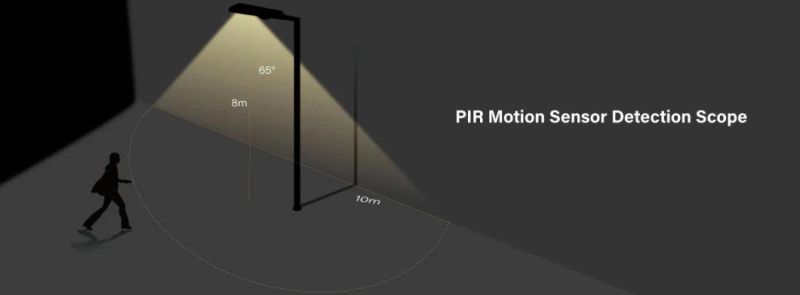

12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
LIGHTING EFFECT
INL-AIO1-10W installed on 4 meters pole.
