• Model NO.：SNSTY-206
• Illumination Time：6h
• Cell Type：Lithium Battery
• Charging Time (H)：6
• Usage：Garden
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Main Material：Iron Casting
• Solar Panel Power：10W 18V
• LED Lamp：6W 12V
• Lithium Battery：4ah 12V
• Working Method：Motion Sensor, Timer Control
• Suitable Install Height：2-3m
• APP：No
• Timer：Yes
• Motion Sensor：Yes
• Warranty：3 Years

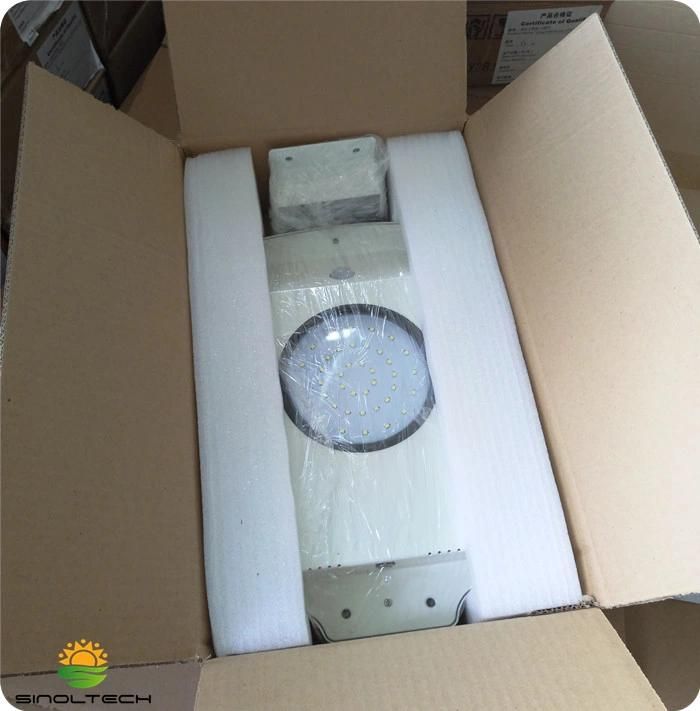

• Transport Package：Strong Carton
• Specification：5W LED 9W Solar Panel SUNPOWER
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-206 Illumination Time 6h Cell Type Lithium Battery Charging Time (H) 6 Usage Garden IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Main Material Iron Casting Solar Panel Power 10W 18V LED Lamp 6W 12V Lithium Battery 4ah 12V Working Method Motion Sensor, Timer Control Suitable Install Height 2-3m APP No Timer Yes Motion Sensor Yes Warranty 3 Years Transport Package Strong Carton Specification 5W LED 9W Solar Panel SUNPOWER Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

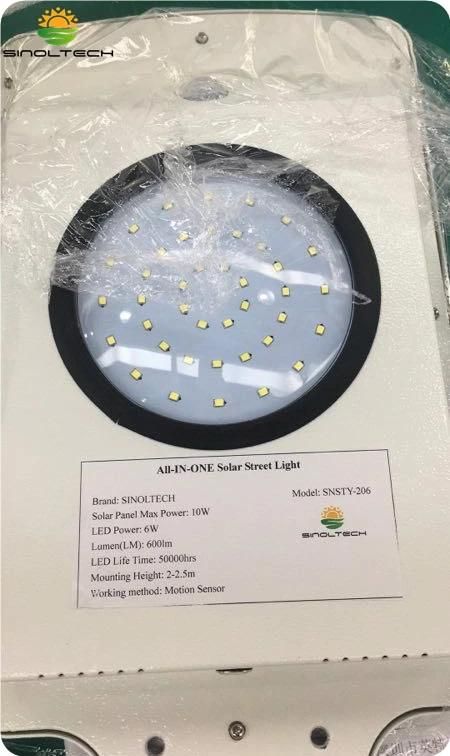

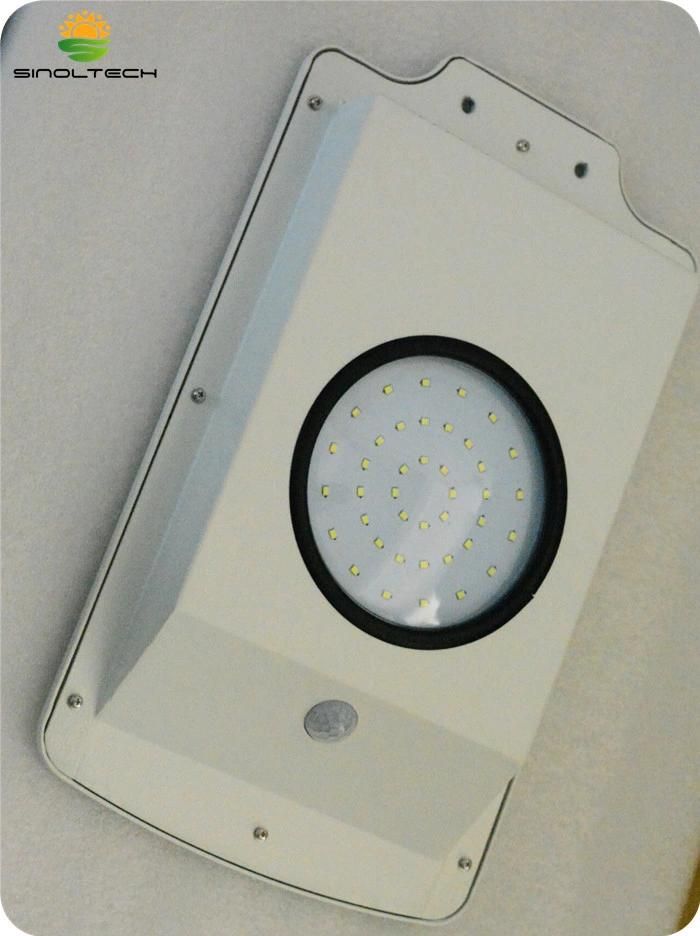

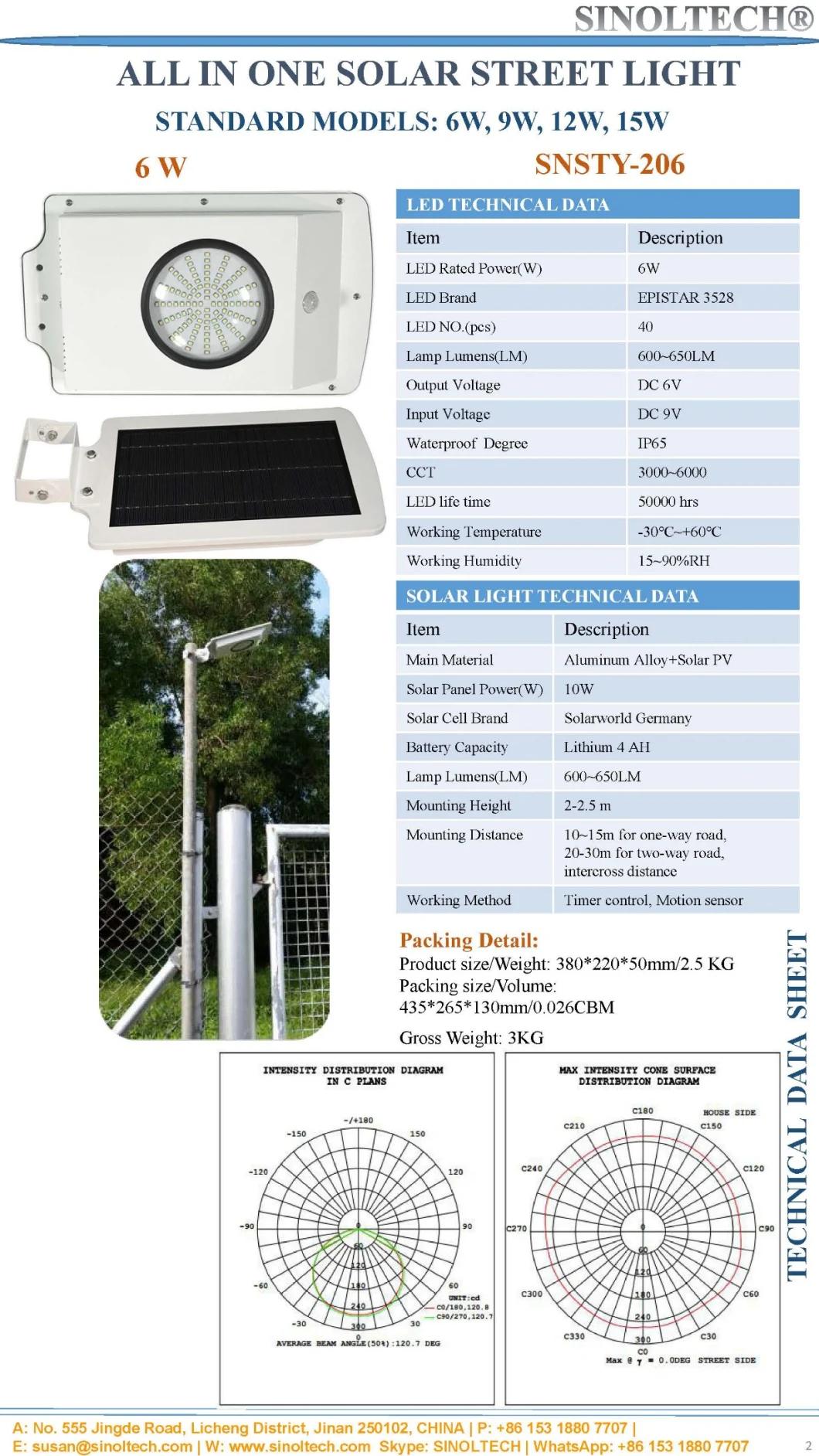

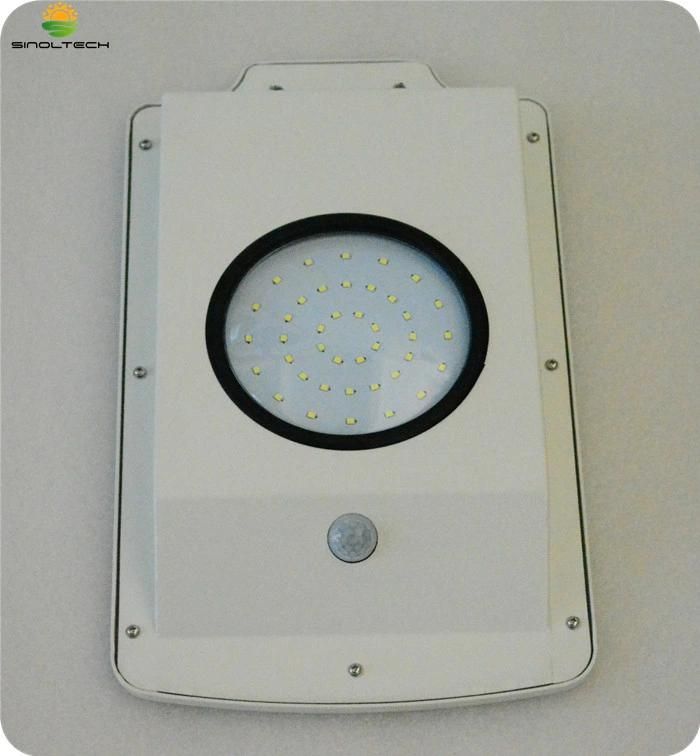

IP65 Waterproof 6W All in One Design Solar LED Lights (SNSTY-206)

Integrating the best green energy at present(Solar power, LED lamp, lithium-ion ferrous phosphate battery), adopting micro intelligent Solar controller, thermal infrared humanBody induction etc a series of excellent practical control technology, combined with simple integration design, realizing the perfect solution of low consumption, high

Brightness(5W LED light is equal to brightness of 40W incandescent light bulb), long service life, free maintenance, excellent waterproof and heat dissipation performance.
Meantime, the all in one solar light is very convenient to ship and install.

Battery display: 4 LED on-100%, 3 LED on-75%, 2 LED on-50%, 1 LED on-25%(should charge the lamp immediately)
Working time is calculated under condition of 8 hours charging under sunshine during summer, location northern latitude 22° East longitude 113° .
Actual working time will defer upon different region, season, environment, direction etc.

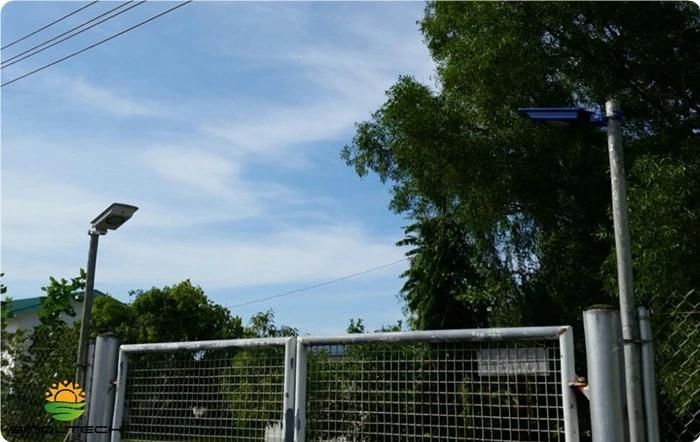

Purpose:

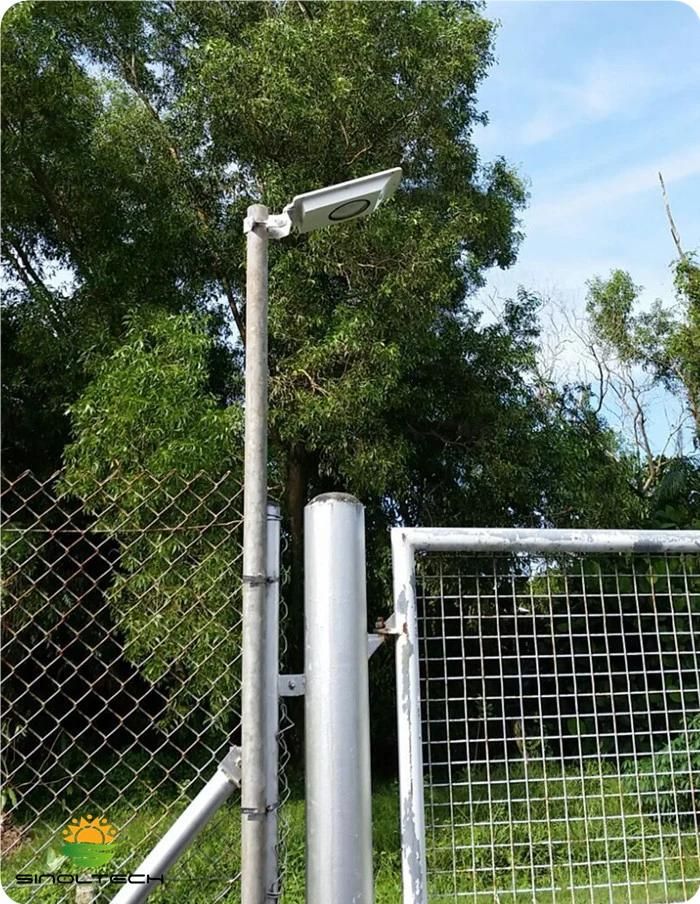

To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:

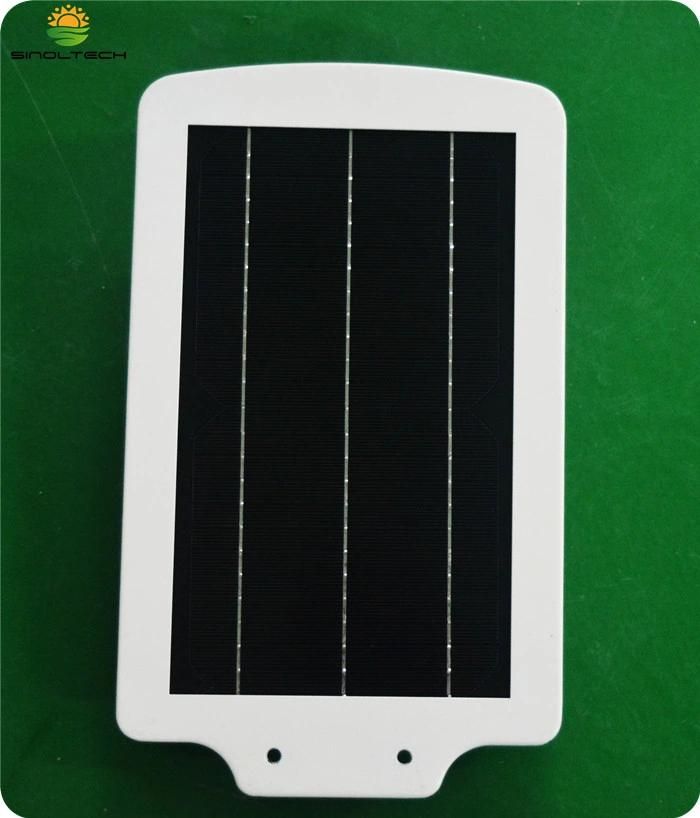

The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
