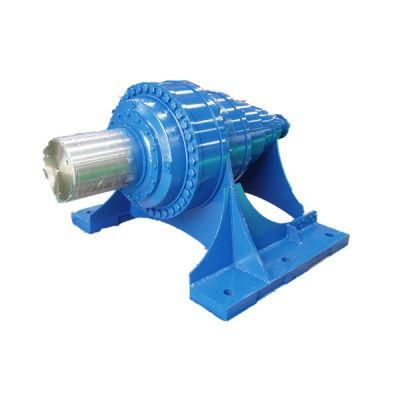

Planetary Cast Iron Industrial Planetary Gear Reducers Planetary Gear Box
Hebei Zhouwo Trading Co., Ltd.- Application：Motor, Machinery, Marine, Agricultural Machinery, Industry
- Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Double-Step
Base Info
- Type：Planetary Gear Box
- Diameter：up to 885mm
- Material：Cast Iron
- Manipulate Way：Robotics
- Changes Way：Mixed
- Manufacturing Method：Cut Gear
- Toothed Portion Shape：Spur Gear
- Advantage：Cast Iron Industrial Planetary Gear Reducer
- Transport Package：Plywood Case or Steel Cage
- Specification：DNV-ISO9001: 2008
- Trademark：SGR
- Origin：China
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Type Planetary Gear Box Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Changes Way Mixed Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Cast Iron Industrial Planetary Gear Reducer Transport Package Plywood Case or Steel Cage Specification DNV-ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
Planetary Cast Iron Industrial Planetary Gear Reducers planetary gear box Technical data:1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions
Planetary Cast Iron Industrial Planetary Gear Reducers planetary gear box Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearing
| Ratio | 3.15:1 to 9000:1 |
| Reduction Stages | up to 6 reduction stages in one gearbox |
| Nominal Output Torque | up to 800,000N.m |
