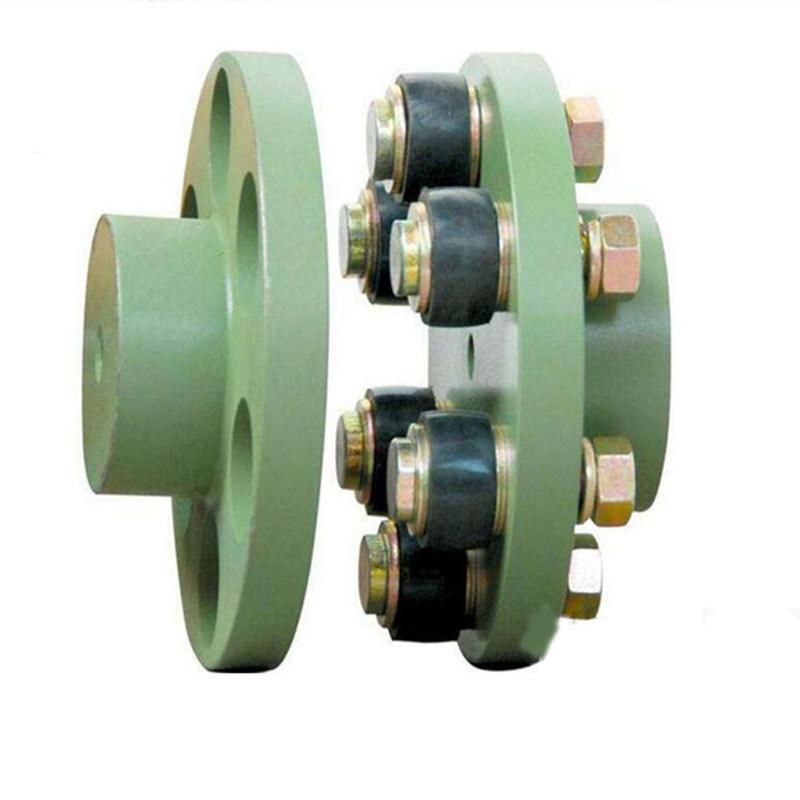

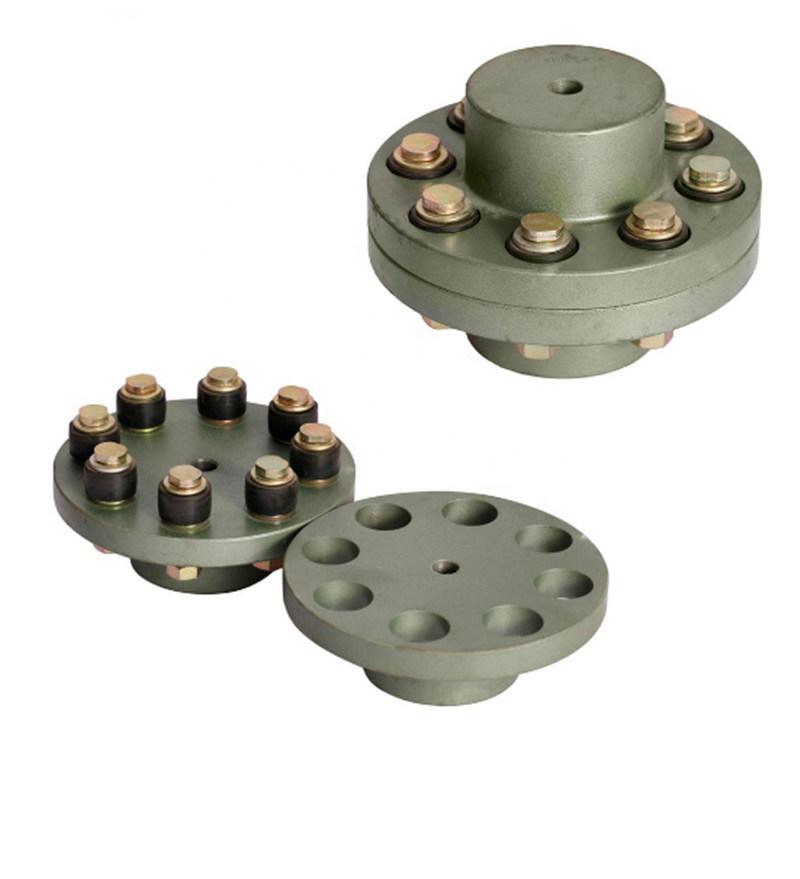

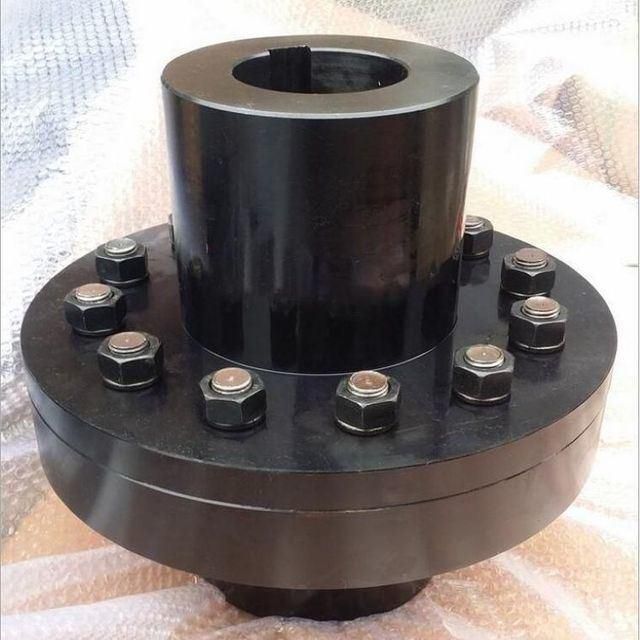

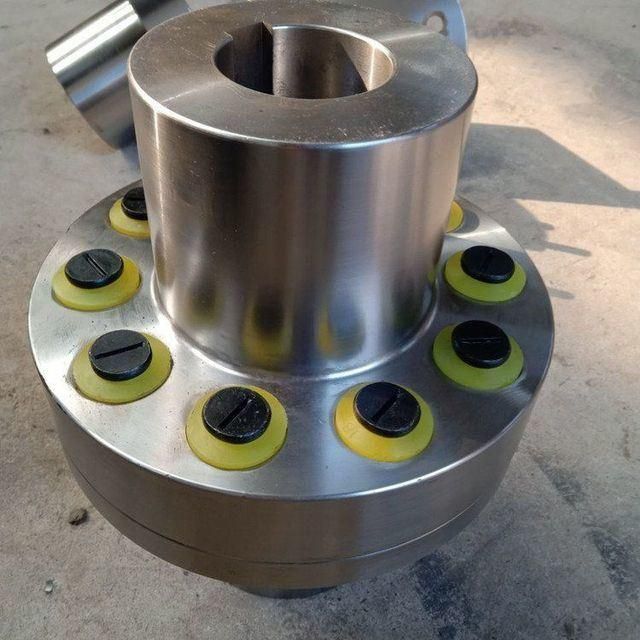

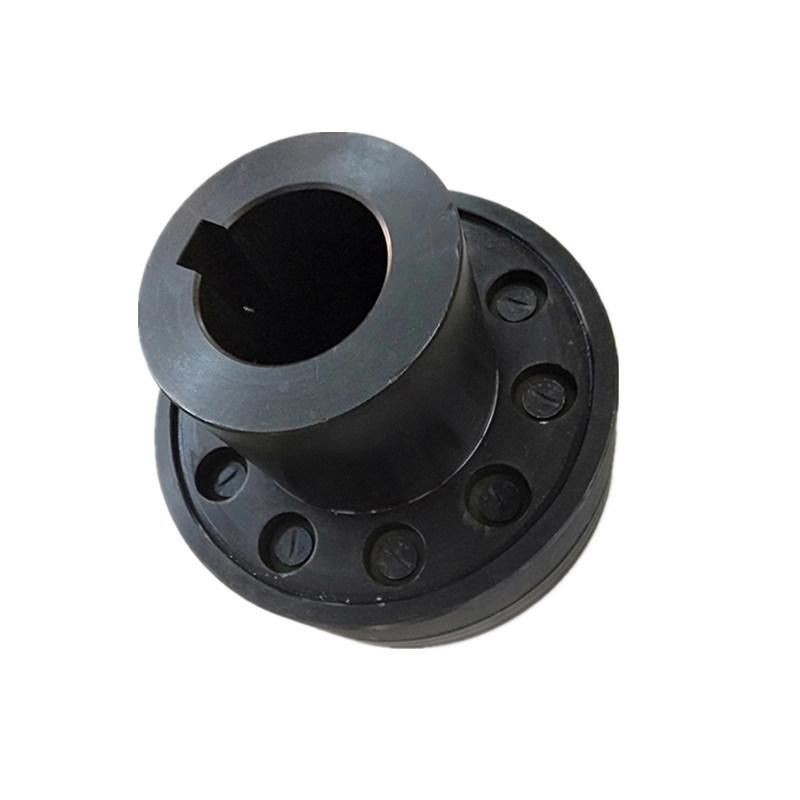

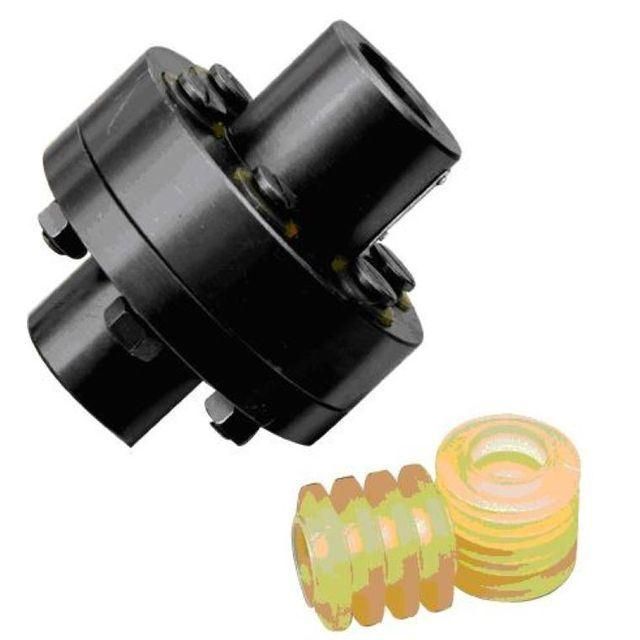

Flange Coupling Flexible Pin and Bush Coupling
Jiaxing City Qunbang Hardware Co., Ltd.- Standard Or Nonstandard：Standard
- Shaft Hole：8-24
- Torque：>80N.M
- Bore Diameter：14mm
- Speed：4000r,M
- Structure：Flexible
Base Info
- Model NO.：LT type
- Material：Cast Iron
- Type：Plum Coupling
- Terms of Shipment：by Sea
- Applications：Conveying Equipment
- Connection：Female
- Transport Package：Depend on Your Quantity
- Specification：as your requirement
- Trademark：Huading
- Origin：China
- HS Code：84836000
- Production Capacity：5000PCS,Month
Description
TypeNominal torque
N·m Speed
rpm Bore diameter (mm)
d1,d2,dz Length of bore(mm) D A S Limited compensation Mass
kg Rotary
Inertia
kg·m2 Y Type J,J1,Z Type Radial
mm Angle Iron Steel Iron Steel L L1 L mm LT1 6.3 6600 8800 9 9 20 14 71 18 3 0.2 1°30´ 0.82 0.0005 10,11 10,11 25 17 12 12,14 32 20 LT2 16 5500 7600 12,14 12,14 32 20 80 18 3 0.2 1°30´ 1.20 0.0008 16 16,18,19 42 30 42 LT3 31.5 4700 6300 16,18,19 16,18,19 42 30 42 95 35 4 0.2 1°30´ 2.20 0.0023 20 20,22 52 38 52 LT4 63 4200 5700 20,22,24 20,22,24 52 38 52 106 35 4 0.2 1°30´ 2.84 0.0037 - 25,28 62 44 62 LT5 125 3600 4600 25,28 25,28 62 44 62 130 45 5 0.3 1°30´ 6.05 0.012 30,32 30,32,35 82 60 82 LT6 250 3300 3800 30,35,38 32,35,38 82 60 82 160 45 5 0.3 1°00´ 9.57 0.028 40 40,42 112 84 112 LT7 500 2800 3600 40,42,45 40,42,45,48 112 84 112 190 45 5 0.3 1°00´ 14.01 0.055 LT8 710 2400 3000 45,48,50,55 45,48,50,55,56 112 84 112 224 65 6 0.4 1°00´ 23.12 0.1340 - 60,63 142 107 142 LT9 1000 2100 2850 50,55,56 50,55,56 112 84 112 250 65 6 0.4 1°00´ 30.69 0.2130 60,63 60,63,65,70,71 142 108 142 LT10 2000 1700 2300 63,65,70,71,75 63,65,70,71,75 142 108 142 315 80 8 0.4 1°00´ 61.40 0.660 80,85 80,85,90,95 172 132 172 LT11 4000 1350 1800 80,85,90,95 80,85,90,95 172 132 172 400 100 10 0.5 0°00´ 120.70 2.122 100,110 100,110 212 167 212 LT12 8000 1100 1450 100,110,120,125 100,110,120,125 212 167 212 475 130 12 0.5 0°00´
0°00´ 210.34 5.39 - 13 252 202 252 LT13 16000 800 1150 120,125 120,125 212 167 212 600 180 14 0.6 0°00´ 419.36 11.58 130,140,150 130,140,150 252 202 252 160 160,170 302 242 302
1.Coupling weights in the sheet are calculated according to the minimum diameter and maximum length of the shaft hole.
2.Short overloading can not exceed 2 times rated normal torque.
3.Type of shaft holes, the lengths of L and L1 also can be produced as customer requirements.
4.Rotational inertia are similar value.
