• Model NO.：P3 stage background led display
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：31
• Certification：CE, RoHS, UL, CCC
• Panel Size：192mm*192mm
• Cabinet Size：576mm*576mm
• Brightness：1500CD
• LED Chip：Epistar
• LED Specification：2121
• View Angle：Horizontal140°,Vertical20
• Working Temputure：20c°~+55c°
• Humidity：10%~95%
• Life Span：100000 Hours
• Refresh Frequency：>1920Hz,S
• Control Card：Nova, Linsn, HD
• Drive IC：Icn2037,Mbi5124
• Brand：Jiacai
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：CE, FCC, RO-HS, SGS
• Trademark：JIACAI
• Origin：Quanzhou, Fujian, China
• HS Code：8531200000
• Production Capacity：6000spm,Month

Basic Info.

Model NO. P3 stage background led display System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising IP Rating 31 Certification CE, RoHS, UL, CCC Panel Size 192mm*192mm Cabinet Size 576mm*576mm Brightness 1500CD LED Chip Epistar LED Specification 2121 View Angle Horizontal140°/Vertical20 Working Temputure 20c°~+55c° Humidity 10%~95% Life Span 100000 Hours Refresh Frequency >1920Hz/S Control Card Nova, Linsn, HD Drive IC Icn2037/Mbi5124 Brand Jiacai Transport Package Air Box & Carton Box & Wooden Box Specification CE, FCC, RO-HS, SGS Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8531200000 Production Capacity 6000spm/Month

Product Description

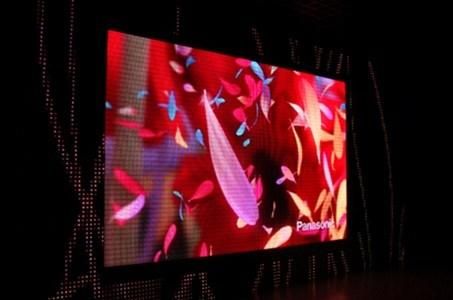

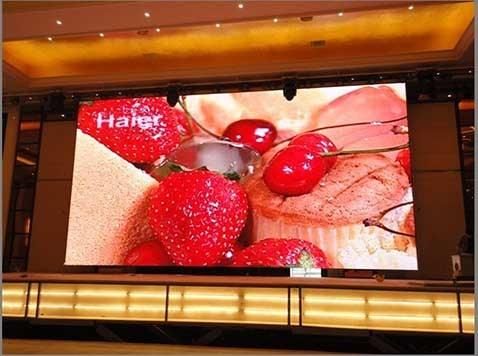

P3 Indoor Full Color Stage Background LED Display for Rental

Porducts detail:

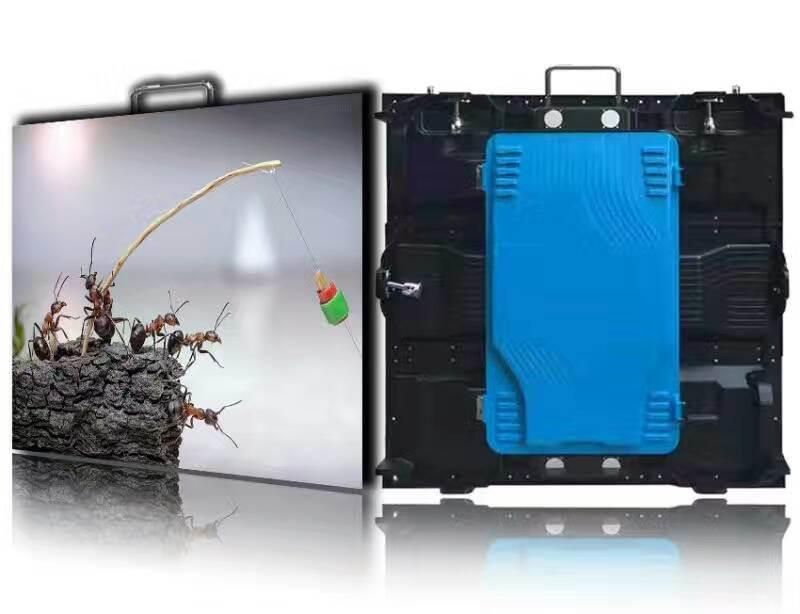

P3 Indoor Rental LED Display

Wholesale High quality, high density, HD indoor rental LED display

Features:

1.Super light and thin die-casting aluminum cabinet;

2.High refresh rate

3.Noiseless design;

4.Fine and smooth picture;

5.Seamless connection between cabinet;

6,High brightness

7.Fast installation and dismantlement.

Specification

Item
Model NO.	P3
Pixel Pitch	3mm
Pixel Configuration	1R1G1B
Density	111111dots/m2
Brightness	2500CD
Color Temperature	6500-9500K
Scan Method	1/16
Cabinet Size	576x576mm
Module Resolution	64x64 dots
Cabinet Resolution	192x192 dots
Cabinet Weight	7Kg/cabinet
Max. Power Consumption	900W/m2
Ave. Power Consumption	700W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	>1000Hz
Gray Scale	16bit
Best View Distance	>3m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-20-+50 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

Our service
 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms
 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2years6. Delivery time: 3-15 working days
