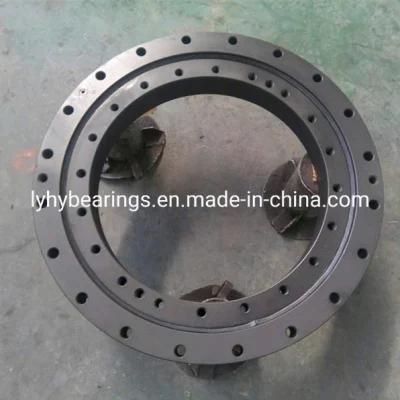

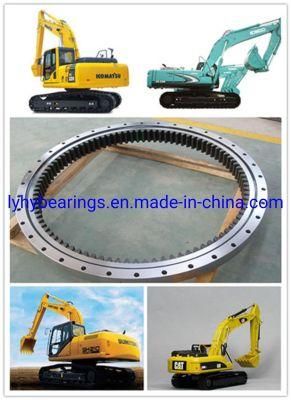

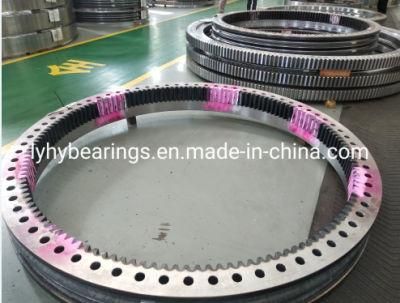

Slewing Ring Bearings with Stainless Steel Material 3Cr13 (013.20.1220) Swing Bearing
Right Team Holding Ltd.- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Outer Dimension：200-6000mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Axial, Radial and Tilting Moment
Base Info
- Model NO.：013.20.1220
- Separated：Unseparated
- Production Experience：Since Year 1993
- Warranty Period：1 Year
- Delivery Time：30-40 Days
- Bore Diameter：1166mm
- Outer Diameter：1280mm
- Height：58mm
- Weight：62kg
- Certificate：ISO9001:2008
- Testing Way：Inner House ,SGS, BV
- Material Type：Stainless Steel 3Cr13

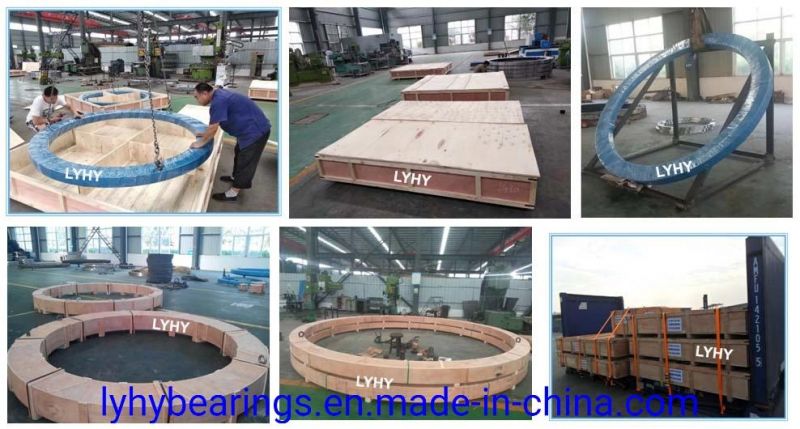

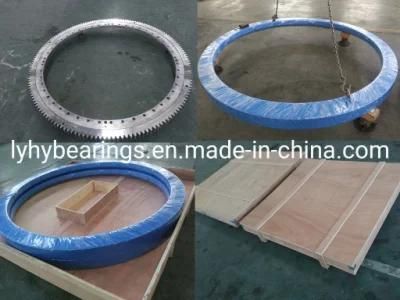

- Transport Package：Wooden Box
- Specification：200mm-6600mm
- Trademark：LYHY
- Origin：China
- HS Code：848210900
- Production Capacity：100PCS,Month
Description
ModelOverall Dimension Mounting Dimension Structure Dimension Gear Parameter External Gear Internal Gear Load Weight None gear External Gear Internal Gear D d H D1 D2 N φ M D3 d1 H1 h n1 b X m Da Z da Z 10 4 kN kg mm mm mm mm mm mm 010.20.200 011.20.200 / 280 120 60 248 152 12 16 M14 199 201 50 10 2 40 0 3 300 98 / / / / 010.20.224 011.20.224 / 304 144 60 272 176 12 16 M14 223 225 50 10 2 40 0 3 321 105 / / / / 010.20.250 011.20.250 / 330 170 60 298 202 18 16 M14 249 251 50 10 2 40 0 4 352 86 / / / / 010.20.280 011.20.280 / 360 200 60 328 232 18 16 M14 279 281 50 10 2 40 0 4 384 94 / / / / 010.25.315 011.25.315 013.25.315 408 222 70 372 258 20 18 M16 314 316 60 10 2 50 0 5 435 85 190 40 / / 010.25.355 011.25.355 013.25.355 448 262 70 412 298 20 18 M16 354 356 60 10 2 50 0 5 475 93 235 49 / / 010.25.400 011.25.400 013.25.400 493 307 70 457 343 20 18 M16 399 401 60 10 2 50 0 6 528 86 276 48 / / 010.25.450 011.25.450 013.25.450 543 357 70 507 393 20 18 M16 449 451 60 10 2 50 0 6 576 94 324 56 / / 010.30.500 011.30.500 013.30.500 602 398 80 566 434 20 18 M16 498.5 501.5 70 10 4 60 0.5 5 630 123 365 74 129 75.8 012.30.500 014.30.500 6 630 102 366 62 129 75.8 010.25.500 011.25.500 013.25.500 602 398 80 566 434 20 18 M16 498.5 501.5 70 10 4 60 0.5 5 630 123 365 74 129 75.8 012.25.500 014.25.500 6 630 102 366 62 129 75.8 010.30.560 011.30.560 013.30.560 662 458 80 626 494 20 18 M16 558.5 561.5 70 10 4 60 0.5 5 690 135 425 86 144 94 012.30.560 014.30.560 6 690 112 426.5 72 144 94 010.25.560 011.25.560 013.25.560 662 458 80 626 494 20 18 M16 558.5 561.5 70 10 4 60 0.5 5 690 135 425 86 144 94 012.25.560 014.25.560 6 690 112 426.5 72 144 94 010.30.630 011.30.630 013.30.630 732 528 80 696 564 24 18 M16 628.5 631.5 70 10 4 60 0.5 6 774 126 492 83 187 110 012.30.630 014.30.630 8 776 94 488 62 187 110 010.25.630 011.25.630 013.25.630 732 528 80 696 564 24 18 M16 628.5 631.5 70 10 4 60 0.5 6 774 126 492 83 187 110 012.25.630 014.25.630 8 776 94 488 62 187 110 010.30.710 011.30.710 013.30.710 812 608 80 776 644 24 18 M16 708.5 711.5 70 10 4 60 0.5 6 852 139 570 86 212 120 012.30.710 014.30.710 8 856 104 568 72 212 120 010.25.710 011.25.710 013.25.710 812 608 80 776 644 24 18 M16 708.5 711.5 70 10 4 60 0.5 6 852 139 570 86 212 120 012.30.710 014.25.710 8 856 104 568 72 212 120 010.30.955.11 / / 1098 893 90 1060 845 48/ 47 22 M20 956.5 953.5 71 19 6 / / / / / / / 270 126 010.40.800 011.40.800 013.40.800 922 678 100 878 722 30 22 M20 198.5 801.5 90 10 6 80 0.5 8 968 118 632 80 313 256 012.40.800 014.40.800 10 970 94 630 64 313 256 010.30.800 011.30.800 013.30.800 922 678 100 878 722 30 22 M20 198.5 801.5 90 10 6 80 0.5 8 968 118 632 80 313 256 012.30.800 014.30.800 10 970 94 630 64 313 256 010.40.900 011.40.900 013.40.900 1022 778 100 978 822 30 22 M20 898.5 901.5 90 10 6 80 0.5 8 1064 130 736 93 355 240 012.40.900 014.40.900 10 1070 104 730 74 355 240 010.30.900 011.30.900 013.30.900 1022 778 100 978 822 30 22 M20 898.5 901.5 90 10 6 80 0.5 8 1064 130 736 93 355 240 012.30.900 014.30.900 10 1070 104 730 74 355 240 010.40.1000 011.40.1000 013.40.1000 1122 878 100 1078 922 36 22 M30 998.5 1001.5 90 10 6 80 0.5 10 1190 116 820 83 394 305 012.40.1000 014.40.1000 12 1188 96 816 69 394 305
