• Model NO.：TY-312
• Origin：China
• HS Code：9018903090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. TY-312 Origin China HS Code 9018903090 Production Capacity 5000PCS/Month

Product Description

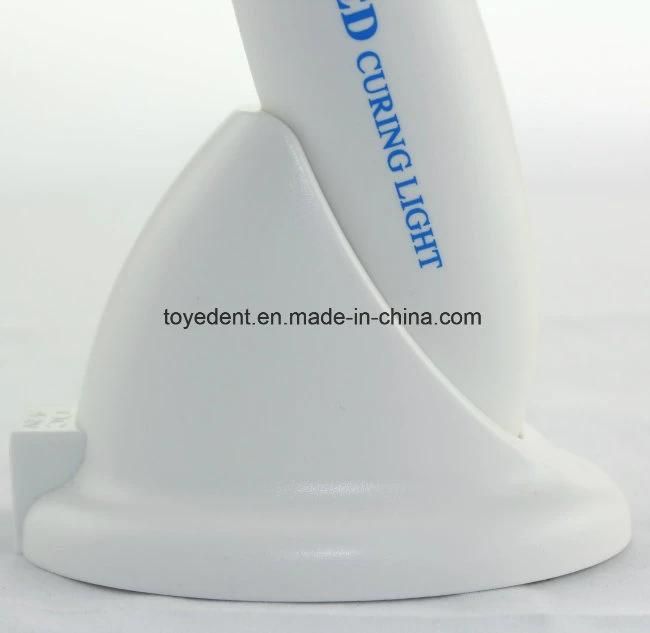

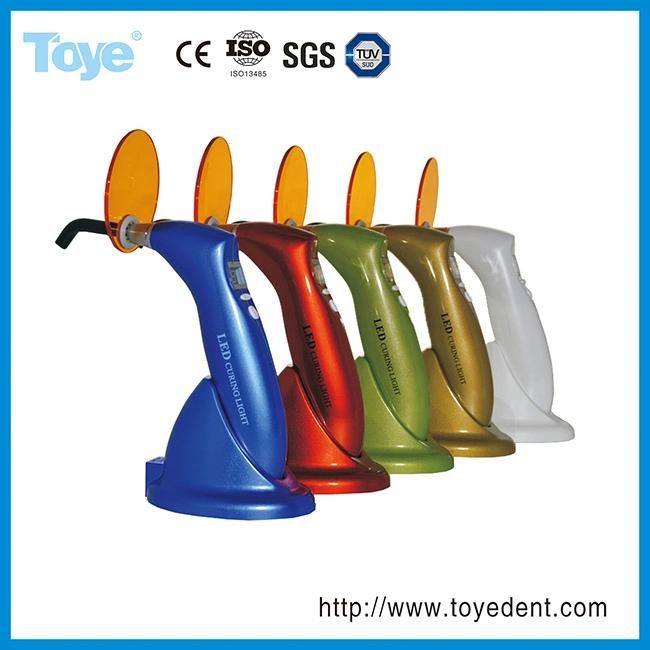

Good Quality Dental Chair Built-in Led Curing Light

Product Description

LED Curing Light is composed mainly of high power LED, micro-control electric circuit, Li-on battery, charging base, light guide, Circular eye-protector and power adapter.
Adjustable curing time and three curing modes are available.

LED Curing Light is applied to ray radiation principle to solidify the light-sensitive resin by shooting at it in a short time.

Used for polymerization of light cured materials by dental professionals.


Li-ion Battery
Input	AC 100~240V, 50/60Hz
Voltage	DC 3.7V - Output: DC 4.2V
Capacity	2200mAh
Charging Time	About 5 hours
LED
Outer Diameter	Ø8mm
Area	50mm2
Wavelength	450~470nm
Illumination	1200-1500mw/cm2

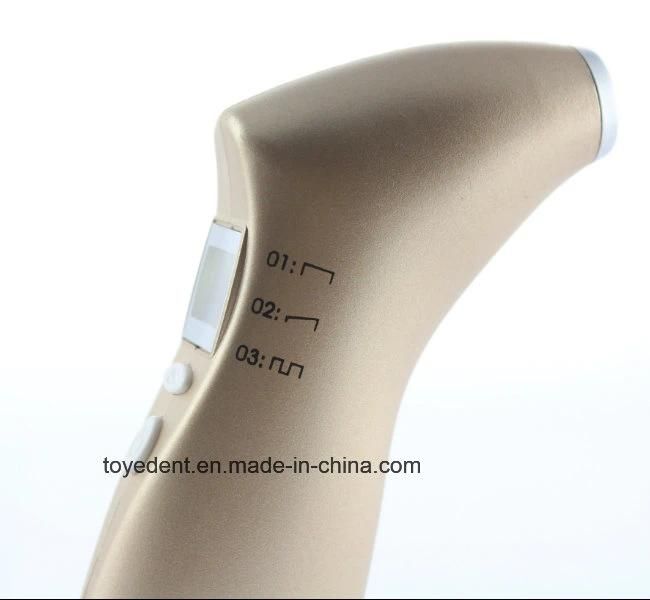

P1:FAST Mode - full power all the time
P2:  RAMP Mode - gradually increasing power then full power till ends
P3:PULSE Mode - 1 second interval with full power for 1.8 second


Main Unit (Control Part): 26*40*145mm
Charging Base: 60*100*70mm

 Net weight:   about  320 g

 Working Environment
Ambient temperature: 5ºC ~ +40ºC
Relative humidity range: 0% ~ 80%
Atmospheric pressure: 70KPa ~ 106KPa

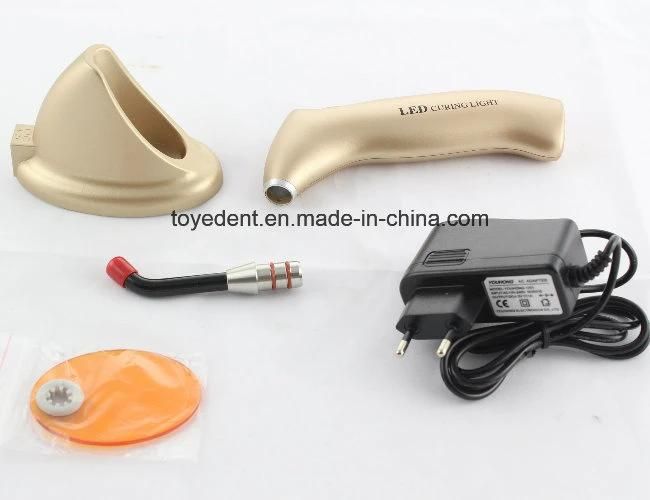

. Structure and Components
1. Light guide
2. Circular eye-protector
3. power adapter
4. Charging base
5. Hand piece

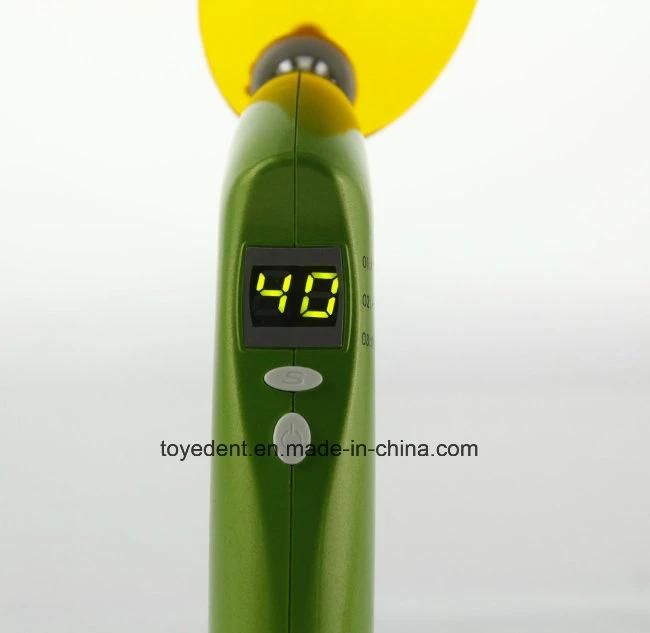

6. LCD Panel
7. Setting Buttons
8. Charging Indicator
Details







After service:
Please contact with the telephone and email at any time.
Because of the time difference, therefore, sending Email is the best and convient way to contact us. Upon receipt of your e-mail, we give u reply immediately, offering solutions to equipment failures. Tonsor will extend the greatest effort to help your getting spare parts, speeding up your feed-back to customer demand.

QC:
QC have 100% inspection and random check on the parts and machine, ensure 100% products with high quality.

Package: 1PCS/CTN
Transportation: By air, by sea, by express.
