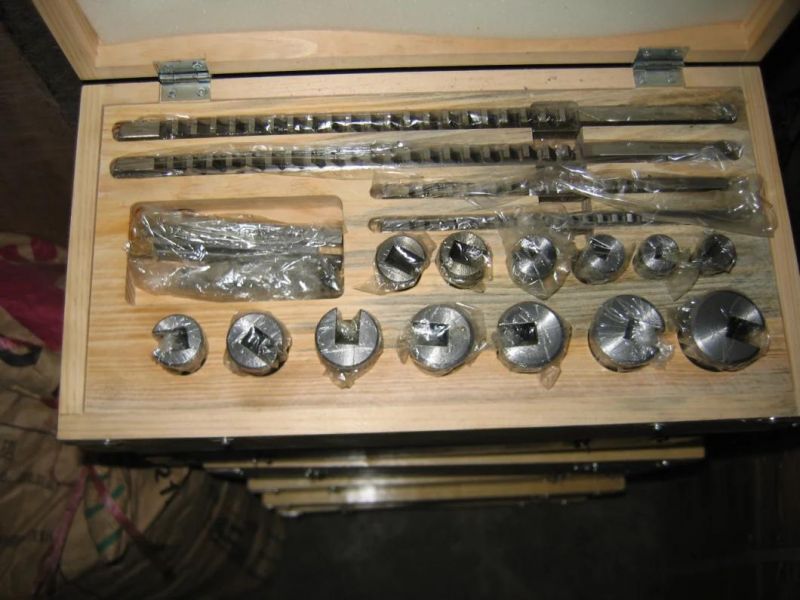

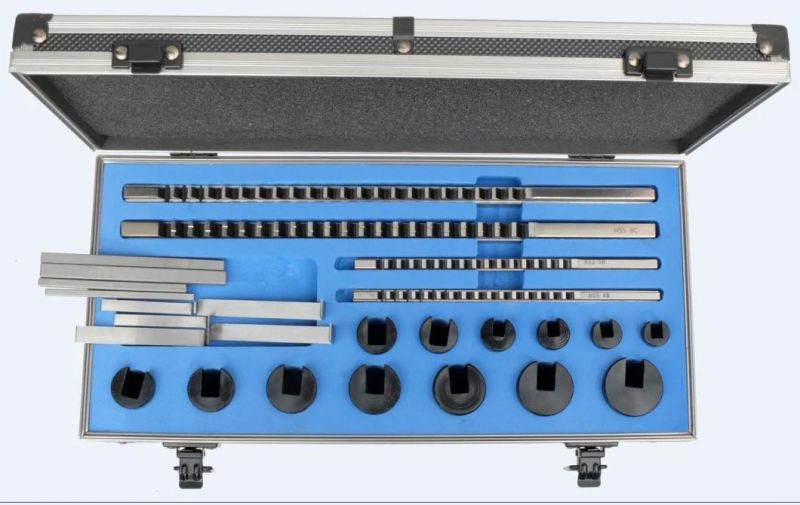

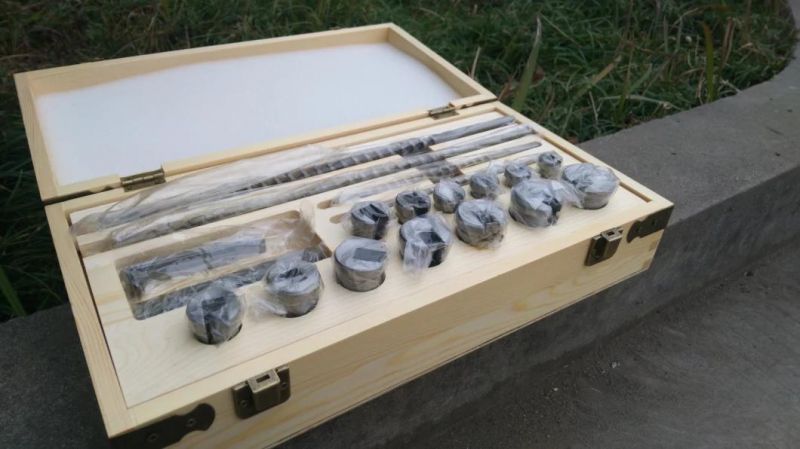

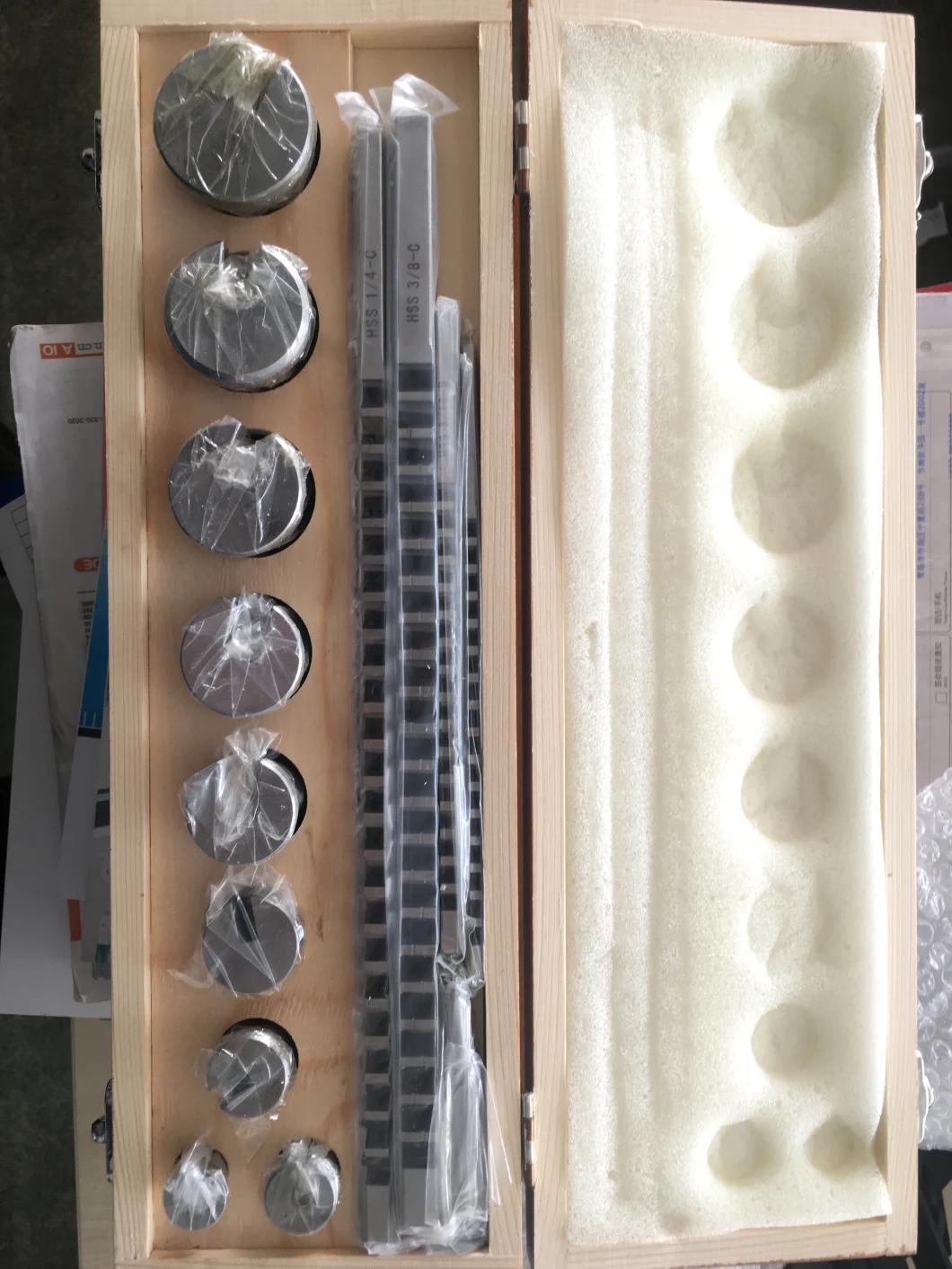

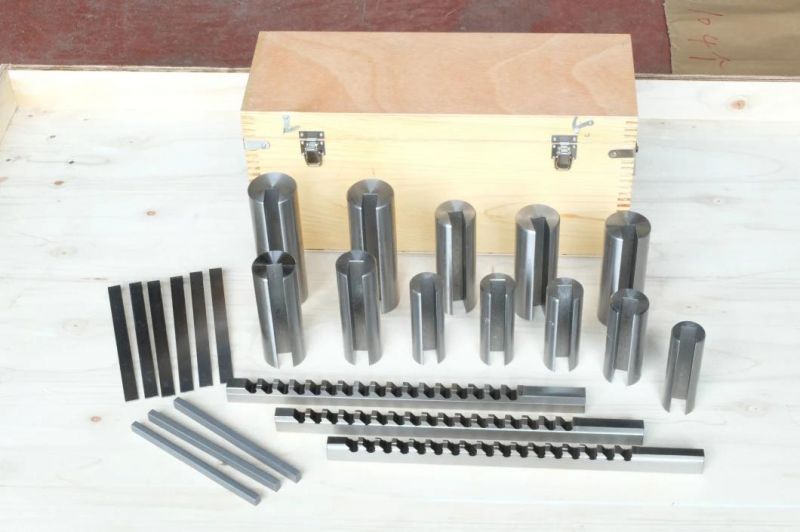

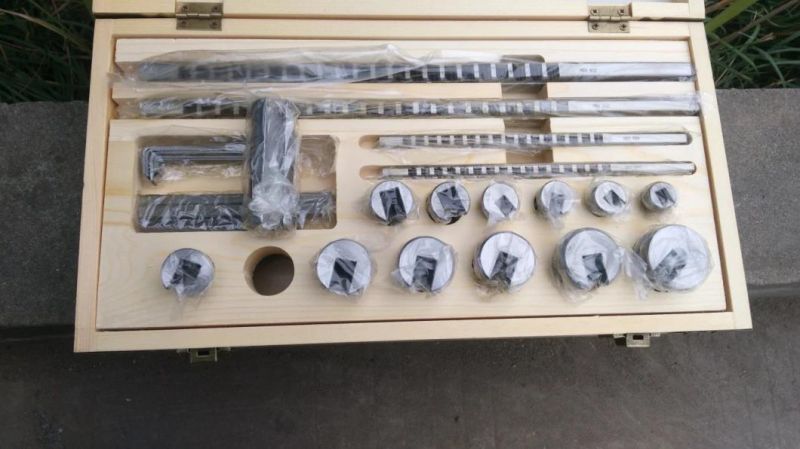

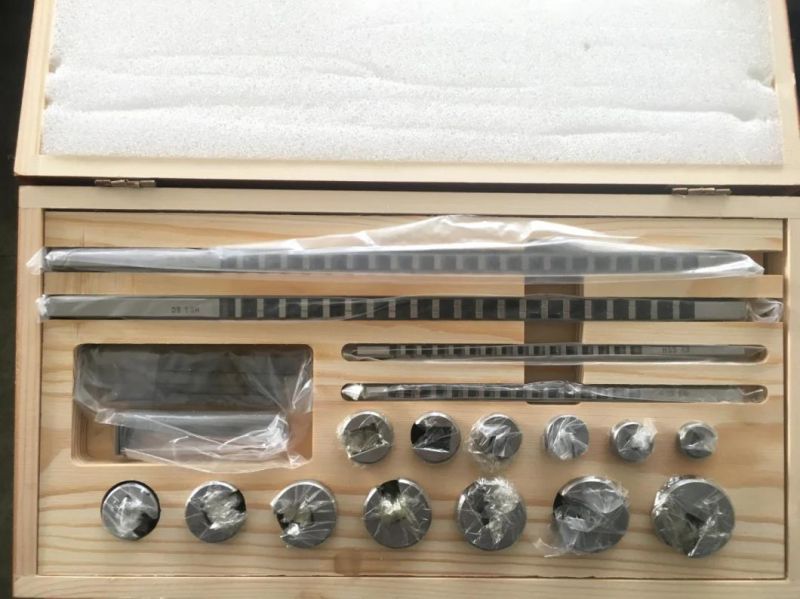

Inch/Metric Keyway Broaches with Shims

NINGBO KINPLAY LEISURE PRODUCTS CO., LTD.
  • Standard：Standard
  • Coating：Uncoated
  • Blade Number：Multi-Blade
  • Material：High Speed Steel
  • Type：Keyway Broach
  • Transport Package：Carton

Base Info

  • Trademark：NEUTRAL
  • Origin：China
  • Production Capacity：5000PCS,Month

Description

  BroachShimsLength of CutLength of Cut  Broach SizeTypeDimensionsRequiredMin.Max.TolerancesModel No.1/16A1/8x5013/641-1/80.0625-0.0635395-10043/32A1/8x5013/641-1/80.0938-0.0948395-10061/8A1/8x5113/641-1/80.1252-0.1262395-10083/32B3/16x6-3/4019/641-11/160.0937-0.0947395-11061/8B3/16x6-3/4119/641-11/160.1252-0.1262395-11085/32B3/16x6-3/4119/641-11/160.1564-0.1574395-11103/16B3/16x6-3/4119/641-11/160.1877-0.1887395-11123/16C3/8x11-3/4125/642-1/20.1877-0.1887395-12121/4C3/8x11-3/4125/642-1/20.2502-0.2512395-12165/16C3/8x11-3/4225/642-1/20.3127-0.3137395-12203/8C3/8x11-3/4225/642-1/20.3755-0.3765395-12245/16D9/16x13-7/82160.3127-0.3137395-13243/8D9/16x13-7/82160.3755-0.3765395-13287/16D9/16x13-7/83160.4380-0.4390395-13321/2D9/16x13-7/83160.5006-0.5016395-13365/8E3/4x15-1/24160.6260-0.6270395-14403/4E3/4x15-1/25160.7515-0.7525395-14487/8F1x20-146160.8765-0.8775395-15561F1x20-147161.0015-1.0025395-15641-1/8 1-1/8x20-1/48161.1265-1.1275395-15701-1/4 1-1/4x20-1/491-1/281.2520-1.2530395-15721-3/8 1-3/8x20-1/4101-1/281.3770-1.3780395-15741-1/2 1-1/2x20-1/4111-1/281.5020-1.5030395-1576
Metric Size (ISO standard)  Piece of Tooth Length of CutLength of cut  SizeS.KeysShimDimensionPitchTeethMin.Max.ToleranceModel No.2-A mm2x2mm 1/8x5"3/16"1813/64"1-1/8"0.0782-0.0791395-20063-A mm3x3mm11/8x5"3/16"1813/64"1-1/8"0.1176-0.1185395-20084-B-1 mm4x4mm11/4x6-3/4"9/32"1619/64"1-11/16"0.1569-0.1579395-21105-B-1 mm5x5mm11/4x6-3/4"9/32"1619/64"1-11/16"0.1963-0.1972395-21125-C mm5x5mm13/8x11-3/4"3/8"2225/64"2-1/2"0.1963-0.1972395-22126-C-1 mm6x6mm13/8x11-3/4"3/8"2225/64"2-1/2"0.2356-0.2366395-22168-C-1 mm8x7mm23/8x11-3/4"3/8"2225/64"2-1/2"0.3143-0.3155395-222010-D-1 mm10x8mm29/16x13-7/8"5/8"171" 6"0.3930-0.3942395-222412-D-1 mm12x8mm29/16x13-7/8"5/8"171" 6"0.4716-0.4730395-232414-D-1 mm14x9mm29/16x13-7/8"5/8"171" 6"0.5503-0.5517395-232816-E-1 mm16x10mm33/4x15-1/2"5/8"201" 6"0.6290-0.6304395-233218-E-1 mm18x11mm33/4x15-1/2"5/8"201" 6"0.7078-0.7092395-233620-F-1 mm20x12mm31x20-1/4"5/8"261" 6"0.7864-0.7880395-244022-F-1 mm22x14mm41x20-1/4"5/8"261" 6"0.8651-0.8667395-244824-F mm24x14mm51x20-1/4"5/8"261" 6"0.9439-0.9455395-255625-F-1 mm25x14mm41x20-1/4"5/8"261" 6"0.9832-0.9848395-2564Inch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with ShimsInch/Metric Keyway Broaches with Shims
