6 Injectors Testing & Coding Simultaneously Diesel Test Bench for Common Rail System Eui Eup Heui Heup Cummins Hpi Testing (equipped 8 Germany flow sensors)

Shenzhen Citic Treasure Electronic Co., Ltd.
  • Certification：GS
  • Condition：New
  • Standard：Nonstandard
  • Language：Spanish, Chinese, Japanese, German, French, English
  • Update Method：by Internet
  • Type：Test Bench

Base Info

  • Model NO.：JZ-919+
  • Motor Power：22 Kw
  • Test Range：Euro 3---Euro 6
  • Power：3-Phase 4-Wire 380V,220V 50,60Hz
  • Speed：0-4000 Rpm
  • Rail Pressure：0-2700 Bar
  • Metering Way：Flow Sensor
  • Rail Pressure Precision：5 Bar
  • Filter Precision：< 5 Um
  • Tank Volume：30 L
  • Fuel Temperature：38-42 ′c
  • Net Weight：1500 Kg
  • Flow Sensor：8 Germany Flow Sensors
  • Transport Package：Wooden Case
  • Specification：2200*1430*1900 mm
  • Trademark：jz-hy
  • Origin：Wuxi City, Jiangu, China
  • Production Capacity：500 Pieces,Year

Description

Hardware advantage 1. Motor power is 22 KW2. Air conditioning heat dissipation kit3. Metering valve detect the fuel flow4. Imported flow sensor from Germany 5. Equipped with Bosch genuine DRV6. Equipped with Bosch genuine CP3 pump 7. Equipped with Bosch genuine common rail tube 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)9. Short-circuit protection, ground protection, over-pressure protection during the testing10. Equipped frequency converter to achieve testing function under different speed conditions11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life Technical  ParametersOutput22 KWPower3-Phase 4-Wire  380V 50/60HZSpeed0~4000 RPMRail Pressure0~2600 BarRail Pressure Precision±5 BarTank Volume30 LFuel Temperature40±2ºCFilter Precision<  5μmGross Weight1450 kgPacking Size2400×1630×2100 mmSpeed Control ModelConverter Control Temperature Control SystemAir Conditioning Heat DissipationNozzle SensorImported Original Elliptical Type Flow SensorFuel Pump SensorImported Original Vane Type Flow SensorLanguageEnglish, Spanish, Russian,etcMaterialMetal PlatePaintingPowder Painting, DurableColorGreen (can be customized)LogoJing Zheng Hong Ye (can be customized)MOQ1 PiecePayment40% Deposit, the rest paid before shipmentWarranty Time12 monthsDelivery time30 days after prepaidShipping Packing Wooden Case


6 Injectors Testing & Coding Simultaneously Diesel Test Bench for Common Rail System Eui Eup Heui Heup Cummins Hpi Testing (equipped 8 Germany flow sensors)


Packing and Delivery

6 Injectors Testing & Coding Simultaneously Diesel Test Bench for Common Rail System Eui Eup Heui Heup Cummins Hpi Testing (equipped 8 Germany flow sensors)

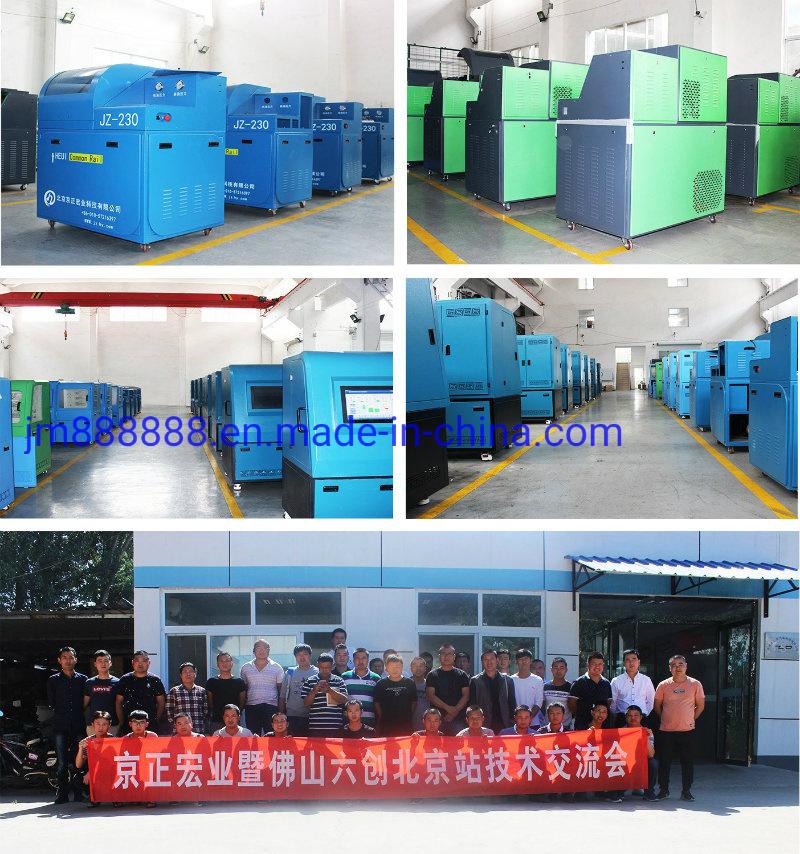

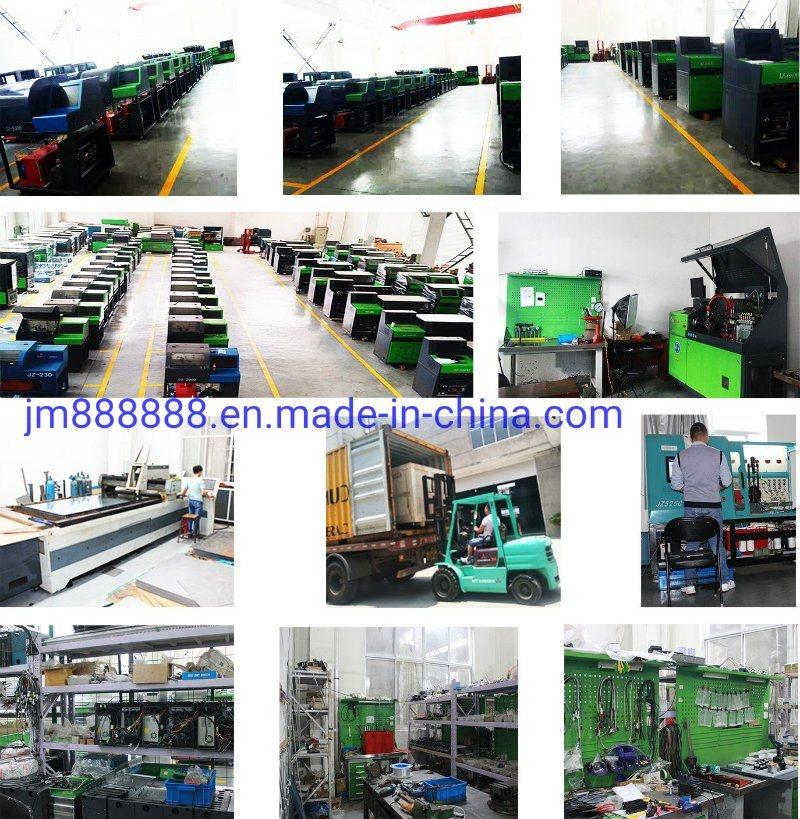

Our Company

6 Injectors Testing & Coding Simultaneously Diesel Test Bench for Common Rail System Eui Eup Heui Heup Cummins Hpi Testing (equipped 8 Germany flow sensors)
6 Injectors Testing & Coding Simultaneously Diesel Test Bench for Common Rail System Eui Eup Heui Heup Cummins Hpi Testing (equipped 8 Germany flow sensors)

Exhibition

6 Injectors Testing & Coding Simultaneously Diesel Test Bench for Common Rail System Eui Eup Heui Heup Cummins Hpi Testing (equipped 8 Germany flow sensors)

Why Choose Us

1.  Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2.  Independent design and development team,and produce experience.
3.  Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC,  good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
