Outdoor Front Service Display Billboard P6.67 Full Color LED Advertising Screen
Hangzhou Awesome Imp&Exp. Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：6.67mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：OX-P6.67S
- Pixel Density：22477 Dots,M2
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Cabinet Material：Alu,Steel
- Cabinet Weight：35kg,M2 (Aluminum)
- Brightness：6000nits
- Refresh Rate：1920-3840Hz
- Voltage：AC110-240V
- Contrast Rate：3000:1
- PSU：MW
- Driver IC：Mbi
- LED Lamps：Epistar
- System：Nova
- Transport Package：Plywood Cases
- Specification：960x960mm
- Trademark：LEDventure
- Origin：China
- HS Code：852859109
- Production Capacity：2000sqm,Month
Description

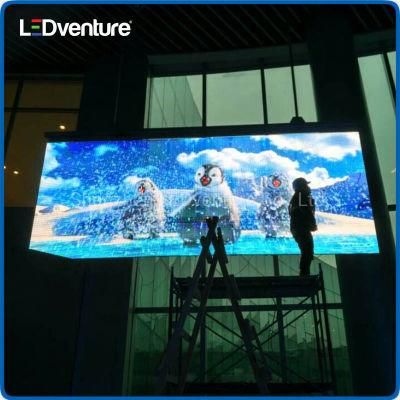

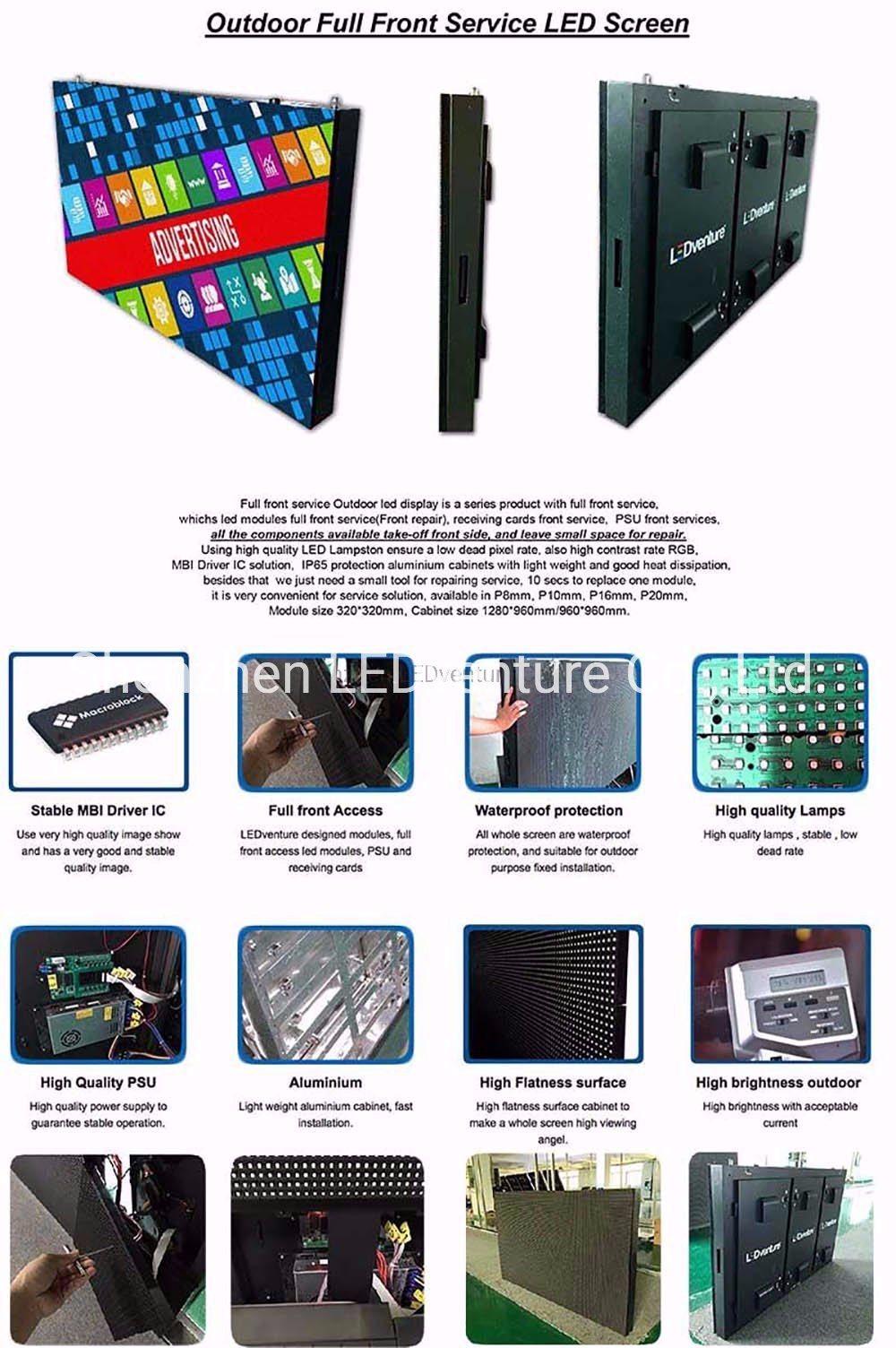

Outdoor front service series led display screen is very popular in outdoor building wall-mounted projects.
P6.67 is a hot sale product for outdoor front series, high cost effective, high refresh rate more than 1920hz, top image quality and stable running.

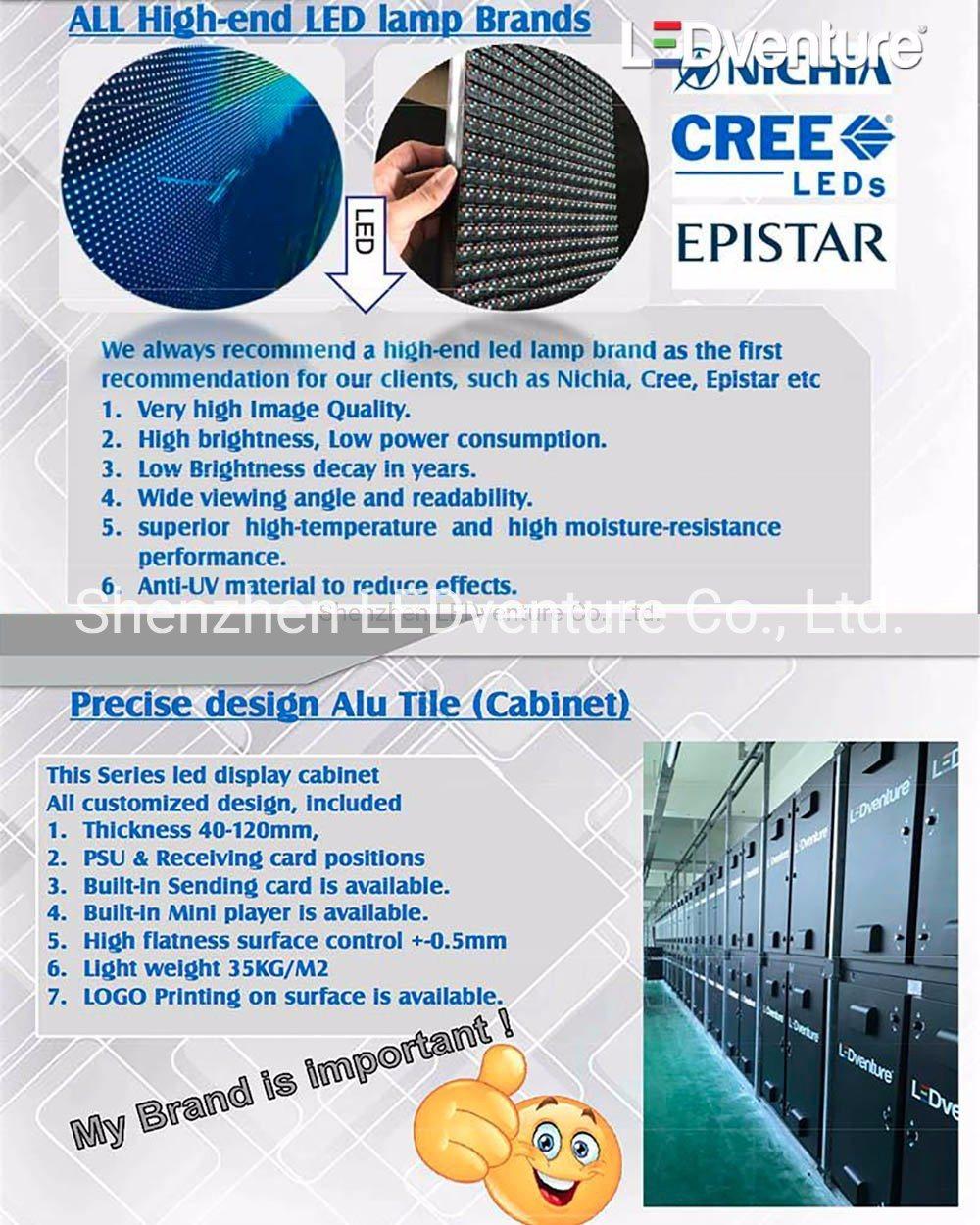

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Item
Outdoor Front Service Advertising LED Display Screen
Model Number
OX-P6.67S
Pixel Pitch
6.67mm
Pixel Density
22477 pixels/M2
Pixel Configuration
SMD2727
LED Type
Epistar, SMD 3 in 1
Module Size
320x320mm
Module Resolution
48*48 pixels
Min.Viewing Distance
6m
Brightness
6000nits
Viewing Angle(degree)
≤140°
Average Power Consumption
400 W/M2
Scan Mode
Protection Level
IP65/IP54
Cabinet Size
960x960mm
Color Temperature
The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements
Input Voltage
AC110-240V, 50Hz/60Hz
Refresh Rate
1920-3840hz
Color
65535 Levels
Horizontal/Vertical viewing angle
<140°
Gray Scale
16 bits
Effective Communication Distance(without relay)
Lifespan
≥100,000 hours
Environment Temperature
Storage: -40°C~+85°C , Operation: -20 °C~+45°C
Blind Spot Rate
<0.0001(led display industry standard is less than 0.0003)
Control Mode
Video frequency synchronization

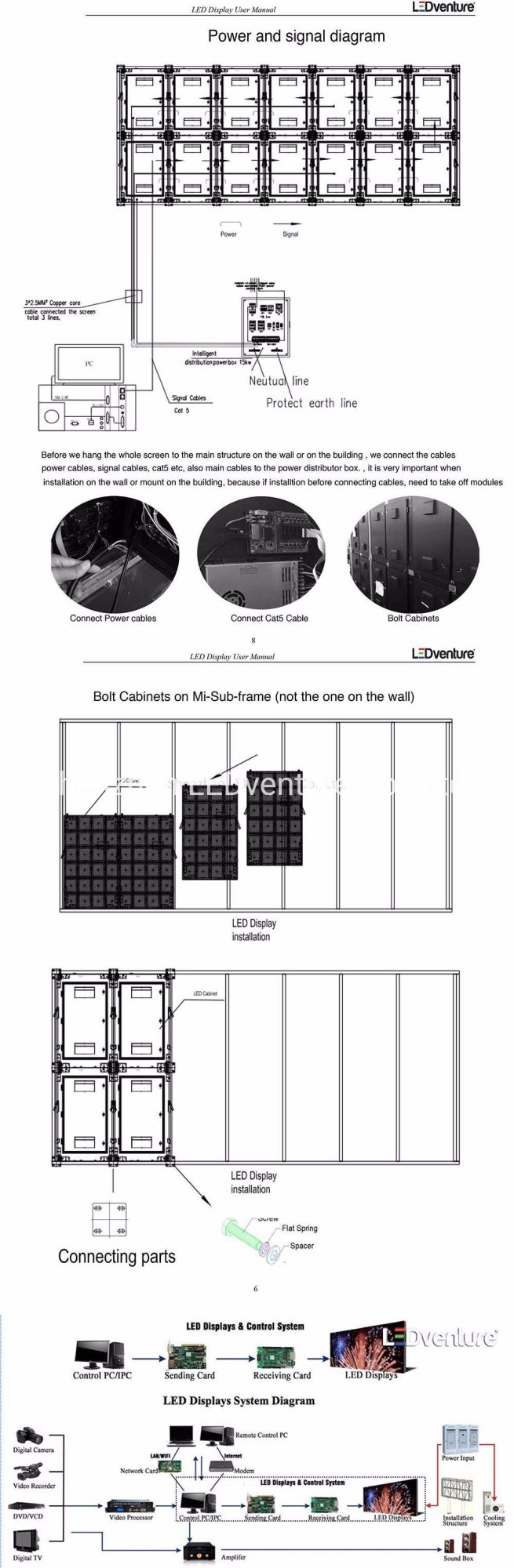

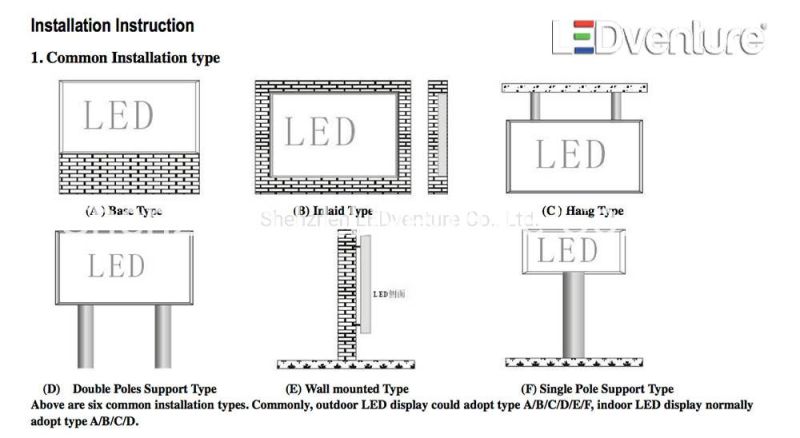

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Packing by plywood cases, packing well and easy to load
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
