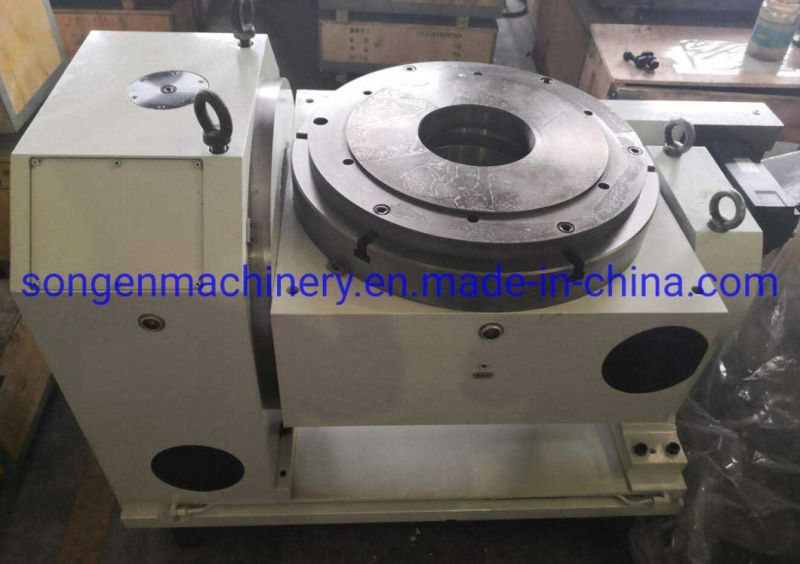

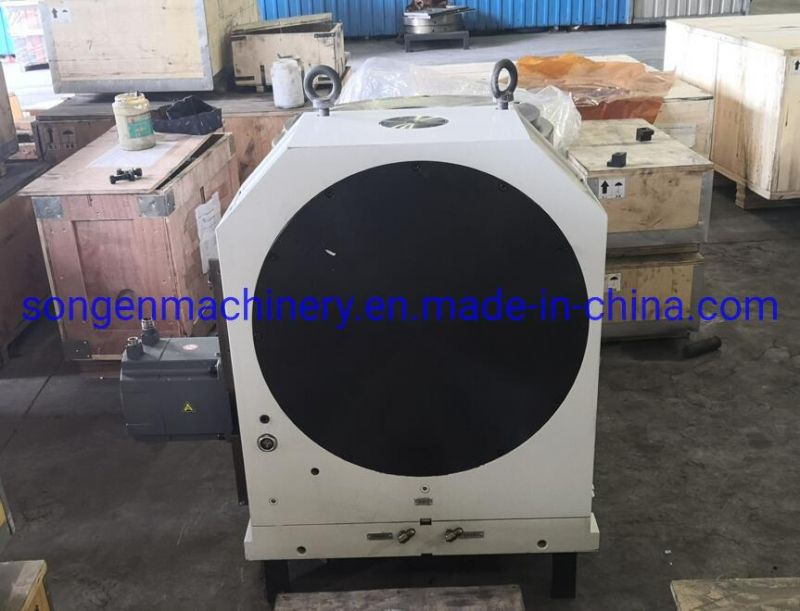

Table Diameter 170-630mm, Nc Controlled Tilting Rotary Table
Guangzhou Baiyun District Fengxin Plastic Products Factory- Certification：CE, ISO 9001:2008, ISO 9001:2000, GS
- Material：Metal
- Type：CNC Controlled Tilting Type
- Logo Printing：with Logo Printing
- Size：Middle
- Customized：Customized
Base Info
- Model NO.：NCRT170-630T
- Transport Package：Plywood Case
- Trademark：Songen
- Origin：China
- HS Code：84663000
- Production Capacity：1000 Sets,Year
Description
ParameterNCRT170T NCRT250T NCRT320T NCRT400T NCRT500T NCRT630T 1 Turntable diameter, mm 170 250 320 400 500 630 2 Center bore diameter, mm 35H7 30H7 100H6 130H6 180H6 265H7 3 T-slot size, mm 12 12 14 14 18 4 Positioning key size, mm 18 18 18 18 18 5 Worm gear ratio 1:80 1:90 1:90 1:120 1:150 1:120 6 Total reduction ratio 1:180 1:180 1:180 1:180 1:180 1:180 7 Tilting worm ratio 1:80 1:90 1:90 1:120 1:150 1:120 8 Tilting total ratio 1:180 1:180 1:180 1:180 1:180 1:180 9 Max. speed, RPM 11.1 11.1 11.1 11.1 11.1 11.1 10 Servo motor power, KW Rotary spindle ≥0.8 ≥0.8 ≥0.8 ≥1.1(1.4) ≥1.1(1.4) ≥1.1(1.4) Tilting spindle ≥0.8 ≥0.8 ≥0.8 ≥1.1(1.4) 11 Min. increment, Deg 0.001 0.001 0.001 0.001 0.001 0.001 12 Tilting range, Deg -15~105 -15~105 0~90 0~90 0~90 0~90 13 Static clamping torque of turntable, N.m Air 0.5MPa, 200 Air 0.5MPa, 300
Oil 1.5MPa, 500 Oil 3.5MPa, 1500 Air 0.5MPa, 650
Oil 1.5MPa, 2000 Oil 3.5MPa, 2800 14 Static clamping torque of tilting spindle, N.m Air 0.5MPa, 260 Air 0.5MPa, 400
Oil 1.5MPa, 700 Oil 3.5MPa, 2100 Air 0.5MPa, 1000
Oil 1.5MPa, 3000 Oil 3.5MPa, 3800 15 Rotary spindle accuracy, Sec Indexing 30 30 25 20 20 20 Repeatability 6 6 6 6 6 6 16 Tilting spindle accuracy, Sec Indexing 60 60 45 45 45 45 Repeatability 10 10 10 10 10 10 17 Max. load capacity, Kgf 25 100 150 200 400 500 50 75 100 150 200 300 18 Net weight, Kgs 300 450 600 750 900 19 Servo motor torque, N.M Rotary spindle 2.4 6 6 12 12 12 Tilting spindle 6.36 6 6 12 12 12
Oil 1.5MPa, 500
Oil 1.5MPa, 2000
Oil 1.5MPa, 700
Oil 1.5MPa, 3000
