• Model NO.：SNSTY-205
• Cell Type：Lithium Battery
• Charging Time (H)：6
• Usage：Garden
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：515*320*52mm , 530*390*140mm
• Product/Packing Weight：3.5kg,4.5kg
• Product Name：Solar PV LED Lighting,Solar Light for Garden
• Model No.：Snsty-205
• Other Function：AC Charge, USB Output, Battery Display
• Transport Package：Strong Carton
• Specification：5W LED 9W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• Production Capacity：China

Basic Info.

Model NO. SNSTY-205 Cell Type Lithium Battery Charging Time (H) 6 Usage Garden IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 515*320*52mm / 530*390*140mm Product/Packing Weight 3.5kg/4.5kg Product Name Solar PV LED Lighting/Solar Light for Garden Model No. Snsty-205 Other Function AC Charge, USB Output, Battery Display Transport Package Strong Carton Specification 5W LED 9W Solar Panel Trademark SINOLTECH Origin China Production Capacity China

Product Description

5W All in one integrated solar PV LED lighting/solar light for garden (SNSTY-205)

OEM logo is aceptable for quantity 50 units and above

Integrating the best green energy at present(Solar power, LED lamp, lithium-ion ferrous phosphate battery), adopting micro intelligent Solar controller, thermal infrared human Body induction etc a series of excellent practical control technology, combined with simple integration design, realizing the perfect solution of low consumption, high Brightness(5W LED light is equal to brightness of 40W incandescent light bulb), long service life, free maintenance, excellent waterproof and heat dissipation performance.
Meantime, the all in one solar light is very convenient to ship and install.

Battery display: 4 LED on-100%, 3 LED on-75%, 2 LED on-50%, 1 LED on-25%(should charge the lamp immediately).Working time is calculated under condition of 8 hours charging under sunshine during summer, location northern latitude 22° East longitude 113° .Actual working time will defer upon different region, season, environment, direction etc.

Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it's necessary, the battery provide the energy for lighting, and the solar panel charge for the battery.

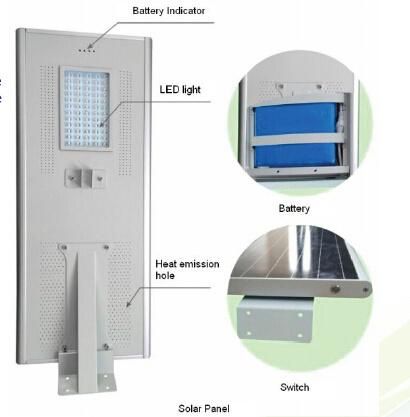

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,

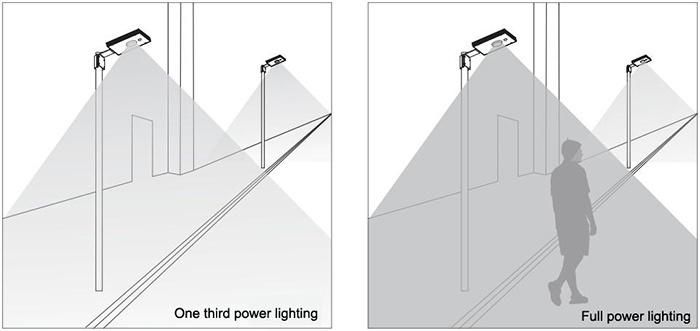

And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary

Solar Panel	Max Power	18V9W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V5W
(With sensor)	Led chip brand	Epistar from Taiwan with high brightness
	Lumen(LM)	180-600LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6hours
Discharge time	Full power	6 hours
	Half power	12 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k-6500k
Mounting height	range(m)	2-3m
Space between light	range(m)	5-6m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		2 years
