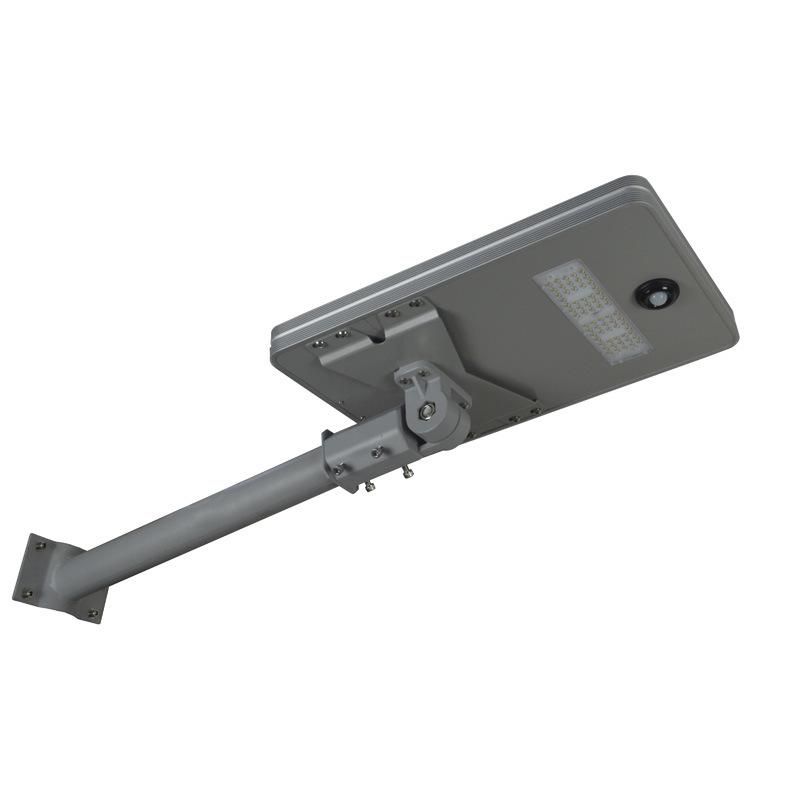

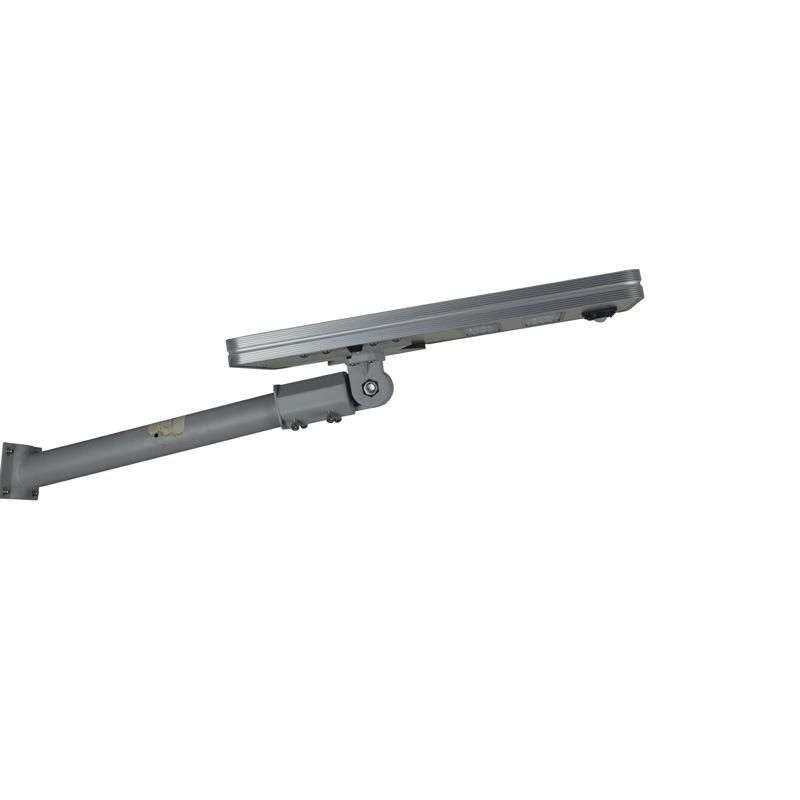

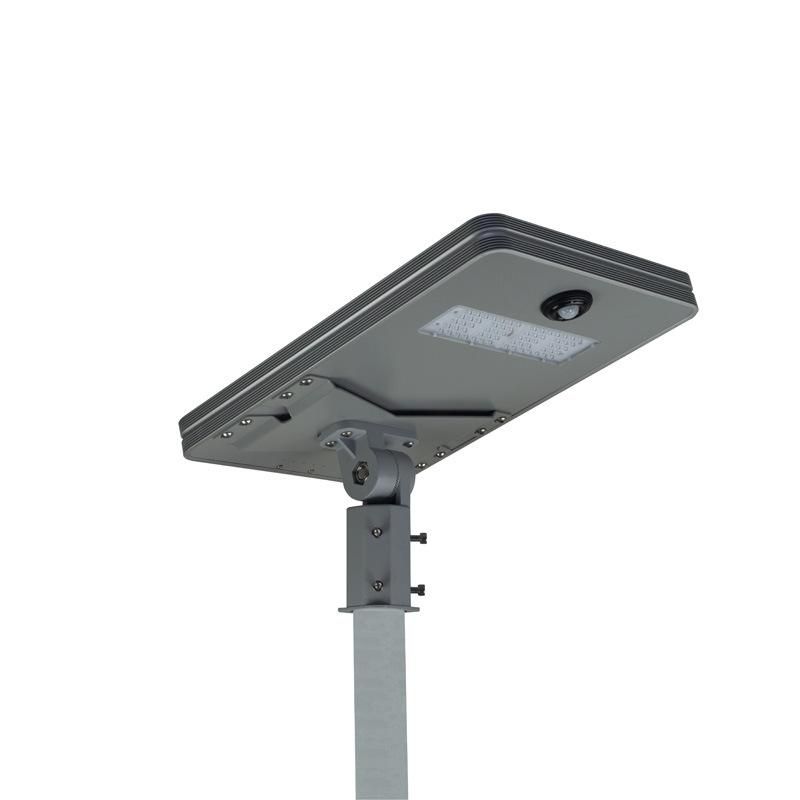

Waterproof Energy Saving All in One Integrated LED Solar Street Light

QINGDAO BAIXI INDUSTRY CO., LTD.
  • After-sales Service：Free Parts by DHL,UPS,FedEx Express
  • Warranty：3-5 Years
  • Light Source：LED Lamp
  • Lamp Body Material：Aluminum Alloy
  • Light Type：Solar
  • Color Temperature：Cool White

Base Info

  • Model NO.：DL-SLPAD-20W
  • Power：20W
  • Technics：Painted Matte
  • Illumination Time：12h
  • Cell Type：LiFePO4,Ternary Lithium Battery
  • Charging Time (H)：6
  • Usage：Garden, Street, Square
  • IP Rating：IP65
  • Certification：CE, RoHS, IP65
  • Voltage：12,24V
  • With Light Source：With Light Source

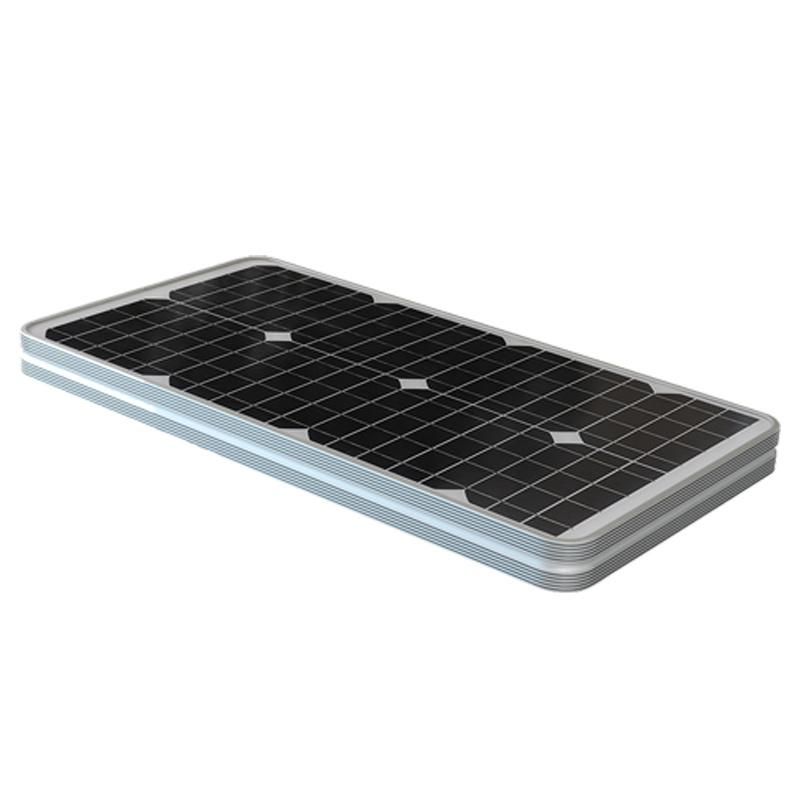

  • Solar Panel：18V 40W High Efficiency Monocrystalline Silicon
  • OEM：Available
  • LED Chips：Bridgelux with 2800-3200 Lumens
  • Lifetime：More Than 50,000 Hours
  • Viewing Angle：70*140 Degree
  • Controller：Smart PWM or MPPT Controller
  • Charge Time：6 Hours in Strong Sunshine
  • Saving Mode：3-5 Continuous Rainy and Cloudy Days
  • Working Temperature：-30~60 Celsius
  • Height of Pole：5-6m
  • Distance Between 2 Lights：15-18m
  • Certificate：ISO,CE(EMC&LVD) & RoHS & IP65
  • Net Weight：7.5kg
  • Gross Weight：8kg
  • Feature：Evergy Saving
  • Transport Package：Carton,Wooden Frame
  • Specification：53*34*6(cm)
  • Trademark：DAWN
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：60000units,Year

Description

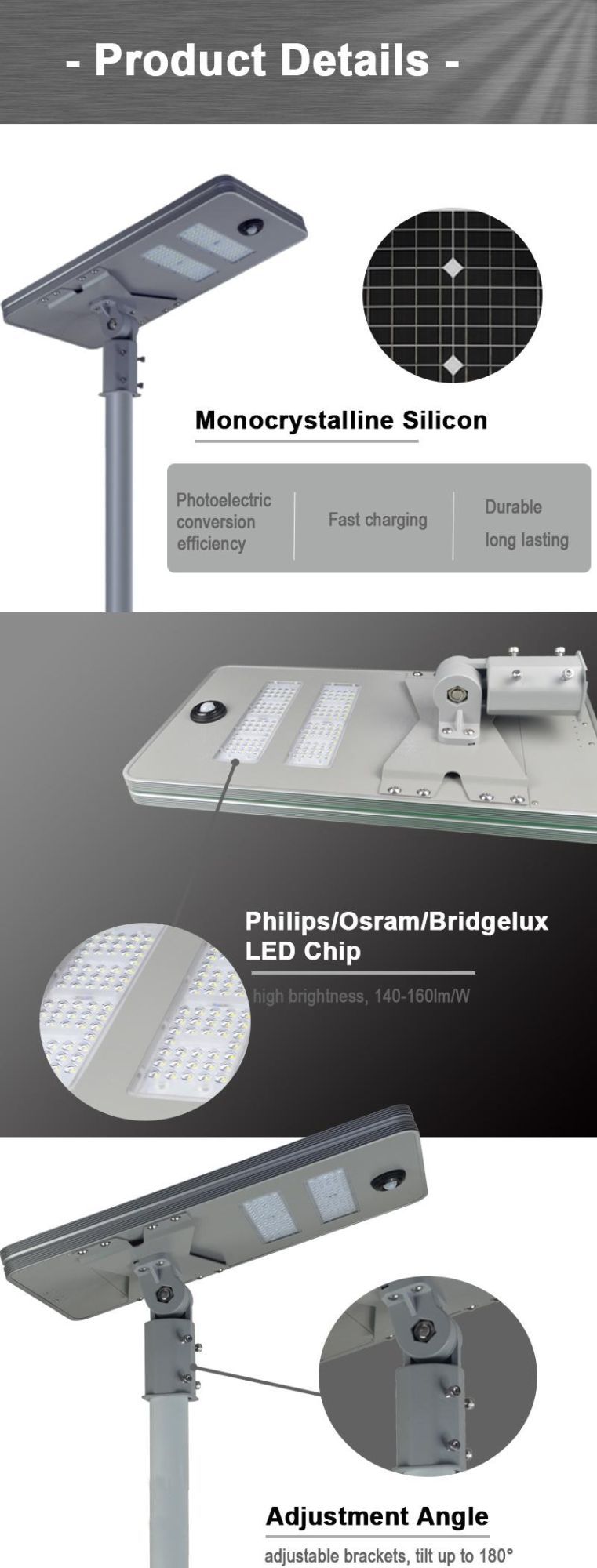

DL-SLPAD-20W 20W All In One LED Solar Street LightSolar panel power:18V 40W high efficiency monocrystalline silicon,25 years lifespanWorking Temperature-30ºC~60ºCBattery Type:High efficiency A grade 12.8V 13AH(166WH) LiFePO4battery;
12V 13AH(156WH) Ternary Lithium battery;5-8 years lifespanColour Temperature6000-6500K(standard),2800-3300K,4000-4500KLED ChipsBridgelux with 2800-3200 lumensMounting height of pole5-6mLifetime≥50,000 hoursMounting distance between 2 lights15-18mViewing Angle70*140ºMain MaterialAluminum AlloyControllerSmart PWM or MPPT ControllerCertificateISO,CE(EMC&LVD) & RoHS & IP65,other certificates are availableCharge Time6 hours in strong sunshineSaving mode

3-5 continuous rainy and cloudy days

Net Weight7.5KGGross Weight8KGLamp Size53*34*6(cm)Carton Size57*39*24(cm)Q'ty/ctn:1 set/ctnWarranty3-5 Years
Waterproof Energy Saving All in One Integrated LED Solar Street LightWaterproof Energy Saving All in One Integrated LED Solar Street LightWaterproof Energy Saving All in One Integrated LED Solar Street LightWaterproof Energy Saving All in One Integrated LED Solar Street LightWaterproof Energy Saving All in One Integrated LED Solar Street Light

Waterproof Energy Saving All in One Integrated LED Solar Street Light

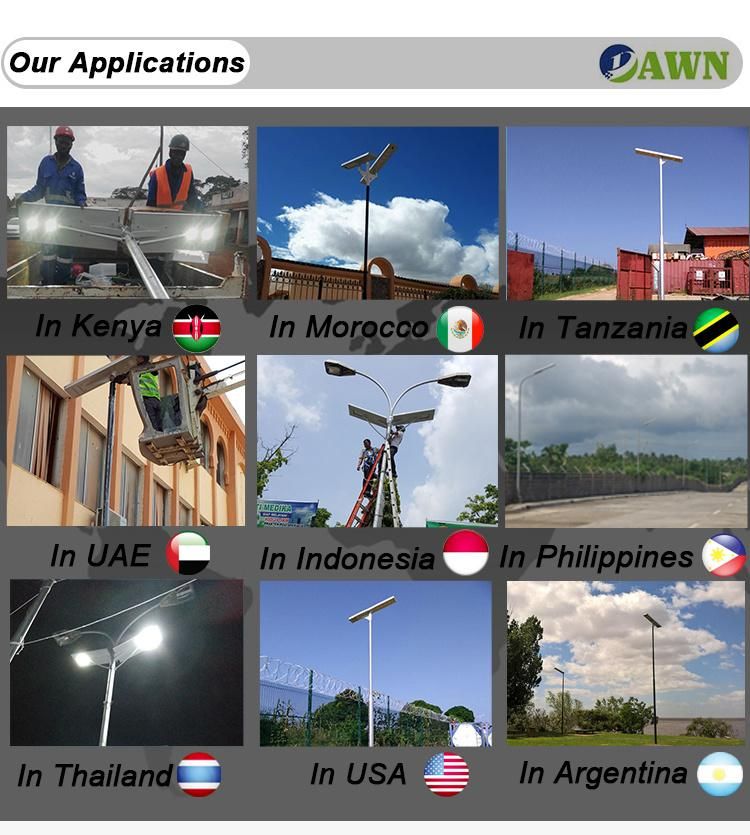

Application:
Excellent IP65 waterproof performance, widely used in Pathways, Rural Roads, Parks, Main Streets, Parking lot, Perimeters, Resorts. Etc.
Waterproof Energy Saving All in One Integrated LED Solar Street Light
Waterproof Energy Saving All in One Integrated LED Solar Street LightWaterproof Energy Saving All in One Integrated LED Solar Street LightWaterproof Energy Saving All in One Integrated LED Solar Street Light
Our Service:
We foucus on solar products R&D, manufacturing, sales and after-sales, one-stop service. Various product with different range prices to meet all kinds of requirements, 3-5 years warranty with top quality. 3 engineers with more than 6 years rich experience and 3 engineers with more than 4 years experience in solar field to ensure the quality of the products. That's why our solar products are exported to more than 80 countries and areas, more than 74% clients make regular orders with us.

Why Choose us?
A: We are developing at the fatest speed in solar lighting filed in ShenZhen.
B: More than 10 years experience in solar Lights and we only offer top quality products.
C: We'll equipped with complete facilities and workers with rich experience to ensure short delivery time.
D: We have strict quality control team and excellent pre-sales, sales & after-sales service.
E: We can offer good discount price for your bulk orders.

Waterproof Energy Saving All in One Integrated LED Solar Street Light
FAQ:
Q1, Can I have a sample order for led light ?
A1 : Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?
A2: For sample is about 5 working days, for large quantity is about 15 working days.

Q3: How many years for warranty?
A3: 3~5 years warranty. If the product has any quality problems during the warranty period, we will send the accessories to you free of charge via DHL, FedEx or UPS etc.

Q4: What's the color temperature can you offer?
A4: The normal color temperature is 6000-6500K(standard),2800-3300K,4000-4500K. And the other range color temperature is available, including RGB.

Q5: How to do in rainy days, cloudy days or snowy days?
A5: Our LED Street Light are IP65 Waterproof. You don't need to worry about it. After fully charged, the capacity of the battery can keep the lights working for 3-5 rainy, cloudy or snowy days.

Q6: How do you ship the goods and how long does it take to arrive?
A6: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q7, Is it OK to print my logo on led light product ?
A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
