P3 P2.5 Indoor Flexible LED Module Display Screen for Advertising
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111 Dots,Sqm
- Scanning Mode：1,32
Base Info
- Model NO.：3mm, 4mm, 5mm
- System Operating Platform：Windows
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide, TV Station , Studio , Conference Hall
- IP Rating：IP30
- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：192X192mm
- LED Type：SMD2020
- Screen Brightness：1200nits
- Screen Refresh Rate：1920Hz
- Grey Scale：16bits
- Maintenance：Front,Rear
- Controller：Nova
- Cabinet Size：Customizable
- Voltage(V)：AC 110~240V
- Avg. Power Consumption：350W,M2
- Max. Power Consumption：700W,M2
- Color Depth：4096(14bits)
- Frame Rate(Hz)：60
- Contrast Ratio：3500:1
- Viewing Angle：H:160°, V:160°
- Transport Package：Plywood Case
- Specification：768x768mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
No.
PARAMETER
SPECIFICATION
1
Pixel Pitch(mm)
3.0
2
Pixel Density
111111/m2
3
LED Type
SMD2020
4
LED Wave Length(nm)
R:620-625/G:515-520/B:470-475
5
LED Luminous Intensity(mcd)
R:210~370/G:420~650/B:85~110
6
Viewing Angle
H:160°/ V:160°
7
Bending radian
Centre bend≤120°/Opp angle bend≤120°
8
Brightness
1200cd/m2
9
Drive Method
1/32
10
Signal interface
HUB75
11
Color Depth
4096(14bits)
12
Refresh Rate(Hz)
≥1920
13
Frame Rate(Hz)
≥60
14
Contrast ratio
3500:1
15
Module Size(mm)
192*192
16
Cabinet Size (mm)
Customizable
17
Power Supply
5V 40A
18
Voltage(V)
AC 110~240V
19
Avg. Power Consumption
350W/m2
20
Max. Power Consumption
700W/m2
21
Service Access
Front/Rear service
22
IP Grade
IP31
23
Operating Temp/Humidity
-20ºC~50ºC, 10~90%RH
24
Storage Temp/Humidity
-40ºC~60ºC, 10~90%RH
25
Lifetime(Normal Temp)
≥100000H
26
System Controlle
Synchronization with PC
27
Compliant Standard
CCC,CE

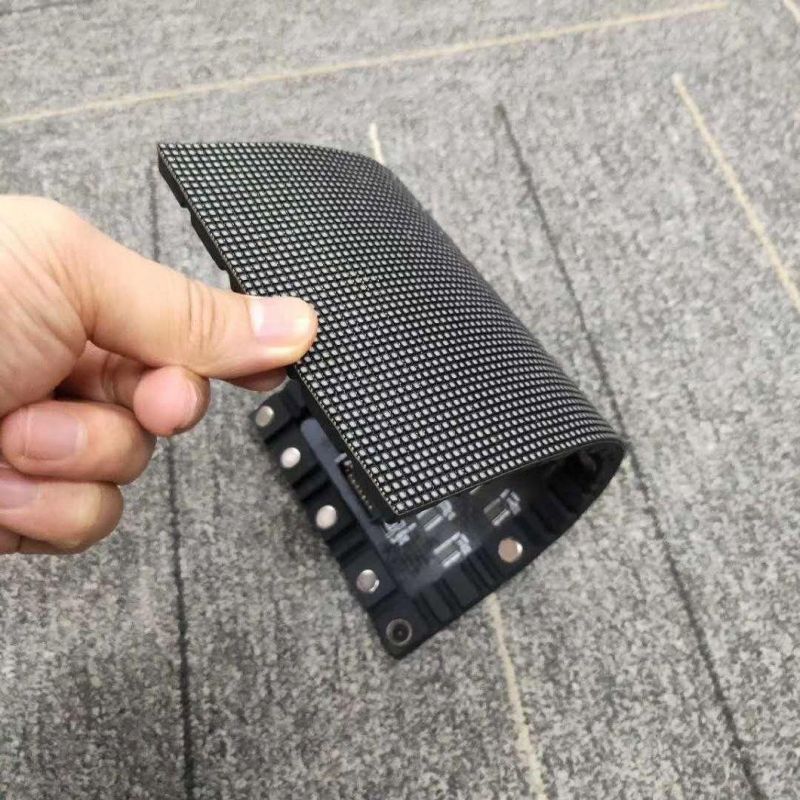

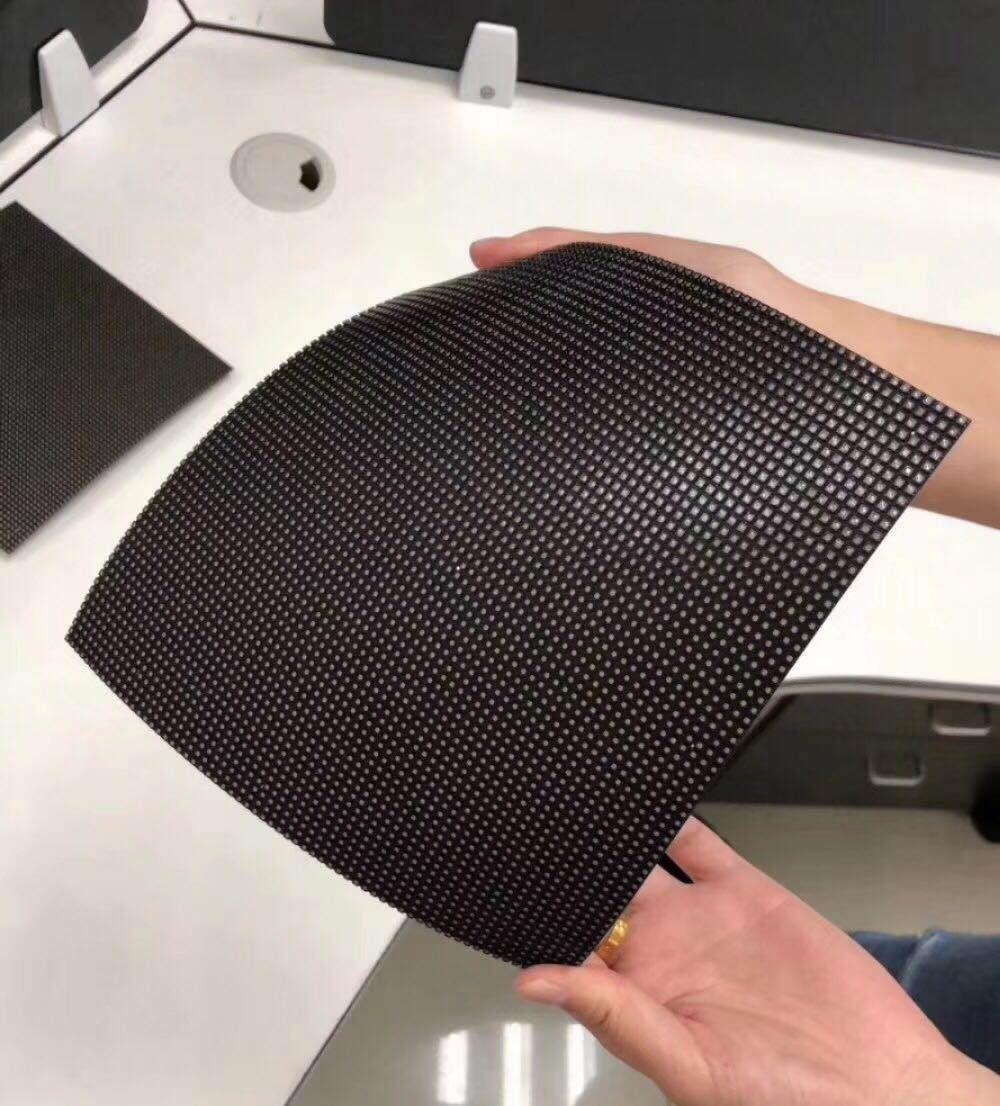

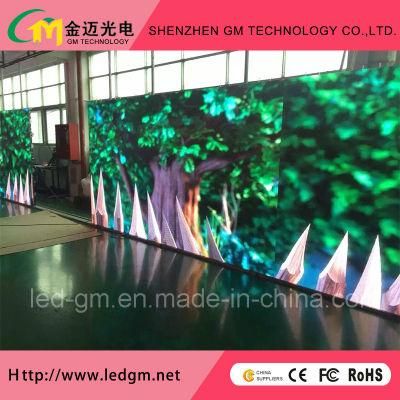

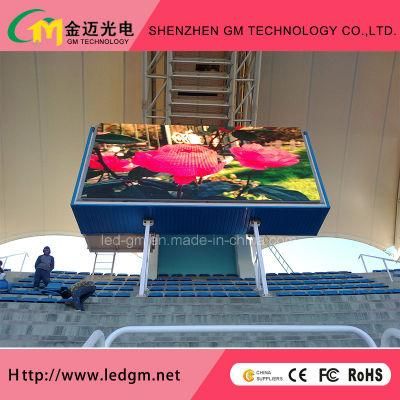

PRODUCT PHOTOS:
CERTIFICATES:

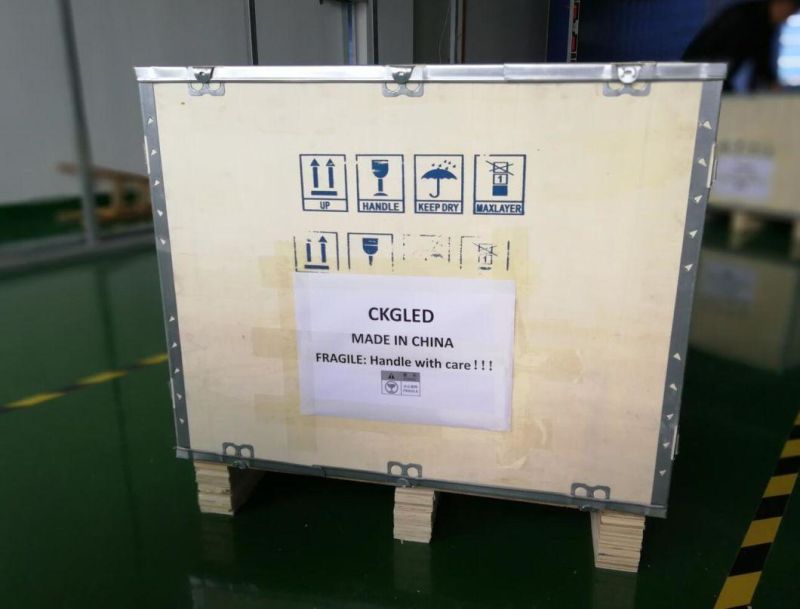

PACKAGE:

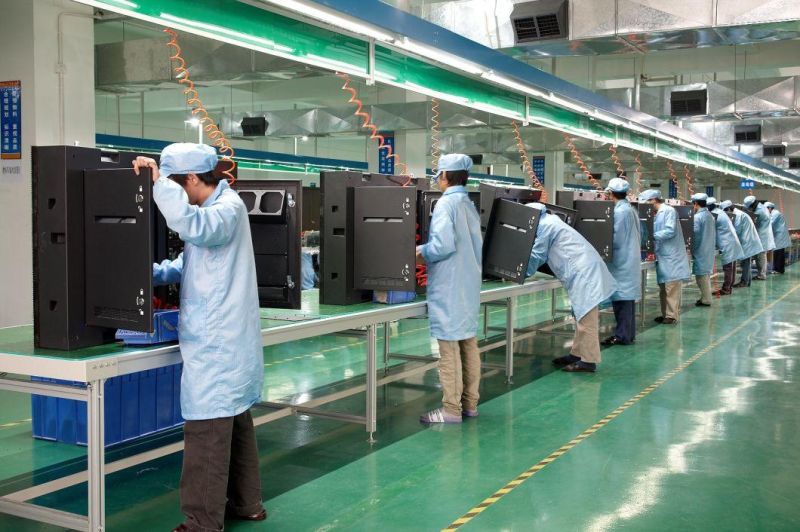

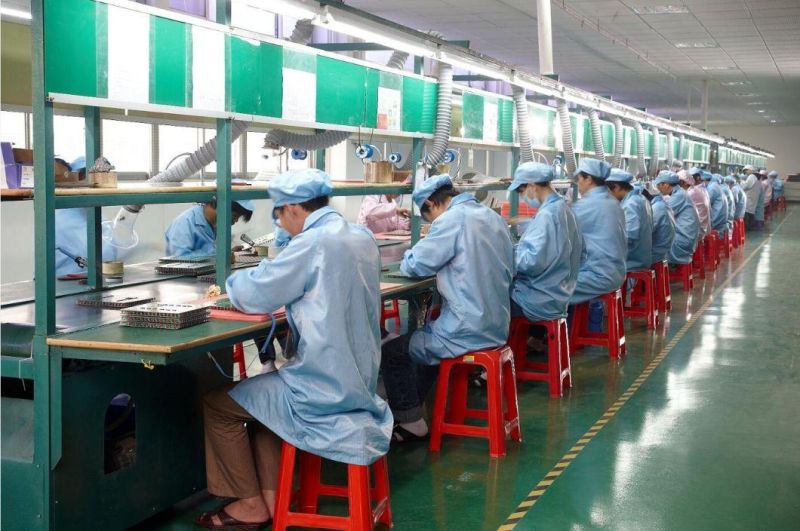

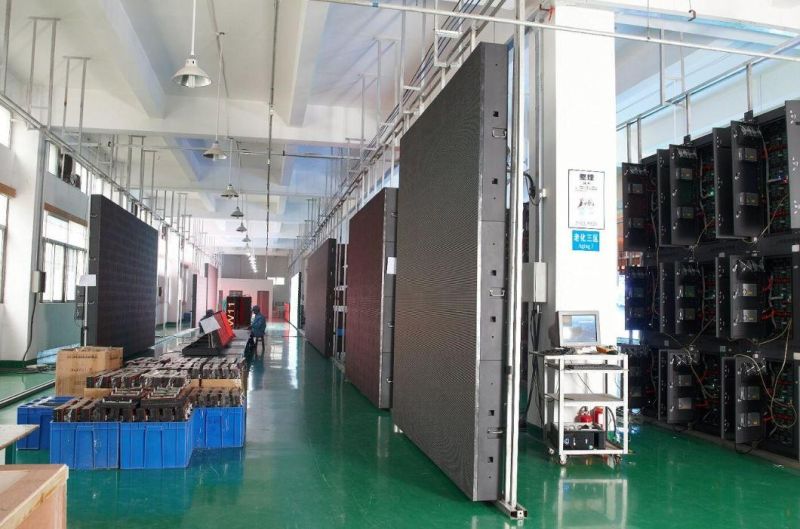

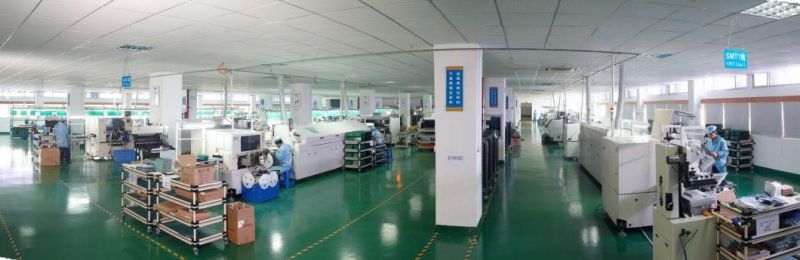

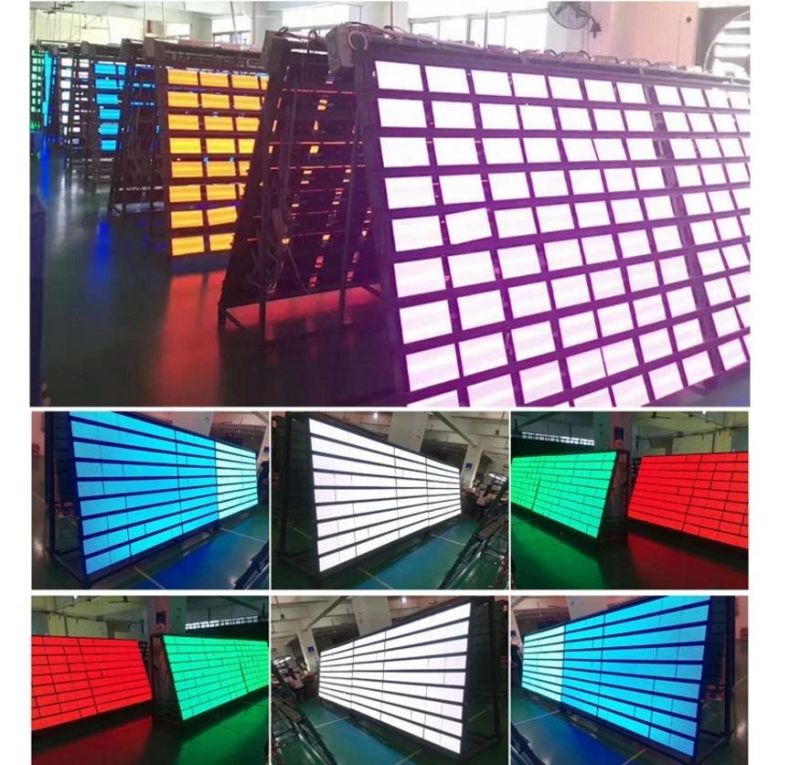

CKGLED FACTORY WORKSHOP:
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.

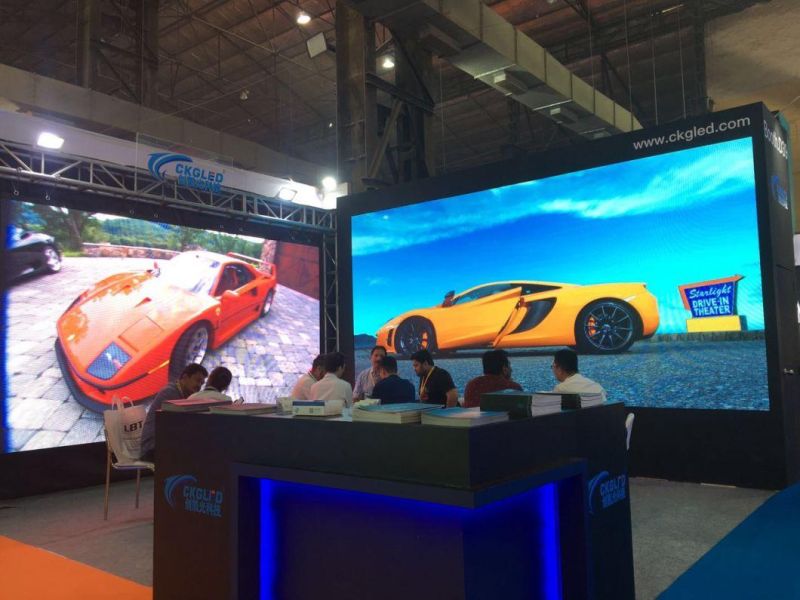

FORIGN EXHIBITION:
Our Service:
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms:
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
