• Model NO.：BY-3
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Blue
• Heating：Riello Oil Burner
• Voltager：220V,Single Phase,380V,Three Phase,
• Usage：for Car Spraying and Painting
• Purification：≥90%
• Noise Db (a)：≤75
• Air Capacity：21000m3,H
• Certificate：CE
• Max Operating Temperature：80
• Warranty：1 Year
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：50set,Month


Intake and Exhaust   systemInlet: 2×3 KW double-intake centrifugal  fans, model  YDW4.5M1,  air capacity for each fan:  10500m 3 /h.Outlet:  1× 4KW double-intake centrifugal  fan, model  YDW4.5L1 , air capacity:  12500m 3 /h .Heating systemRIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 2000 0 0kcal/h,  Max temperature: 80 °C .Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop,  temperature limit controller, exhaust with manual damper,  all motors are normal start.Total Power12KW

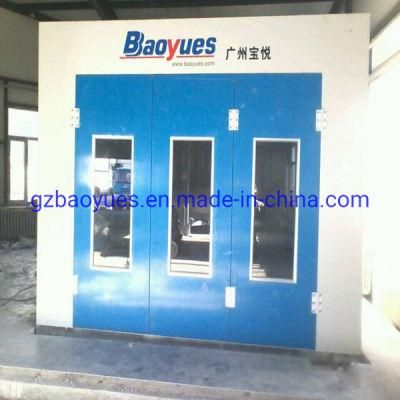

Details for the parts:

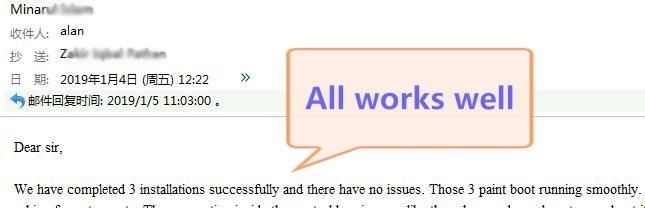

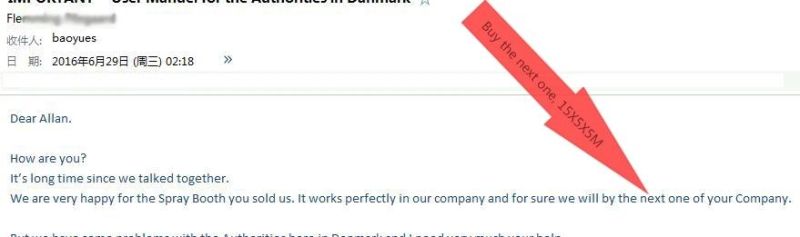

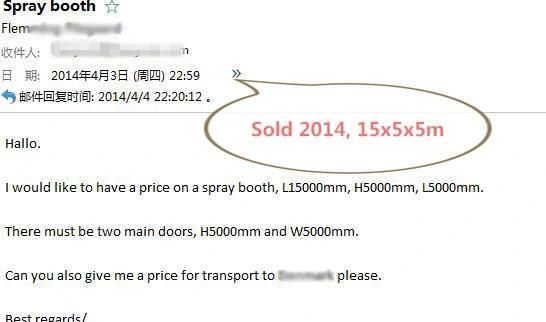

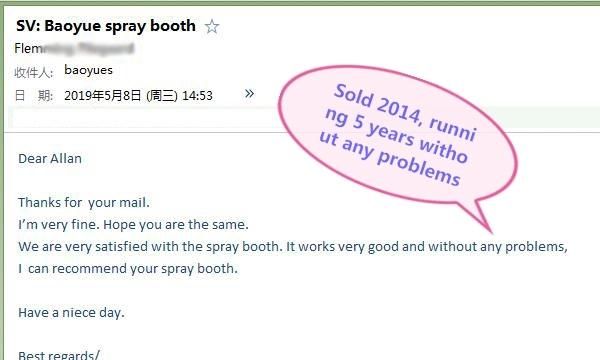

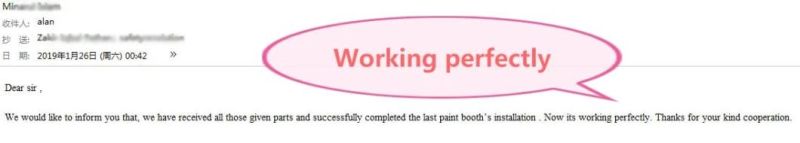

What customer saying:

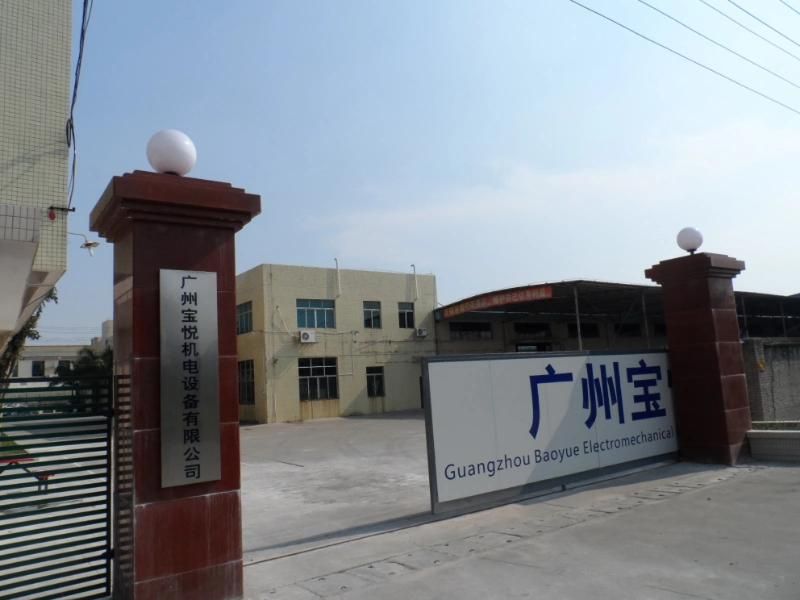

Factory show:

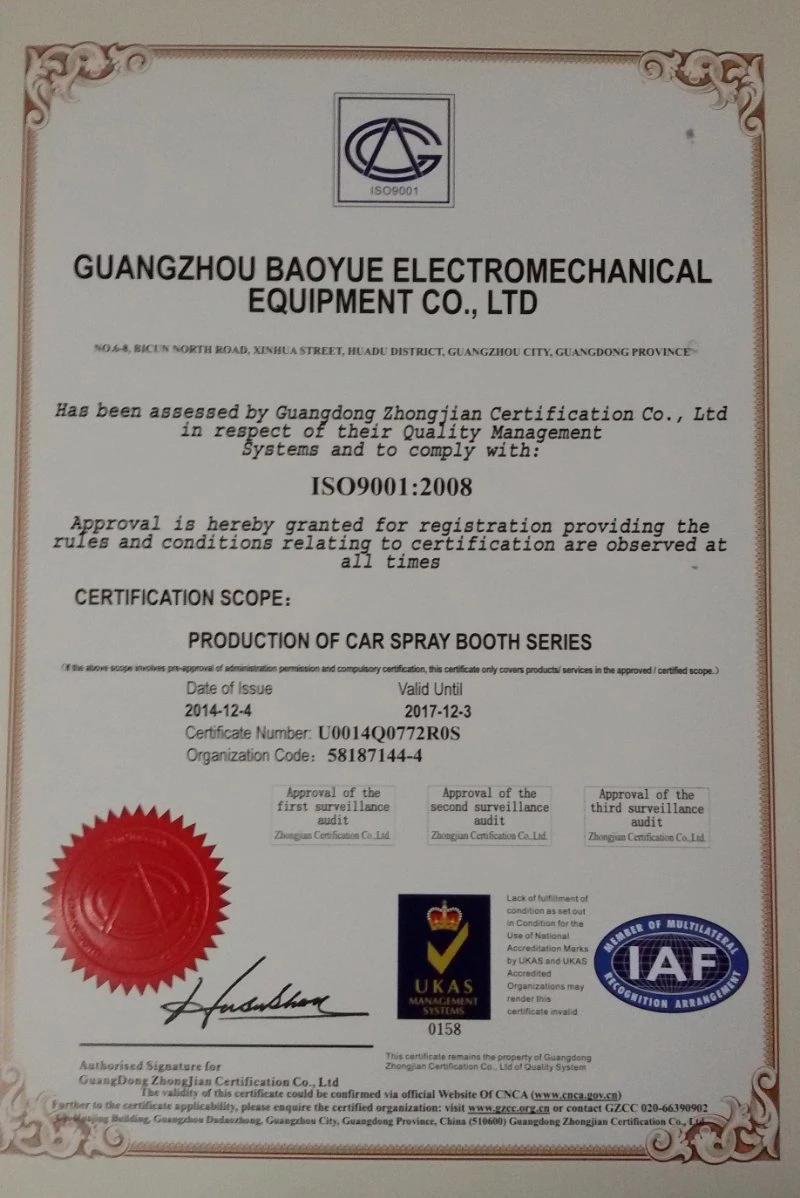

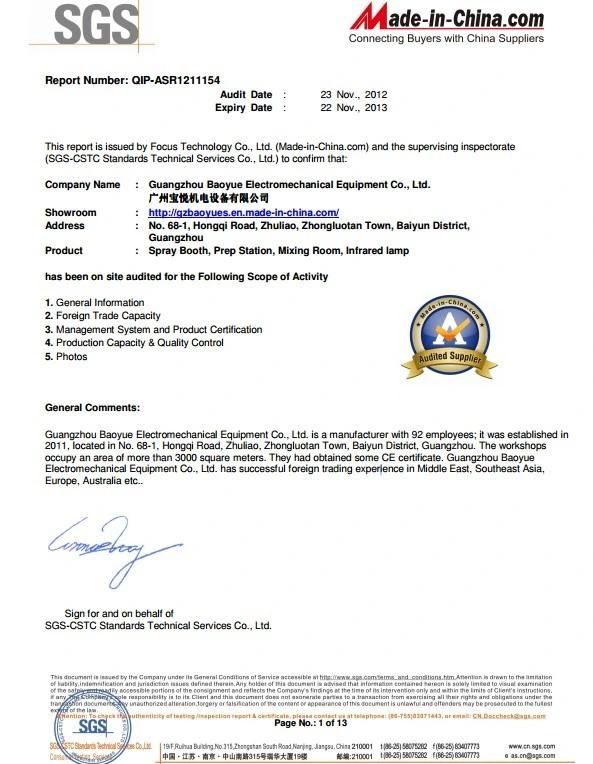

Certificate:
