• Model NO.：DDCP
• Shearing Lift Type：car lift
• Condition：New
• Brand：Moral
• Design：Scissor
• Load capacity：3000kg
• Lifting height：5000m
• Platform size：5000*2500mm
• Warranty：12monthes
• Color：As customers′ request
• Drive mode：Hydraulic drive
• Motor power：5.5kw
• Voltage：AC 220V,380V 50Hz,60Hz
• Transport Package：Standard Export Packing
• Specification：6000(L)*3000(W)*1500(H)mm
• Trademark：MORAL
• Origin：Shandong, China(Mainland)
• HS Code：842890
• Production Capacity：500pieces,Month

Basic Info.

Model NO. DDCP Shearing Lift Type car lift Condition New Brand Moral Design Scissor Load capacity 3000kg Lifting height 5000m Platform size 5000*2500mm Warranty 12monthes Color As customers′ request Drive mode Hydraulic drive Motor power 5.5kw Voltage AC 220V/380V 50Hz/60Hz Transport Package Standard Export Packing Specification 6000(L)*3000(W)*1500(H)mm Trademark MORAL Origin Shandong, China(Mainland) HS Code 842890 Production Capacity 500pieces/Month

Product Description

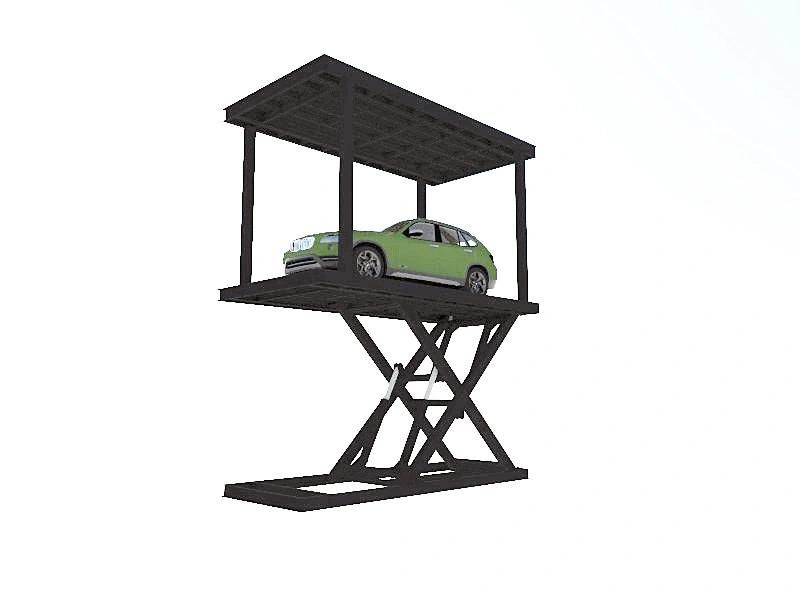

Invisible Double Parking Garage Car Lift

1. load weight: 3000kgs/customize
2. table size: 5.5m x 2.5m/customize
3. travel height: 5m/customize
4. structure: high-strength Mn steel


Model	SJG4-5
Load capacity	4000KG
Platform size	5500*2500mm
Lifting height	5000mm
Speed	100mm/s
Power	5.5kw
Power supply	AC 220V/380V 50Hz/60Hz



SAFETY




1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.


KEY BENEFITS



1.Four high capacity hydraulic cylinders design
2.Double your space by parking two vehicles in the footprint of one parking stall
3.Unobtrusive and secure - the lift and lower vehicle are completely concealed
4.Aesthetically pleasing - canopy surface can be tiled to match surroundings
5.Multiple units can be installed side-by-side for use in condo's, offices etc
6.Ideal for low-ceiling applications - use as 'vertical tandem parking' to save space
7.Safe, easy to operate

FEATURE

1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. the handrail to guarantee safety of car
3. equipped with 4 guide rails to ensure safety and steady.
4. the limit switch system ensure lifts stop at accurate position.
5. overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.







Welcome to your inquiry,we can customize for your every inquiry,thanks.

1)used for lifting kinds of car
2)great loading capacity
3)hydraulic system increase safety
4)steady working
