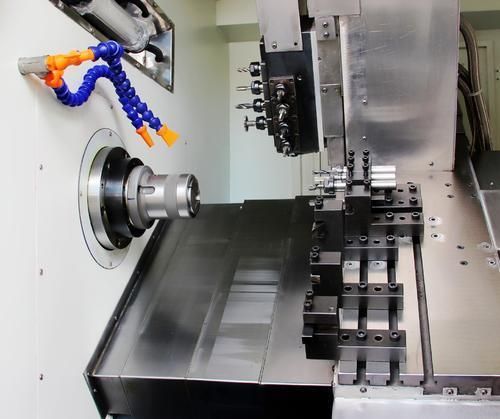

Precision High Rigidity Tool Bed CNC Lathe Machine Type
Chengdu MIND IOT Technology Co., Ltd.- After-sales Service：Quickly Feed Back on Time
- Warranty：One Year Warranty
- Transport Package：Steel Pallet with Plywood Cover
- Specification：500,1000
- Trademark：SDLN
- Origin：Shandong Tengzhou
Base Info

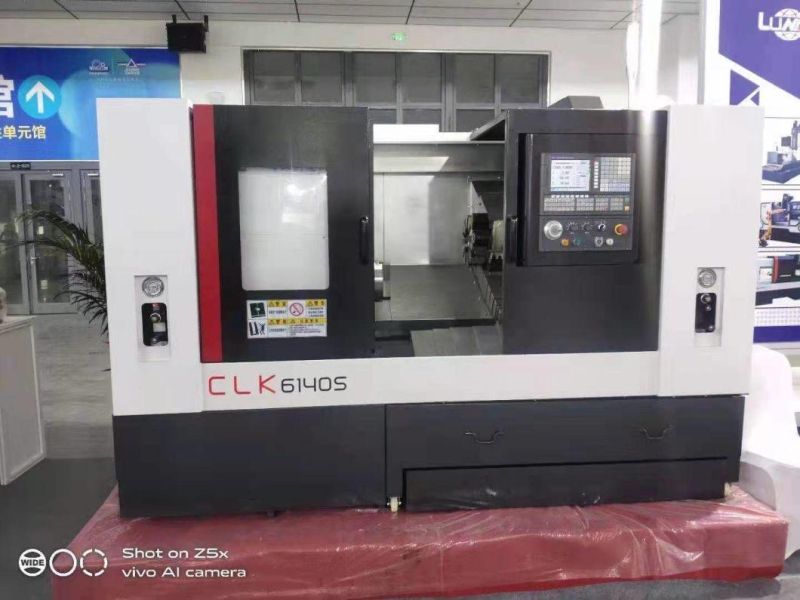

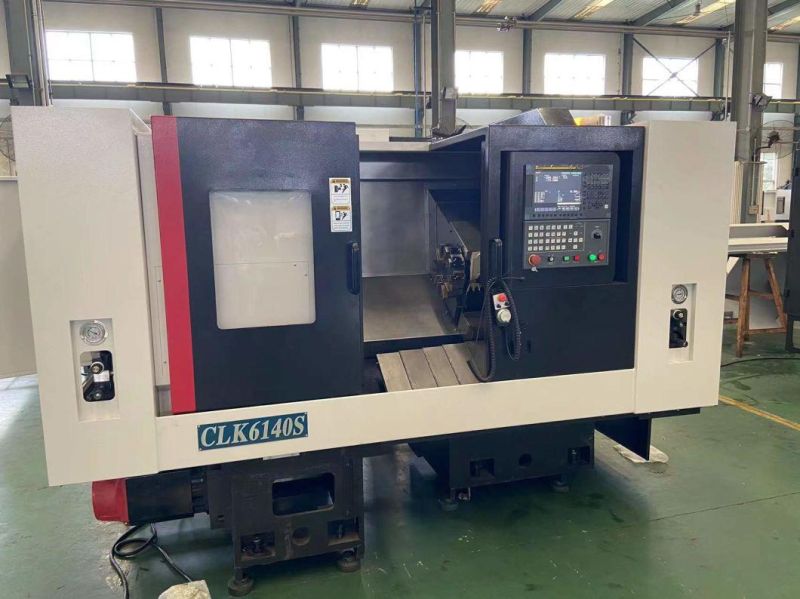

- Model NO.：CLK6140S
- HS Code：8458110000
- Production Capacity：1000
Description
ITEMSUNIT CLK6140S Work Max.swing over bed MM φ540 Max.swing over carriage MM φ270 Max.processing Dia MM φ400 Max.processing length MM 550 spindle Max.spindle speed R/MIN 4000 Spinle bounce MM 0.008/300 Spindle bore MM φ65 Dia.of through bar MM φ50 Hydraulic chuck Inch 8 Main motor KW 7.5 Turret tool Tool numbers of turret tool Pcs 10 External diameter of spuare tools MM 20 Diameter of round hole tools MM φ25 Travel Travel for X axis MM 220 Travel for Z axis MM 600 Feeding Rapid feeding of X axis M/MIN 18 Rapid feeding of Z axis M/MIN 18 Feeding speed MM/MIN 1-5000 Tailstock Tailstock travel MM 450 Feed type tailstock Hydraulic tailstock Guideway The angle of slant bed Degree 30 Type of guideway Linear guideway Accuracy Positioning accuracy for X,Z MM 0.016 Re-positioning accuracy for X,Z MM 0.008 Others Net weight KG 3500 Overall dimensions MM 2720×1580×1870
