• Model NO.：2B9-200
• Structure：Double Cylinder
• Car Make：All
• Brand：Goodyear
• Damping Force Direction：Bidirectional
• N.W.：3.5 Kg
• Pressure Ability：0.2-0.8 M PA
• Maximum Diameter：251 mm
• Transport Package：Cartons
• Specification：24*24*24 cm
• Trademark：Goodyear
• Origin：Mexico
• HS Code：8708809000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 2B9-200 Structure Double Cylinder Car Make All Brand Goodyear Damping Force Direction Bidirectional N.W. 3.5 Kg Pressure Ability 0.2-0.8 M PA Maximum Diameter 251 mm Transport Package Cartons Specification 24*24*24 cm Trademark Goodyear Origin Mexico HS Code 8708809000 Production Capacity 5000PCS/Month

Product Description

Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absorbers

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.48 kilograms
Package size: 20.25 x 12.33 x 7.26 cm
Model: 2B9-200


2B9-200 Goodyear Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

 Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm

 Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm

 Bumper block / Buffer block
Without Bumper Block

 Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop


2B9-200 Cross others OEM


OEM Reference	OEM Reference
Granning: 1371	Taurus: AS218-6910
Triangle Spring: 4320	Dallas Spring: AS6910
Fire stone air spring: 6910	Sirco: AS-6910
Conti Tech: 64267	Midland/Haldex: CS209200
R & S Truck: 1027405	Euclid/Meritor Aftermarket: E-FS6910
Ridewell: 1003586910C	Conti Tech: FD200-19320
Batco: 10-96910	Euclid/Meritor Aftermarket: FS6910
Reyco: 23704-01	BWP: M-3501
Hendrickson: 45843-3	HD America: PMABG-6910B
Navistar/IHC: 554783C1	Ridewell: S4512C
UCF/Impex: AB-2B9-200	Leland: SC201
Automann: ABSP2B12R-6910	Leland: SC2011
Watson & Chalin: AS0001





Goodyear #:	2B9-200
Bellows type: double
Ultraman Bellows #:	SP2B12R
Flint Bellow #:	20F is 20
Goodyear Bellows #:	578-92-3-202
Contitech bellows #:	FD 200-19
Triangle bellows #:	6325
Base plate / neutron type:
Number of top plate holes / studs:	3
Top plate diameter:	6.4 inch	162.56 mm
Top plate C to C diameter:	3.5 inch	88.9 mm
Base plate hole bolt Qyt:
Base plate diameter:	6.4 inch	162.56 mm
Base plate C to C diameter:	3.5 inch	88.9 mm
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 3.2	3.2 inch	81.28 mm
Maximum height: 10.8	10.8 inch	274.32 mm



Bulk product pictures of Goodyear Air Spring Original 2b9-200:

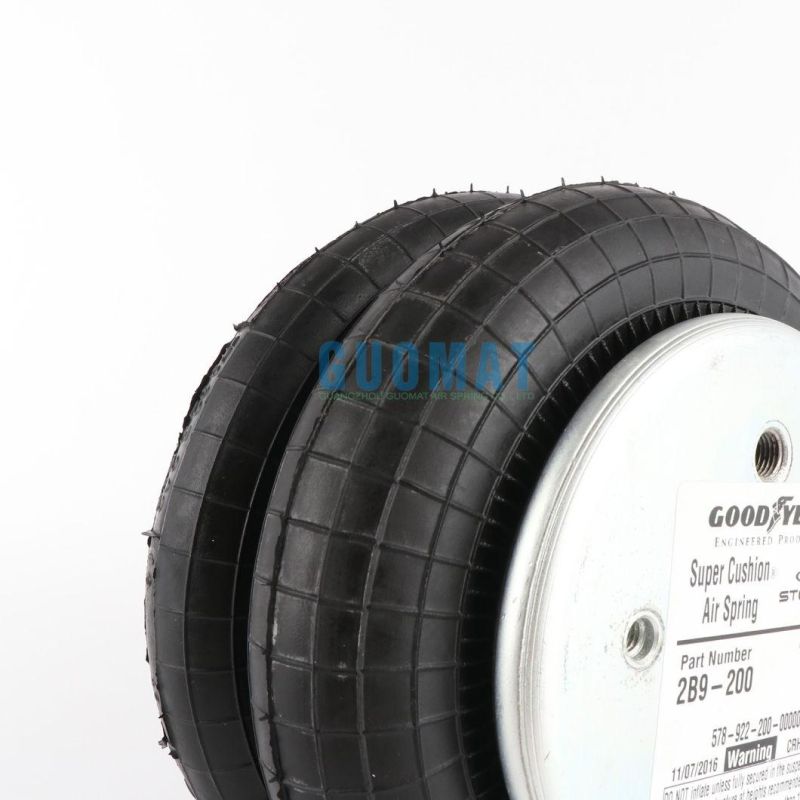

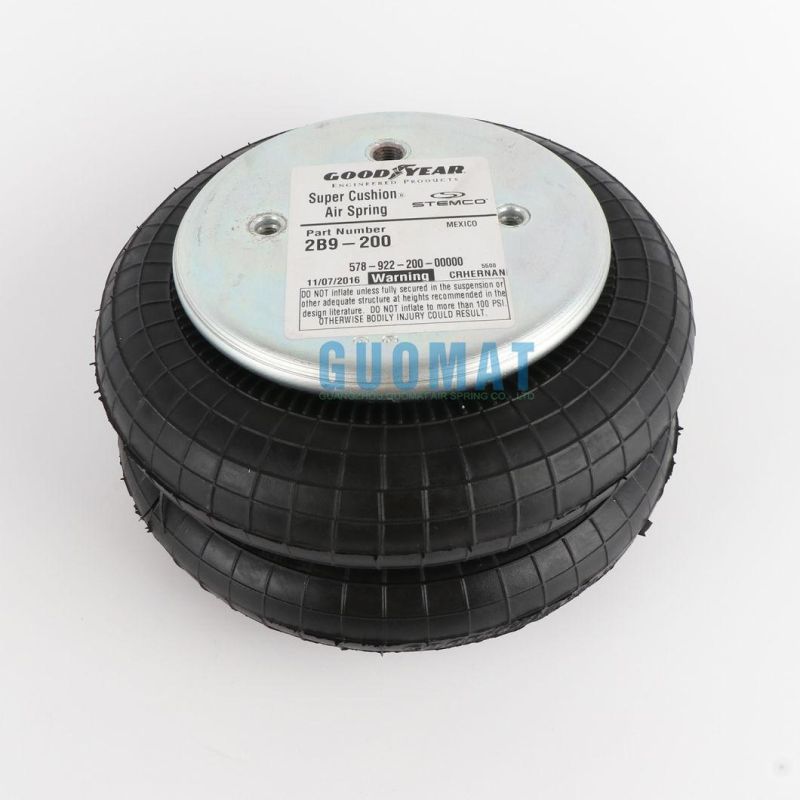

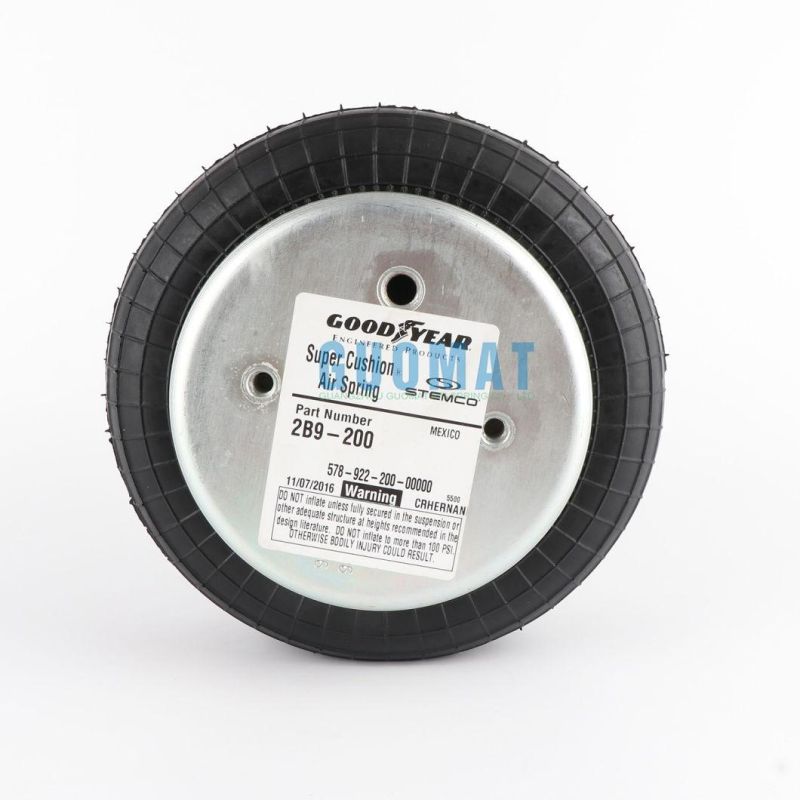

Details pictures of Goodyear Air Spring Original 2b9-200:

FAQ



Hong long is the GUOMAT warranty on air suspension parts?



GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.



How long does it take to receive my order?



GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.



Is it possible to return a part if I do not want it?



Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.
