4*240W Diesel Generator Manual Economic Mobile LED Light Tower
Hebei Rongyuan Plastic Products Co., Ltd.- Light Source：LED COB CREE
- Lamps：Flood,Project, Round,Square
- Elevation：Hand Winch
- Transport Package：Plywood Case,Carton,Plywood Tra
- Specification：4500*1350*1700mm
- Trademark：Robust Power
Base Info
- Model NO.：RPLT-6000led
- Origin：China
- HS Code：94054090
- Production Capacity：300 Sets Per Month
Description
Technical specificationsGENERATOR Engine Pekins 403D-11G/Kubota D1105/ D905(6KW) Engine Type 3 cylinders,in line,water cooled Genset Prime Power 7.2kW / 50Hz 8.4kW/60Hz Engine Aspiration 1500rpm 1800rpm Alternator Sinocox SMU160C 4-pole,Brushless,excitation(or Linz) Voltage 120,220,230,240V Insulation H Fuel Tank Capicity(L) 100 L~120L Fuel Consumption 1.2 L/h Maximum Working Hours ≥50h Control system GU3303 Digital controller Engine Shutdown Protection Low oil press,over speed,over current,high temperature detection,low fuel level Ayxiliary Sockets 2 Lighting Total Power Of Lamps 4x240W Led COB Cree chip,Meanwell driver Type Of Lamp Led flood or project lamp square or round Housing Materials Galvanization Reflector Housing Lumens 4*33600lm Lifetime Of Lamp 50000 hours Working Temperature ≤85°C Led waterproof IP68 Mast Type 3-Sections Telescoping mast 9M Total Height Top 9M Rotation 360 degrees non-continuous Operate For Elevation Winch(Mechanical) Trailer Tow Hitch Ring/ball hitch Stabiliser Supports 4*Manual Tire Size 13 inch Brakes Manual DIMENSION & WEIGHT Dry/Net Weight 830/780 kg Extend Dimension(LxWxH) 4500*1350*1700mm Shipping Package Iron Pallet 1800*1250*1450mm Plywood case 3500*300*260mm Carton 510*510*430mm Container Load(20GP/40HQ) 6/12 sets Color White/Yellow/Optional

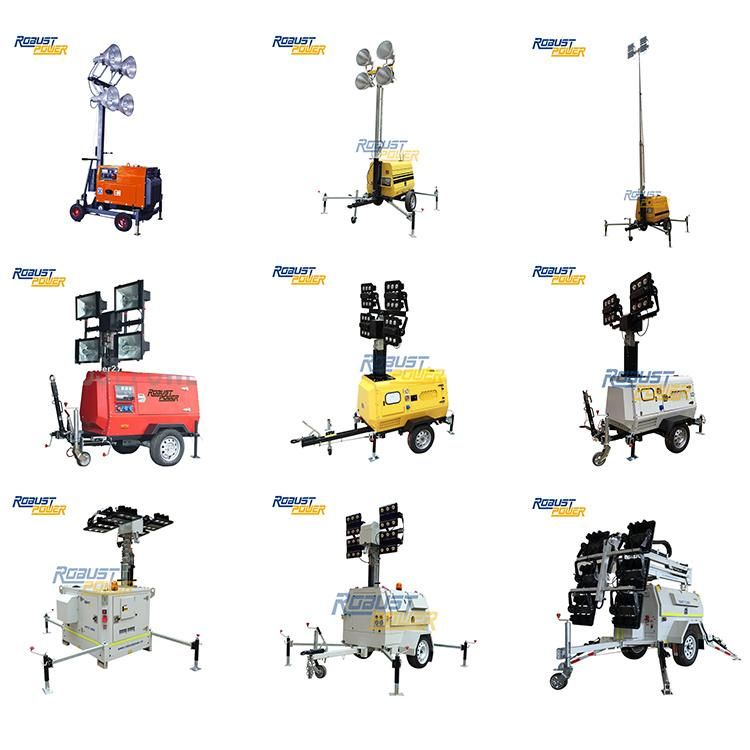

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
