• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：Ce FDA ISO
• Minimum Character：0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce FDA ISO Minimum Character 0.2mm Marking Line Width 0.01 mm -0.1mm Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Warranty 3 Years Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

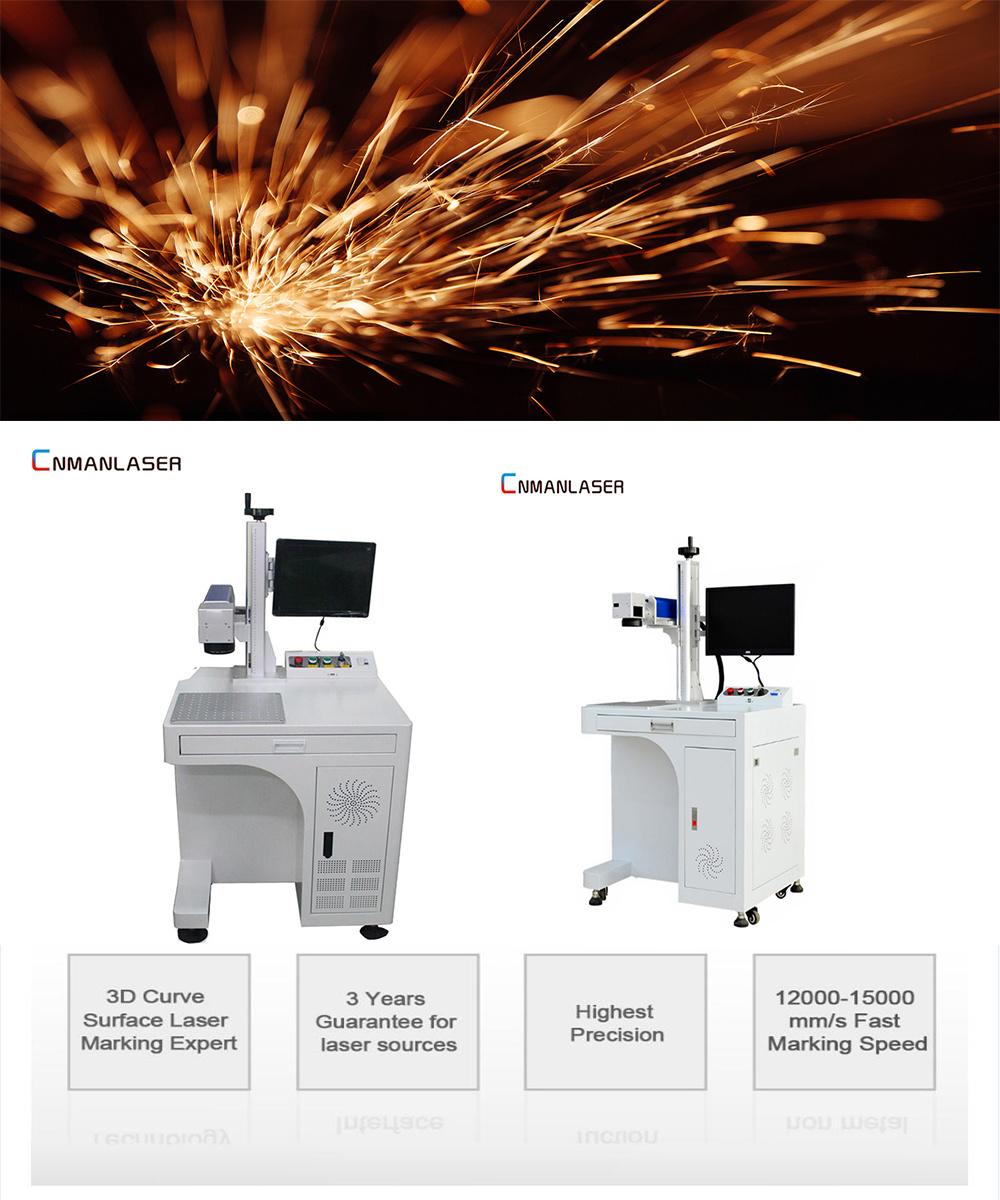

 Parity EZCAD laser marking machine for metal and nonmetal
                                      (Model:Man-30)
Laser high quality fiber marking machine adopts international most advanced technology and  the laser  source is fiber  With USA IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance the diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser  beam.This is the  best choice for the customers who have Special requirements to  the  smallest & finest laser beam and character.

Average output power	30W (CW or pulse)
Wavelength	1064nm
Power Modulation Range	10-100%
Pulse Repetition Frequency	20-100KHz
Output Beam Quality	<1.5M²
Marking Depth	≤1.2mm
Min. Focusing Spot	0.005mm
Min. Character Height	0.15mm
Max. Marking Speed	12000mm/s
Format Supported	Graphics, text, bar code, two-dimensional code, date, frequency, batch number, serial number, file link.
Operating System	It can work with win7,win8 and XP. It support PLT, PCX, DXF, BMP and so on. It can use directly SHX and TTF font.
Re-precision	±0.001mm
Overall Power	≤160W
Power Supply	220V±10%/50Hz/4A
Cooling	Air Cooling
Control Interface	USB
Laser Module Life	>100000h
Galvanometer	High performance scanning galvanometer
Working Environment	No dust and no source of vibration

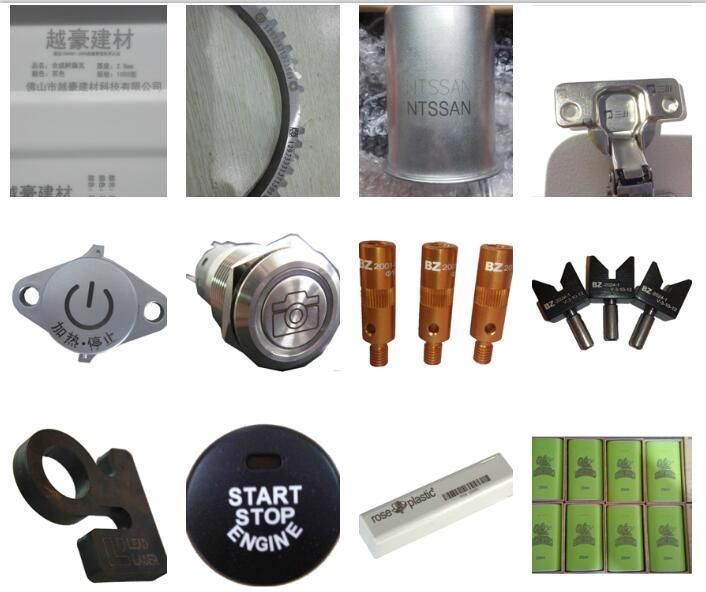

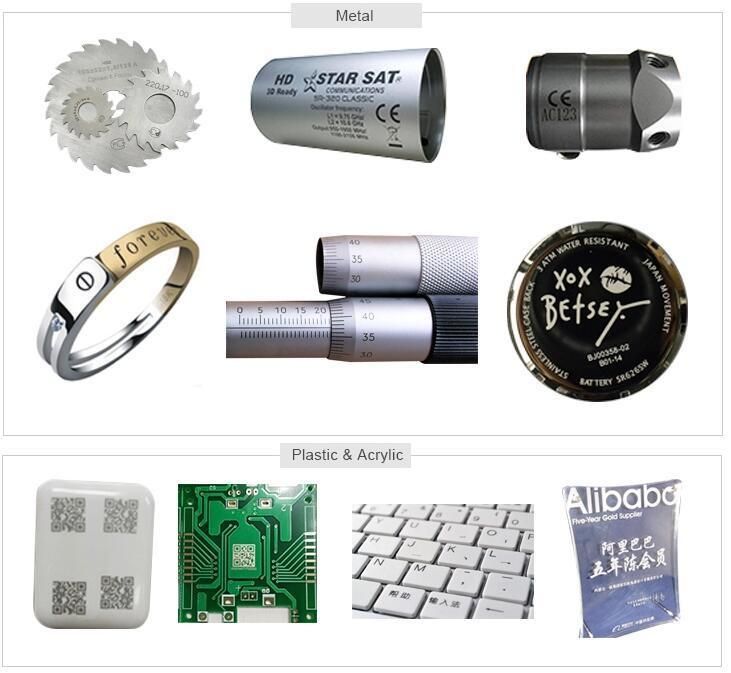

Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.

Include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (Phosphating, aluminium anodizing, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).

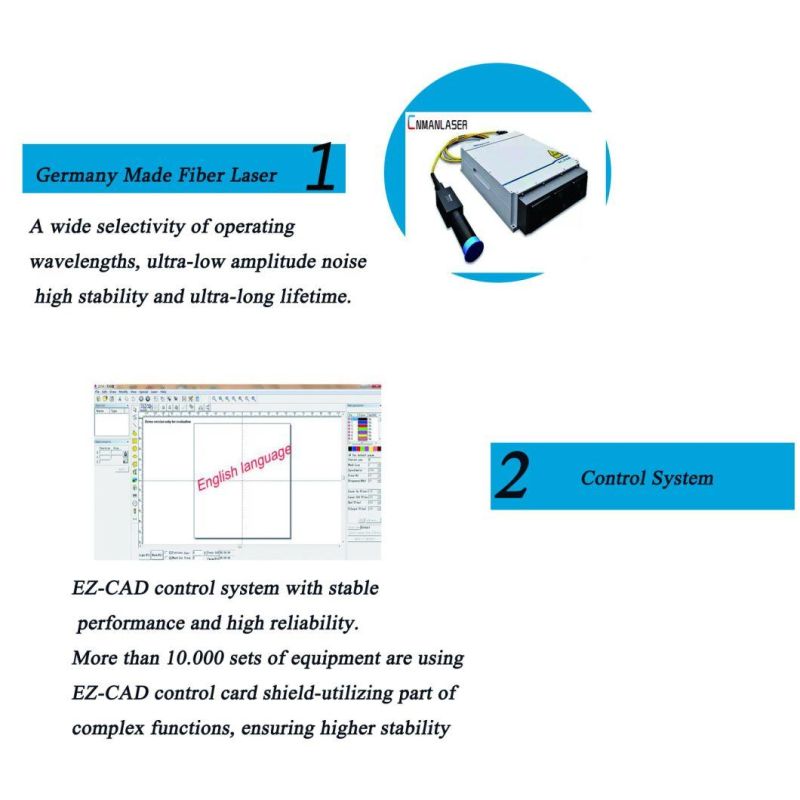

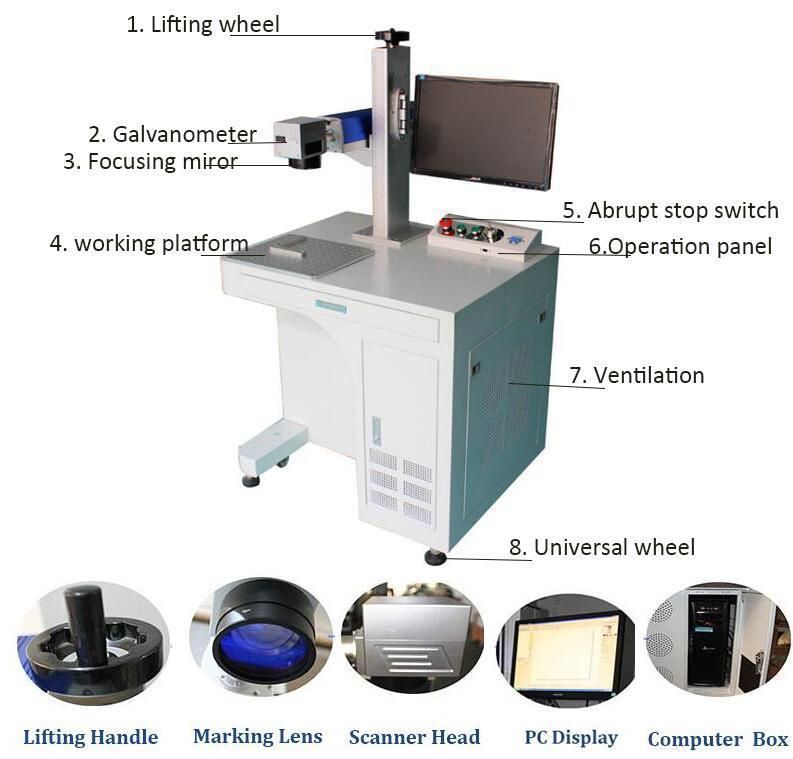

(1).Fiber laser producer and digital photoelectric galvanometer.

High performance laser producer, small volume, long working life of 10w hours, widely applied to on both metal and non-metal.

(2).Up-down working table

The table's material is aluminum and the table can move automatically according to ther processing requirements.

(3).Air cooling system.

High marking quality is based on good ventilation, ensure unimpeded air flowing

(4). High precision and easy to operate.

With high quality machine parts and EZcad software make higher precision.

1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)

2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)

3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.

Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
Operational marking software backup;
Quick supplement of key componentsUU with reasonable price.
Life-long after-sales service & consulting service to user.
