Puxin 20L Plasic HDPE Jerry Can Blowing Molding Machine (PXB100dB)
Shandong Fangdi Trade Co., Ltd.Base Info
Description
Basic Info.
Model NO. PXB100DB Bottom Blowing Available Material PP, PE, ABS... Total Weight 23t Output(Dry Cycle) 650*2 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Toys, Bottle, Small Auto Parts, etc Multi-Layer Available Accumulator Capacity 5L Screw Diameter 100mm Transport Package Film Packing with Wooden Bottom Specification Max capacity 30L Trademark Puxin Origin Jiangsu HS Code 847730100Product Description

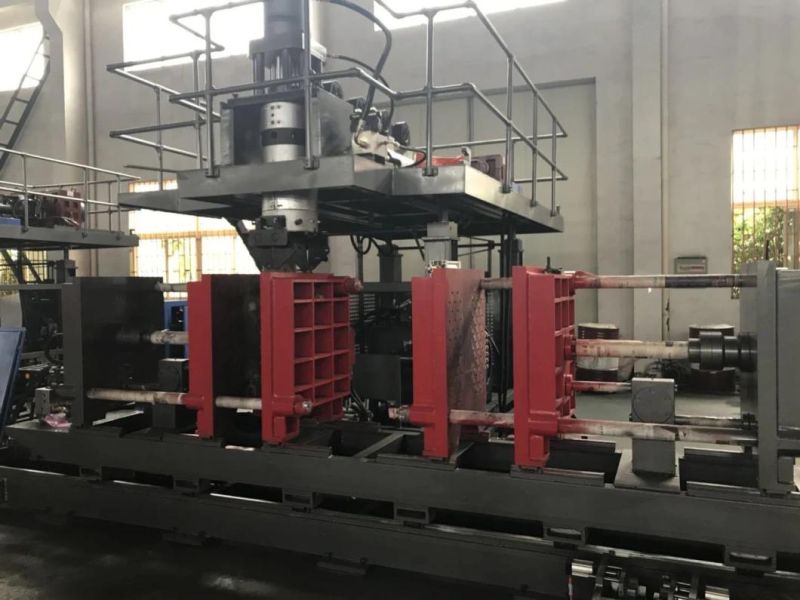

PXB100DB20L-30L Double Station Blow Molding Machine
- Fixed Opening-Closing Clamping with 5L Accumulator Head Capacity
- Perfect Usage for production of Big toys, auto parts, Jerry Can, sprayer and so on.
- Hydraulic Servo System control with quick action speed.
- High capacity amount with energy saving.
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters:
| Material | PE,PP,ABS... | |
| Max container capacity | L | 30 |
| Output(dry cycle) | pc/hr | 650×2 |
| Machine dimension(L×W×H) | M | 6.4×6.2×4 |
| Machine weight | T | 23 |
| Clamping Unit | ||
| Clamping force | kn | 200 |
| Mold platen size(W×H) | mm | 830×800 |
| Platen opening stroke | mm | 350-850 |
| Platen moving stroke | mm | 500 |
| Max mold size(W×H) | mm | 590×700 |
| Mold thickness | mm | 360-420 |
| Power | ||
| Servo oil pump motor power | KW | 13 |
| Servo pump displacement | L/MIN | 80 |
| Blow pressure | MPA | 0.8 |
| Air consumption | M3/MIN | 0.7 |
| Cooling water pressure | mpa | 0.3 |
| Water consumption | L/min | 70 |
| Average energy consumption | KW | 52-60 |
| Extruder unit | ||
| Screw diameter | mm | 100 |
| Screw L/D ratio | L/D | 24 |
| HDPE Melting capacit for HDPE | kg/hr | 160 |
| Number of heating zone | zone | 5 |
| Screw heating power | kw | 28 |
| Screw fan power | KW | 0.5 |
| Extruder motor power | kw | 55 |

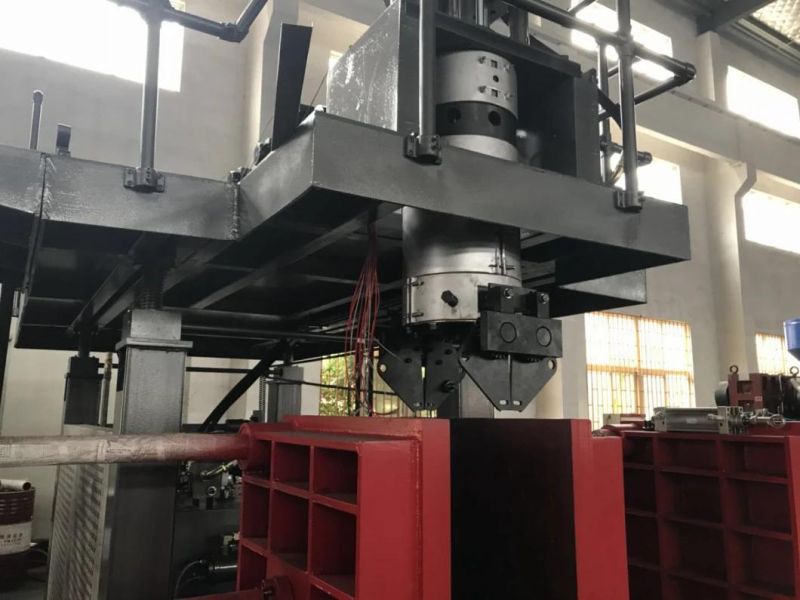

| Die head | ||
| Number of heating zone for single die head | zone | 4 |
| Heating power for single die head | kw | 19 |
| Max die-pin diameter | mm | 250 |
| Accumulator capacity | L | 5 |
| (HDPE) Accumulator weight(HDPE) | KG | 3.75 |

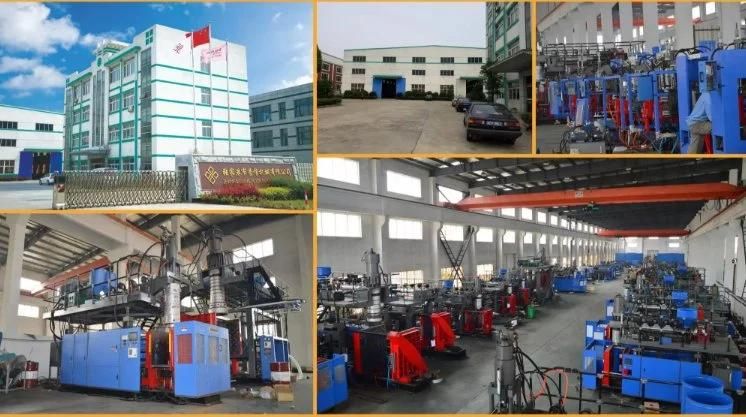

OUR FACTORY:
