• Model NO.：CY-298C
• Condition：New
• Customized：Non-Customized
• Feature：Centrifugal Filter and Temperature Control
• Hot Press and Cold Press：Both Available
• Power：7.5kw(,380V)
• Delivery Time：in 7 Days
• Capacity：150-200kg,h
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. CY-298C Condition New Customized Non-Customized Feature Centrifugal Filter and Temperature Control Hot Press and Cold Press Both Available Power 7.5kw(/380V) Delivery Time in 7 Days Capacity 150-200kg/h Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 3000PCS/Year

Product Description

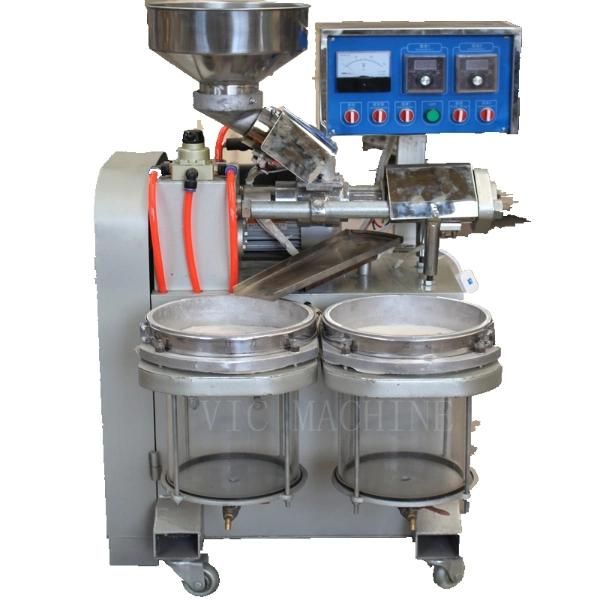

Oil Press Machine With Centrifugal Filter Temperature Controled

1.Application:
CY-298C oil press can press different materials such as sesame, peanut, rapeseeds, sunflower seeds, soybean, tea seeds etc with high oil output rate and low energy consumption. This machine is our latest oil press with new technology and structure.

2.Feature:
CY-298C oil press choose centrifugal filter, the filtering can control with button, and the phospholipids, waxiness can be threshed once.
This machine choose advanced technology in the world, the oil outlet are all in the bottom of the end of the pressing filter, and in the production will not have oil splash.
The product oil is very clear, no foam when cooking with pure flavor, its more health for cooking, and also with high automatic, just one person can operation.
This machine is with compact structure, oil tray and oil cover and control box are all stainless steel for easy cleaning.
This machine can be applied to use in small-medium factory, also can be widely used in supermarket for fresh pressing and fresh oil selling. The automatic working, low noise and environment protection all can meet requirement.

3.Main data:
Model: CY-298C temperature control oil press
Processing capacity: 150-200kg/h for oil seeds
Power: 7.5kw (380V/50Hz/3p)
Pressing screw speed: 38-44rpm
Pressing screw diameter: 96mm
Pressing chamber inner dia: 98mm
Residue oil in cake: Less than 6%
Size: 1650X1200X1600mm
Weight: 810kgs
More  model machine date

Model	CY-172B integrated oil press	CY-298B integrated oil press
Processing capacity	60-100kg/h	250-300kg/h
Power	3kw(220v/single,380v/3p)	11kw(380v/3p/50hz)
Pressing screw speed	45rpm	38-44rpm
Pressing screw diameter	70mm	96mm
Pressing chamber inner dia	72mm	98mm
Residue oil in cake	Less than 6%	Less than 6%
Size(mm)	1080x920x1550mm	1720x1300x1600mm
Weight(kg)	350kgs	900kgs

4.More photos

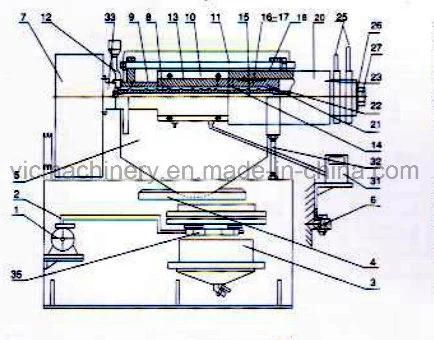

7	Gearbox	14	1# pressing ring	21	Cake output exit	28	Adjusting nut
6	Base	13	Pressing rube	20	Cake output ring	27	Bearing adjusting nut
5	Oil tray	12	Feeder head	19	Heating plate 2	26	Bearing lock nut	33	Feed opening
4	Oil conveyor	11	Pull rod	18	Round ring frame	25	Handle	32	Bearing rod
3	Oil filter	10	Heating plate	17	Round ring 2#	24	Bearing	31	Meter box
2	Vacuum pump	9	Rods	16	Round ring 1#	23	Screw	32	Pressing screw nut
1	Small motor	8	Pressing screw	15	Main shaft	22	Slay-out head	29	Lock nut
No	Name	No	Name	No	Name	No	Name	No	Name

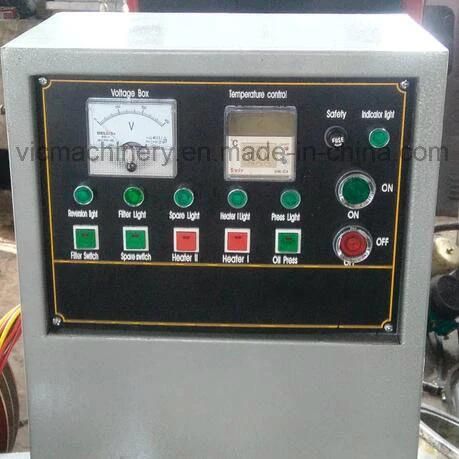

Oerating button

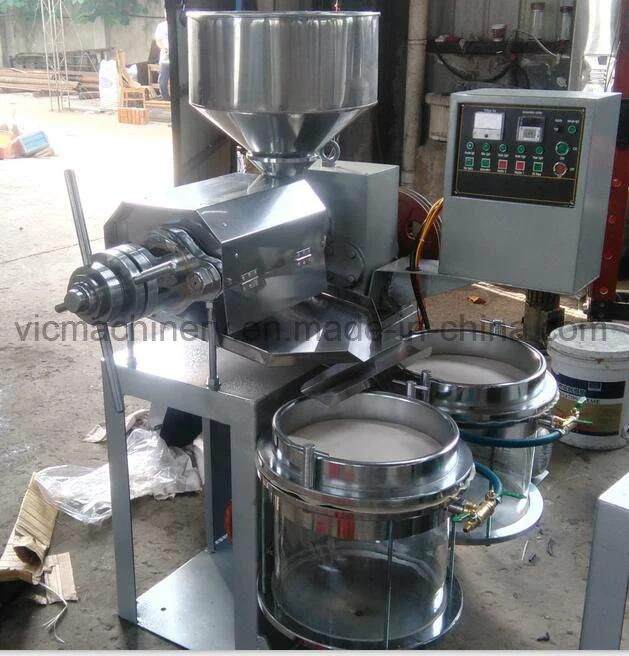

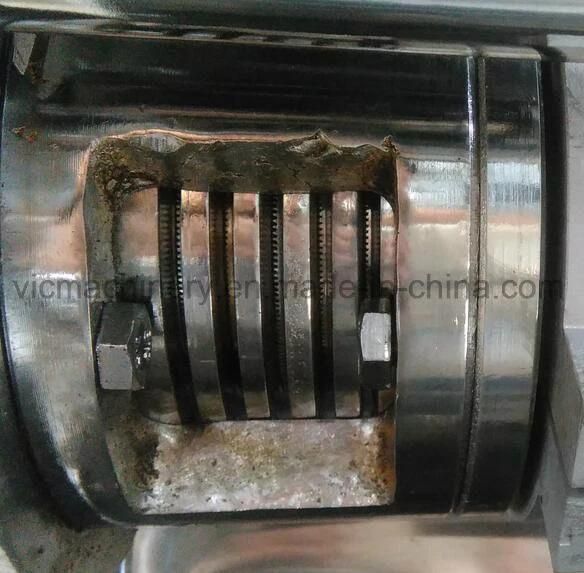

Local image

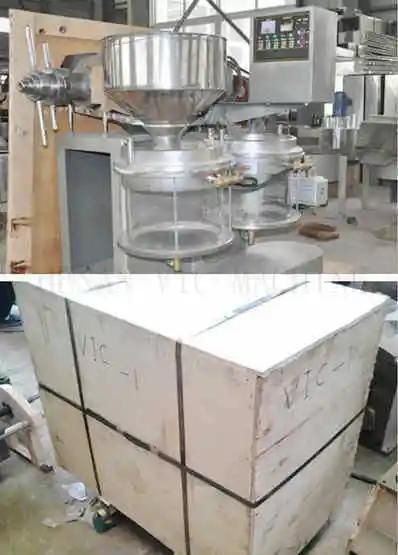

 Package

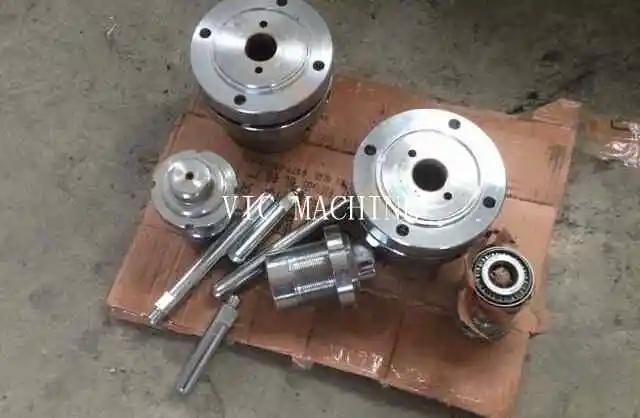

Parts

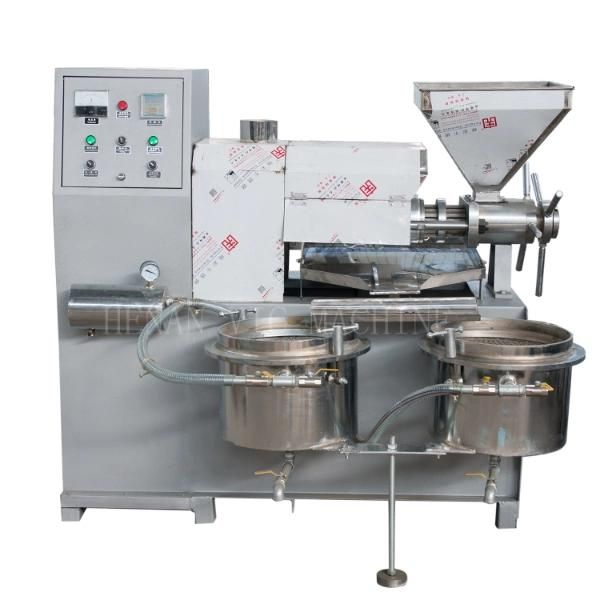

Other combined oil press 6YL-100

Other mini combined oil press 6YL-30R

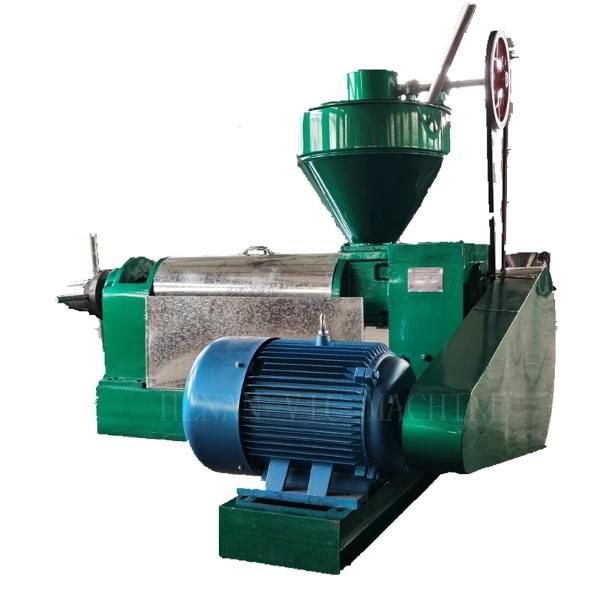

Other screw oil press 6YL-130

Other hydraulic oil press 6Y-180

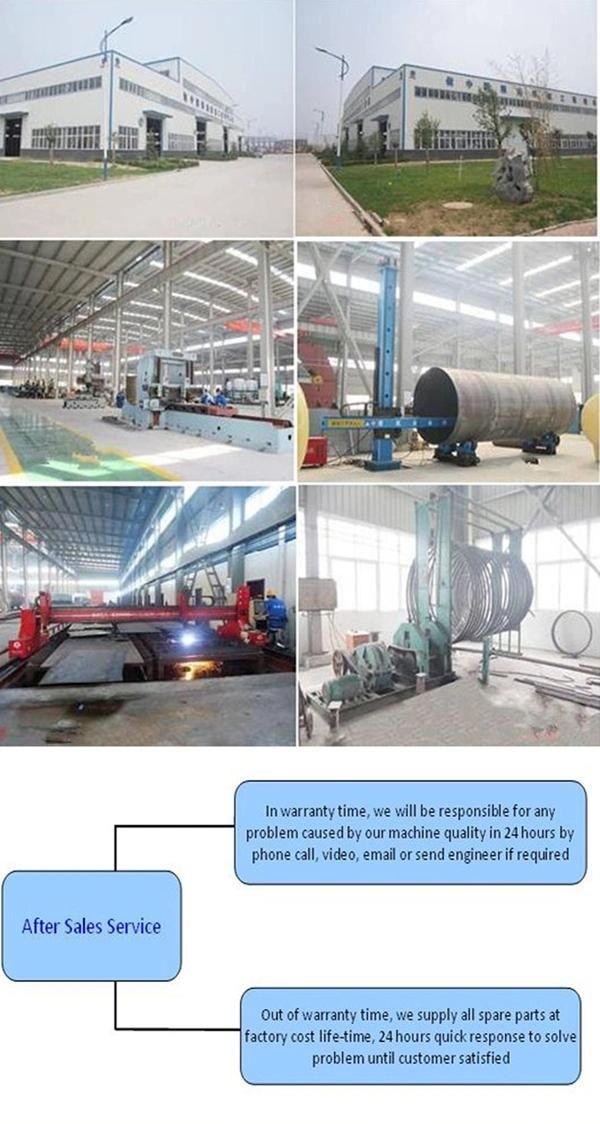

Our factory
