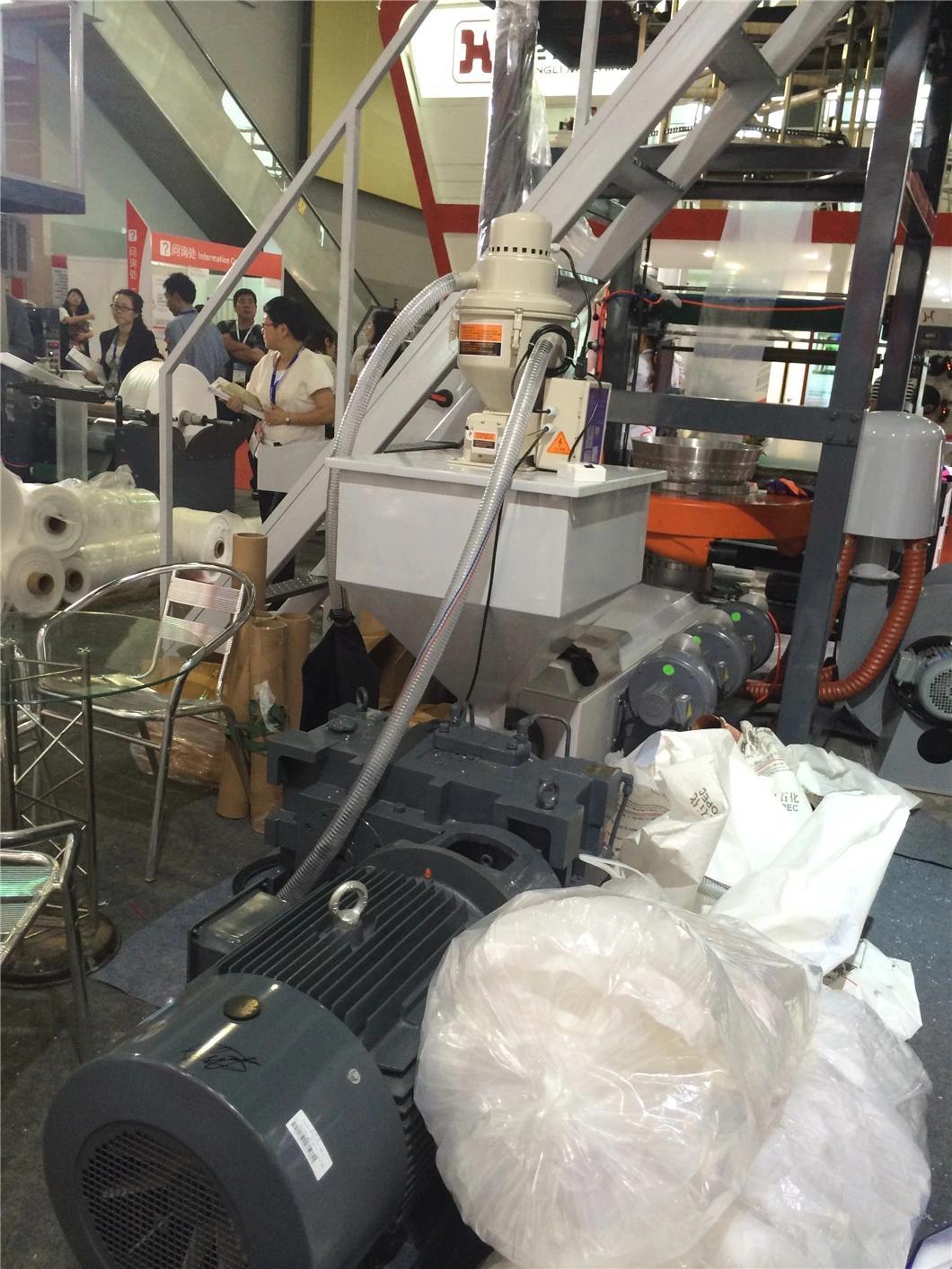

2015 Chinaplas Tpye Mini Film Blowing Machine
Classic Hardware Co., LtdBase Info
Description
Film width:500mm
Film thickness:HD(0.005-0.15MM),LD(0.02-0.15MM)
Max extrusion output:HD 50KG,LD 60KG
Gear case :GB 146 (Hangzhou xiaoshan)
Inverter :15kw delta brand
Low-voltage apparatus : Schneider
Volotage: 380v,50hz,3p

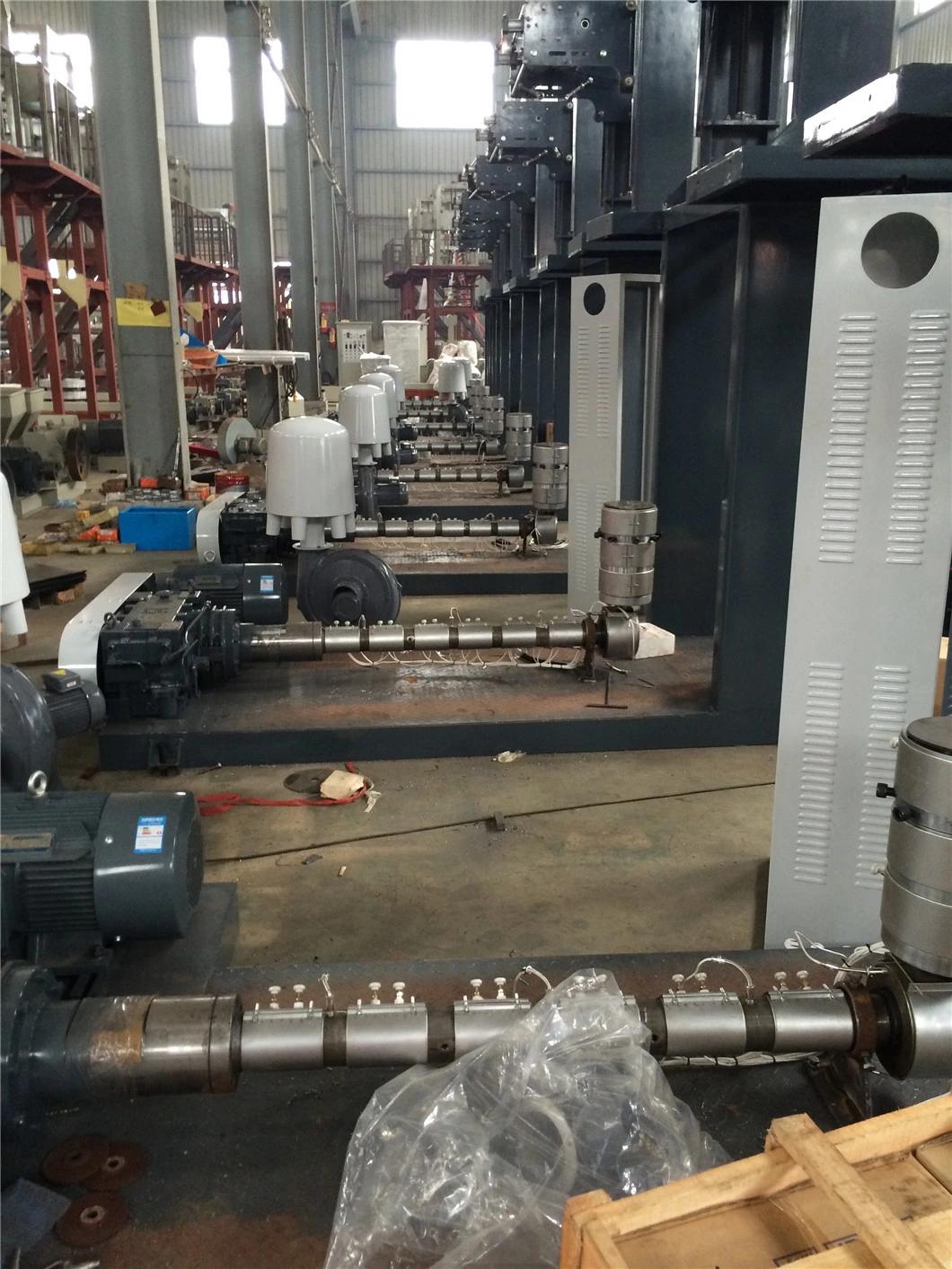

Screw diameter :45mm
Screw L/D :1:30
Screw material:sacm-645/38crmoala
Cylinder material :sacm-645/38crmoala
Cylinder cooling:180W x2
Feeding device cooling : water circulating

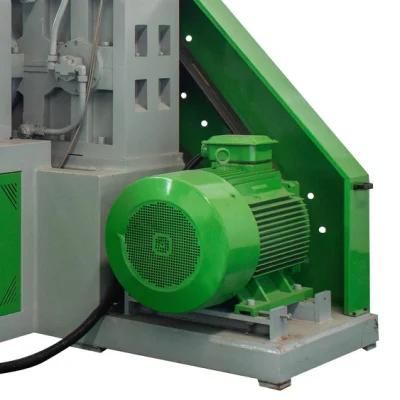

Main motor:15kw-4 Siemens brand
Temperature control:3zone stainless steel heating coil
Average power consume:15kw
Heating areas:3zones

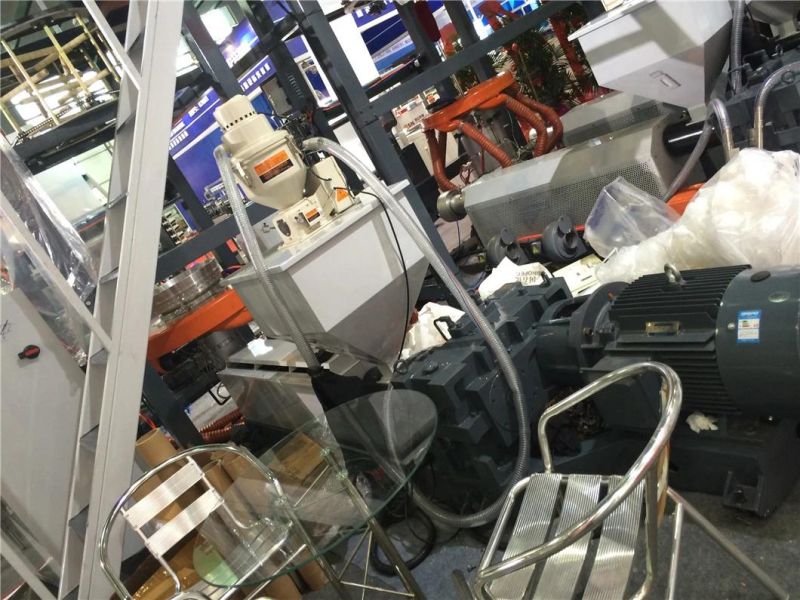

Drum loader (one time can feed 55kg raw material with auto loader )
Di e size :60mm (Taiwan high speed die head )
Temperature controller :2zone Omron temperature controller

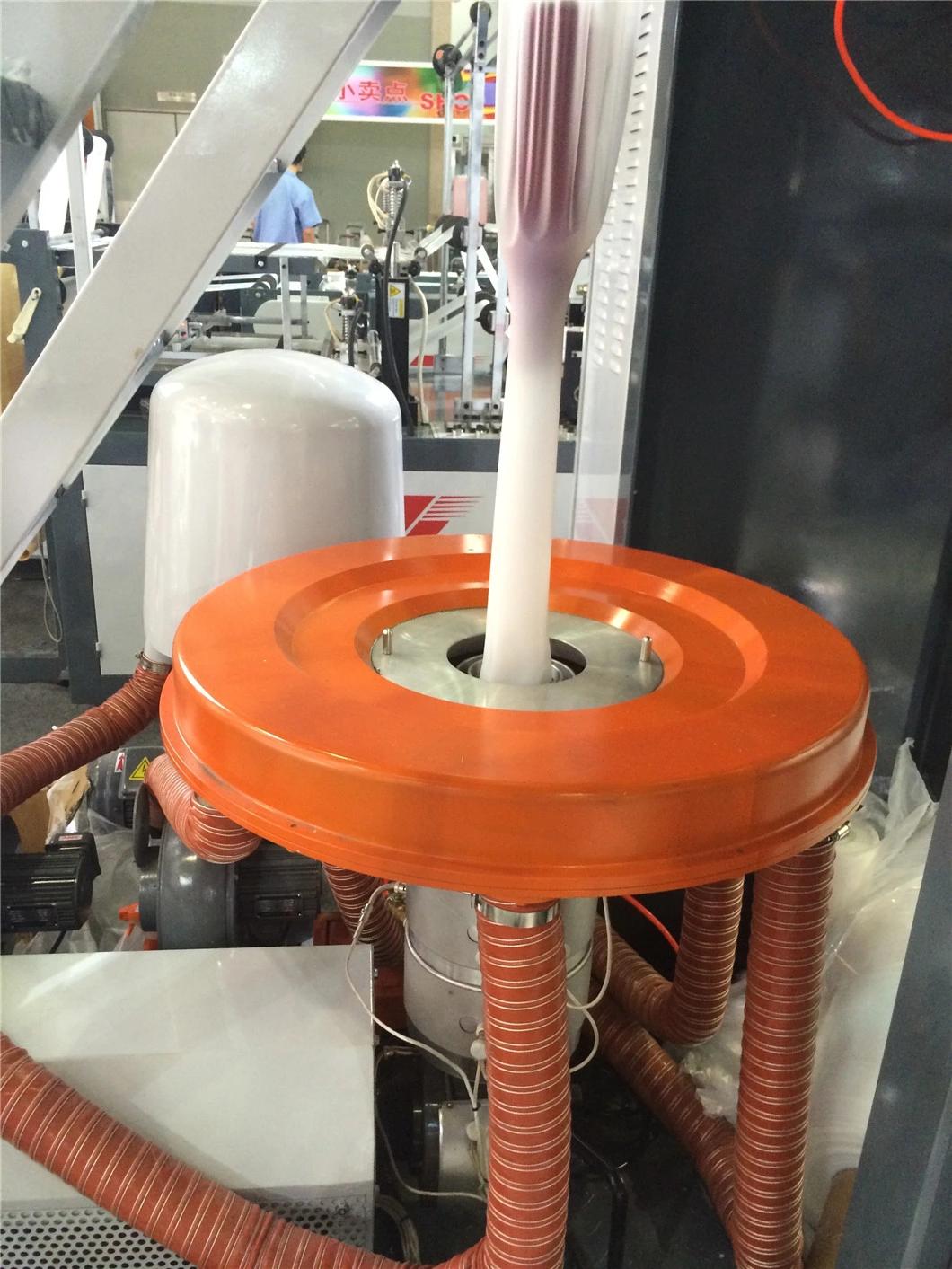

Air ring :Dual-lip air ring (Taiwan brand )
Height of air-ring : 150mm
Width of air-ring:700mm
Air blower :1.5kw (Taiwan brand )
Center steady stick:1P
Wind pipe :50mmx 6pcs
Electrical controller system

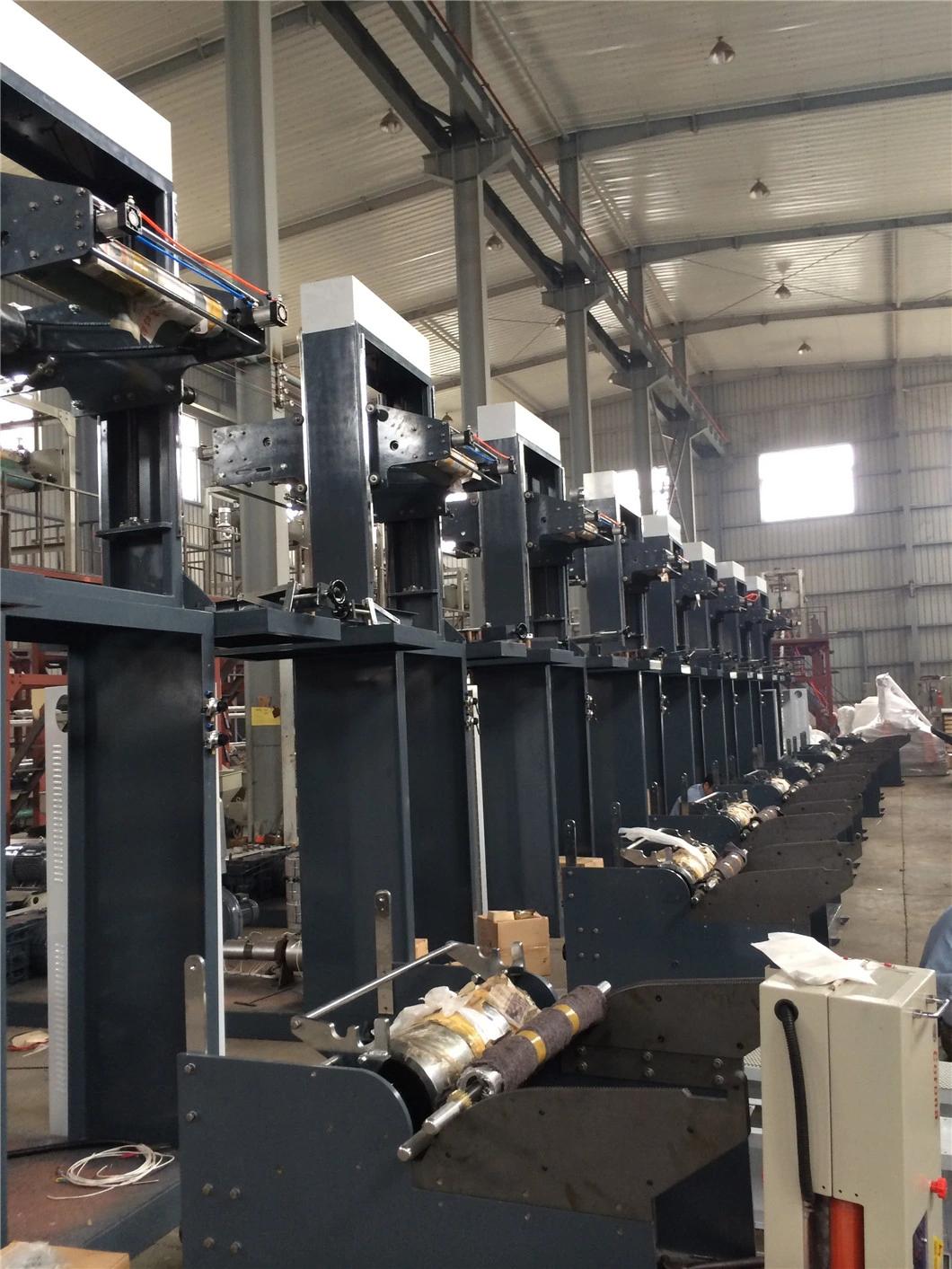

Take-up reducer (1:10)+0.75kw motor
Take-up unit height:1.6m

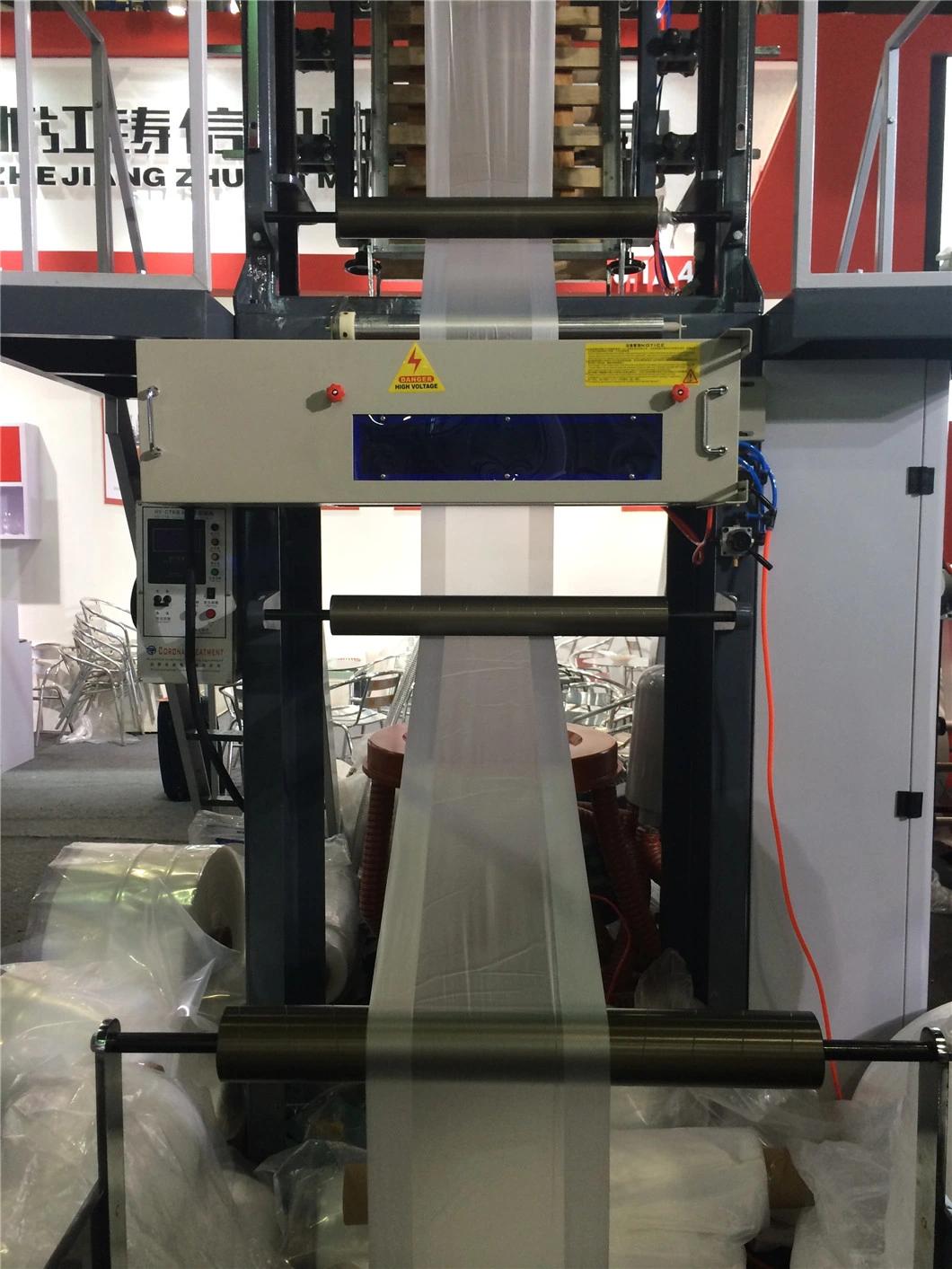

Knurling roll :90mmx600mm (control by air cylinder )
Pinch roller :165mm x600 mm (control by air cylinder )
Roller width :600mm
Effective width:500mm
Height adjustable:800mm
Take-up speed :10-100m/min
Take-up motor:0.75kw
