• Model NO.：ZH-2000L
• Transport Package：Wooden
• Specification：2000L
• Trademark：ZH
• Origin：China

Basic Info.

Model NO. ZH-2000L Transport Package Wooden Specification 2000L Trademark ZH Origin China

Product Description

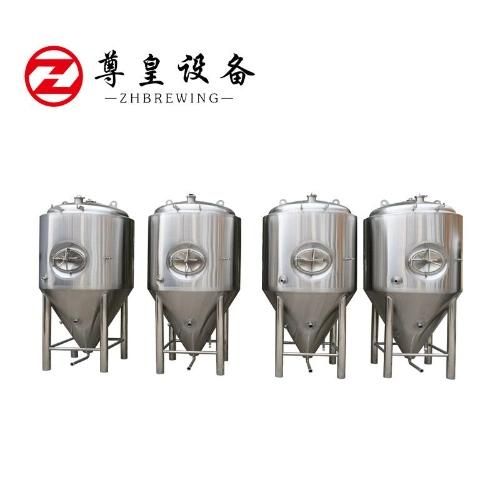

2000L fermenting equipment beer stainless steel fermentation tanks fermenter

 Ferentation descriptionBeer fermentation tanks are also called CCT's (Cylindrical Conical Tanks), FV's (Fermentation Vessel), conical fermenter,primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer.Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.


1: effective volume: 2000L, full volume: 2500L;

2: Material: food grade stainless steel  SUS304 inside, external: food grade stainless steel design;

3: Cylinder Design: cylinder; cylinder liner thickness: 3.0mm cylinder outsourcing thickness: 2.0mm, plate color or sanding weld polishing processing, design pressure 0.3MPa, pressure 0.2MPa, cone cone sealing design: 60 degrees (for yeast emissions), inner Polish: 0.4um,

4: cooling way: Miller version of the jacket, cleaning mode: fixed rotating cleaning ball, the heat exchange area: 4 square meters, the upper CIP cleaning ball, breathing valve interface, add export of 102 hops, two stage cooling, a cylinder, a cylinder cone, sampling valve, double bottom export (export of wine yeast emissions 38, export of 38) with quick detachable connection, the back cylinder and cone are respectively provided with a thermometer under the blind pipe of 8.

5: Polyurethane insulation thickness: 80mm, form: supporting side manhole manhole, cleaning, valve, drain valve, sampling valve, breather valve.

Our Factory

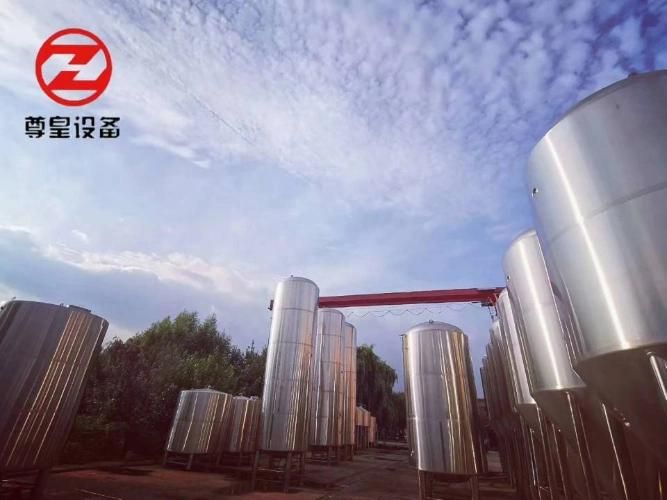

Successful Case


Certification
