• Model NO.：25MPA
• Name：High Pressure Homogenizer Small Homogenizer Yogurt
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Motor：Customized Electricity Motor
• Voltage /Hz /Phase：Make to Your Order
• Stage：Two Stage
• Working Life：More Than 20years
• Homogenizer Spare Parts：Provide
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. 25MPA Name High Pressure Homogenizer Small Homogenizer Yogurt Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Customized Electricity Motor Voltage /Hz /Phase Make to Your Order Stage Two Stage Working Life More Than 20years Homogenizer Spare Parts Provide Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

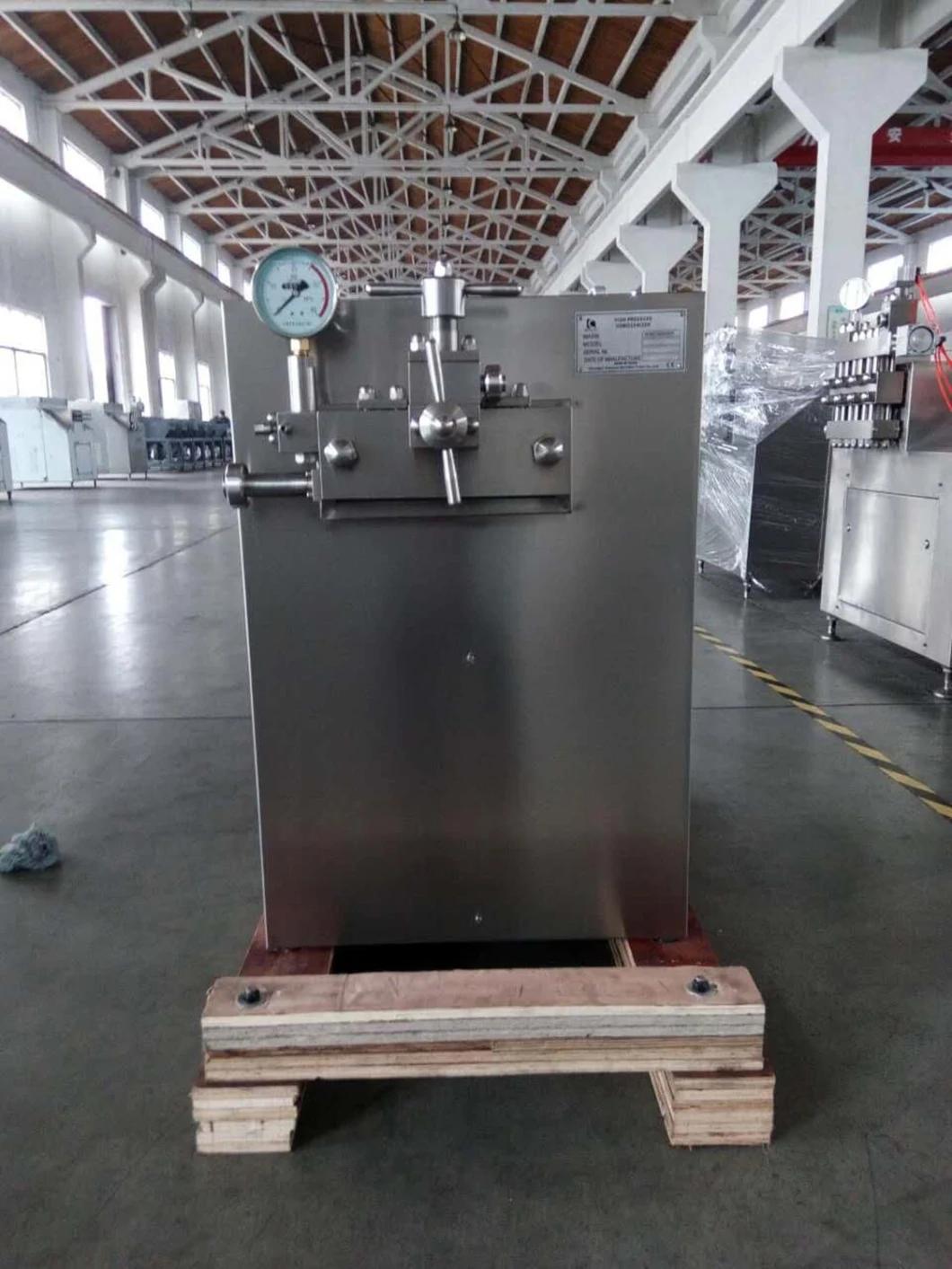

High Pressure Homogenizer Small Homogenizer Yogurt Homogenizer
GJB high pressure homogenizer
Small Milk Homogenizer Machine Price for Sale .

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
High Pressure Homogenizer Small Homogenizer Yogurt Homogenizer
