Automatic Juice Filling Line for Bottle
Wenzhou Lipac Import&Export Co., Ltd.- After-sales Service：Online,Spare
- Warranty：12months
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Application：Mango Juice
Base Info
- Model NO.：L-SERIES
- Customized：Customized
- Filling Valve：Hot Filling
- Packing：Film
- Main Material：SUS
- Pump：Cnp
- Transport Package：Wooden Block
- Specification：5000bph
- Trademark：GM
- Origin：China
- HS Code：8422301090
- Production Capacity：10sets,Year
Description
Basic Info.
Model NO. L-SERIES Customized Customized Filling Valve Hot Filling Packing Film Main Material SUS Pump Cnp Transport Package Wooden Block Specification 5000bph Trademark GM Origin China HS Code 8422301090 Production Capacity 10sets/YearProduct Description

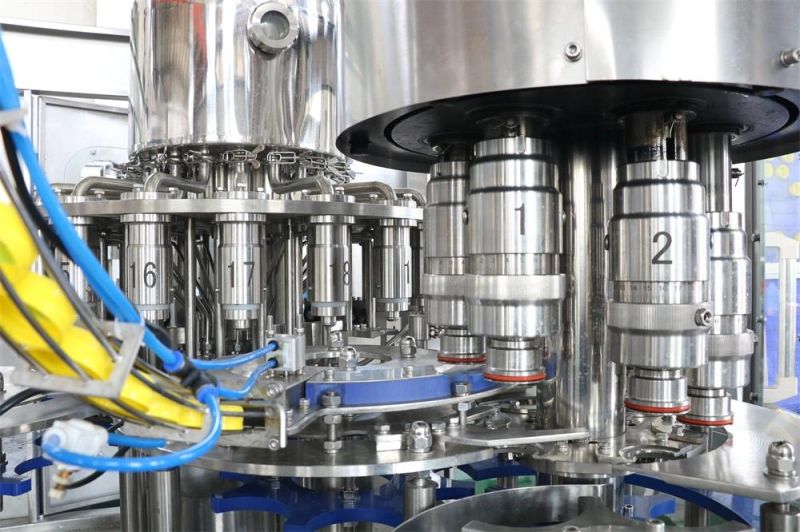

Description of Juice/tea hot filling machine
this 3-in-1 hot filling system is sued for filling tea ,juice and functional drinks ,the mate rial of the bottles can be PET , glass and so on ,the function of fluent and fast filling action high filling precision ,reliable capping and low mate rial loss makes it effectively prevent secondary pollution of the neck with high automation in the whole process it can achieve the replacement of different bottles only by exchanging equivalent parts
this system can also from complete set of production line with the other related system providing proposals for full set of hot filling
complete mango juice production line
This line is for the mango juice production from the fruit .
beverage pre treatment system

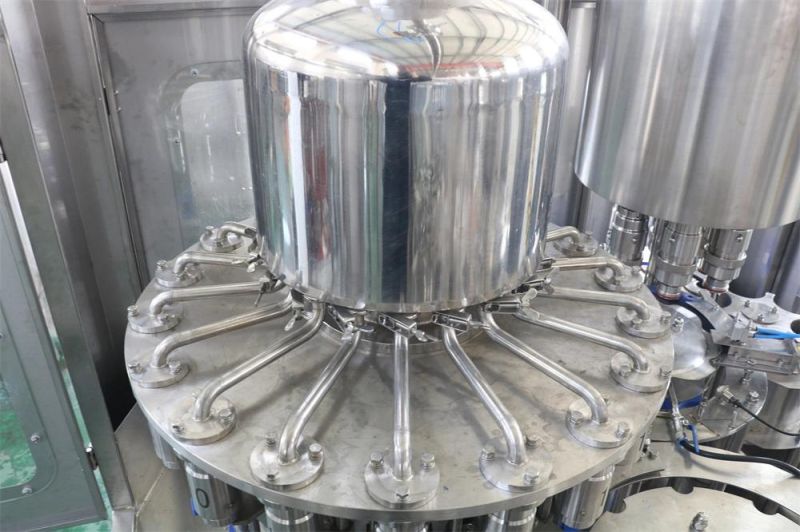

filling using hot filling valve ,
film packing with 4*6 or 3*4
ink jet printer
the main machine list as following
| No | Name | Model | Power (kw) | Qty |
| 1 | Fruit washing machine | CXJ-2 | 5.15 | 1 |
| 2 | Elevator | BSJ-2 | 0.75 | 1 |
| 3 | Juice extractor | LZ-1 | 11 | 1 |
| 4 | Buffer tank | 2T | 1 | |
| 5 | Centrifuge | LJ-1 | 3 | 1 |
| 6 | mill | JM | 11 | 1 |
| 7 | Pump | CHL2-40 | 0.37 | 2 |
| 8 | Prepare tank | 1T | 0.55 | 1 |
| 9 | invert sugar tank | 0.6T | 10 | 1 |
| 10 | Duplex filters | 3T | 1 | |
| 11 | Vacuum de-air | TQ-2.5 | 2.2 | 1 |
| 12 | Homogenizer | GJJ | 7.5 | 1 |
| 13 | Asepsis Tank | 2T | 1 | |
| 14 | Instantaneous sterilizer | RSCG01-2 | 20 | 1 |
| 15 | High tank | 0.3T | 1 | |

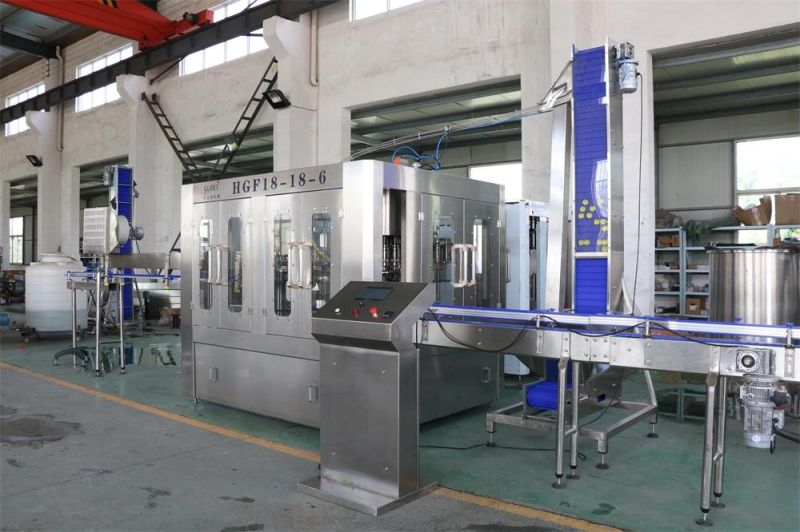

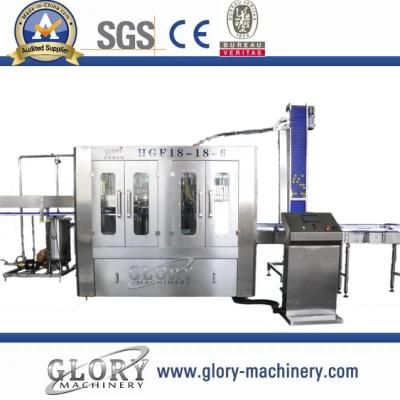

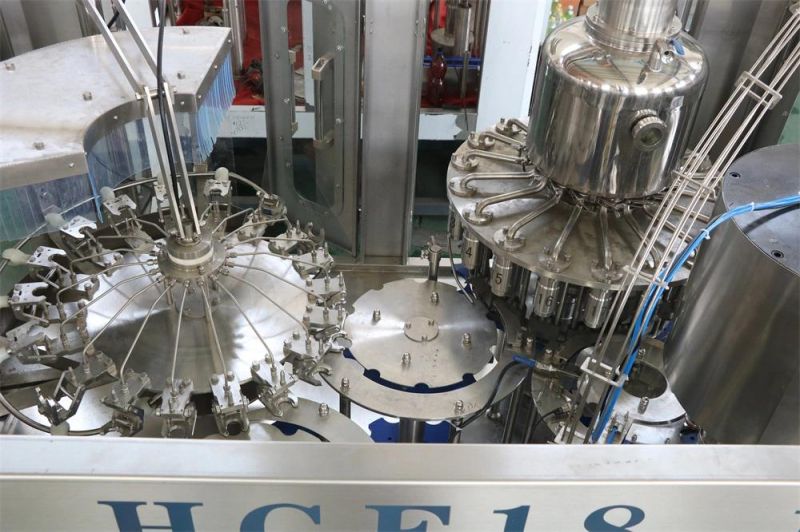

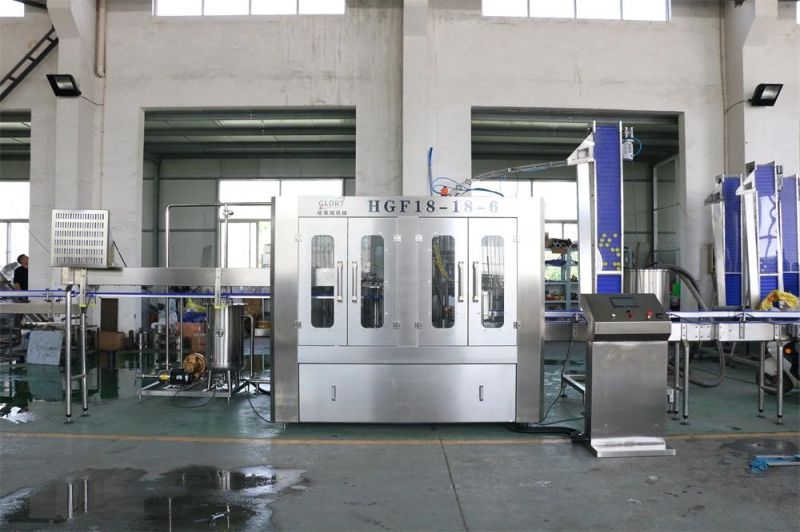

| 16 | Washing,filling,capping3-in-1 | CGF16-16-5 | 4 | 1 |
| 17 | Down bottle sterilizer | DP-6 | 1.4 | 1 |
| 18 | Spray cooling machine | LP-6 | 3 | 1 |
| 19 | Dryer | CG | 1.5 | 1 |
| 20 | Sleeve label machine | SD-100 | 20 | 1 |
| 21 | Wrapping machine | WD-150 | 18 | 1 |
