Basic Info.

Model NO. sjsz51/105 Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Electrical Parts Siemens, ABB, Schneider Motor Brand Siemens Extruder Control by PLC Screen Touch PLC Brand Siemens Speed Control by Inverter Inverter Brand ABB Contactor Schneider Temperature Controller Omron Guarantee Period 1 Year Manufacturing Time 30 Days Transport Package Plastic Film/Wooden Box Specification 300kg/h Trademark Yusheng Origin Zhangjiagang City (Near Shanghai), China HS Code 84778000 Production Capacity 30 Sets Per Month

Product Description

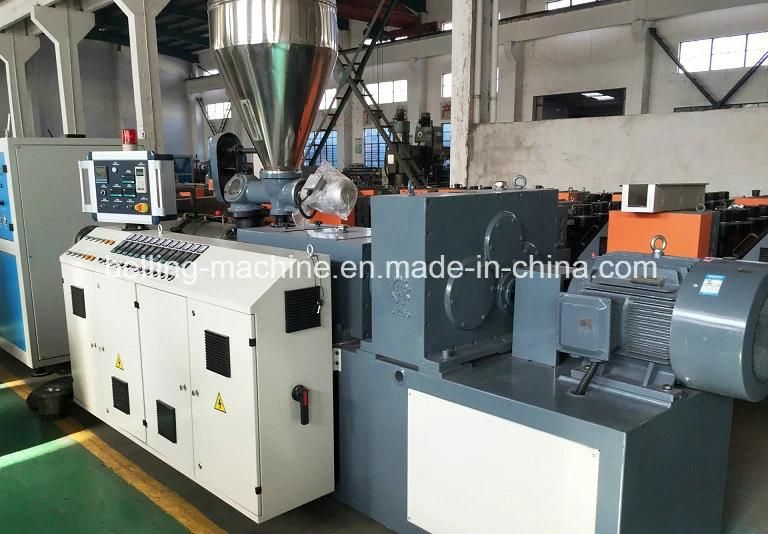

Machine name: Conical double screw Extruder

Feature:
It is special equipment designed for various kinds of PVC powder, granules or WPC extrusion. With different mould and downstream equipments, this conic twin screw extruder machine can produce PVC pipes, profiles, panel, board, granules and so on.

Standard conic twin screw extruder machine adopt electrical heating with air force cooling, which can easy control. The temperature within±1°c. Main motor, gearbox, screws are in the same centre line. The screw and barrel contains oil cooling unit, which can make the temperature control procise.

The screw&barrel is from Zhoushan, gearbox is made by Jiangyin gearbox company, motor is Siemens Berde, inverter adopt ABB. All of our PVC pipe extruder machine will be checked and tested at the workshop to avoid any necessary trouble.

If any need, please contact me to my email or cell phone (+8615150239296).

Model number Screw diameter (mm) Rotational speed of screw (rpm) Effective work length (mm) Main motor power (kw) Heating power of Barrel (kw) Production capacity (kg/h) Central height of machine (mm) Net weight Overall size (mm) SJSZ45 45/90 1-45 1070 15 9.6 70 1000 2800 3300*1200*2000 SJSZ51 51/105 1-45.5 1100 22 11.5 80 1000 3000 3360*1290*2100 SJSZ55 55/110 1-40 1200 22 18 150 1000 3500 3620*1350*2200 SJSZ65 65/132 1-38 1440 37 24 250 1000 4000 4235*1520*2450 SJSZ80 80/156 1-36.9 1800 55 36 360 1000 5000 4750*1550*2460 SJSZ92 92/188 1-34.7 2500 110 88 1000 1000 5500 6000*1600*2500
