• Model NO.：LS60R
• Laser Wavelength：CO2 Laser
• Laser Classification：Gaseous Laser
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Type：CO2
• Laser Power：60W
• Laser Source：Synrad
• Transport Package：International Standard Plywood Box
• Specification：158kgs
• Trademark：Lansen
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LS60R Laser Wavelength CO2 Laser Laser Classification Gaseous Laser Type CO2 Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Type CO2 Laser Power 60W Laser Source Synrad Transport Package International Standard Plywood Box Specification 158kgs Trademark Lansen Origin China HS Code 8456110090 Production Capacity 300sets/Month

Product Description

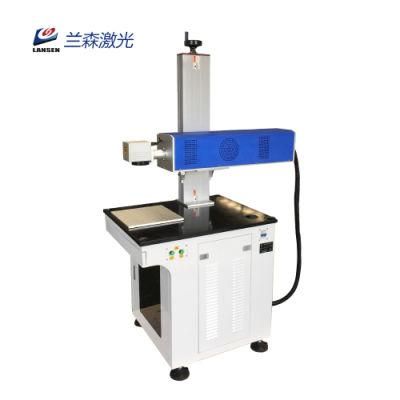

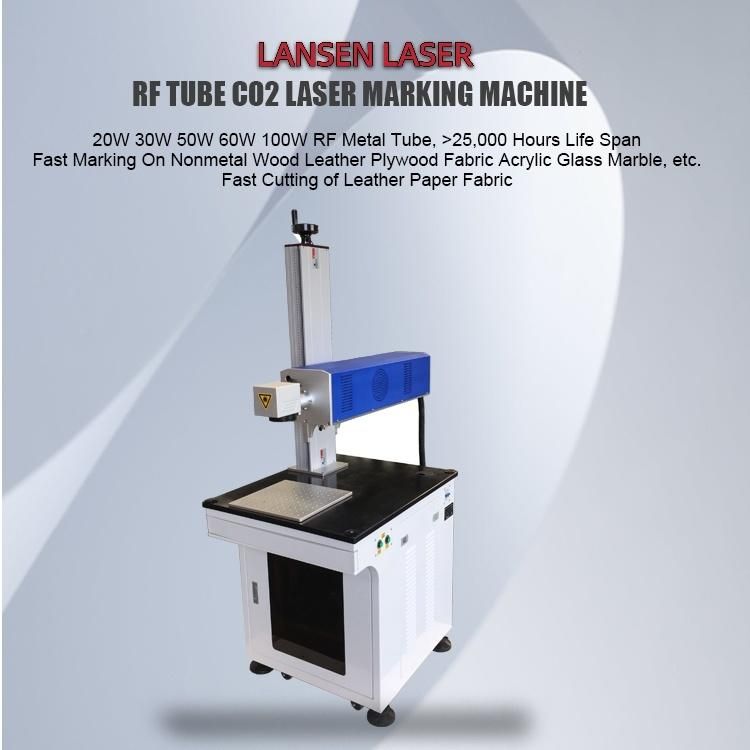

Desktop RF Tube Co2 Laser Marker Engraving Machine for Nonmetal

This model is Lansen RF tube CO2 laser marking machine, with optional Synrad 30W 60W RF tube, Coherent 30W 50W RF Tube, DAVI 20W 30W 50W RF tube. All these RF tube are air cooling, each RF tube with a estimate life span of 25000 hours. What's more all RF tube can be refilled CO2 gas. Compared with traditional glass tube CO2 laser machine, RF tube with thinner laser beam, longer life span so can mark more precise.

Lansen Synrad RF Co2 Laser Marking machine adopts domestic high quality Metal RF Laser source, lifespan is about 3-5 years. Machine adopts high quality digital laser scanning head. Suitable for users requiring high precision and fast speed btach production, tags, nameplate, logos.

Parameters:

Type	LS20/30/50/60R
Laser power	20W/30W/50W/60W Metal RF tube (China or imported)
Laser Wavelength	10.6μm
Laser Repetition Frequency	≤25KHZ
Making Area	110mm*110mm/200mm*200mm/300mm*300mm
Making Depth	≤0.3mm(adjustable according to materials)
Linear Speed	≤7000mm/s
Min.Line Width	0.1mm
Min.Letter	0.4mm
Repeatable Accuracy	±0.01mm
Gross Power	1.2KW
Electricity Source	220V/50Hz/8A
Cooling System	Air Cooling
Package size/Gross Weight	1030mm*840mm*1010mm/158kg
Suitable for	Nonmetal materials marking or leather cloth quickly cutting

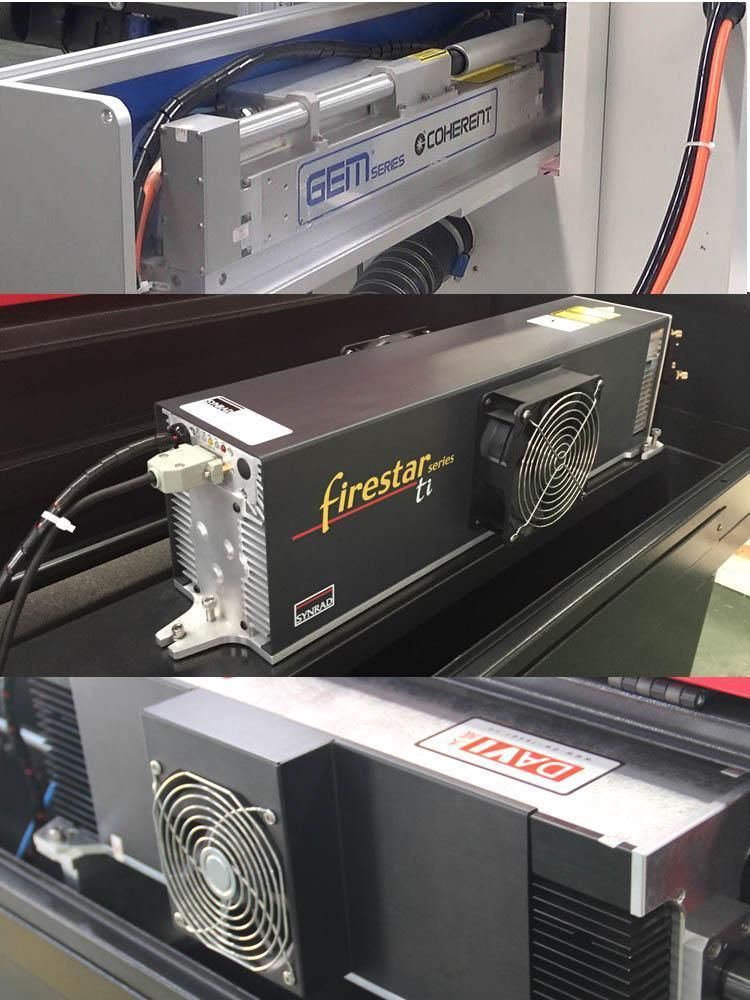

1.RF Metal Tube
This co2 laser marking machine can install RF metal tube 20W 30W 50W 60W. Price in this page standard for DAVI brand 30W.
Optional:
1, China DAVI: 20W , 30W, 50W
2, USA Synrad: 30W, 60W
3, USA Coherent: 30W, 50W
All RF metal tubes are air cooling, with more than 25000 hours life span, and can be refill CO2 gas in the future.
We also have water cooling RF tube like 100W 150W, want more price please contact our sales.

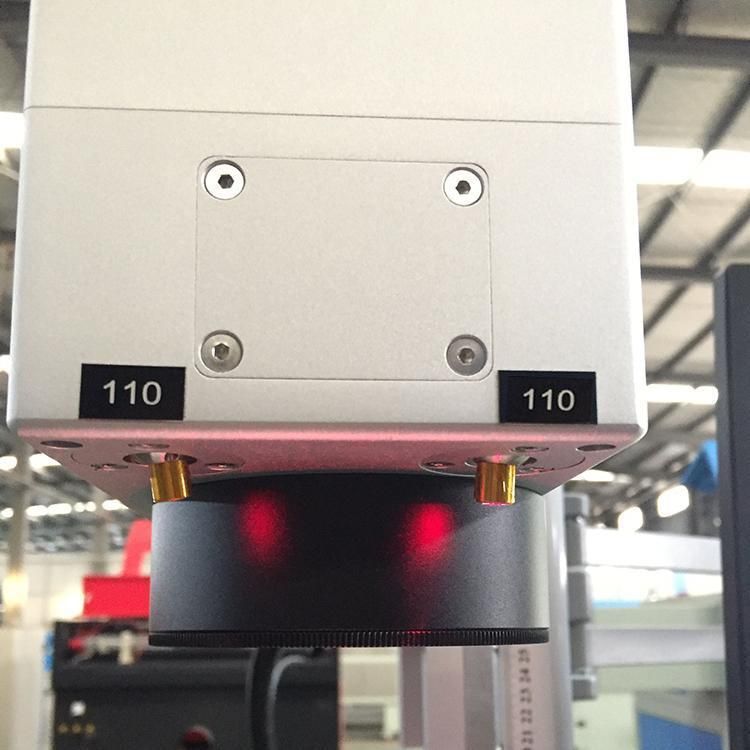

2.Sino-Galvo High Speed Scan Head
Sino-Galvo brand high speed scan head with two outer red dot pointer.

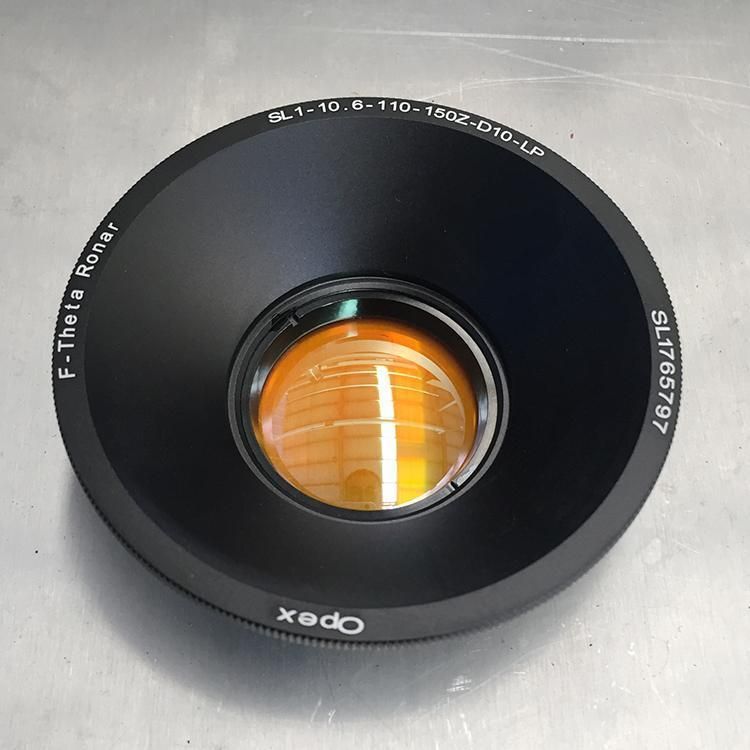

3.Wavelength Field Lens 110x110mm Area
Standard with Wavelength brand field lens, working area 110x110mm. Optional 200x200mm, 300x300mm.
Usually the small the field lens, the thin the laser beam, then better the marking effect.
One machine can pair two or more field lens if need, user can change it by easy screw up down.

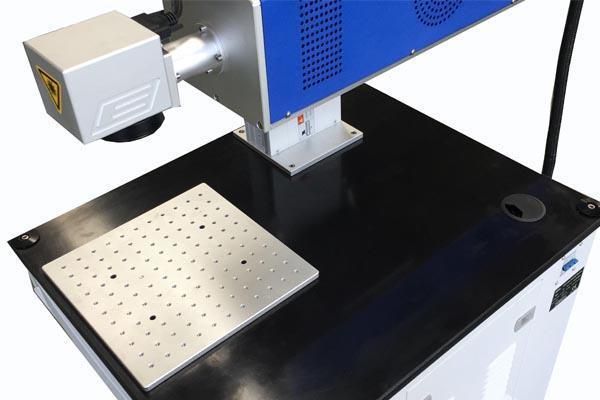

4.Aluminum Worktable With Position Holes
There are position holes on the aluminum worktable, together with the black tool, user can easy position.

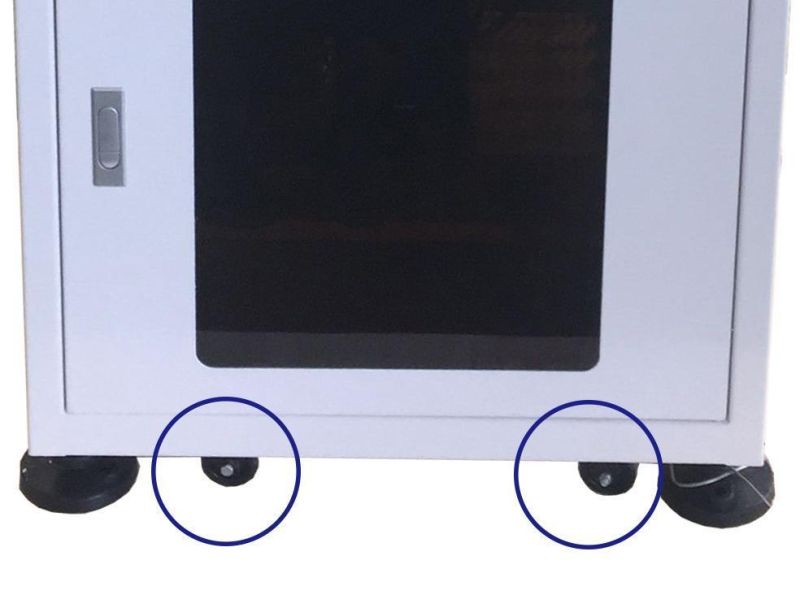

5.Universal Wheels And Fix Legs
Bottom with 4 universal wheels, users can easy move it anywhere.
The 4 position legs for fix the machine firm.

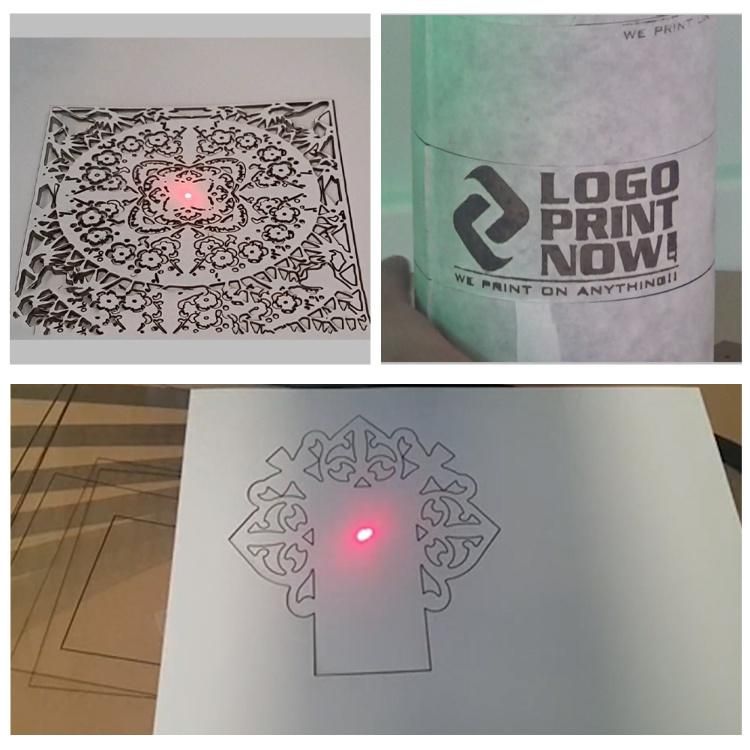

Samples:


Our Survice:
1. 24 Months for Machine
2. 6 Months for equipment outside, such as water pump, fan, air pump,etc.
3. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. Lifely and fast technical guide and solution within 24hours by email and web camera.

About us:


FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?

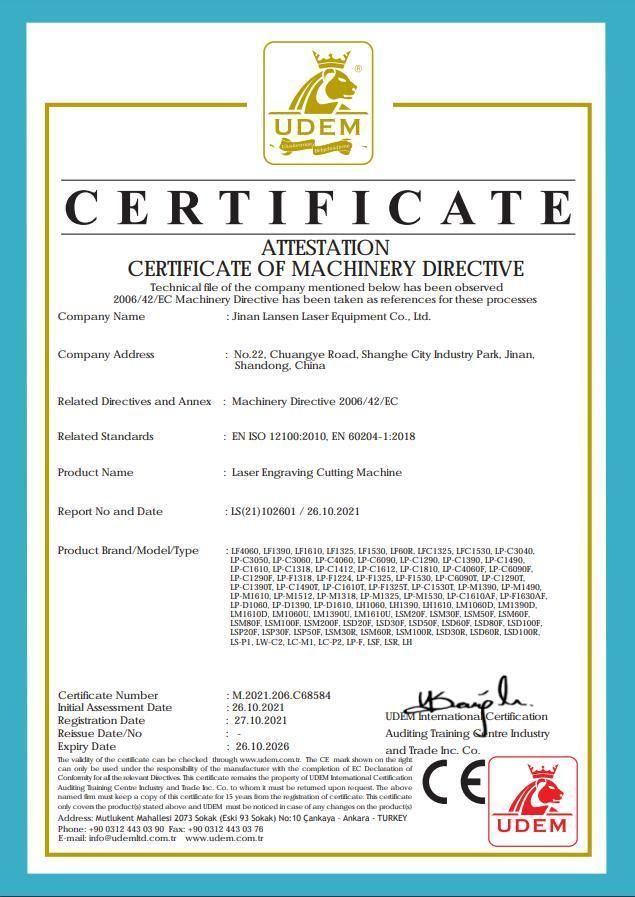

A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
