Basic Info.

Model NO. BRP75/26,90/26,93/28,107/26,110/28,120/26,130/26 Specification ISO9001, CE Trademark BEIER Origin China HS Code 84772090 Production Capacity 100sets/Year

Product Description

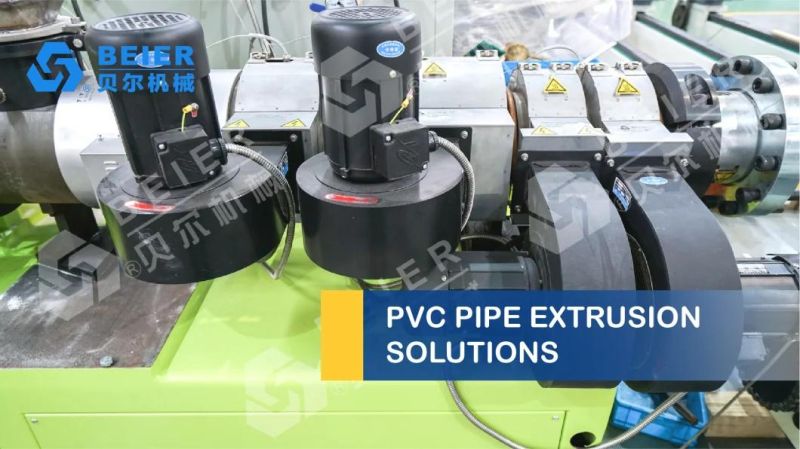

BRP Series Parallel Twin Screw Extruder



Advantages

1.    Available to rigid and soft PVC included C-PVC

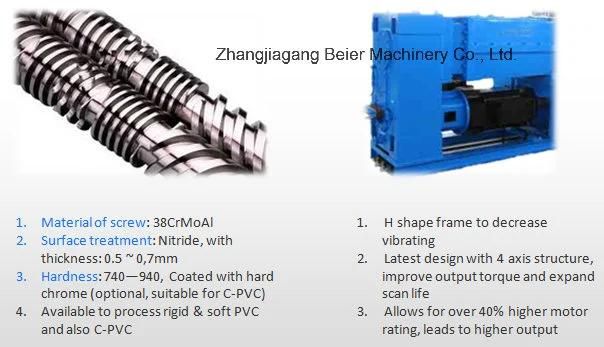

2.    Unique screw design to achieve higher plasticizing and products quality
3.    Core self-circulation temperature control for screw. More accurate temperature control        system

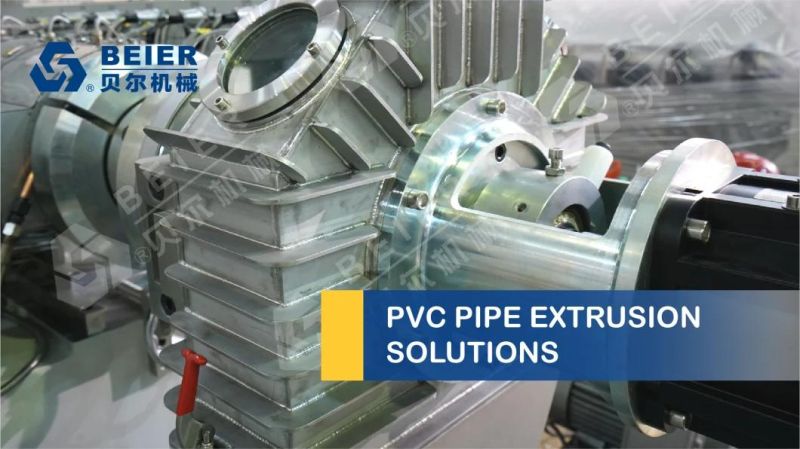

4.    Gearbox of high torsion balance to realize stable running, low oil temperature available
5.    Automatic and visible circulation system of lubricant on gear box
6.    H shape frame to decrease vibrating
7.    PLC (Simatic Multi Panel) operation panel to ensure synchronization.
8.    Energy conservation, easy to maintenance.

Technical Parameter

Model	BRP75	BRP90	BRP93	BRP107	BRP110	BRP120	BRP130
Screw diamter(mm)	75	90	93	107	110	120	130
Motor power (kw)	37	55	67	75	90	110	132
Max.rotating speed(rpm)	45	45	41	38	38	32	30
L/D	26:1	26:1	28:1	26:1	28:1	26:1	26:1
PVC pipe output (kg/h)	350	450	600	800	850	1100	1200
