Basic Info.

Model NO. LW-5G3 Package Wooden Box and Waterproof Membrane Cover Color According to Customers Request Manufacture Pure Water Oil Detergent Cosmetic Medicine Bottle Usage Bottle Blowing Quality High Quality Cavity 2 Cavity 4 Cavity Are Available Country Made in China Blowing Method Stretch Blow Molding Machine Features Full Automatic Servo Drive Volume 200ml to 6liter Material Pet Preform Products Bottle Can Jar Transport Package Water Proof Film or Wooden Packaging Specification High Quality Bottle Blowing Machine Trademark LW Origin China HS Code 8477300000 Production Capacity 500PCS/Year

Product Description

                                                            Automatic Jar Blowing Machine

Machine Features:

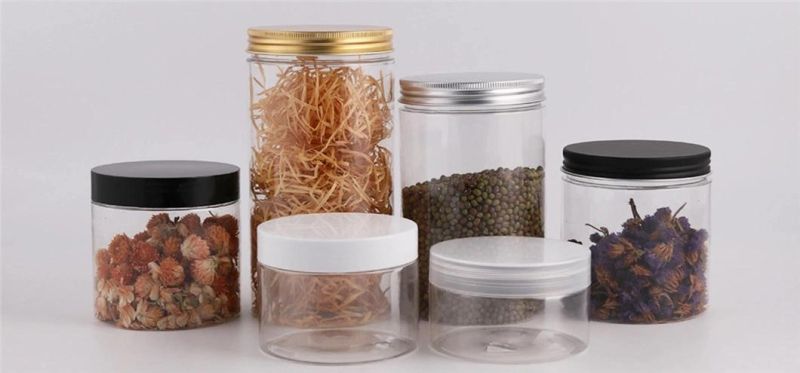

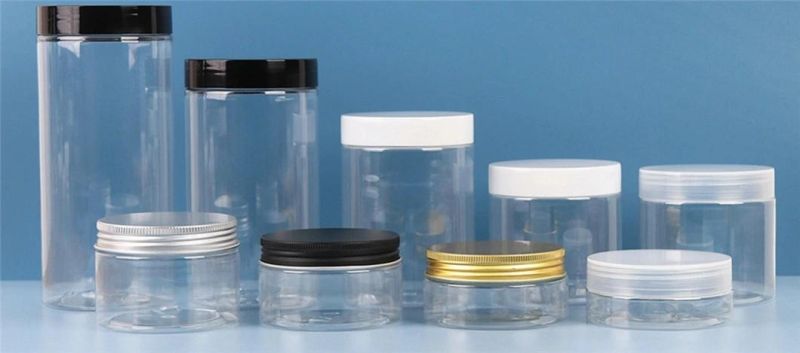

1. Automatic jar blowing machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the wide mouth bottle for packaging candy, nuts, honey, peanut butter etc. Reasonable design, full automatic control, preform automatially feeded, save power and labor.
2. The mechanical part has compact and energy saving design.
3. Machine has fault alarm function and diagnostic system to allow easy maintenance.
4. The mould positioning installation makes it possible for operators to change the mould easily within 30 minutes.
5. The machine can be controlled through touch screen, to make sure each preform be heated uniformly and stably. The width and height of the reflector can be adjusted, which can be suitable for heating preforms with different wall thicknesses.

Main Parameters:

Item	L-G4	L-G2
Theoretical Output	3000pcs/h	1700pcs/h
Max Container Volume	1.5L	1.5L
Max Neck Diameter	20-85mm	20-85mm
Max Container Diameter	30-90mm	30-90mm
Max Container Height	280mm	280mm
Number of Cavity	4 Cavity	2 Cavity
Total Power	61Kw	51Kw
Real Using Power	27Kw	22Kw
Low Pressure Air Consumption	1.0m³/min	1.0m³/min
High Pressure Air Consumption	2.4m³/min	1.6m³/min
Feeding Machine Dimension	2.1*1.1*2.7m	1.9*1.1*2.7m
Feeding Machine Weight	450Kg	350Kg
Machine Dimension	3.6*1.6*2.0m	2.7*1.6*2.0m
Machine Weight	2500Kg	1800Kg

Bottle Blowing Process:

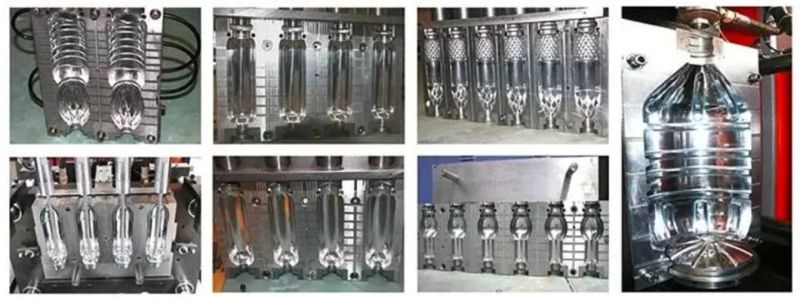

Bottle Moulds:
We can offer free bottle designs for our customers.

Company Introduction:
Taizhou Lianwo Machinery Co., Ltd is located in Huangyan, Taizhou, Zhejiang Province, the hometown of mould in China. Our company produces high speed automatic blow molding machine, automatic hollow blow molding machine, automatic blow molding machine, semi-automatic blow molding machine and blowing mold.
The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic containers in packaging fields. Taizhou Lianwo Machinery Co., Ltd can provide a variety of bottle making equipments and suitable technical solutions.
Taizhou Lianwo Machinery Co., Ltd has professional design, production team, which provides a solid foundation for producing excellent quality and performance blow molding machines. Our blow molding machines are exported to America, Europe, South korea, the Middle East, Southeast Asia, Central Asia, Africa and other countries and regions, they are well received and used by our customers.
Let's create a better tomorrow hand in hand!
FAQ:
1.Are you a factory?
We are a factory in Taizhou, which is a eastern costal city near Shanghai. Welcome to visit Taizhou Lianwo Machinery Co., Ltd!

2.What is your payment term?
30% down payment against order confirmation, 70% balance when the machines are ready. Upon receipt all your payment, we will delivery the goods at once.

3.What is your delivery time?
All the machines will be produced according to the order. Usually in 20 working days, depends on your projects.

4.What about installing in customer factory?
After the machines arrive at your factory, we can arrange engineer to install the machines and train your workers.

5.What is the guarantee time?
We offer A one-year warranty and A lifetime after-sales service.
