• Model NO.：H-HVK,HVL,HVN Series
• Type：Plunger Type
• Series：H-Hvk,Hvl,Hvn Series
• Color：Yellow, Black, Blue, Orange
• Brand：Helm Tower
• Performance：Large Torque with Slow Speed
• Transport Package：Standard Export Packing
• Specification：ISO9001
• Trademark：Helm Tower
• Origin：China
• HS Code：841229100
• Production Capacity：350sets ,Month

Basic Info.

Model NO. H-HVK/HVL/HVN Series Type Plunger Type Series H-Hvk/Hvl/Hvn Series Color Yellow, Black, Blue, Orange Brand Helm Tower Performance Large Torque with Slow Speed Transport Package Standard Export Packing Specification ISO9001 Trademark Helm Tower Origin China HS Code 841229100 Production Capacity 350sets /Month

Product Description

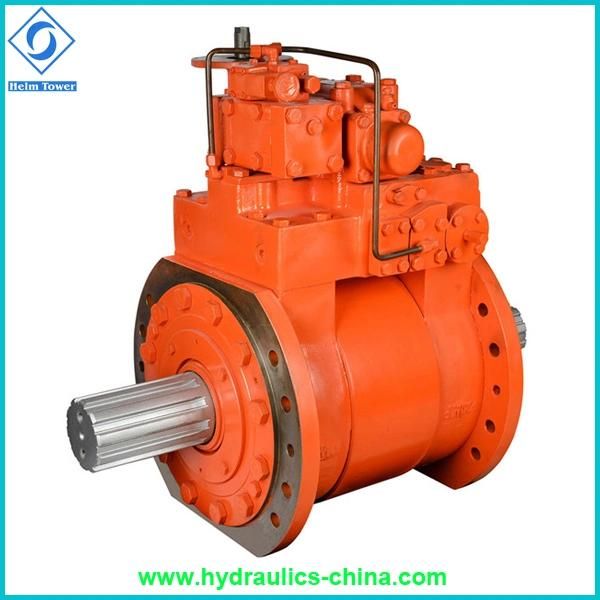

H-HVK series Marine Vane motor

We have been cooperating with Chinese largest shiping company since the year 2007.
Our motor could replace Japanese IHI vane motor with 100% replacement

Which can be used in ship crane and port crane, deck crane but also

Other machineries (I. E. Windlass, mooring winch, etc).

Our parts can be used in both high pressure and medium pressure working circumstances

We have the ability to manufacture H-HVK/HVL/HVN series Marine vane motors.

Motor type	H-HVK-A	H-HVK-A	H-HVL-A	H-HVL-A	H-HVL-A	H-HVL-S	H-HVN-S	H-HVN-S	H-HVK-S	H-HVN-D
Motor Code	F2-7318	F2-7317	F2-8134	F2-8135	F2-8091	F2-8093	F2-8094	F2-8095	F2-8136	F2-8223
Rated Rotation r/min	41.7	41.7	35	35	41.3	27.4	86.7	89.1	43.0	88.4
supply Oil L/min	305.0	305.0	387	387	456.0	309.0	309.0	312.0	310.0	311.0
Reference oil L/min	309	309	392	392	507
Efficiency pressure MPa	12.7	12.7	11.9	11.9	13.4	12.5	13.4	10.3	10.4	11.3
Relief valve Adjust pressure MPa	16.0	16.0	15	15	16.7	16.0	16.7	13.0	13.0	14.0
Low speed roll up rotation r/min	41.7	41.7	35	35	41.3	27.4	86.7	89.1	43.0	88.4
Middle speed roll up rotation r/min	62.6	62.6	52.5	52.5	62.0
High speed roll up rotation r/min	125	125	105	105	124					178.6
Roll down limit rotation speed r/min	≤ 132	≤ 132	≤ 111	≤ 111	≤ 131	≤ 30	≤ 100	≤ 100	≤ 50	≤ 175
Rated load Static skid T(S)	≥ 20	≥ 20	≥ 20	≥ 20	≥ 20	≥ 20	≥ 15	≥ 15	≥ 20	≥ 15
Rated load Hoisting load T(TON)	4.35	4.35	6.5	6.5	6.5	6.5	2.10	2.1	4.35	2.1
Displacement L/r	6.741	6.741	10.149	10.149	10.149	10.149	3.304	3.304	3.304	3.304
Rated Pressure MPa	14.7	14.7	14.7	14.7	14.7	14.7	14.7	14.7	14.7	14.7
Actual Torque at Rated pressure N*M	14700	14700	22050	22050	22050	22050	7350	7350	7350	7350
Min. Speed r/min	4	4	4	4	4	4	4	4	4	4
Mechanical efficiency %	96	96	96	96	96	96	96	96	96	96
