Basic Info.

Model NO. RL-ZF Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE Speed High Speed Die Fix Die Rewinder Single Transport Package Stretch Film Packaging, Wooden Case Specification 5.5m*2.1m*4.7m Trademark RILI Origin Made in China HS Code 8477209000 Production Capacity 200 Sets/ Year

Product Description

Zipper Bag Ziplock Bag Bone Bag  Film Blowing Machine for blowing double bag/ 2 bags

Based on the Film Blowing Machine, this machine is designed creatively. With an embossing button automatic sealing zip at the very opening, a bag can be produced automatically freely. The main processor adopts frequency conversion speed governing, photoelectric control, air filling automatically, with a high content of science and technology and power applicability.

We use low density polyvinyl chloride LDPE as our raw material and our products can be used to package food, fruit, medicine, documents, industrial products, clothing, fabric and industrial products for civil use.



Main Technical Parameters:

Model	RL-ZP-55
Raw Material	LDPE(density0.921)
Width of Bag	50-500mm
Thickness of single layer film	0.03-0.10mm
Diameter of Screw	Φ55
L/D	28:1
Power of Main Motor	7.5kw
Power of Auxiliary Machine	0.75kw
Heater	15kw
Cooling	1.1kw
Power	28kw
Voltage	50Hz-60Hz 380V
Output	5-30kg/h
Dimension (L×W×H)	6000×1600×4500mm
Total Weight	1.5T

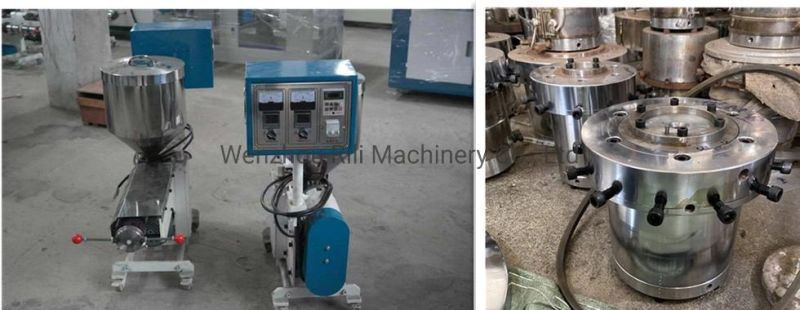

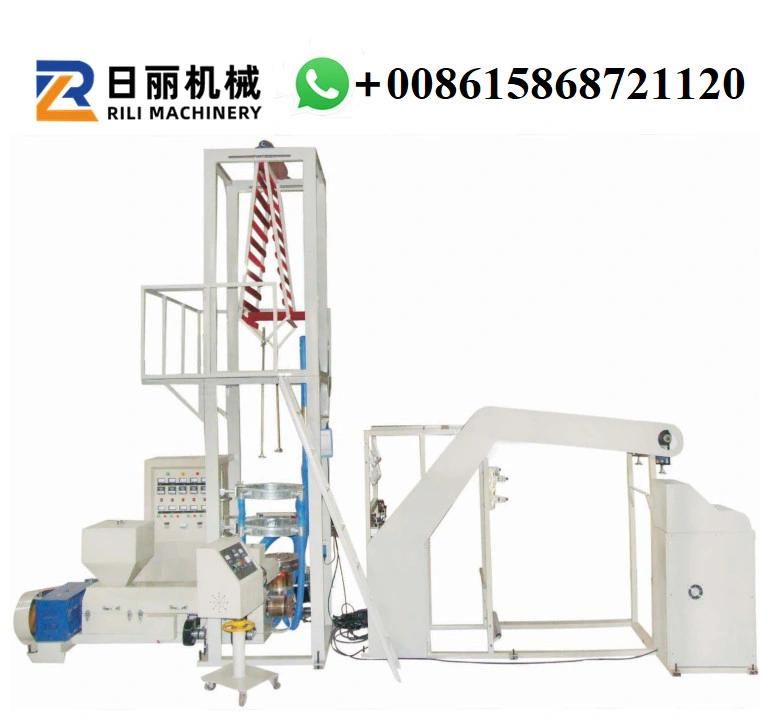

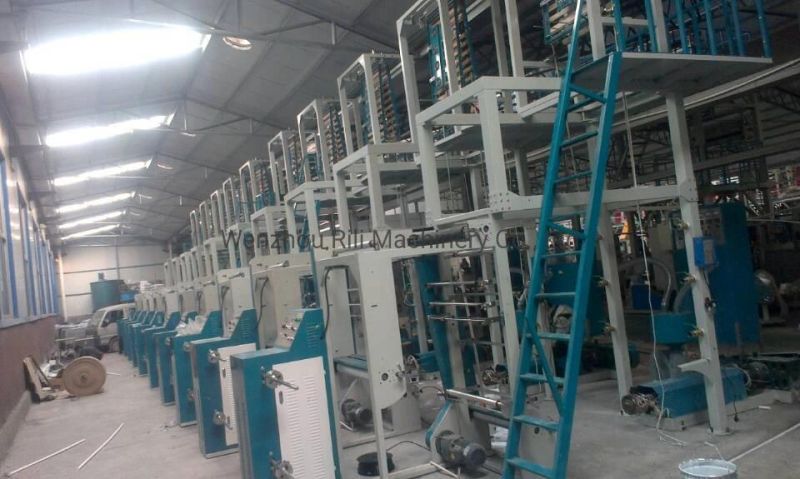

Machine Pictures:

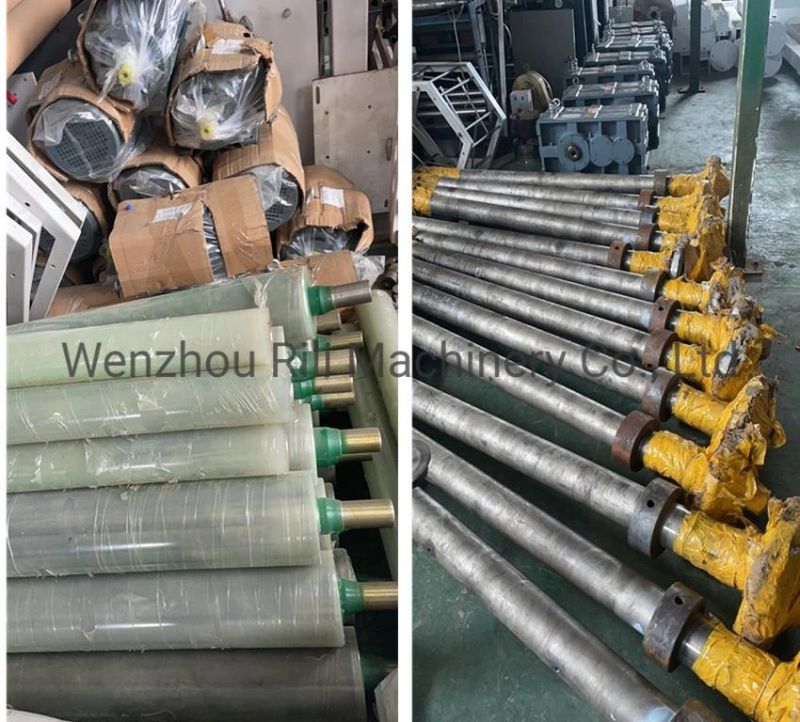

Loading Pictures:
