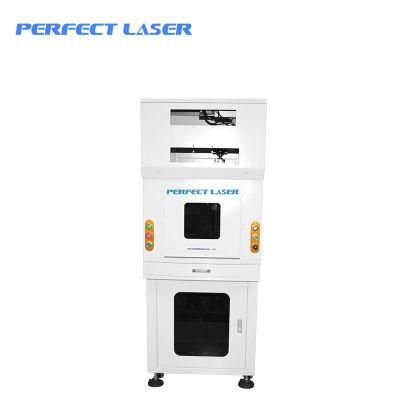

Pedb-500 Full Enclosed Jewelry Ring Laser Engraving Marking Machine
Zhangpu Guangguang Plastic Products Co., Ltd.- After-sales Service：on Line
- Warranty：1 Year
- Laser Visibility：Invisible
- Applicable Material：Metal and Non Metal
- Cooling System：Air Cooling
- Technical Class：Continuous Wave Laser
Base Info
- Model NO.：PEDB-500
- Laser Wavelength：1064nm
- Laser Classification：Fiber Laser
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Mask Pattern Marking
- Laser Power：20W 30W 50W
- Ipg Series：Pulsed, High Energy Ytterbium Fiber Lasers
- Polarization：Random
- Current：AC
- Central Emission Wavelength：1060-1070 Nm
- Gross Weight：300kg
- Pulse Width, (Fwhm)：100ns
- Voltage：220V
- Warranty Year：One Year
- Working Size：110*110mm
- Transport Package：Wooden Case with Exporting Standard
- Specification：ISO 9001 & CE
- Trademark：Perfect Laser
- Origin：China
- HS Code：8456100090
- Production Capacity：1000 Sets, Month
Description
Q-switched operation
Output power adjustment range
10%-100%
Nominal average output power W
20W
Central emission wavelength
1060-1070 nm
Emission Bandwidth (FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
0.95 mJ
Typical beam quality, M2
<1.8
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
0.5 kw

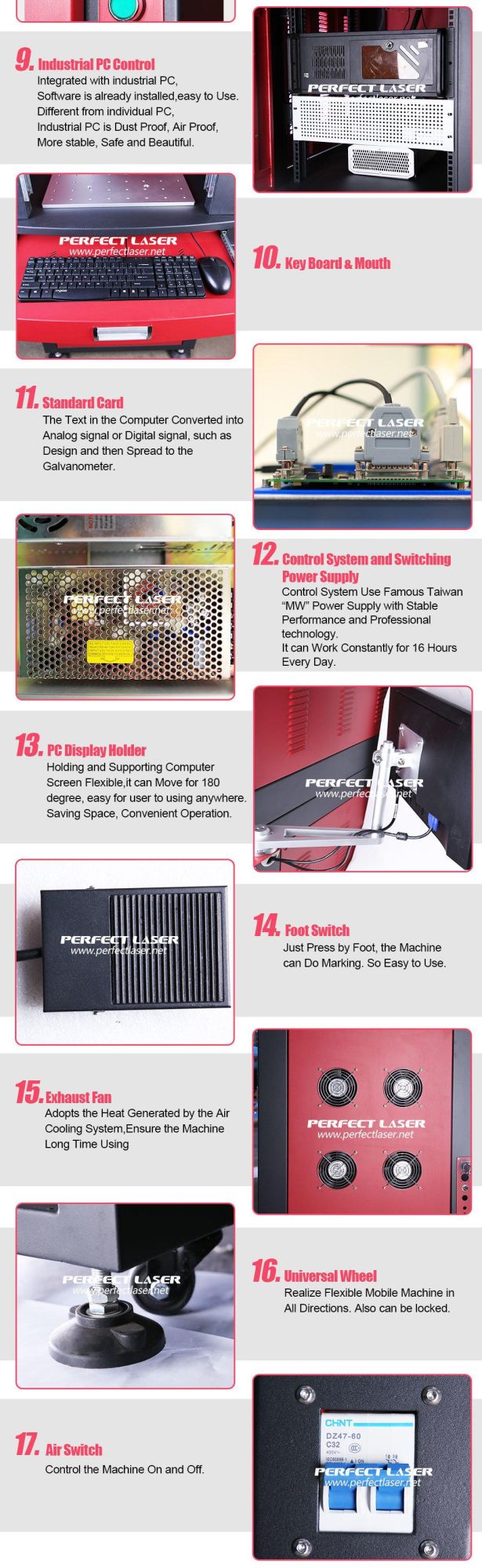

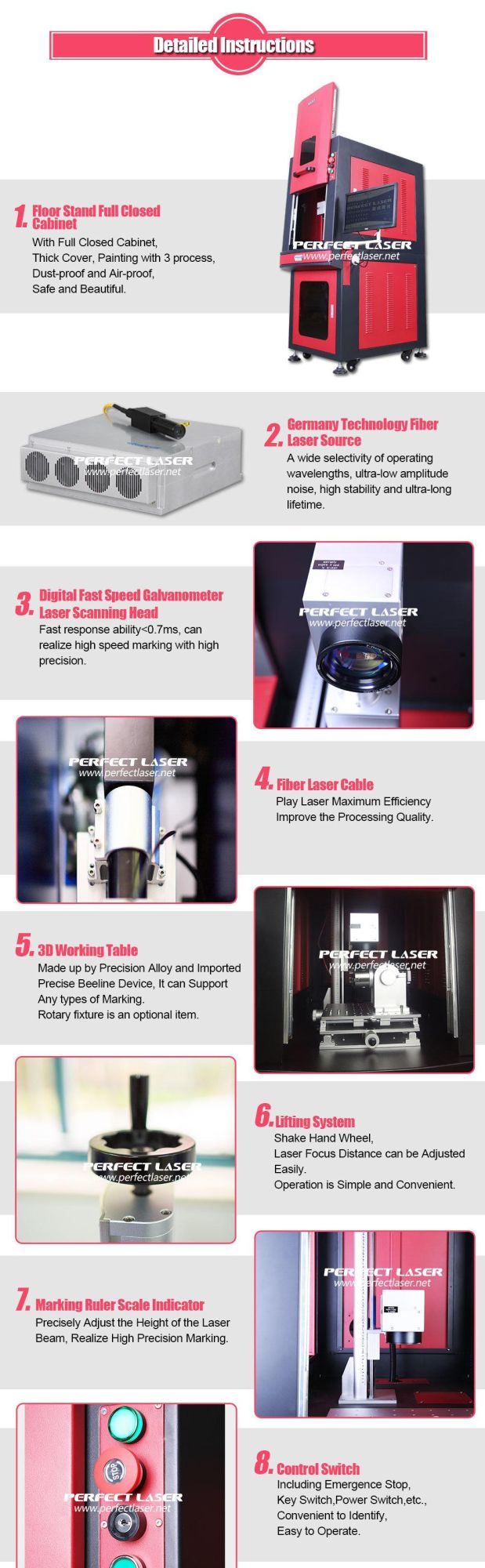

Machine Details of Laser Machine:
Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
