Model

SJ-55

SJ-65

SJ-75

Features

Raw Material

HDPE, LDPE, LLDPE; Virgin and Recycled

Film Width

800mm

1200mm

1500mm

Average Output

45Kgs

65Kgs

85Kgs

Film Thickness

0.008mm-0.15mm

Dimension

5×3.5×4.5M

6×4×5.5M

7×5×7M

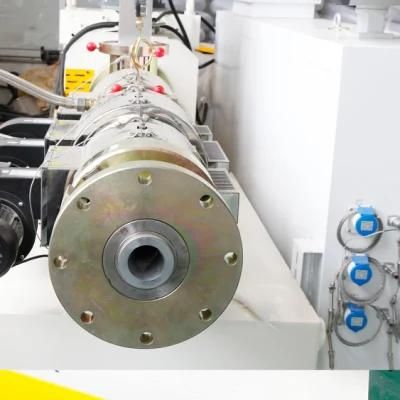

Extrusion Unit

Screw Diameter/LD ratio

55mm
30:1

65mm
30:1

75mm
32:1

Motor

15KW

22KW

37KW

Gearbox

146

173

200

Die Head Type

Rotary Die Head

Die Size

80/160mm

160/260mm

400mm

Film
Taking-up Tower

Upper Tower Type

Up and down; embossing roller and gusseting

Roller Length

900mm

1400mm

1800mm

Roller Working Way

Opened and Tightened By Air Cylinders

Winding Station

Winder Type

Double winding station fraction type

Rollers

900mm

1400mm

1700mm

Max. Winding Diameter

650mm

Control Panel

Electronics

Top China Brand
