Laser Welded Core Drill with Turbo Segment for Concrete Reinforced Concrete and Masonry in All Size/Diamond Tools/Drilling Tools/Drill/Power Tools
Pinghu Kaixin Plastic Industry Co., Ltd.- Usage：Masonry Drilling, Concrete Drilling
- Manufacturing Technology：Laser Welding
- Segment Height：10mm
- Application：Wet Drilling Concrete, Reinforced Concrete
- Install Quipment：Stand Driller, Hand-Held Driller
- Transport Package：Carton, Pallet
Base Info
- Model NO.：CWDB
- Specification：25mm-350mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
Basic Info.
Model NO. CWDB Specification 25mm-350mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per MonthProduct Description

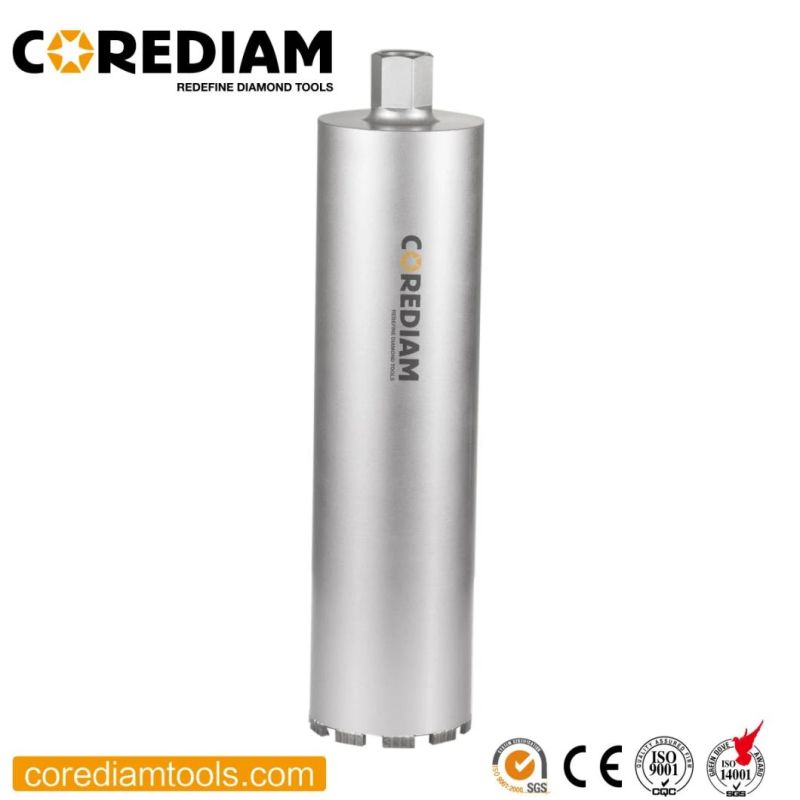

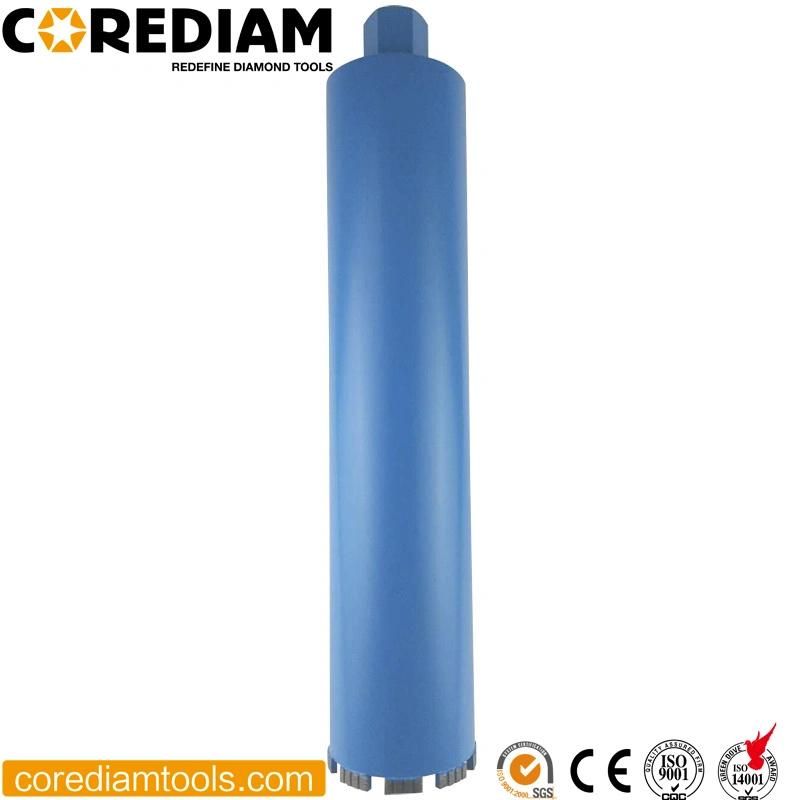

1.Laser welded diamond core drill introductionThe wet core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
Common sizes of laser welded diamond core drill are ranging 1 '' (25mm) to 14''(350mm) in size.
The core drill is used for professionally wet drilling kinds hardness of concrete, reinforced concrete.
Special turbo segments design make the segments have very excellent sharpness, achieving fast drilling.
Segments height, working length and connection type can be adjustable on your request.
2.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDA02545010 | 25mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
| CWDA04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
| CWDA05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06645010 | 66mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07645010 | 76mm | 10 | 1 1/4"-7 | 450mm |
| CWDA08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
| CWDA09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
| CWDA10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
| CWDA11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
| CWDA12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
| CWDA13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
| CWDA15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
| CWDA16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
| CWDA17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
| CWDA18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
| CWDA20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
| CWDA25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
| CWDA30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
| CWDA35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
3.Features
Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have resonable lifespan.
4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.

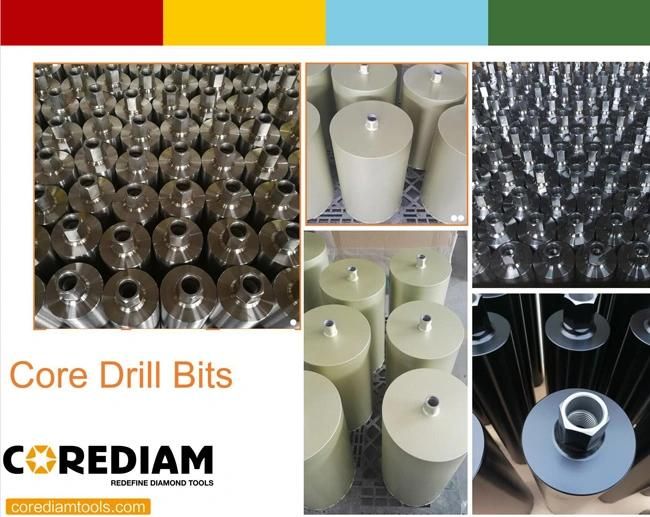

5.Production&Dispatch
6.Corediam service
We accept customized specifications, lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
