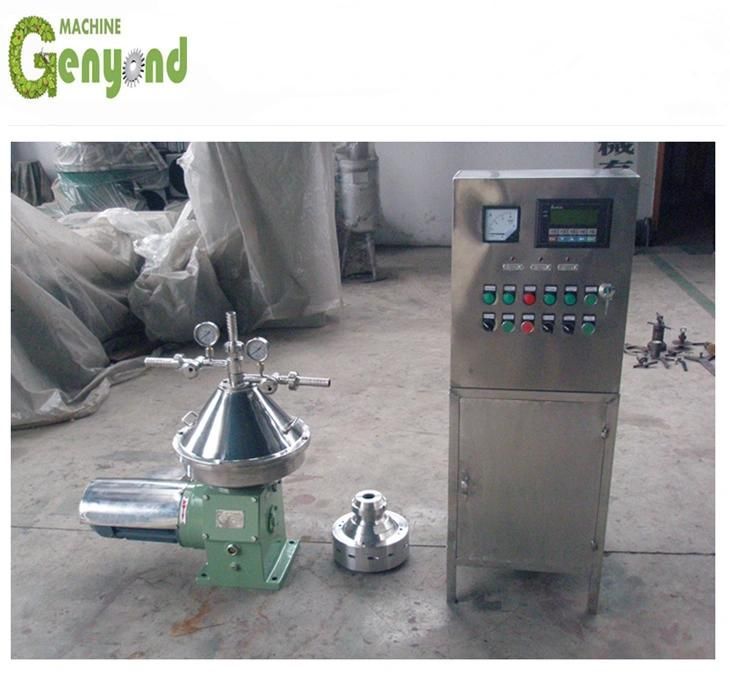

Automatic Milk Cream Separator
Jiangyin Yiran International Trading Co., Ltd.- Process：Separate
- Power Source：Electric
- Certification：ISO9001
- Automatic Grade：Automatic
- Application：Milk, Cheese, Butter, Cream
- Customized：Customized
Base Info
- Model NO.：NRSDH-5
- Material：304 Stainless Steel
- Capacity：500L,H
- Function：Separate
- Usage：Food Industry Equipment
- Voltage：220V,380V
- Automatic Level：Semi-Automatic, Fully Automactic
- Transport Package：Standard Export Package
- Specification：700*550*800mm. 150kg
- Trademark：Genyond
- Origin：Shanghai
- Production Capacity：100 Sets Per Month
Description
working principle

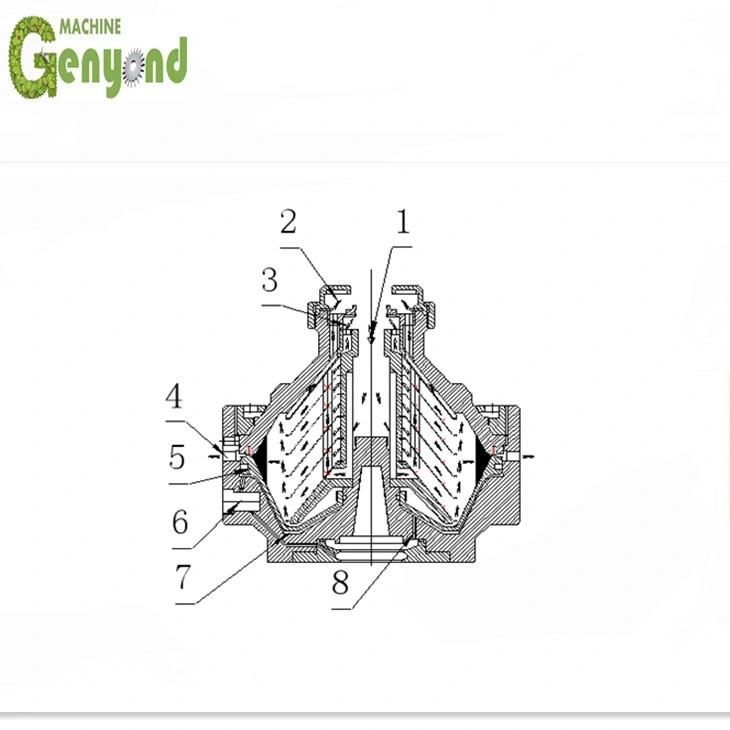

When the machine is working, the sealing water 8 is bumping into the sealing room 7, rising the sliding piston 5, and the sediment ejection hole 3 will shut down. Then, milk that to be processed are feeding into the bowl from feeding pipe 1. Under the effects of centrifugal force, the solids which have heavier density will be collected on the wall of the bowl. After a while, the opening water 8 is bumping into the opening room 6, falling the sliding piston 5, and opening the sediment ejection hole 4; than, the impurities will be deslagging from the bowl. The lighter liquid (fat) flowing along the inner side of the discs, and into the passage in the upper distributor. Than, lighter product is discharging from the machine by the lower centripetal pump 3. The heavier liquid(skim milk) flowing along another passage, discharging from the machine by the upper centripetal pump 2. Thus, the milk will be separated well. The separator adopts self deslagging and centripetal pump. Thus, the machine is able to work continuously, and attain a good separation effect in the long run.
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

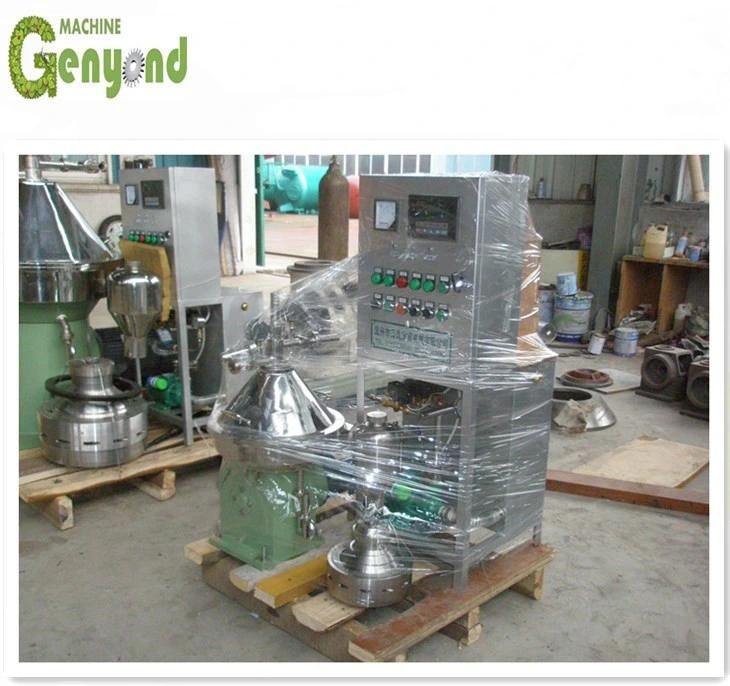

PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-40 days after confirming, detail delivery data will be decided by the production season and order quantity.
Certifications
company profile:

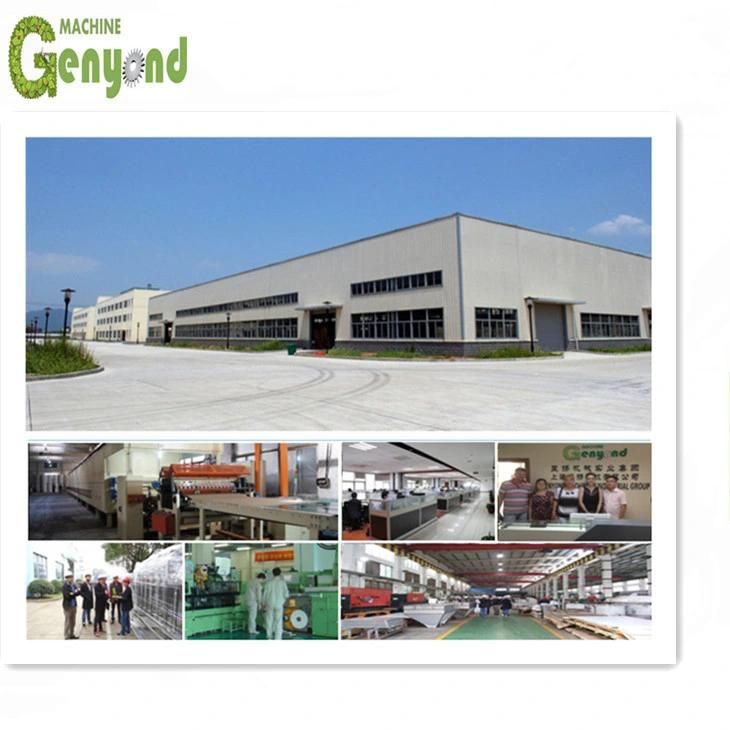

Shanghai Genyond technology Co., Ltd. is belonging to GENYOND MACHINERY INDUSTRIAL GROUP. We are a group company which has six factories in China. We specialize in the production of food machine, medicine machine and packing machine. We have been focused on the design and production of food machine for more than 20 years. Our products have been exported to more than 100 countries. Our advantage is to offer you the turnkey project, and our rich experience can help you a lot at food production.
Our advantage is to offer you the turnkey project, and our rich experience can help you a lot at food production.
You just need to give us an idea of food production, then we will make different proposals to help you to get the best solution on the design, price and installation.
You are always welcomed to visit us, we will offer you the free service of airport pickup, hotels and travel in China.
