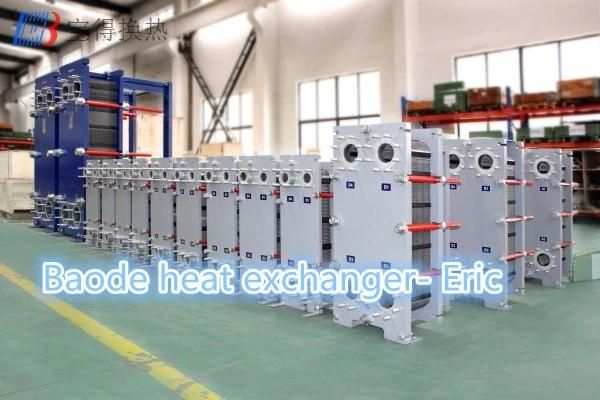

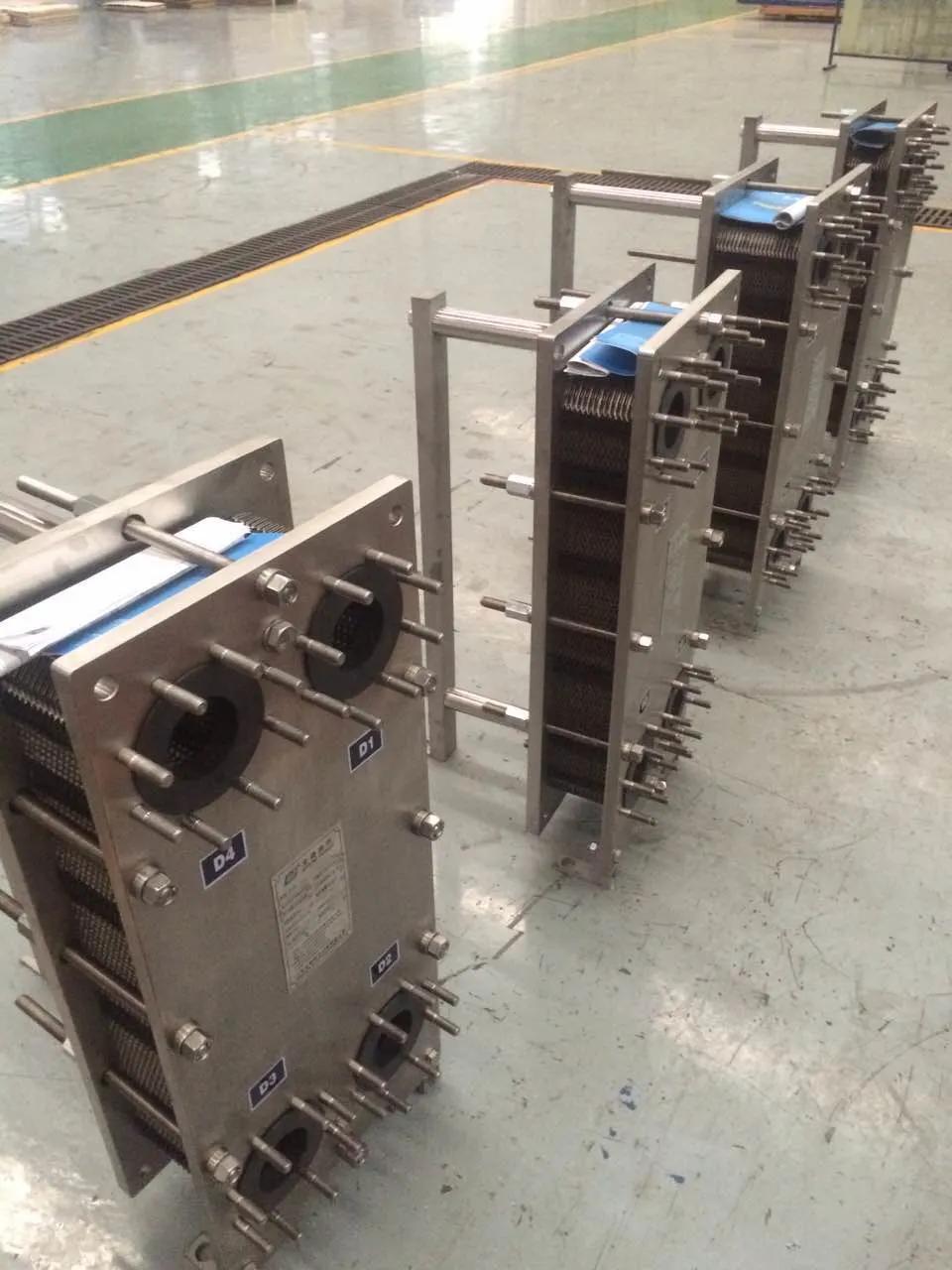

High Thermal Efficiency (M6/M6M) Replacement Steurization Heat Exchanger
Kesiyu (Zhejiang) Packaging Co., Ltd.- Type：Pasteurization
- Frame Material：Sanitary Stainless Frame
- Gasket：Fad Certificate NBR
- Application：Cooling and Heating of Dairy, Brewery, Beverage an
- Plate Material：Stainless 316L , 304
- Transport Package：Standard Plywood Box
Base Info
- Model NO.：BS60 Series
- Specification：ISO9001, CE, UL, WRAS, ROHS and etc.
- Trademark：Baode
- Origin：China
- HS Code：8419500090
- Production Capacity：300 PCS,Month
Description
BS60Cross Reference M6, M6M Height, H [mm] 920 940 Width, W [mm] 320 330 Min standard length, L [mm] 500 500 Max standard length, L [mm] 1500 1500 Vertical port distance, VC [mm] 640 640 Horizontal port distance, HC [mm] 140 140 Max temperature [° C] 180 180 Max pressure [barg] 10 16 Flange size DN50/2" DN50/2" Max. flow rate [kg/s] 16 Material Applicable Temp Applicable fluids NBR -15C to +135C Water, sea water, Mineral oil, salinous water EPDM -25C to +180C Hot water, Steam, Acid, Alkali F26 -55C to +230C Acid, Alkali FTP 0C to +160C High Concentrated acid, Alkali, High temperature oil, Steam
