Basic Info.

Model NO. XDC-PET 200 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Name Pet Strap Making Line Strap Width 5-32mm Production Speed 120m/Min Output Capacity 80-800kg/H Transport Package Wooden Specification 2500x1500x6000mm Trademark XDC Origin Qingdao Production Capacity 50p/Y

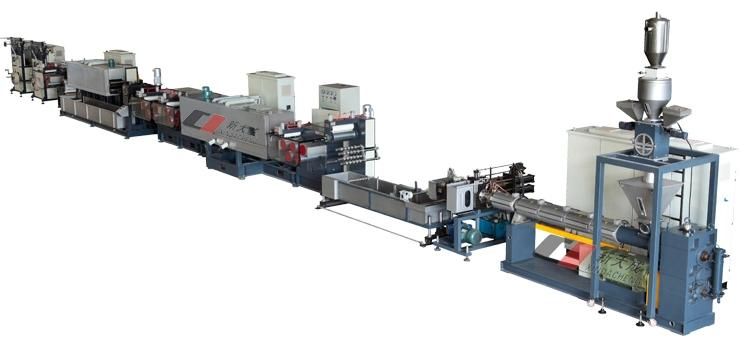

Product Description

Technical parameter:

Material	Extruder	Width	Strap quantity	Output
PET/PP	Φ75	9-19	2	PP100 / PET150
PET	Φ100	9-25	4	300
PET	Φ120	9-32	4-8	500
PET	Φ135	9-32	8-12	750

Product description:

PET packing strip, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.

Equipment characteristics:

PET or PP straps can be produced with the same technology. It takes a few minutes to change line set-up from one to the other. Heavy duty equipment can be used for four, six and eight straps production.



Raw material process and extrusion system

  High performance crystallizing and drying system.

  Production can use 100% recycled material to obtain a high add value strapping band.

  Special designed PET screw, select of single or twin screw extruder.



Continuous back-flush screen changer operating technology (Europe technology)

   100% full automatic self-cleaning screen changer

   Double column 4 screen cavities

   PLC control, change screen without production interrupted., not influence the production quality.



Special designed hot air stretching oven

   Configured with heating unit and automatic temperature control system

   High performance heat insulating layer

   Better on strip stretching and heating, rapid heating, complete strip orientation stretching.



Embossing machine

   Hydraulic control

   Customization designed embossing roll patter available.

   Configured with synchronous control system, adjust embossing roll vertical position

   and embossing strength accurately.



Heating oven for sizing

   Special designed technology, make sure the strip forming rapidly

   Prevent the strip from un-orientation after orientation, eliminate internal stress.

   Make sure the quality of strip accuracy and quality.



Strapping accumulator unit

   Strap length and the winding tension can be controlled according to strap wind speed.

   Two times completely cooling strapping.

   Reduce strapping winding camber.

Servo control winder (Single position and double position optional)

   PLC control system, automatically adjust winding tension. Winding range from 5mm to 32mm.

   Servo motor controls winder displacement width and distance. Reduce the strap bending.

   Make sure the strap is fit for automatic packaging equipment.
