Basic Info.

Model NO. TSE-65 Automation Automatic Computerized Computerized Customized Customized Certification CE Condition Used Dimension(L*W*H) 4.2*0.67*2.2m Brand Name Kairong Power(W) 90kw Keywords Recycling Granulator Machine Application Granules After-Sales Service Provided Engineers Available to Service Machinery Overseas Place of Origin Jiangsu, China (Mainland) Voltage 380V 50Hz Weight 4000kg Type Granulating Production Line Transport Package Wooden Case or Pallet Covered by Plastic Film Specification CE ISO9001 Trademark kairong Origin Jiangsu Nanjing HS Code 84772079 Production Capacity 50set/Year

Product Description

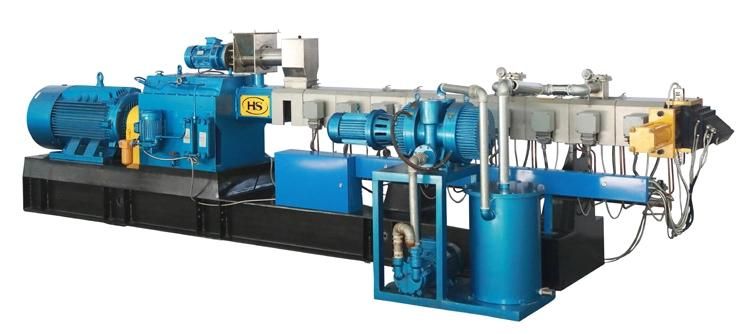

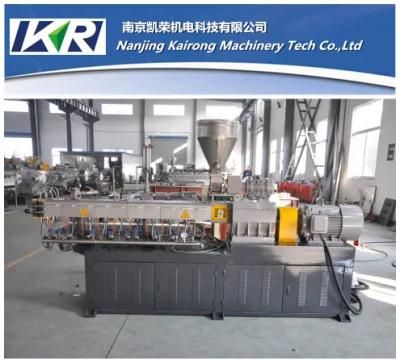

Parallel Screw Extruder Modified Recycling Plastic Pelletizing Machine
Features

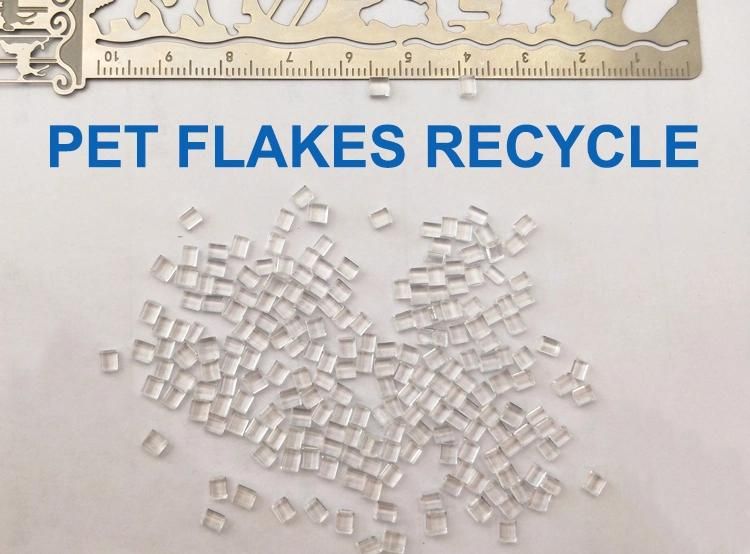

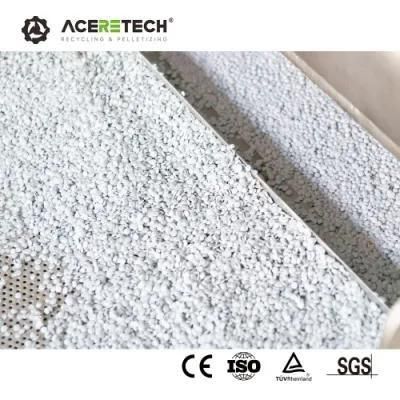

This granulator machine is mainly used to make pellets from waste plastics, like PET Bottle, TPU, PS, ABS waste plastic in factory and other hard plastics.
Processing capacity is from 100kg/h to 500kg/h.

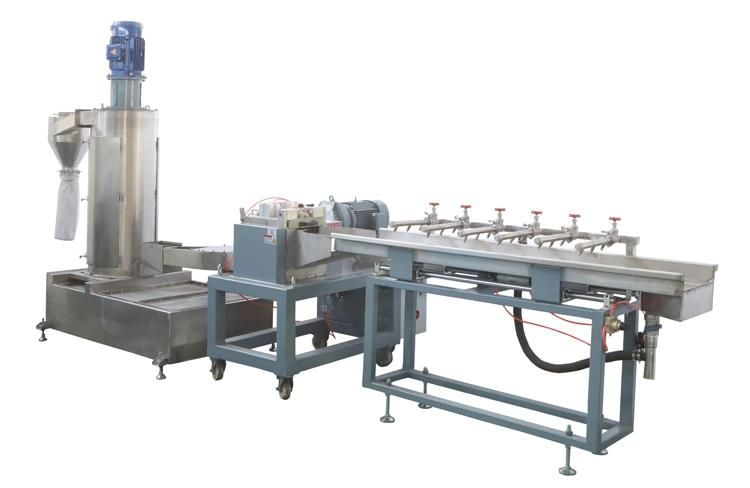

This granulating line is mainly consists of:
1.Belt conveyor:  feed the clean films or bags into the cutting compactor
2.Metal detector:check whether there is metal in the films or bags, protect the blades of cutting compact and screws
3.Cutting compactor:cut the materials again and make materials shrink, then force feed the shrunk material into the extruder. For the same capacity, the power consumption is only 50% of the agglomerator.
4.hydraulic screen changer: filter the impurities, improve the granules quality
5.Water cooling tank: use circular water for cooling the granules immediately after pelleting cut.
6.Vibration screen:to filter out non-standard pellets and get even uniform quality pellets.

Technical data

Mode	Diameter	L/D	N(r/min)	Power(kw)	T(N.m)	Q(Kg/h)
TSE-40B	41 mm	32-52	600	30	239	90-150
TSE-65A	62.4 mm	32-52	500	75	716	180-270
TSE-75D	71 mm	32-64	600	200-150	1990	500-1000
TSE-95B	93 mm	32-64	600	315	2506	1500-2250


Supporting system

As for the products. we have passed CE. FCC certificates.
As for factory firm ability ,we have passed CE. ISO. SGS.
Our sincerity business commercial ethic is :''the business principle of best quality, customer always the first".
Sincerely welcome to contact us to made a good cooperation with us.

Company information
Welcome to Nanjing Haisi Extrusion
Nanjing HaiSi Extrusion Equipment Co., Ltd is a High-Tech company, which is composed of well-experienced team in R&D, manufacturing technique, sales service and basing on extruder industry for many years. Our company is a professional manufacture
of high quality pelletizing extruders for coloring/ dyeing and master batch production, as well as plastic modification and compoundingplastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption.
