Basic Info.

Model NO. YS500 Condition New Belling Range Od250-500 Belling Type Straight Type and R Type PLC Simens Oil Cylinder Delixi Pneumatic Cylinder Festo, Airtac Color Customized Guarantee Period 1 Year Manufacturing Time 12 Months Delivery by Shipment Packing by Film and Wooden Box Transport Package Plastic Film/Wooden Box Specification YS500 Trademark Yusheng Origin Zhangjiagang City (Near Shanghai), China HS Code 84778000 Production Capacity 10 Sets Per Month

Product Description

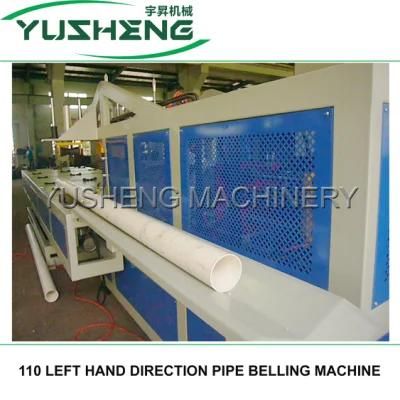

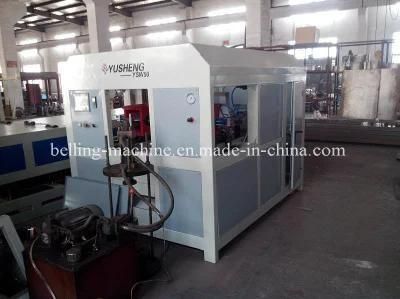

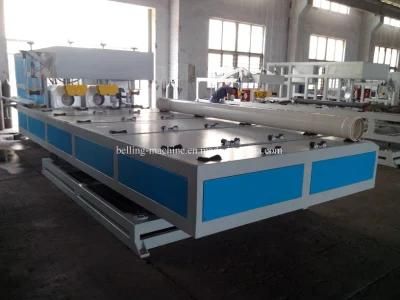

YS500 Full Automtaic Belling Machine:

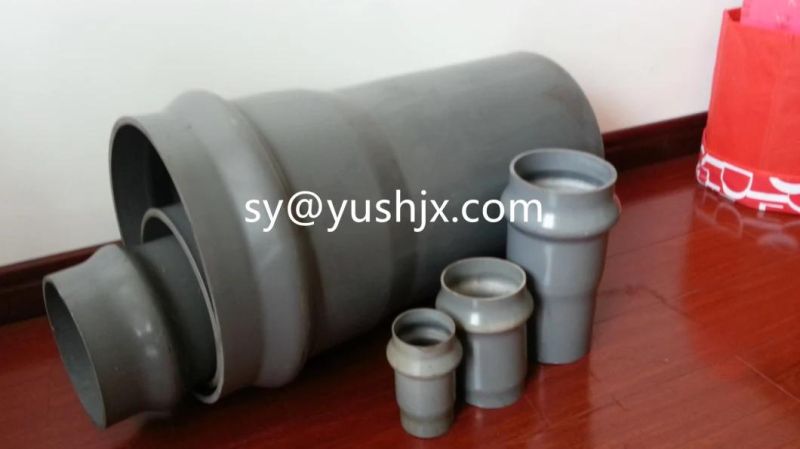

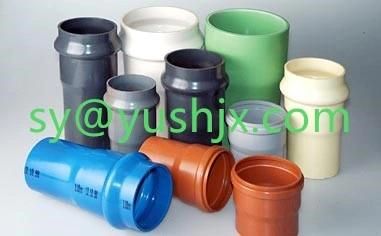

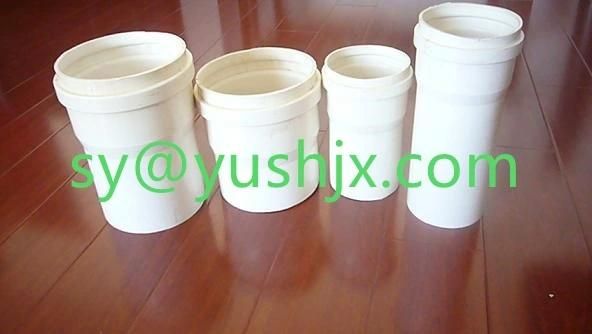

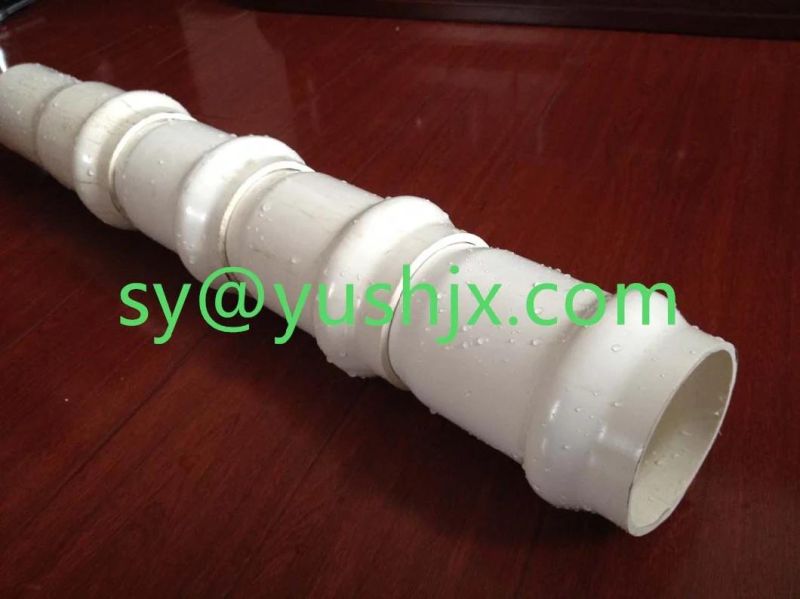

It is mainly use for making socket on the PVC pipes.
Features:
1-full automatic control by PLC
2-Online working
3-well known electric part: Siemens, Shneider, Omron, Autonics
4-Vacuum calibration
5-Water cooling

Pipe range(OD)	Φ250-500mm
Pipe length	3-6m
Socket type	R type(rubber ring) or U type(solvent)
Socket method	R type: die tool expand with outer pressure calibration U type: die tool insert
Cooling method	Water cooling
Require cooling water pressure	0.2~0.3Mpa
Quantity of heating oven	1
Heating method	Electric heating, by stainless steel heating rods
Heating power	22kw
Total Power	28kw
highest temperature in heater	280ºC
Air pressure	0.4~0.6Mpa
Center height	1000mm±50mm  (or according to extruder)
Machine set weight	About 2.1T
Require oil label	46# wear resistance hydraulic oil
