Basic Info.

Model NO. PE-600/1200 Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Application Jacket Pipe Extrusion Calibration Meth Vacuum Calibration Pipe Diameter Range 110-2000mm Control System Siemens Transport Package Standard Package for Export Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 840kg/H

Product Description

PU Foam Pre-Insulated Steel Pipe HDPE Casing/Shell Pipe Extruder




Introduction: Vacuum Calibration Plastic HDPE pipe machine
 is a completed high-speed and high-efficient, automatic and intelligent plastic pipe production line developed by HUASHIDA by technological innovation.

Application: It is applicable for extrusion of HDPE casing pipe(jacket pipe), which is used as a protective cover of rigid pre-insulated pipe in district heating, hot water or chilled water piping systems. Diameter range 110-2000mm.

Advantages: 1)vacuum calibration improves the stiffness, flexibility and mechanical strength of the pipe. 2)High degree of intelligence improves production efficiency and reduces labor costs. 3)Fast production speed, 30% faster than similar equipment. 4)High-quality hardware and software reduce maintenance costs.

Structure: This pipe extrusion production line mainly includes a single screw extruder, molds, vacuum calibrating& water cooling tank, spray water cooling tank, haul-off machine, cutting machine and bracket.

Technical parameters

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	30m	32m	36m	40m	45m

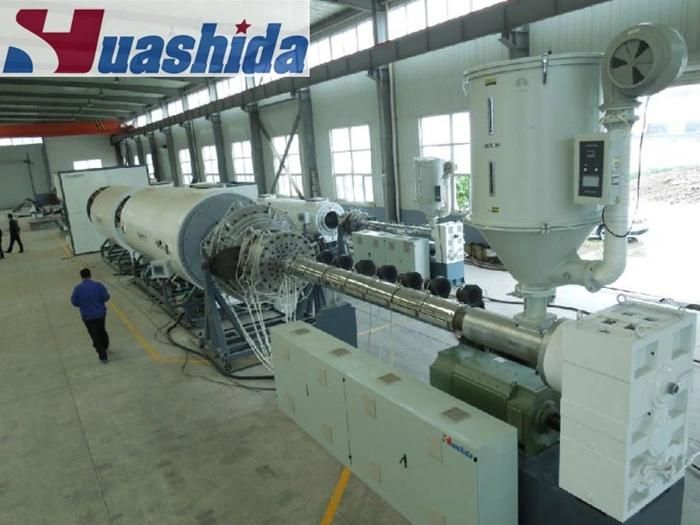

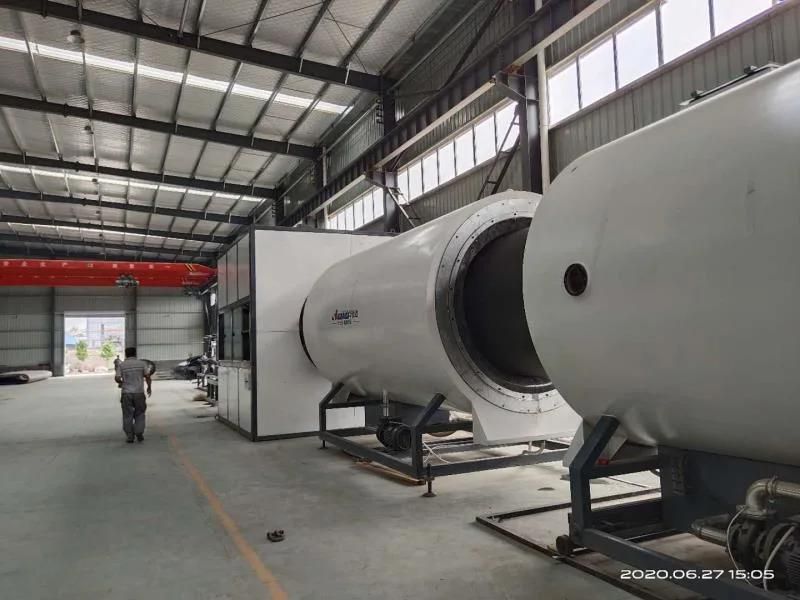

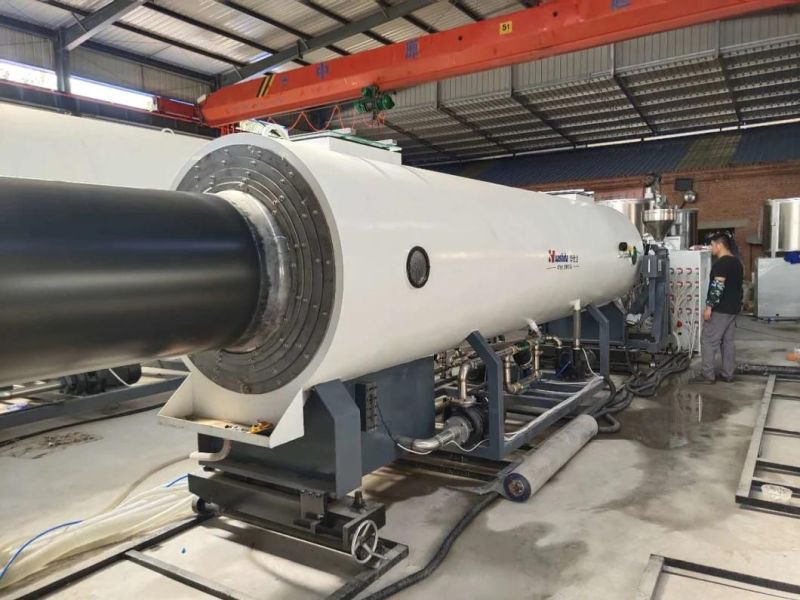

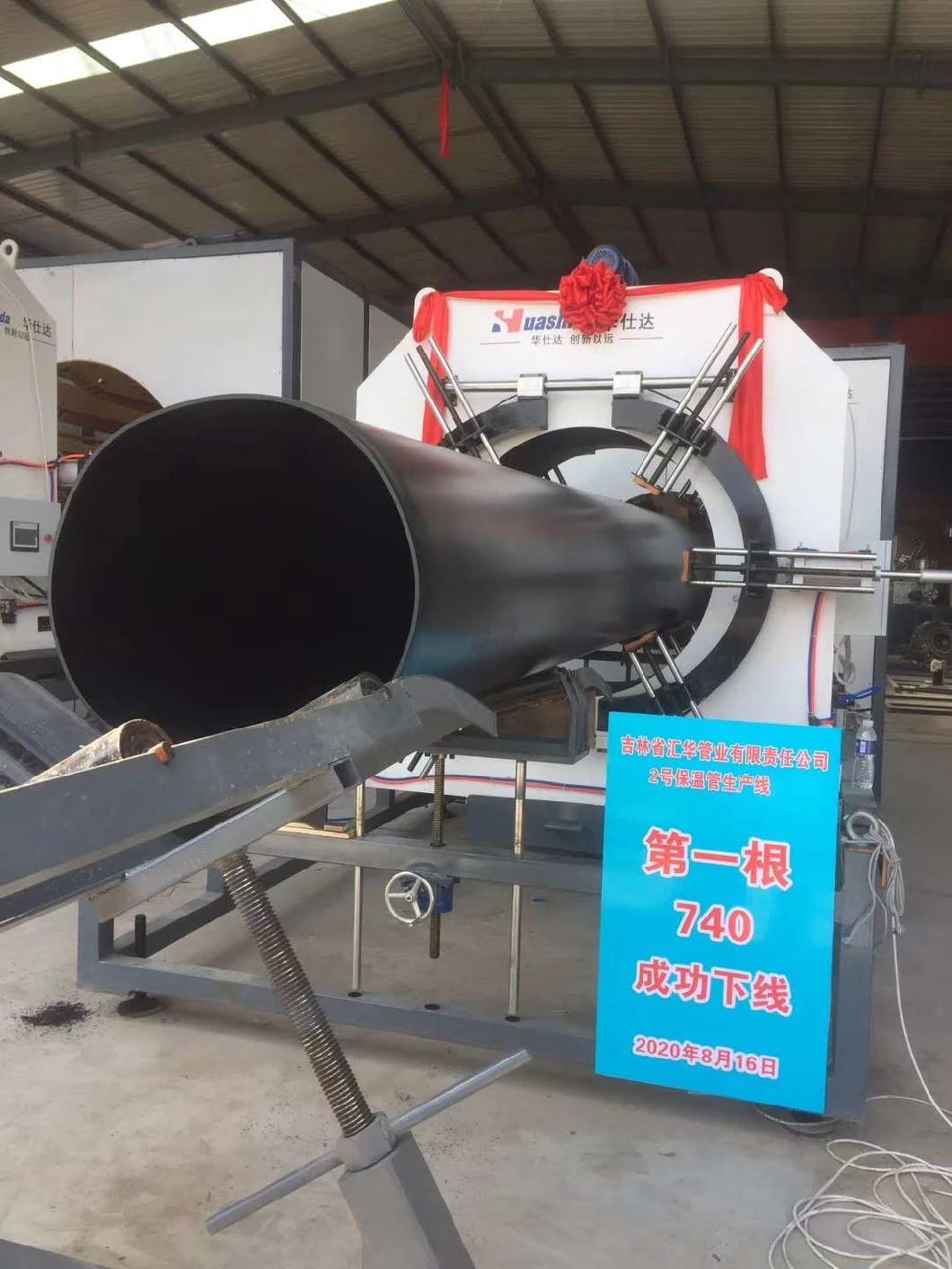

In customers' factory

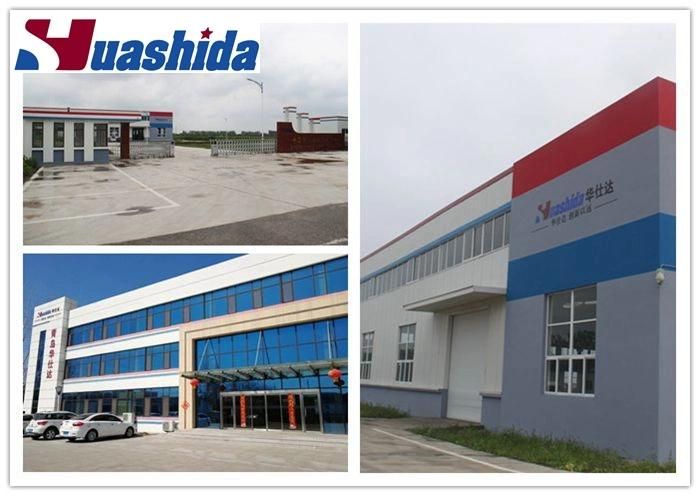

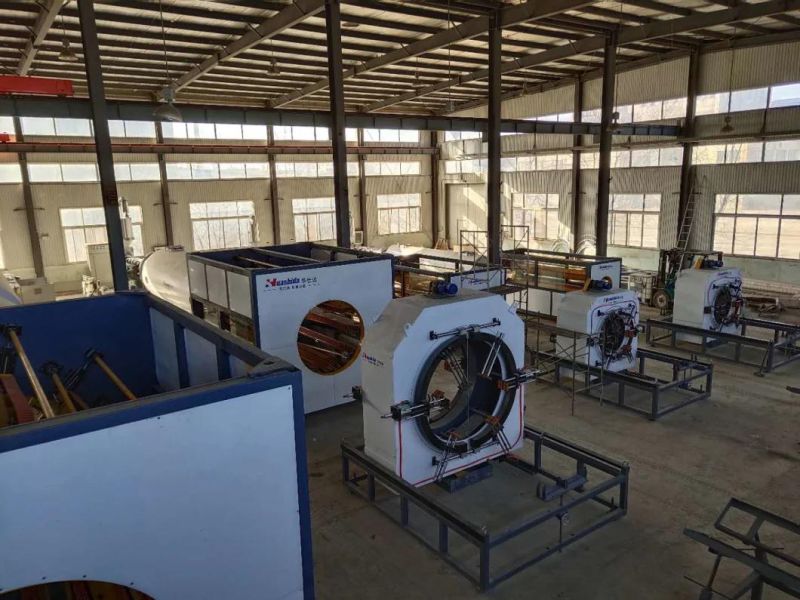

HUASHIDA production park

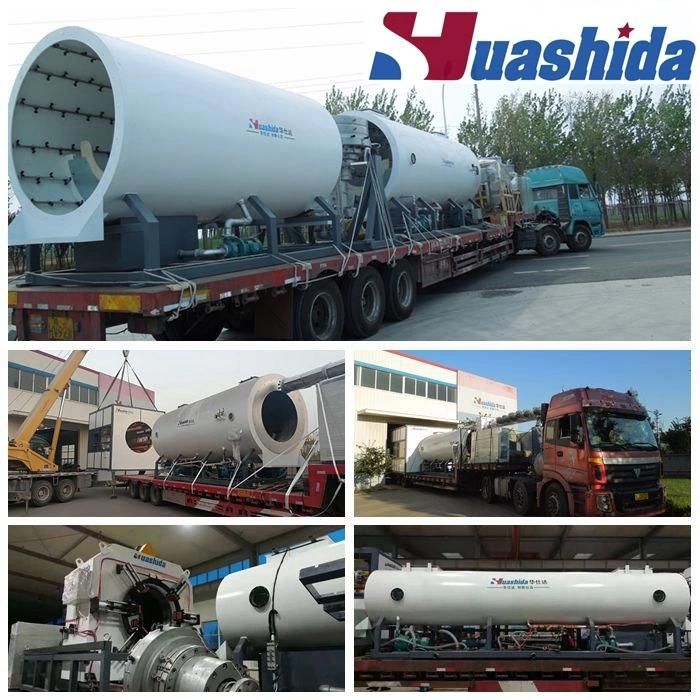

Equipment delivery
