Semi Manual Stacker Hydraulic Power Pack Is Used in Logistics and Storage Industr
Richer Industry (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Pressure：Low Pressure
- Work Temperature：-20 ~ 80
- Voltage：24V
- Installation：Horizontal
- Material：Aluminum Alloy
Base Info
- Model NO.：HPU
- Deliver Time：30 Days
- Product Composition 1：High Pressure Gear Pump
- Product Composition 2：DC Motor
- Product Composition 3：Multipurpose Integrated Block
- Product Composition 4：Solenoid Valve
- Product Composition 5：Oil Tank, etc
- Transport Package：Carton Packing
- Specification：24V
- Trademark：EnRong Hydraulic
- Origin：China
- HS Code：8412299090
- Production Capacity：10000
Description
Overview

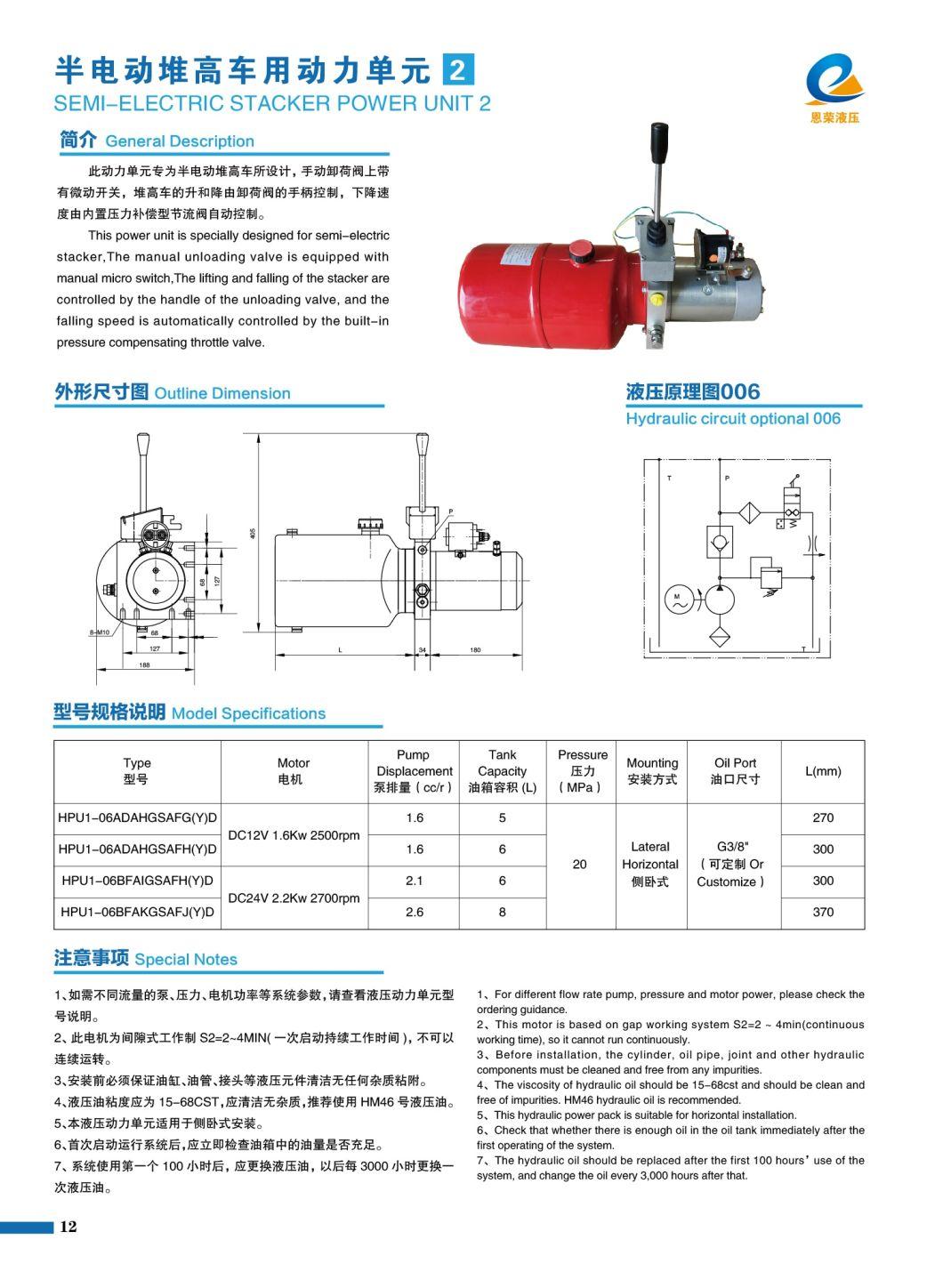

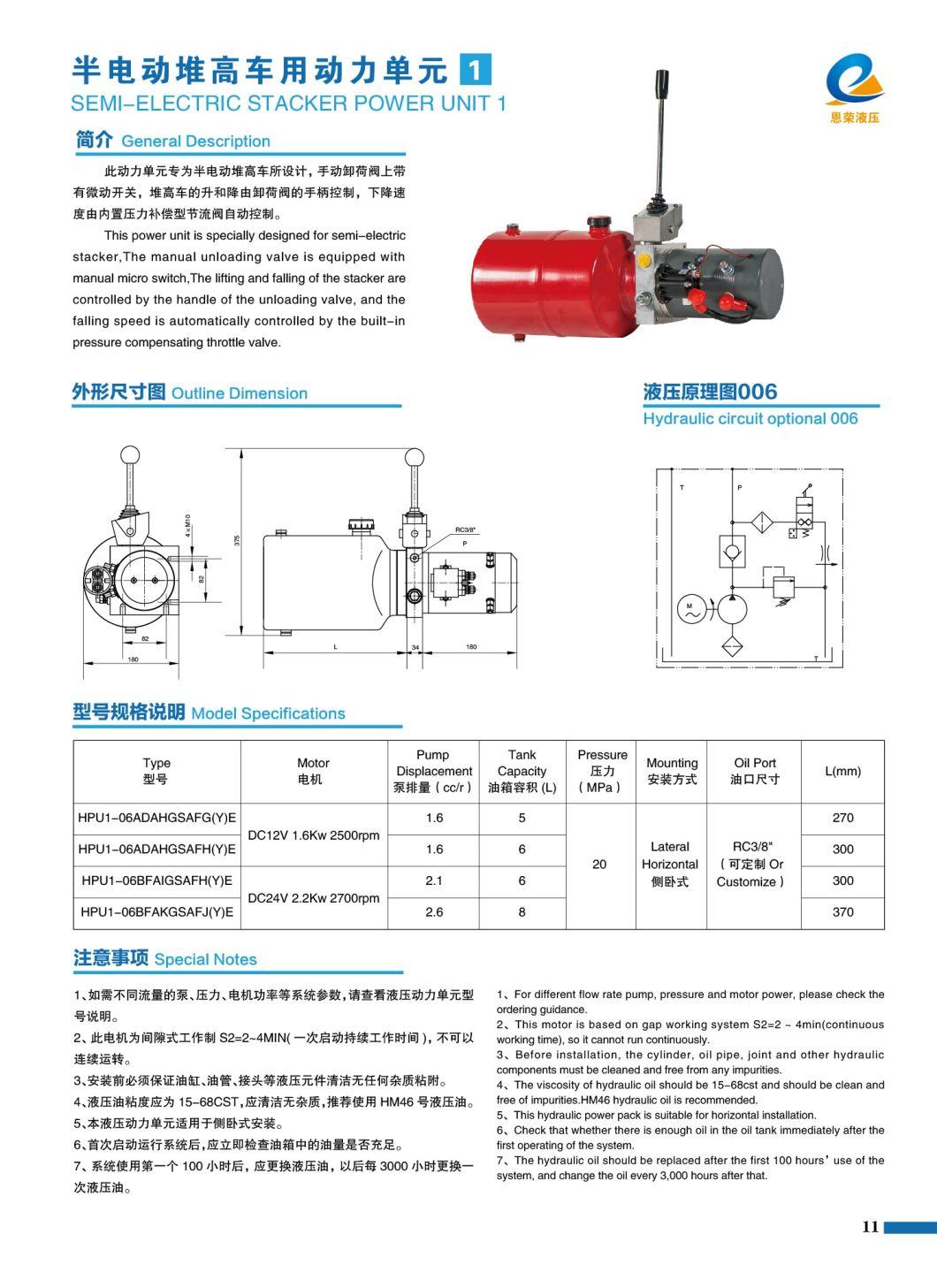

Product DescriptionMotor pump displacement tank capacity pressure mounting oil port Length 12V 1.6KW 2500RPM 1.3CC/R 3.7L 18MPA LATERAL HORIZONTAL 3/8'' BSSPP 12V 1.6KW 2500RPM 1.6CC/R 5L 18MPA LATERAL HORIZONTAL 3/8'' BSSPP 12V 1.6KW 2500RPM 2.1CC/R 6L 18MPA LATERAL HORIZONTAL 3/8'' BSSPP 24V 2.2KW 2500RPM 2.1CC/R 6L 20MPA LATERAL HORIZONTAL 3/8'' BSSPP 24V 2.2KW 2500RPM 2.6CC/R 8L 20MPA LATERAL HORIZONTAL 3/8'' BSSPP

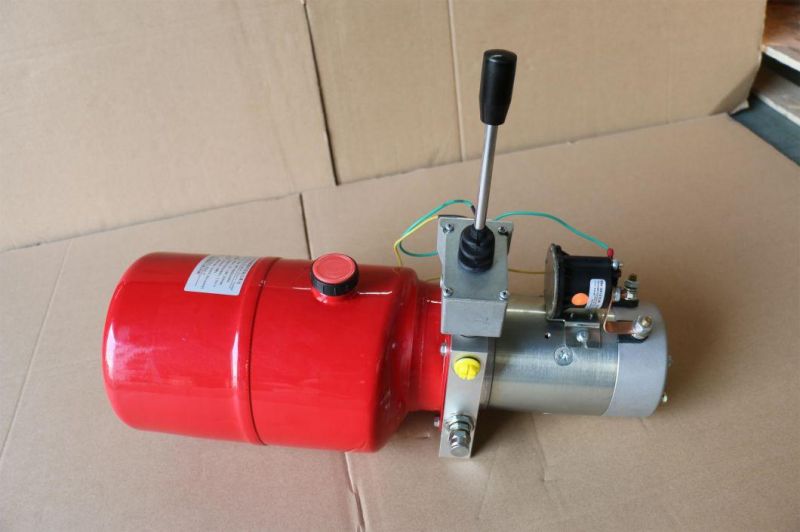

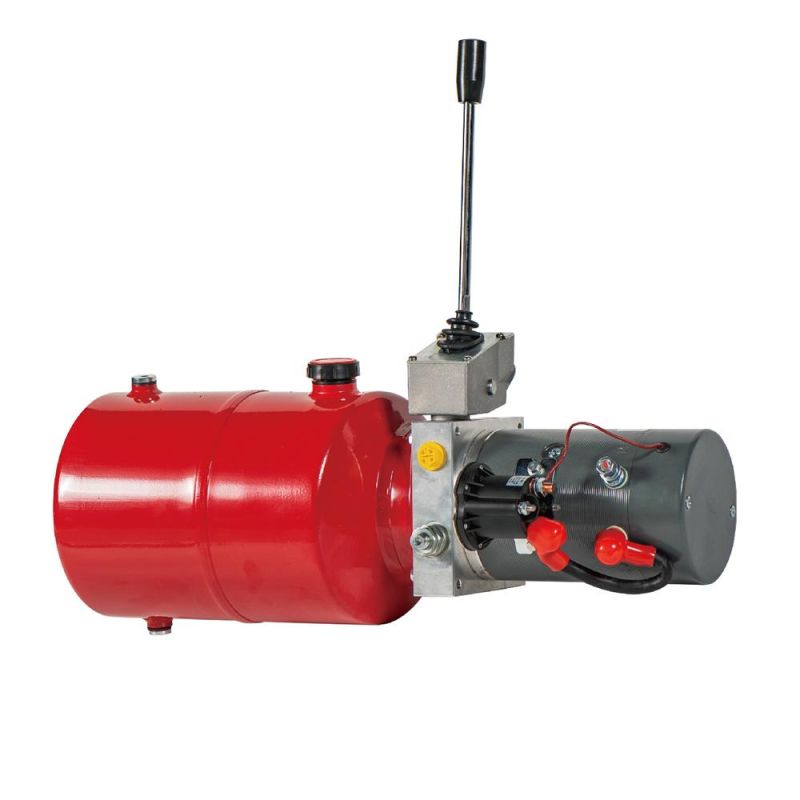

This HPU is designed for electric stacker,it's made of high pressure gear pump,DC motor,manofoid block,Hydraulic Vavle and oil tank,etc.Micro switch on the manually operate type unloading vavle,use the handle to control it go up or down,the down speed is controlled by the flow control valve automatically.
