Model NO. SJSZ 65/132, 80/156 Specification ISO9001-2000 Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 100set/Year

Product Description

PVC Plastic Plate Sheet Extruder Machine Extrusion Line
SJSZ Series PVC Sheet Extruder Extrusion Line Machine  is specially used for producing PVC Sheet or PVC Edge Band, suitable in the fields of sanwich panel packaging, stationery, chemicals, construction, household appliances etc. PVC Edge Band cana be used for furniture edge banding and skinning, thermoforming packing and so on.

Specifications
1. Usual sheet width: 500-1500mm
2. Usual sheet thickness: 0.2-2mm

Main Feature of PVC Sheet products:

Products with good plasticization, high tension, products controlling, high production capacity and can be replaced PVC cast sheet.

This PVC Sheet Extrusion Line Consists of:

1 set of Spring feeder ( loader ) type ZJF-700
1 set of Double-Screw Extruder type
1 set of T-type die head
1 set of  three roller calendar,
1 set of cooling frame,
1 set of edge cutting unit,
1 set of hauling machine,
1 set of  knife cutting machine
1 set of stacker.

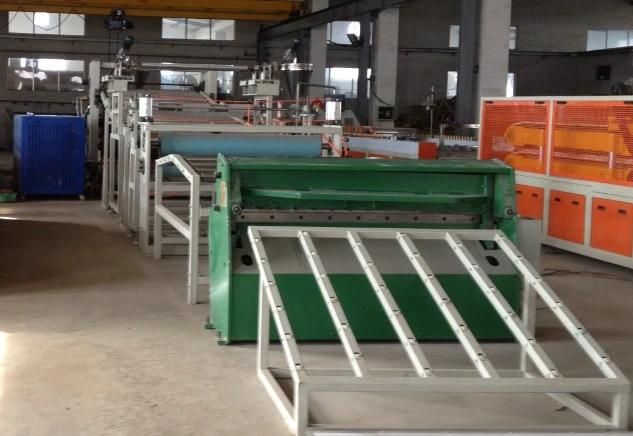

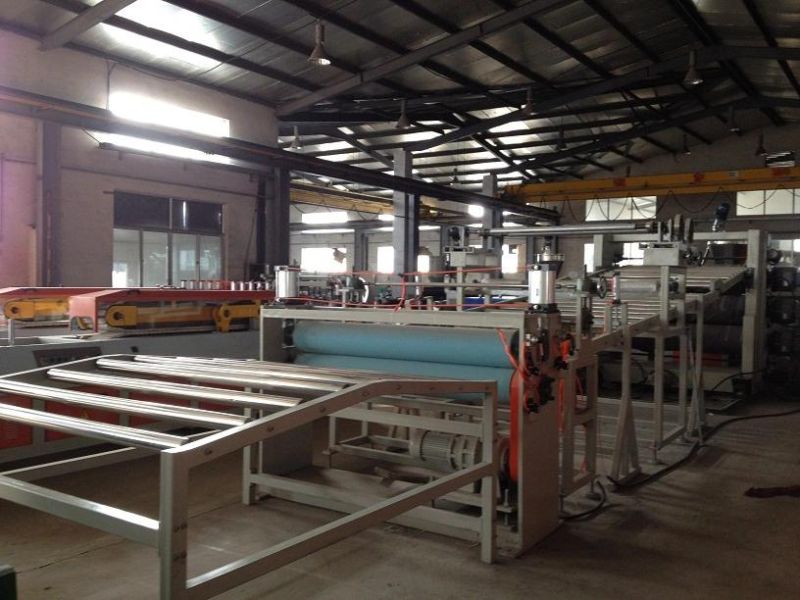

Whole Extrusion Line

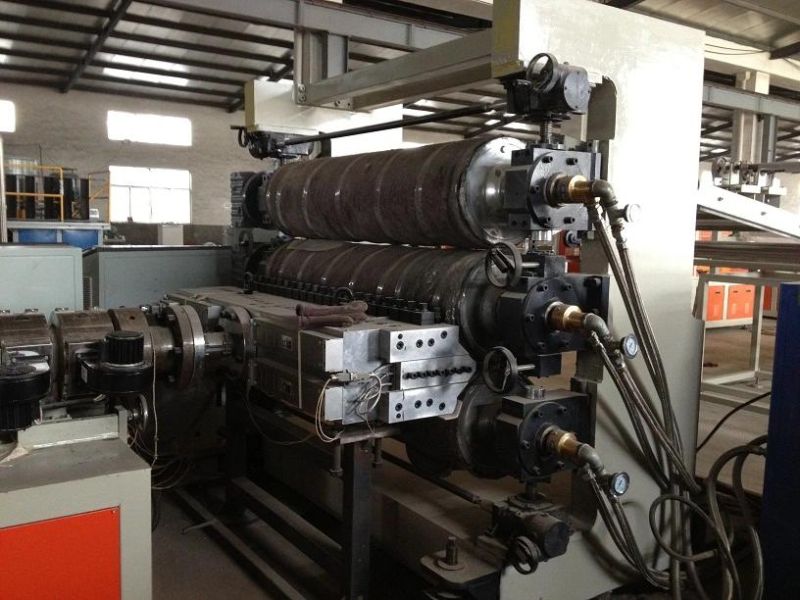

T-type Die Head and Three Roller Calendar

Acessorry Machines



. Extrusion line type LPSB-65/132for PVC wave sheet, including:        1 set of Spring feeder ( loader ) type ZJF-700 1 set of Double-Screw Extrudertype SJSZ-65/132 1  set of T-type die head 1 set of Accessory equipments for PVC sheet, three roller calendar, cooling frame, edge cutting unit, hauling machine, knife cutting machine and stacker. 2.1. S pring feeding machine ( charger ) type SJF-700                                 Item Description Unit ZJF-700 1  Feeding Capacity Kg/h Max.700 2 Container Volume Kg 100 3 Spring Diameter mm φ59 4 Feeding Tube and Spring Length mm 3-5 5 Material Trunk Volume Kg 200 6 Electric Power   3-380V  50Hz 7 Main Motor Power Kw 2.75 8 Dimensions mm 950×950×960 Φ820×1550 9 Total Weight Kg 250   2.2. Double-Screw Extruder type SJSZ 65/132 Item Description Unit SJSZ65/132 1 Output Capacity Kg/h Max.250 2 Number of the Screws   2 3 Diameter of the Screw mm  65/132 4 Rotating Direction of the Screws   Forth & Reverse 5 Rotation Speed of the Screw r/min 1-34.7 6 Available Working Length of the Screws mm 1430 7 Main Motor Power Kw 37 8 Speed Adjusting Mode   frequency conversion adjustable, Invertor from OMRON 9 Gear reducer   Rigid-gear surface low noise design 10 Heating Capacity of the Screw barrel Kw 24 ( casting-aluminium electric-thermal elements ) 11 Material of the Screws  and the barrel   38CrMoA1 12 Nitriding Depth of the Screws and the barrel mm 0.5~0.7 13 Nitriding rigidity of the Screws and the barrel HRC 50~55 14 Cooling Mode of the Screw barrel   by air cooling 15 Temperature Adjustment of the Screws   By Screw-core Temperature Adjusting Device 16 Indicators   Melt pressure & temperature indication by gauge 17 Temperature controllor   Brand: Omron, Japan 18 Element of Electric System ( contactors, buttons, switches )   Brand:  Schneider 19 Power of the Vacuum Pump Kw 1.5 20 Max. Vacuum Degree MPa -0.093 21 Cooling Water Consumption L/min 1~3 22 Plastic Material Feeding Mode   By Fixed-quantity Screw Feeding Device 23 Rotation Speed of the Feeding Screw R/min 3.5~47 ( frequency conversion ) 24 Height of the Screw Axes mm 1000 25 Figure Dimensions ( L×W×H ) mm 4235×1520×2450 26 Weight Kg 4000   2.4. T -die head, 1 set       Item Description Unit 1250mm 1 Die width mm 1400 2 Adjusted thickness mm 0.4-1mm 2.5. Accessory equipments for PVC sheet, three roller calendar, cooling frame, hauling machine, knife cutting machine and stacker. 1 set        2.5.1. Three roller calendar   Discription Unit   1 Roller motor power KW 3*3 sets 2 Speed adjusting inverter   Japan FUJI 2 Roller width mm 1500 3 Roller mm 355 5 Chromed thickness mm 0,05-0,06 6 Roller wall thickness mm about35 7 Roller adjusting   Electrical, manual 8 Thermocontrol   Mould thermocontroller, 1 set   2.5.2 .Cooling frame, Edge cutting unit, Hauling-off Machine   Item Description Unit   1 Diameter of rubber roll mm 220 2. Length of cooling frame mm 4000 3 Method of edge cutting   knife 4 Length of rubber rolls mm 1500 5 Clamping method   Pneumatic 6 Driving motor kw AC, 2.2KW, INNOVANCE inverter 7 Hauling speed m/min 0.5-4.5   2.5.3 . Knife c utting machine   Item Description Unit   1 Method   Knife cutting 2 Cutting width mm 1500 3 Cutting thickness mm 0.4-1 4 Driving method    Electrical 5 Length counter          Digital 2.5.4. Stacker Item Description Unit   1 Material of working table   Stainless steel 2 Working length   3000
