Basic Info.

Model NO. LMSB-90/30 Customized Customized Condition New Finished Non-Woven Width 1600mm Filament Thickness 2-8um Production Speed 8-80m/Min Extrusion Capacity 1500kg/Day Weight Per Sqm 15-80g/Sqm Installed Sizes 20mx8mx9m Installed Power 350kw Transport Package Separate Wood Case and Pallet Specification CE ISO9001-2008, GOST, SGS Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 35sets/Year

Product Description

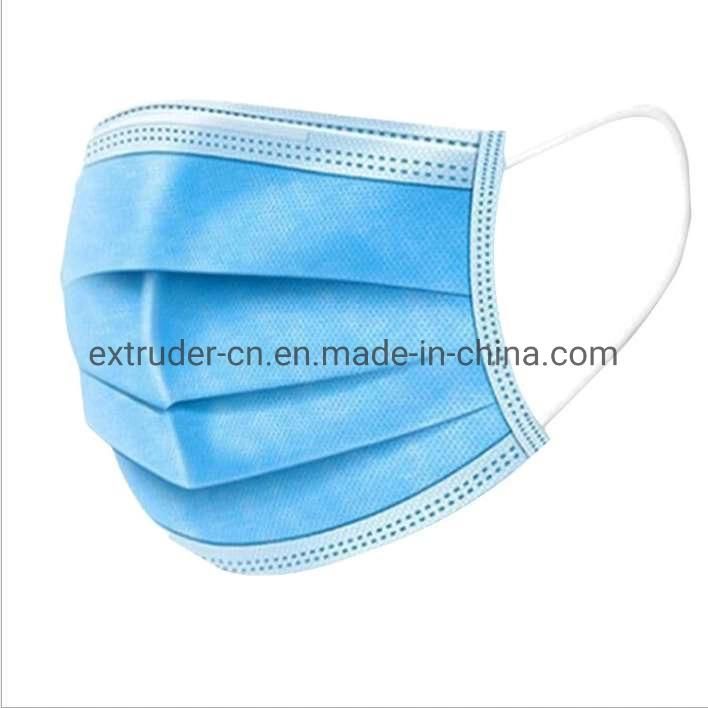

For face masks core material PP melt blown non-woven fabric extrusion line extruder machine production line

Meltblown non-woven fabric is the core material of masks. Meltblown cloth mainly uses polypropylene as the main raw material, and the fiber diameter can reach 1 to 5 microns. There are many voids, fluffy structure and good anti-wrinkle ability. Ultrafine fibers with unique capillary structure increase the number and surface area of fibers per unit area, so that the meltblown cloth has good filterability, shielding, heat insulation and oil absorption. Can be used in the fields of air, liquid filter materials, insulation materials, absorption materials, mask materials, thermal insulation materials, oil absorption materials, and wiping cloths.


Meltblown cloth equipment has stable running performance, high output and high efficiency. The production of non-woven fabrics is uniform, strong, breathable, non-toxic and tasteless, and meets environmental protection standards.

The melt blown cloth equipment of Leader Machinery consists of PP single screw extruder, hydraulic double pistion filter, melt pump, melt blown spinneret, air heating system, work platform, track receiver, roller receiver, negative pressure suction winding system, pneumatic control system, production line control system.

Technical parameters:

Model	LMSB-800	LMSB-1600	LMSB-2400	LMSB-3200	LMSB-4000
Model of extruder	SJ-55	SJ-90	SJ-110	SJ-135	SJ-150
Weight of products	8-80g/m2	8-80g/m2	8-80g/m2	8-80g/m2	8-80g/m2
Max. speed	50-200m/min	50-200m/min	50-200m/min	50-200m/min	50-200m/min
Daily output	300-400kg	1500kg	2500kg	4000kg	6000kg

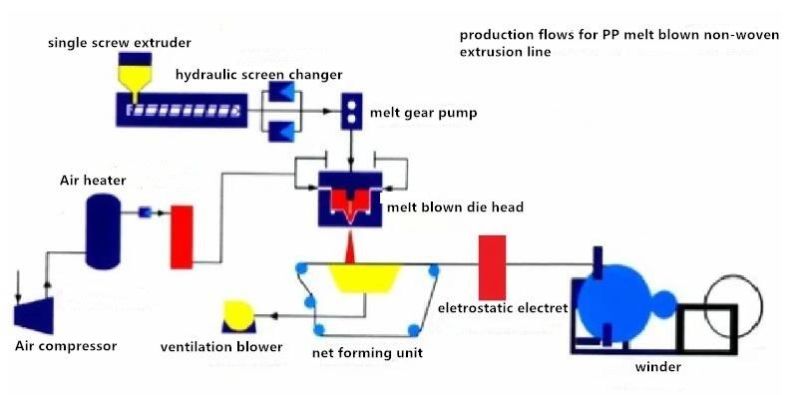

Production flows:

single screw extruder →hydraulic screen changer→melt gear pump→melt blown die head →net forming unit→eletrostatic electret→winder

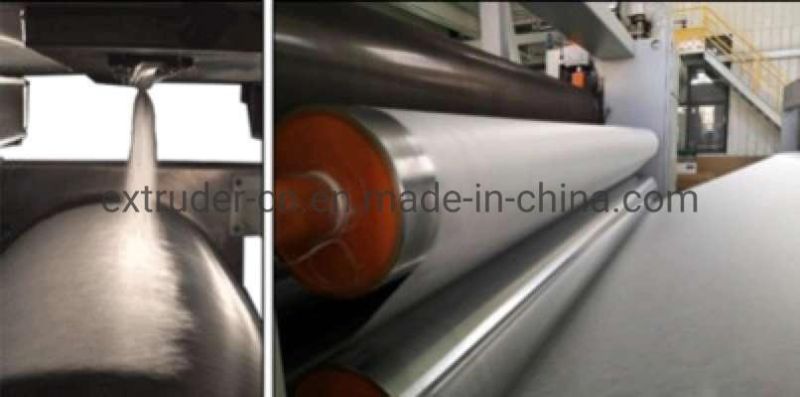

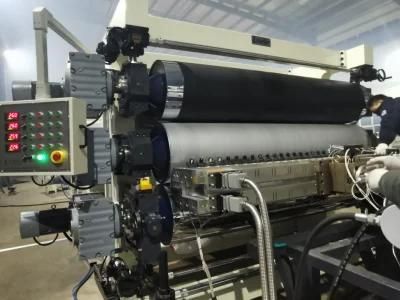

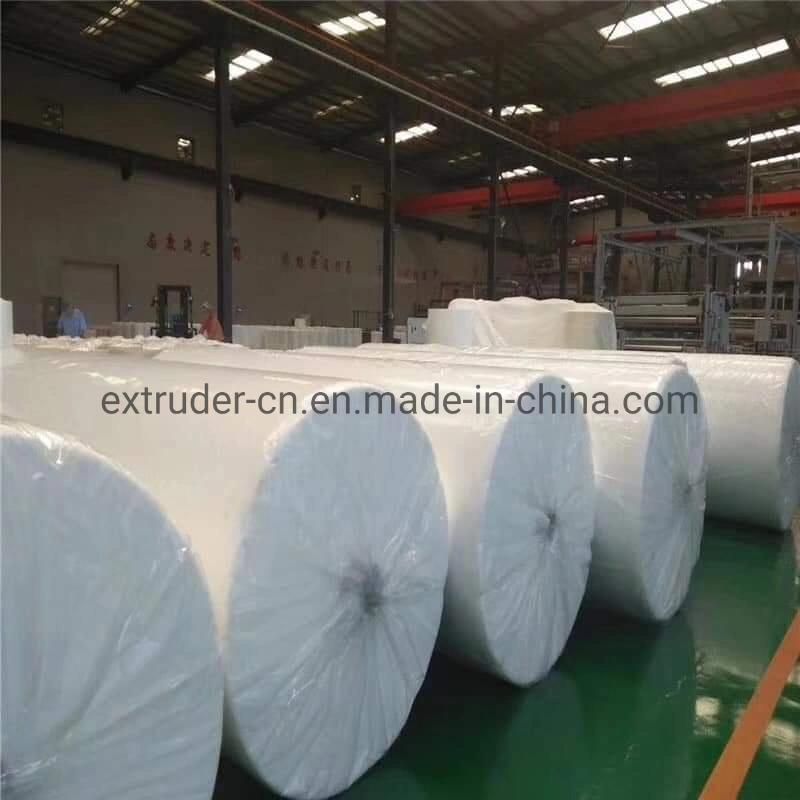

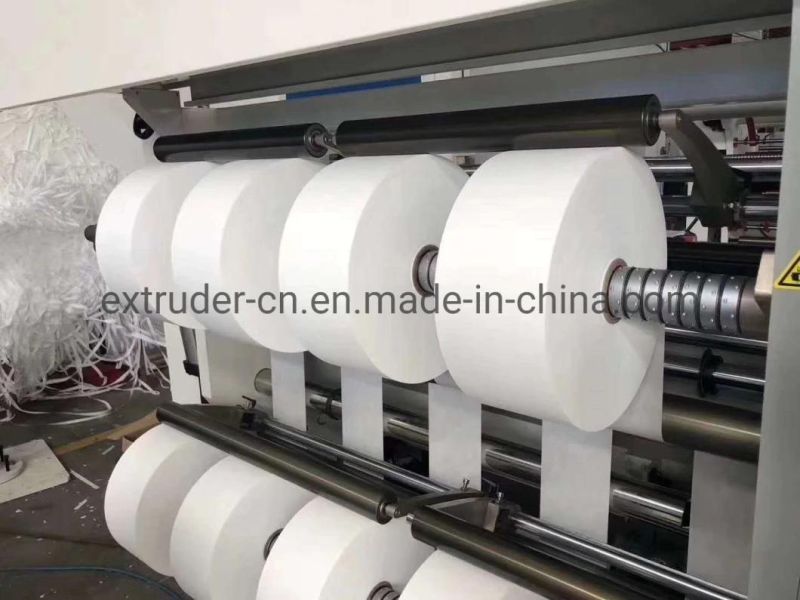

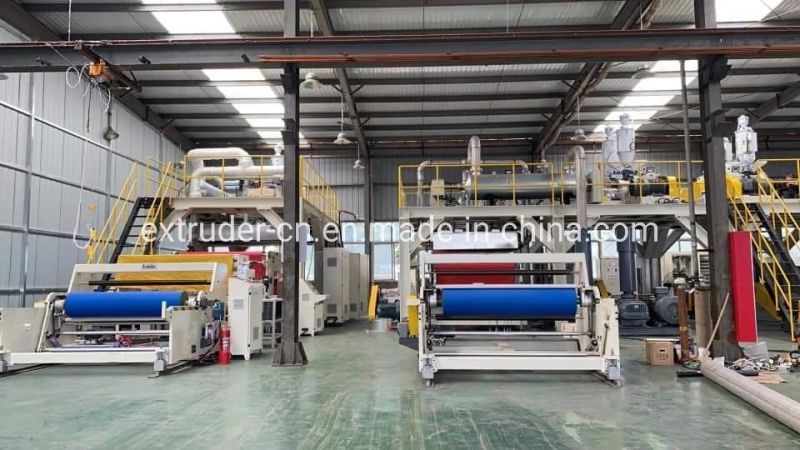

More machine pictures :

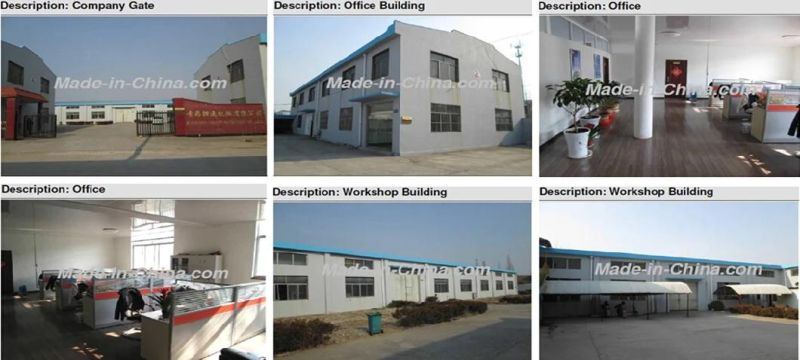

Company information :
