• Model NO.：KQ100-2000
• Tank Type：Steam Heating or Electricity Heating
• Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
• Surface Treatment：Mirror + Polished
• Motor Brand：Siemens ,ABB ,Shanghai
• Voltage /Hz /Phase：Make to Your Order
• Packing：Wooden Box
• MOQ：1set
• Cleaning：CIP Spray Ball
• Control Box：Yes
• Mixing System：Make It to Your Order
• Insulation Wall：Polyurethane Foam , Rock Wool
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

Basic Info.

Model NO. KQ100-2000 Tank Type Steam Heating or Electricity Heating Mixing Speed 36rpm, 48rpm,96rpm, 2900rpm Surface Treatment Mirror + Polished Motor Brand Siemens /ABB /Shanghai Voltage /Hz /Phase Make to Your Order Packing Wooden Box MOQ 1set Cleaning CIP Spray Ball Control Box Yes Mixing System Make It to Your Order Insulation Wall Polyurethane Foam / Rock Wool Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

Electric Heating Jacket Tank Price Stainless Steel Tank Tank Factory





Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate

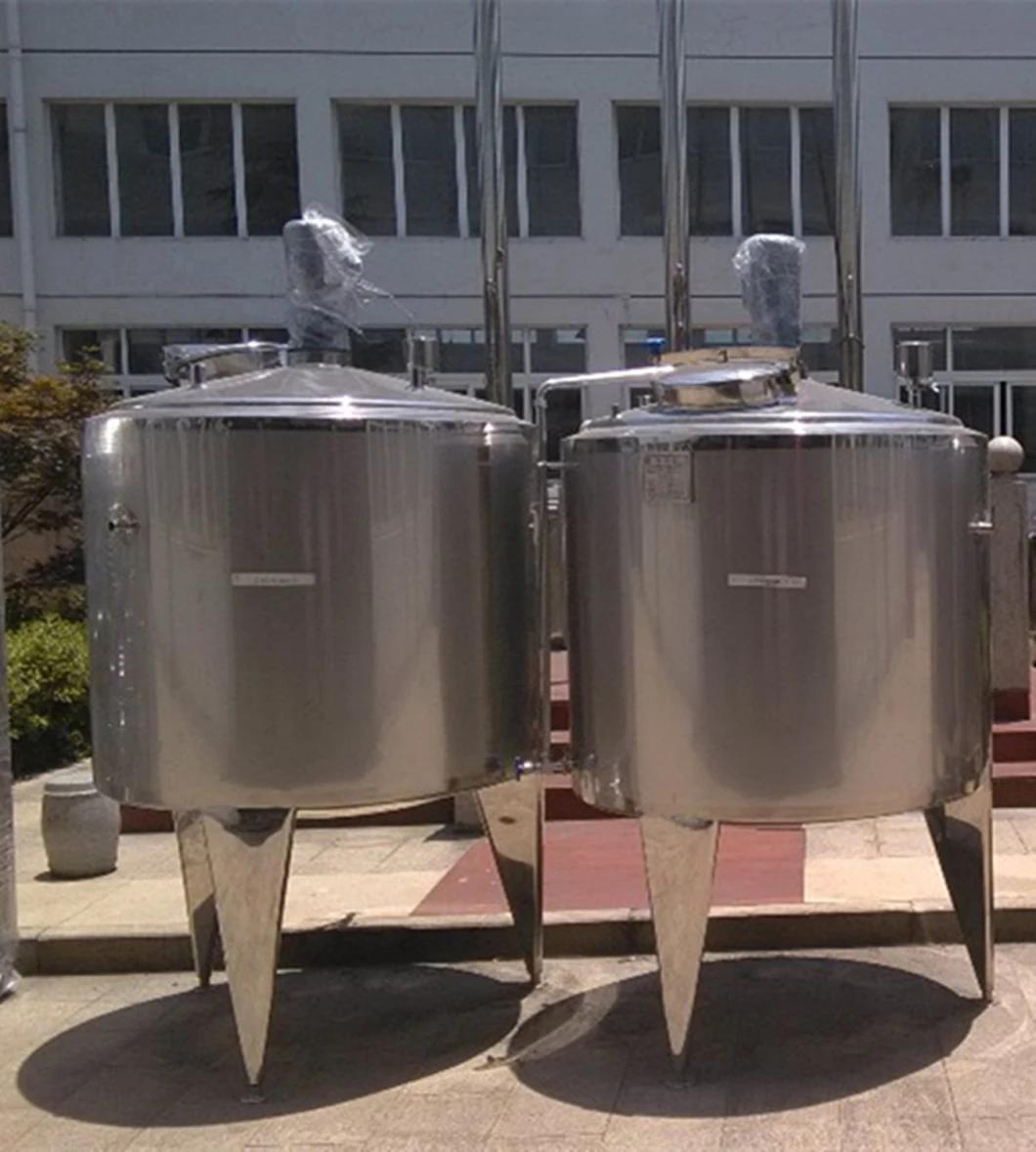

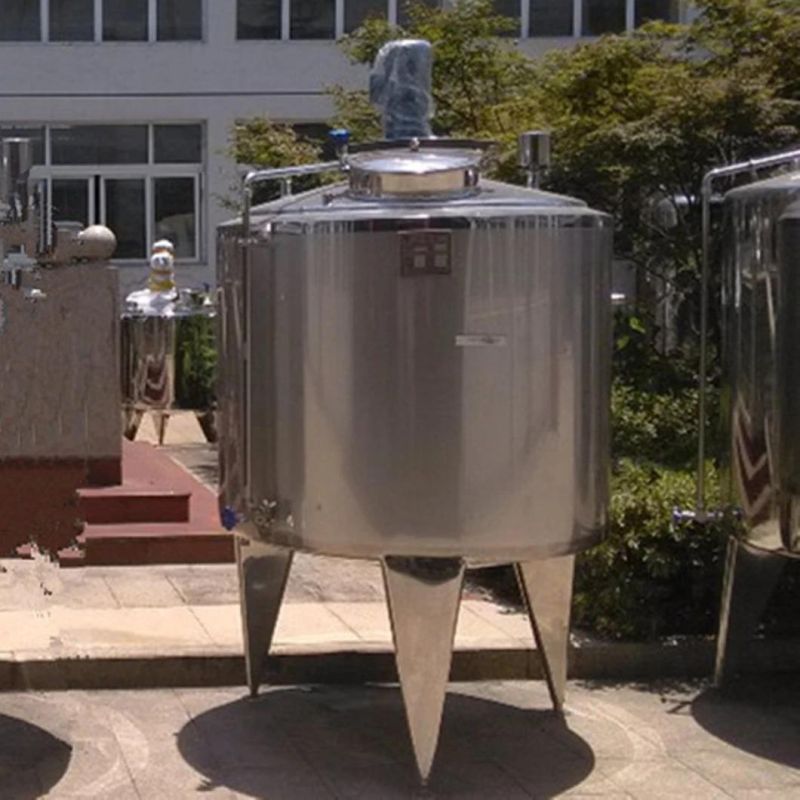

ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

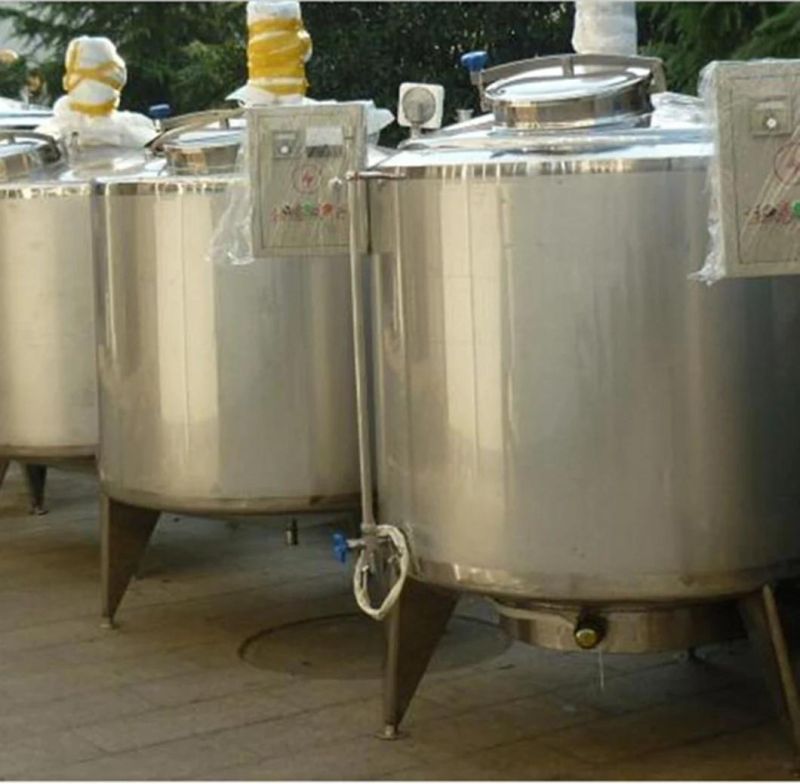

Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down
* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)
