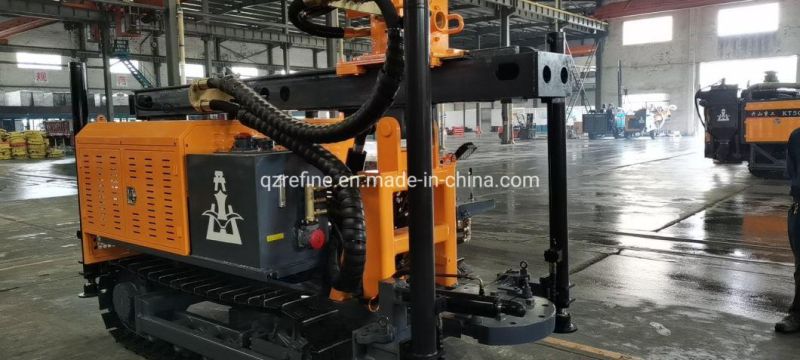

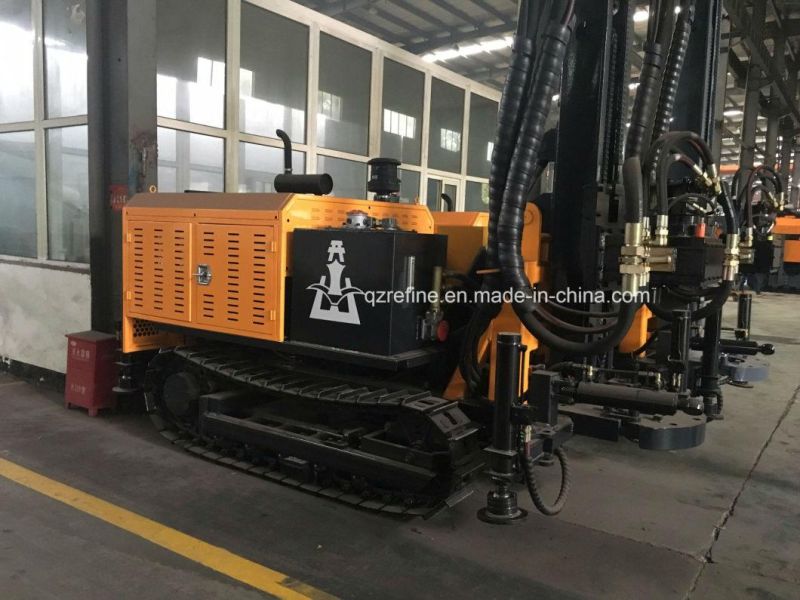

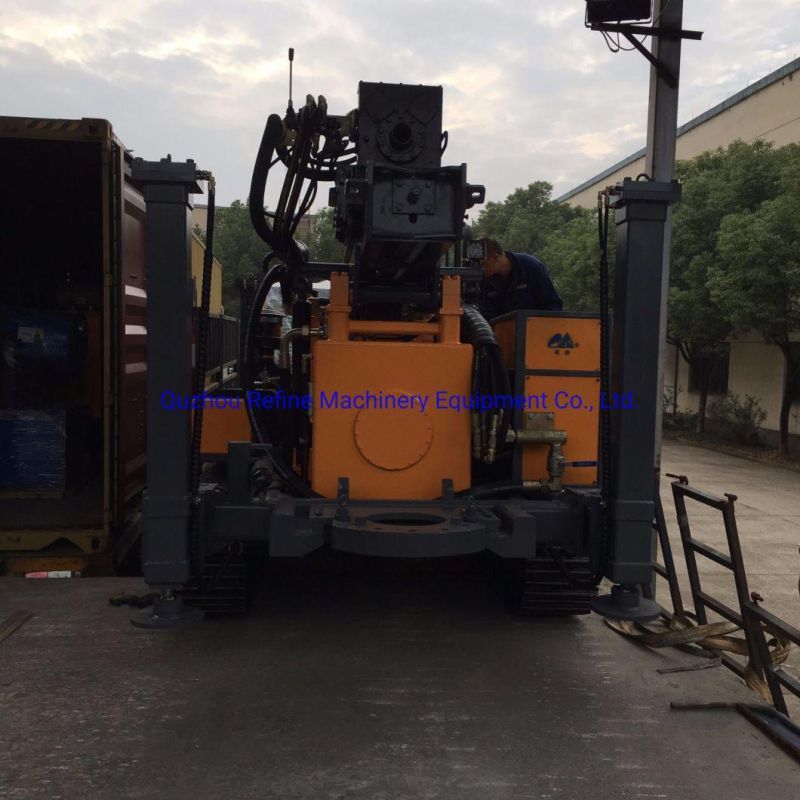

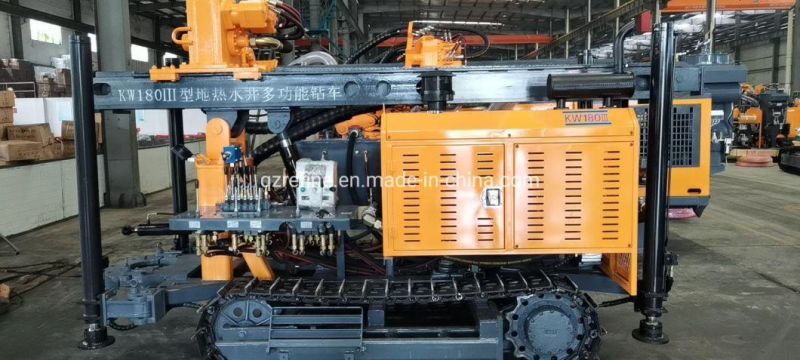

KAISHAN KW180 Crawler Water Well DTH Drilling Rig
Zhejiang Feida Machinery Co., Ltd.Base Info
Description

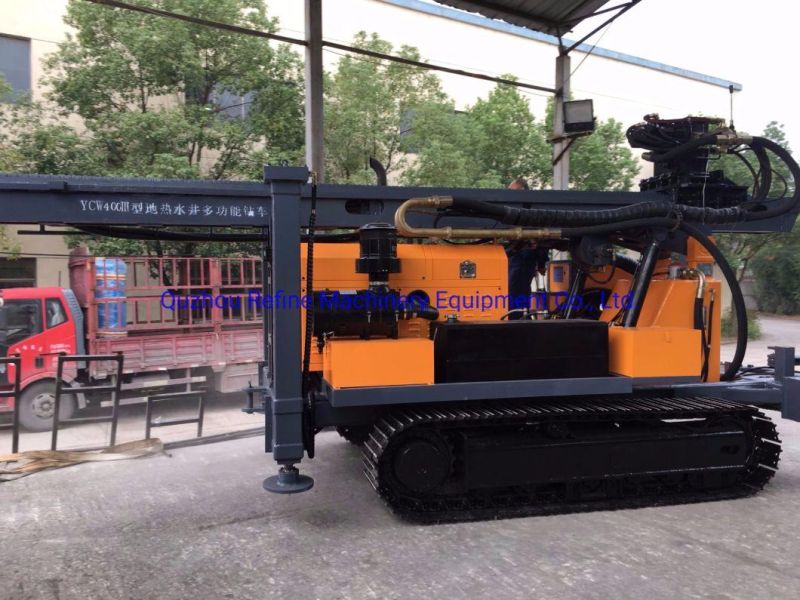

KW Series Water Well Drilling Rig SpecificationModel KW180 KW400 KW600 feed stroke 2m 3m 3m Drill rod option φ89x2m, φ76x2m φ89*3m, φ102*3m φ89*3m, φ102*3m Dimension of drill rig 4600*1550*2350mm 7300*2250*2750mm 7300*2250*2750mm Drilling rock hardness F=8-12 F=8-12 F=8-12 Drilling hole dia. 115-202mm 110-273mm 168-350mm Drilling depth 180m 250m 450m Drill rig weight 4500kg 9000kg 9500kg Ground clearance 280mm 280mm 280mm Climb capacity 15degree 15degree 15degree DTH hammer option 4/5/6inch hammer 5/6/8inch hammer 5/6/8inch hammer Air consumption 19-30m3/min 16-54m3/min 16-73m3/min Working pressure 10.5-24.6bar 10.5-24.6Bar 10.5-34.5Bar Engine Model 4DKC4G2-80, Yuchai YC42150-T300, Yuchai YC4A150-T300, Yuchai Power 58KW, 2200rpm/min 113KW, 2200rpm/min 113KW, 2200rpm/min Traveling speed 2.0km/h 0-2km/h 0-2km/h Rotation torque 4200N.m 5700N.m 8500N.m Rotation speed 0-100rpm 76-94r/min 76-123r/min Lifting method oil cylinder leaf chain oil cylinder leaf chain oil cylinder leaf chain Rated lifing force 5000N 9500N 15000N Advancing speed of sliding palte 15-51m/s 8.9-80m/s 6.7-49m/s lifting speed of slidng plate 8-26m/s 4.2-2.7.8m/s 3.3-24m/s Hydraulic oil tank capacity 200L 400L 400L Diesel oil tank capacity 60L 150L 150L Drilling Method DTH hammer or Mud. DTH hammer or Mud. DTH hammer or Mud.
Products in warehouse

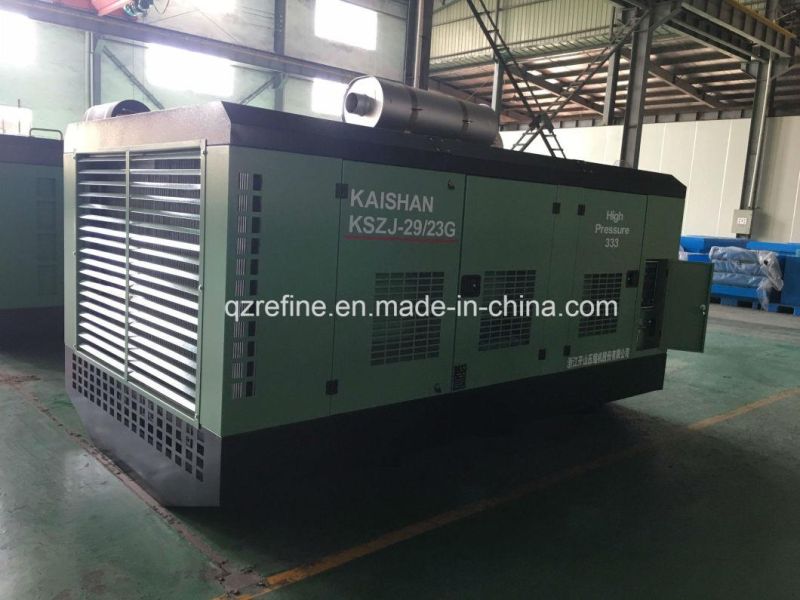

Deep Water well special using screw compressor recommendation:
KSZJ-15/14.5

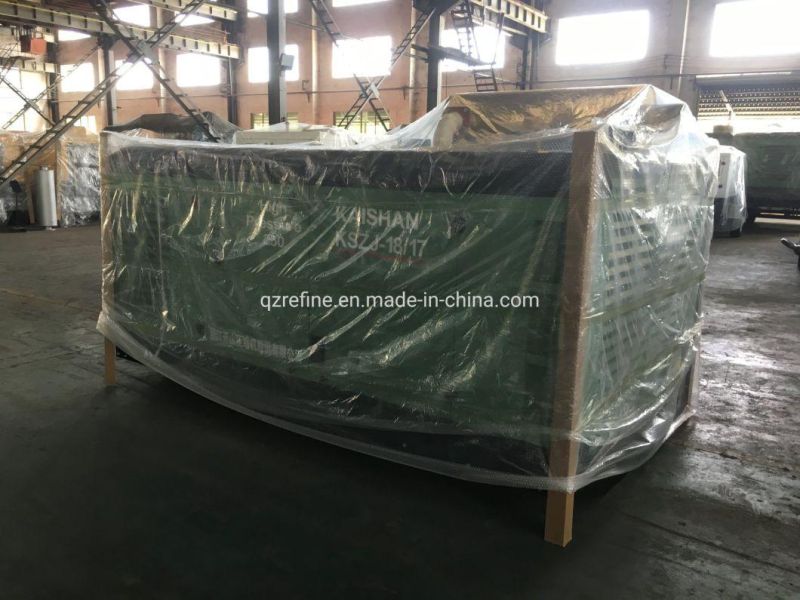

KSZJ-18/17
KSZJ-19/18
KSZJ-23/23
….
KSZJ-35/30
About KAISHAN GROUP:
FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
